SKYSHL Fusion Splicer with 8PCS Electrodes Auto Focus Core Alignment Optical Fiber Splicing Welding Machine-SS413F-411

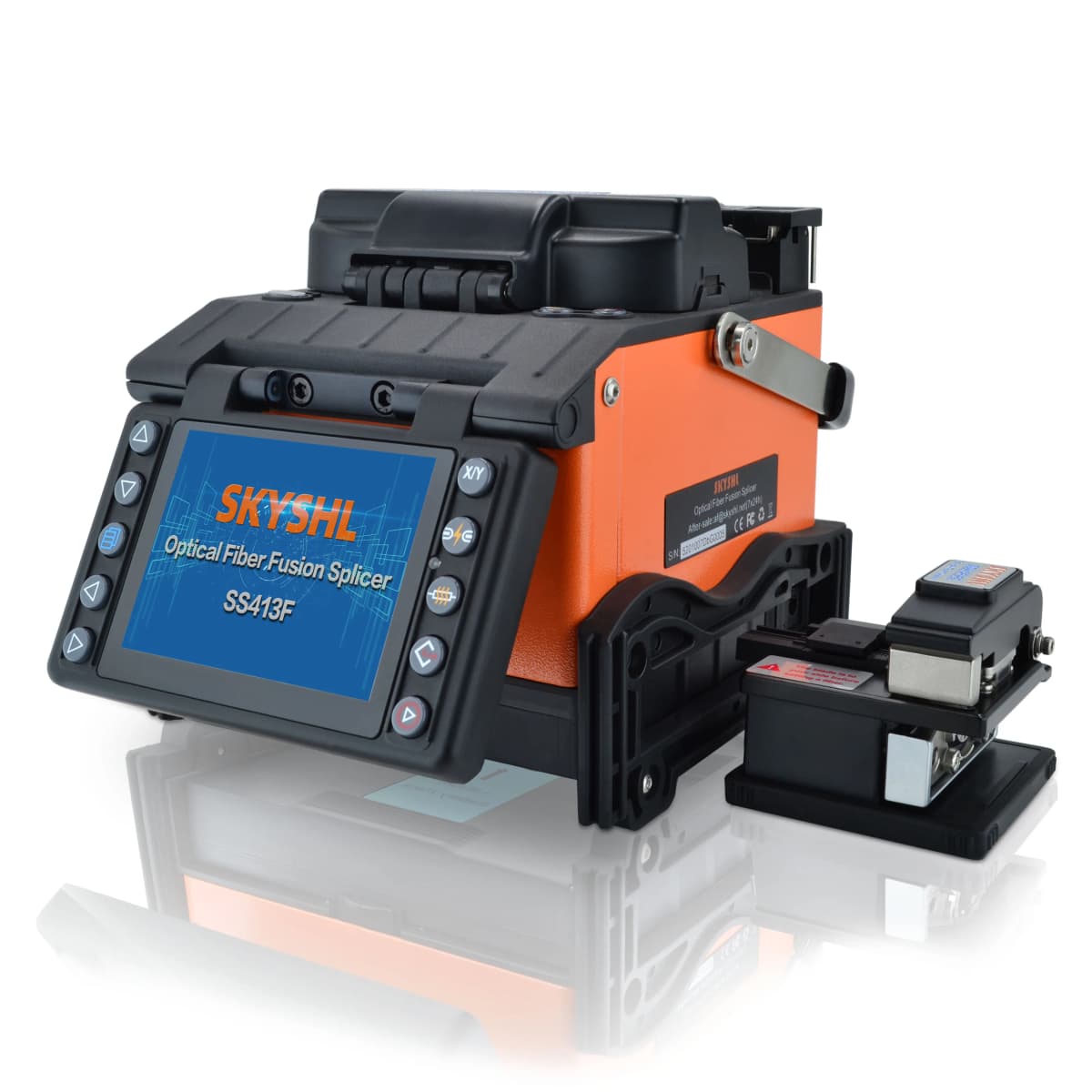

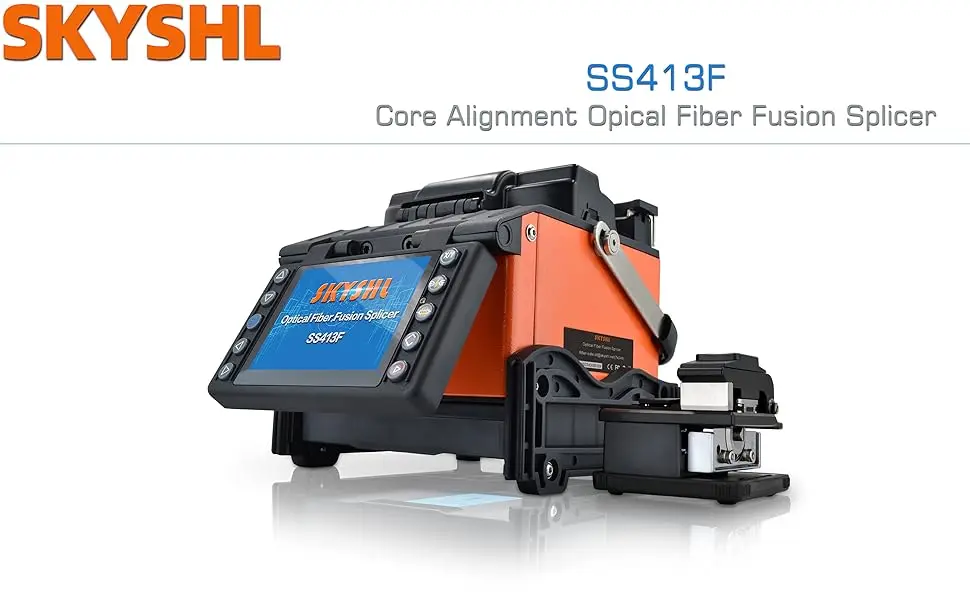

The SKYSHL SS413F is a advanced single fiber core alignment fusion splicers which possesses advanced image processing technology,meanwhile, it has high precision CMOS camera, lenses and servos which provide accurate core to core alignment regardless of core-cladding concentricity error[Actual average splice loss:0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)].

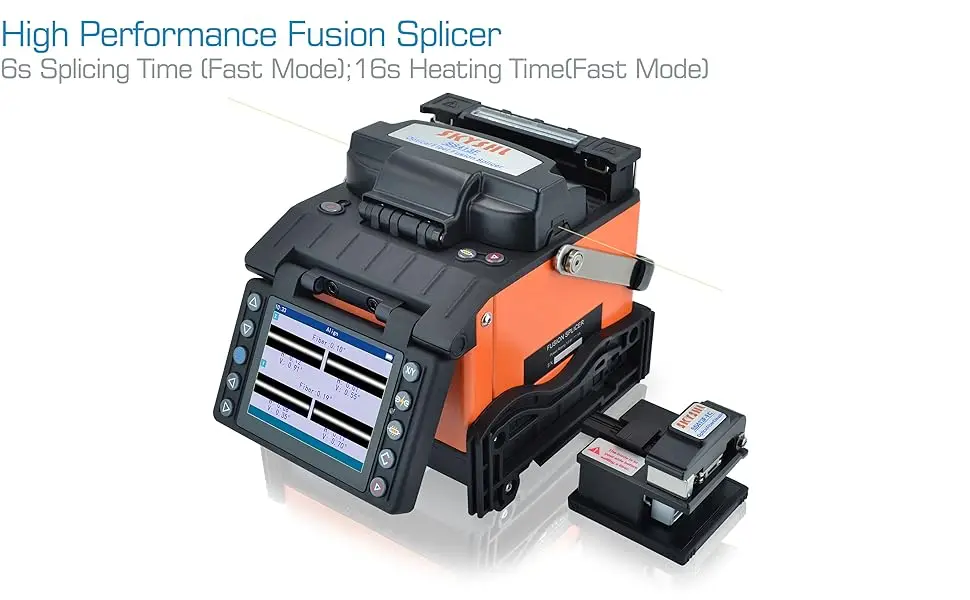

The SKYSHL SS413F fusion splicing machine uses a powerful high-speed motor and advanced CPU power allow fast 6 second splice time and 16 second heat time (60mm heat shrinkable tube), and it saving engineers time, meanwhile, A powerful, high propulsion motor helps ensure stable splicing for the most rigid indoor and drop fiber.

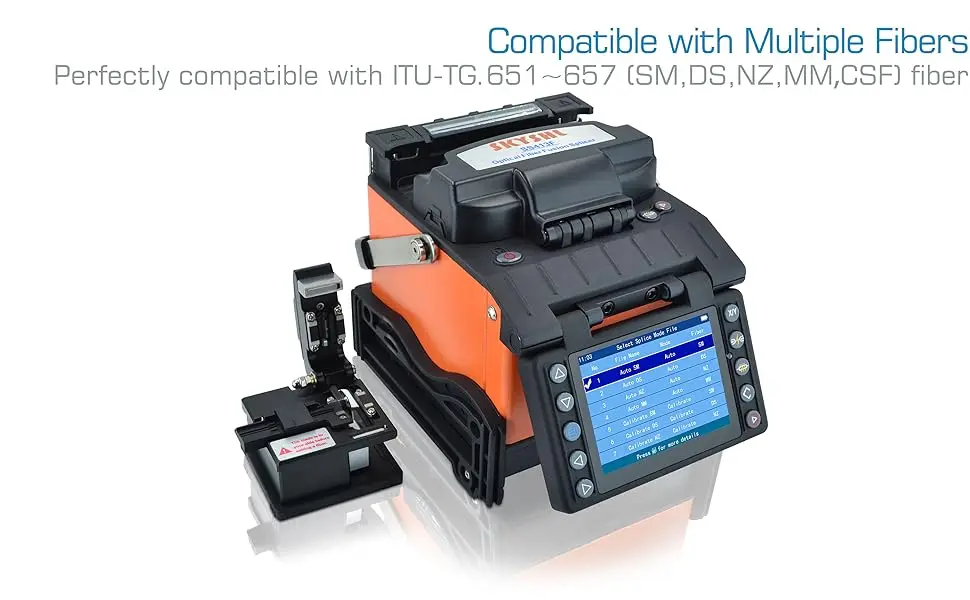

The SKYSHL SS413F is widely compatible with SM (ITU-T G.652, G.657A1 and G.657A2), MM (ITU-T G.651), DSF (ITU-T G.653), Cut-off Shifted Fiber (ITU-T G.654, Large Area type), NZD (ITU-T G.655) and BIF/UBIF (Bend Insensitive Fiber ITU-T G.657B3), the SS413F Fusion Splicer is highly effective for use in data centers, long-haul operations, Metro, LAN, and FTTx fiber.

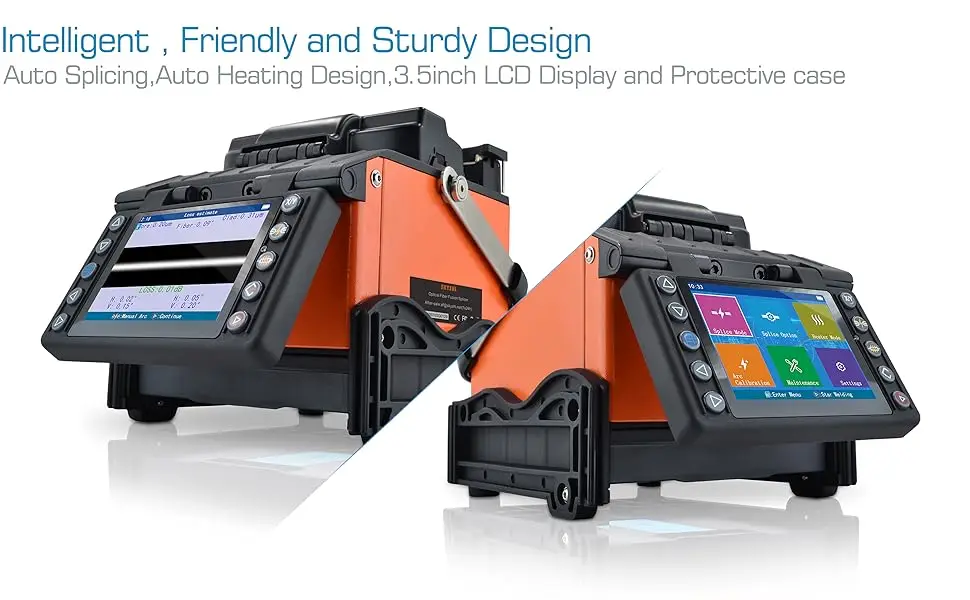

The interface design of SS413F is very friendly, you can set the parameters very easily. At the same time, SS413F has raised the level of automation to a new level--Automatic fiber identification, automatic focus, automatic splicing, automatic heating, automatic calibration, automatic arc compensation,etc.You only need a few simple steps to achieve high-precision fiber splicing.

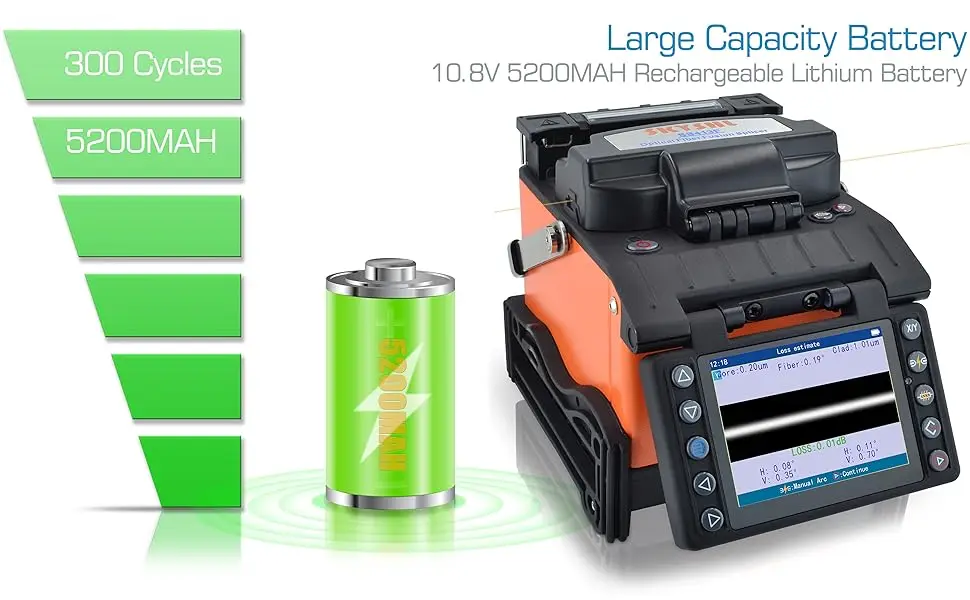

SKYSHL SS413F fully understands the needs and worries of users working outdoors, and provides a set of high-quality large-capacity rechargeable lithium batteries according to the actual needs of customers. A full charge can achieve 300 welding and heating operations, basically meeting the needs of users working outdoors.

SS413F series optical fiber fusion splicer is an important tool for the maintenance and construction of optical fiber networks. It is very suitable for radio and television networks, intelligent power networks, intelligent transportation systems, CCTV/CATV networks, government office networks, financial networks, FTTH, LAN, data centers and cloud computing network etc..

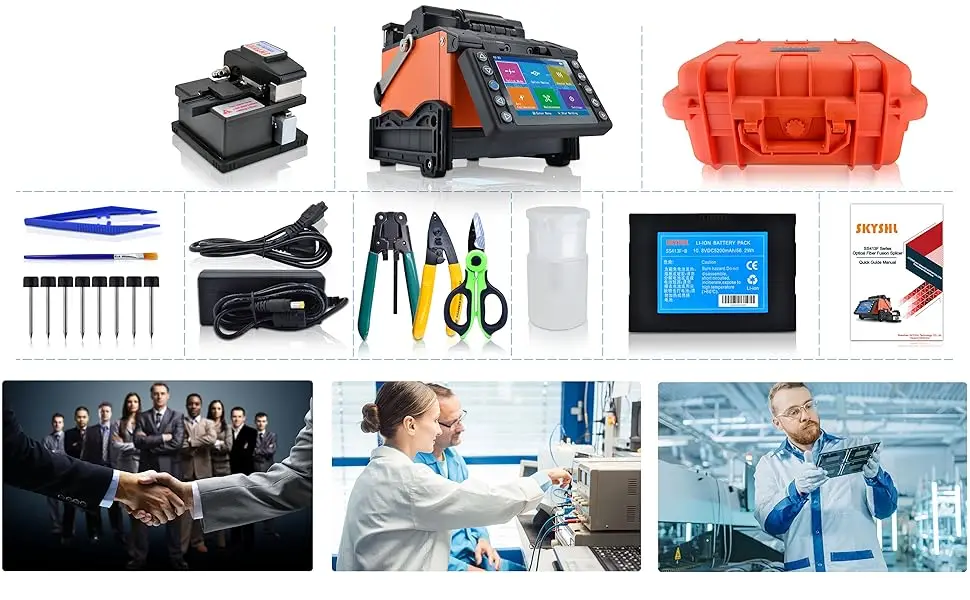

SS413F Optical Fiber Fusion Splicer Package List: 1*SS413F Fusion Splicer+1*10.8V 5200mah Lithium Battery+8*Spare Electrodes+1*ABS Engineering box+1*Oxford Strap+1*Miller Fiber Stripper+1*Optical Fiber Stripper+1*Kevlar Scissors+1*Alcohol Bottle(No Alcohol)+1*Plastic Tweezers+1*Cleaning Brush+1*Fiber Cleaver Guide+1*Fiber Cleaver+1*Hex Screwdriver+1*Factory Test Report+1*Packing List+1*SS413F User's Manual+1*100-240V Power Adapter.
