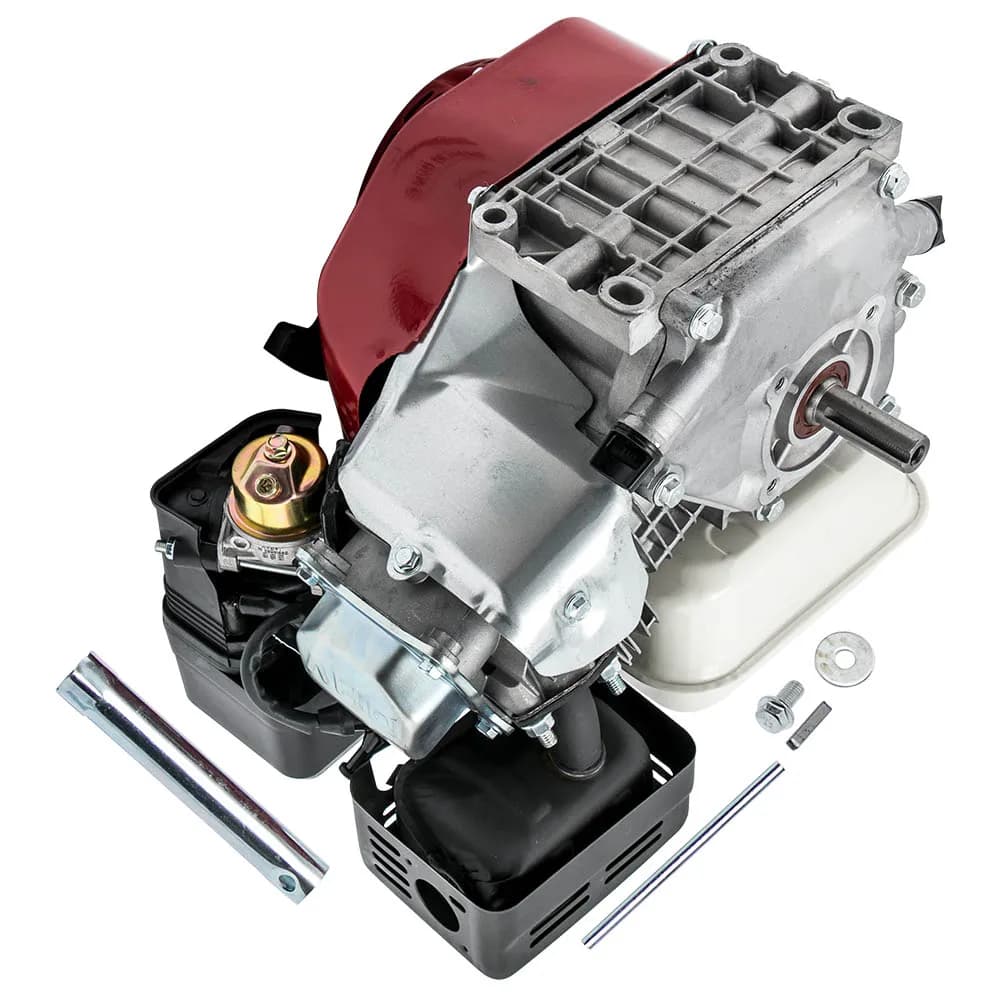

Replacement Gas Engine 5.5HP 4.1 KW 4 Stroke Pullstart for Honda GX160 OHV

Petrol / Gas Engine 5.5HP For Honda GX160 168cc 70x55mm Bore &Stroke Air-cooled

Typical Application for:

Compressor Scarifier Lawnmower Pump Generator Pressure Washer Gokart Lawnmower Cement Mixer Dust Collector Flail Mower

Technical Data:

Compression Ratio : 8.5:1

Engine Type :168F/Air Cooled 4 Stroke OHV Single Cylinder

Maximum Output :5.5 HP / 4.1 KW

Rated Output :4.0 HP / 3.0 KW

Bore & Stroke :70x55mm

Displacement :168cc

Starting System :Pullstart

Fuel Capacity : 3.6 Litres

Engine Oil Capacity : 0.6 Litre

Overall Length: 360 mm / 14.17 inches

Overall Width: 305 mm / 12.01 inches

Overall Height: 330 mm / 12.99 inches

Length of Drive Shaft / Crankshaft:250mm/ 9.84 inches

Distance Between Bottom Fixing Holes (Clutch Side, Centre of Eye to Centre of Eye): 165 mm / 6.5 inches

Distance Between Bottom Fixing Holes (Pullstart Side, Centre of Eye to Centre of Eye): 165 mm / 6.5 inches

Distance Between Bottom Fixing Holes (Pullstart to Clutch across, Centre of Eye to Centre of Eye): 77.06 mm / 3.03 inches
