【EU】1.5KW ER11 CNC Air Cooled Cooling Spindle Motor Woodworking Router Engraving Milling With HY Inverter VFD Kit

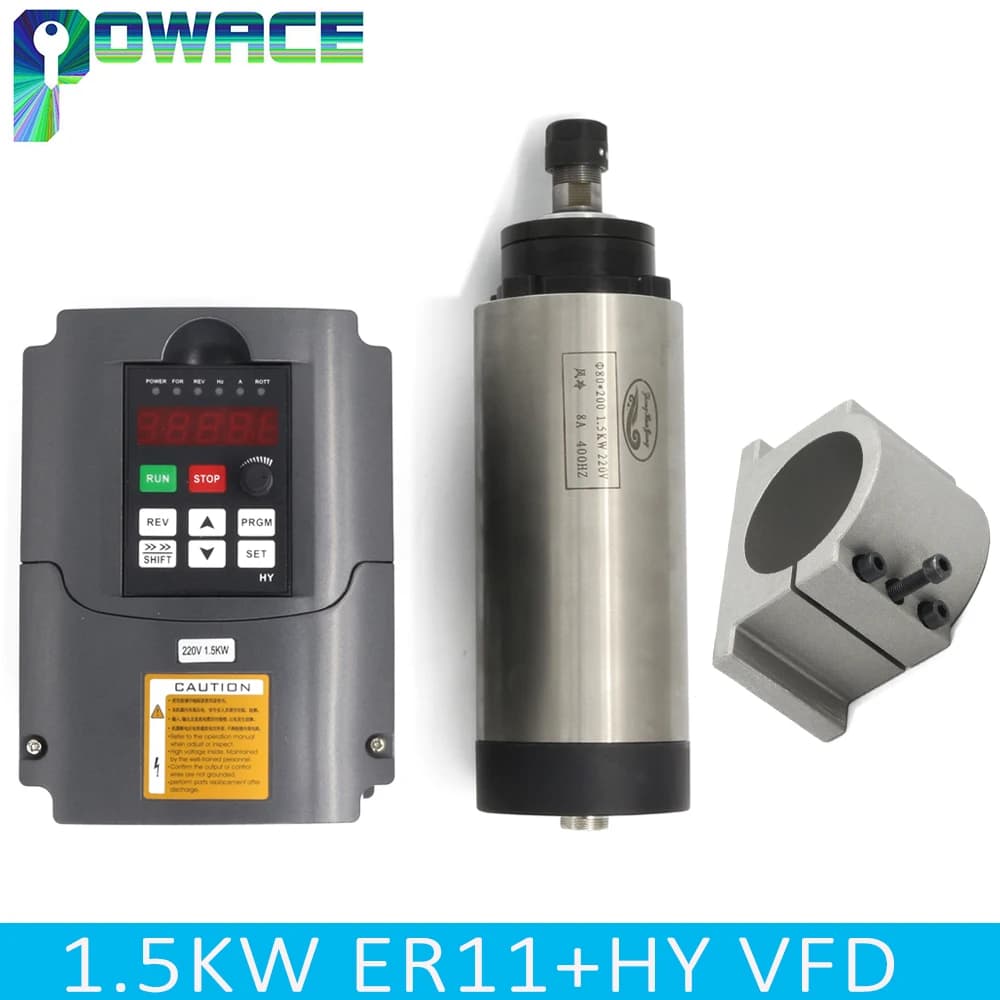

Package include:

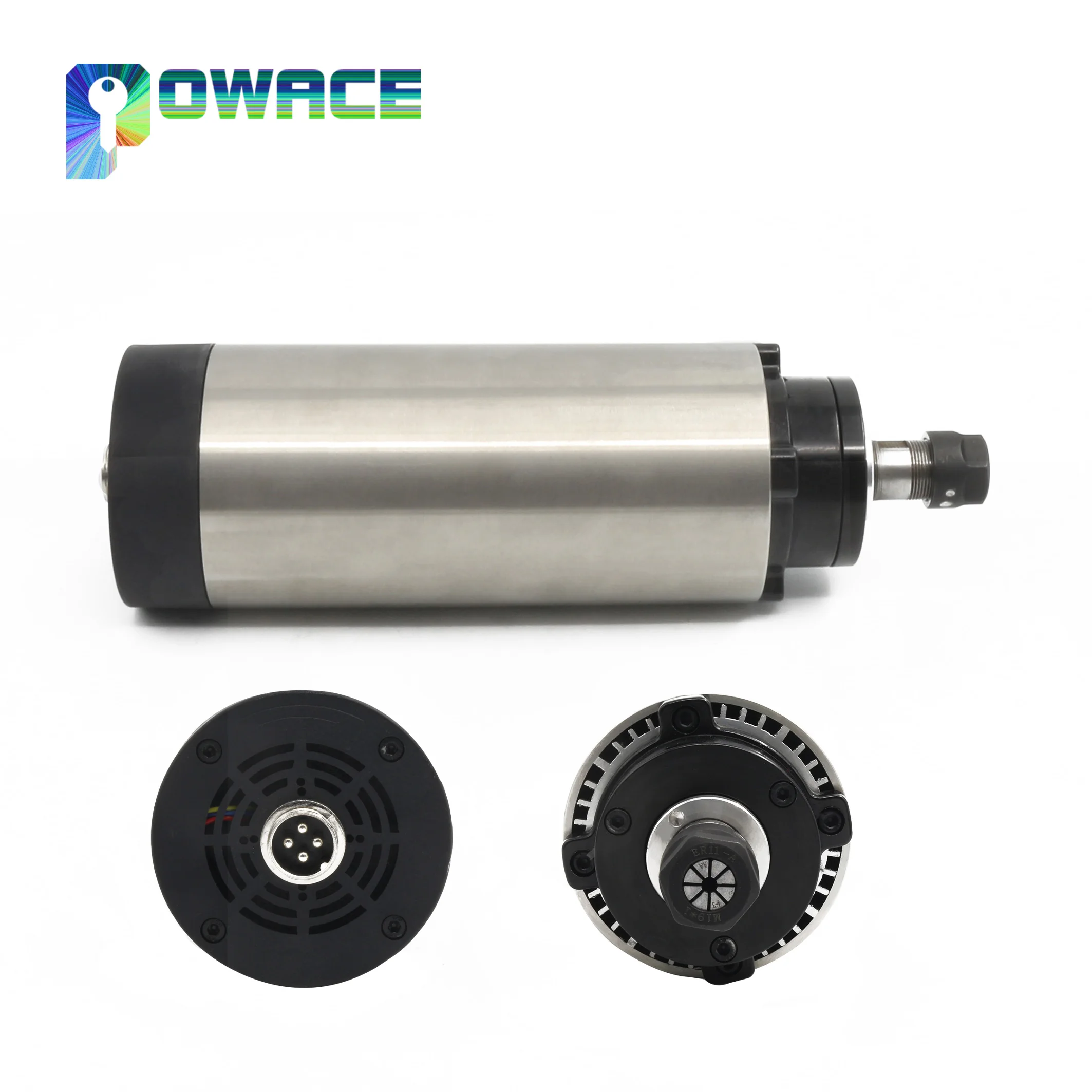

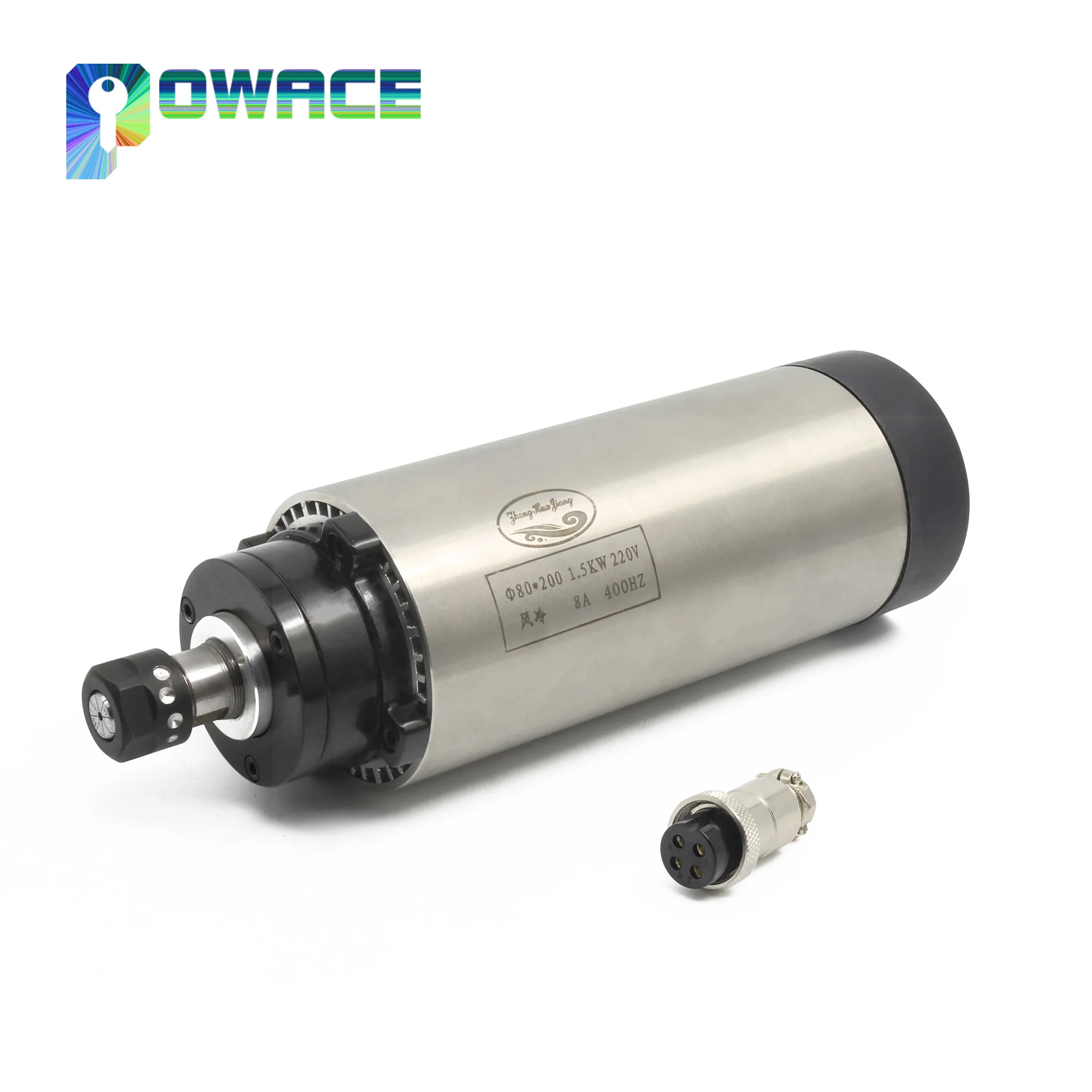

1 x Air cooled spindle motor 1.5KW ER11

1 x 1.5KW HY / MINI Inverter VFD

1 x 65mm clamp fixture

English user manual:

https://drive.google.com/file/d/0B49xwe9ffk3fZ3VWR3NHMjB6VkU/view?usp=sharing

Setting video:

Spindle setting:

Product show:

Product Feature:

1) PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability;

2) Easy PLC function can realize 16 legs of speed and inverter control function;

3) RS485 communication port, adopting standard international MODBUS main circuit control;

4) With extremely strong anti-jamming capability

5) Low output ratting torque0.5HZ-150%, low speed running ability;

6) Carrier adjustable by 16KHZ, completely soundless working environment;

7) Broad voltage working area, normal running in 304V-456V;

8) Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;

9) Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes;

10) With perfect error protection and short circuit starting protection capability;

Tech parameters:

1) Input Voltage: 220V(+/-15%)

2) Output Voltage: 0-220V

3) Input Frequency: 48-63 Hz

4) Output Frequency: 0-400 Hz

5) Input Phase: 1 or 3 phase

6) Output Phase: 3 phase

7)Current: 7A

8) Power: 1.5Kw

Input Voltage:220V(+/-15%)

Output Voltage:220VAC

Input Frequency:50-60 Hz

Output Frequency:0-1000 Hz

Input Phase:1 phase

Output Phase:3 phase

Warranty:1 year from the date you purchased

◆Two speed control modes: no PG vector control (SVC), V/F control

◆ No PG vector control (SVC): starting torque 0.5Hz up to 150%

◆ 8-stage simple PLC function, multi-speed control and PID control

◆ Support multiple frequency settings: digital setting, analog setting, PID setting, RS485 communication setting

◆ I/O terminals can be freely programmed to combine multiple working modes according to user needs.

◆ With jump frequency control function, it can effectively suppress mechanical resonance and make the system more stable and reliable.

◆ With instantaneous power-down retention function, it can avoid the impact of production due to instantaneous power failure

◆ With over torque and under torque detection

◆ Automatic voltage adjustment function to effectively solve the low frequency oscillation problem of high power motor

◆ Provide a variety of fault protection functions: over-current, over-voltage, under-voltage, over-heat, overload, lack of equal real-time monitoring and protection to ensure safe operation
