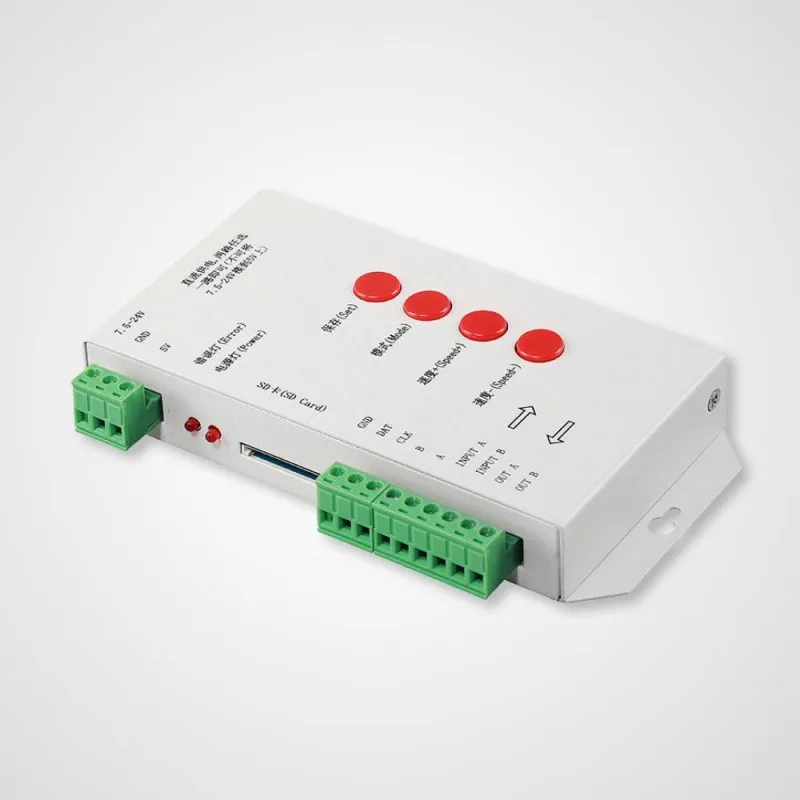

T1000S SD Card RGB LED Controller 2048Pixels For WS2801 WS2811 WS2812B LPD6803 2048 LED Strip Light DC5~24V

Feature:

Input voltage: 5V-24V

Dimensions: 6.30 in x 2.95 in x 0.91 in (16.0 cm x 7.5 cm x 2.3 cm)

Weight: 230 g

Number of programs: 16 MAX

MAX number of pixels: 2048

Compatible with single line or double line chips.

32—256 Gray, Support software Gamma correction.

Support the rules and special-shaped handle.

Single-port output, can support 2048 lights.

Off-line(SD Card) control, play back content stored in the SD card.

T-1000S store a maximum of 16 programs, copy multiple files to the SD card in order after formatting the SD card as "FAT" format.

The program must be named in orders . Ex. : 00_1.led, 01_1.led, 02_1.led.

NOTE:

For the TTL(SPI) signal, the controller signal ground must connect to the LED ground directly.

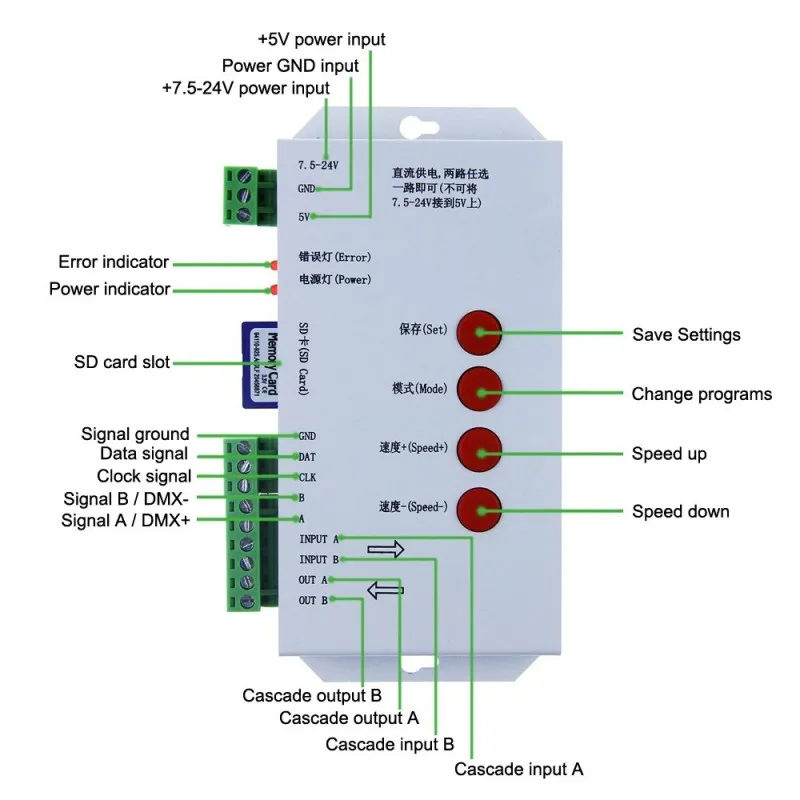

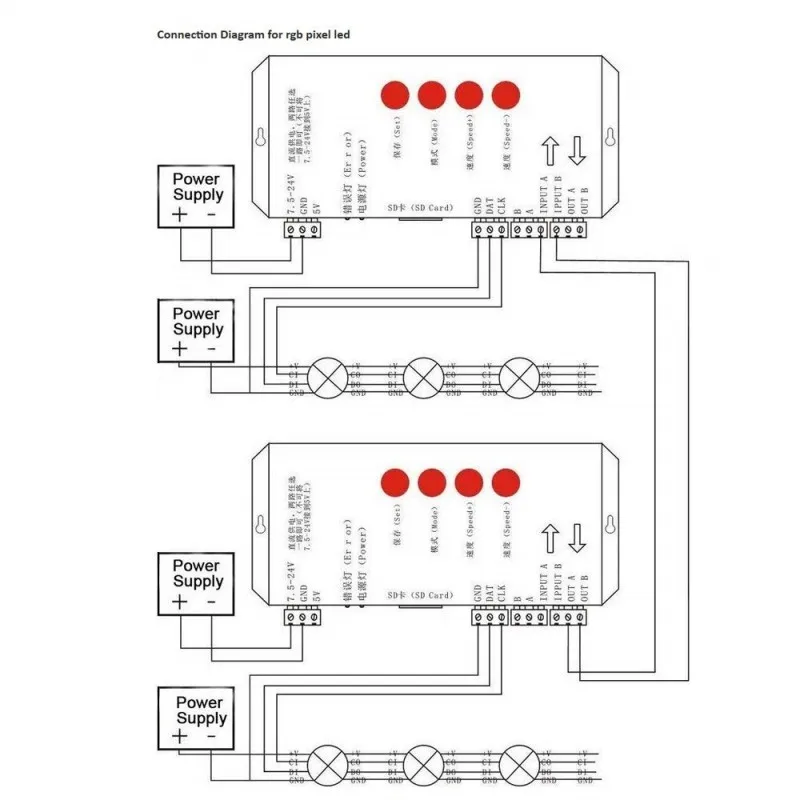

Mode of connection

1.Multiple T-1000S controllers can be cascaded together and work synchronous.

2.T-1000S one TTL(SPI) signal and one RS485 signal port output,can control 2048 pixels;

3.When the chip for LED is single line chip just with data, then just need to be connected with DAT and GND of the controller. If the chip for LED is double line chip with DAT and CLK, then need to be connected with DAT, CLK, and GND of the controller.

4.If you need to use RS485 signal you need to connect controller A with LED A (DMX+), controller B with LED B(DMX-),

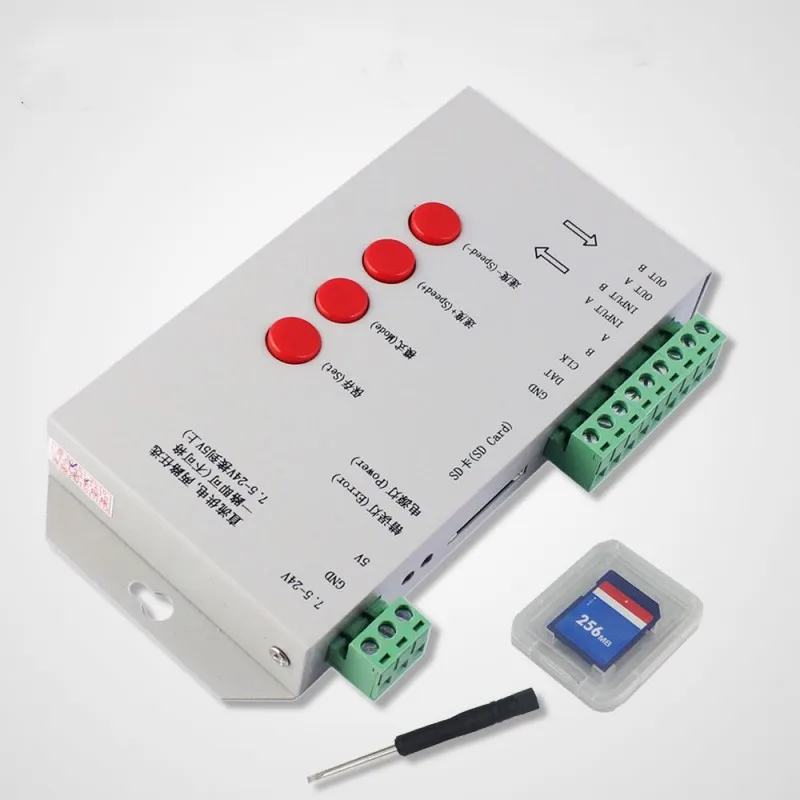

Package :

1x T-1000S RGB LED Pixel controller

1x  256MB SD Card
