24 Ways Damper & Height Adjustment Coilovers For Mazda RX8 RX-8 SE3P 2004-2011 Coils Springs kit

Introduction
MXR-SLC based on MXR-SNA coilovers, which is also height adjustable but adds damping adjustment ability by a knob the top of the shaft. They are also made for street use, but the 24 level rebound damping control allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.







Application
For Mazda RX-8 2003.04-2008.02 JPN SE3P BASE MODEL, TYPE E, TYPE S
For Mazda RX-8 2004-2008 USA SE3P
For Mazda RX-8 2009-2011 USA SE3P







Specification
Top mounts: Front pillow ball top mount
Damping: 24 levels rebound damping adjustable
Shock type: Twin tube
Adjustable height: Yes lowering 1'' to 3''
Adjustable camber plate: No
Spring preload: 7-10 mm
Spring rate Front: 10 kg/mm (560 lbs/in)
Spring rate Rear: 6 kg/mm (336 lbs/in)
Color: Golden







Package included

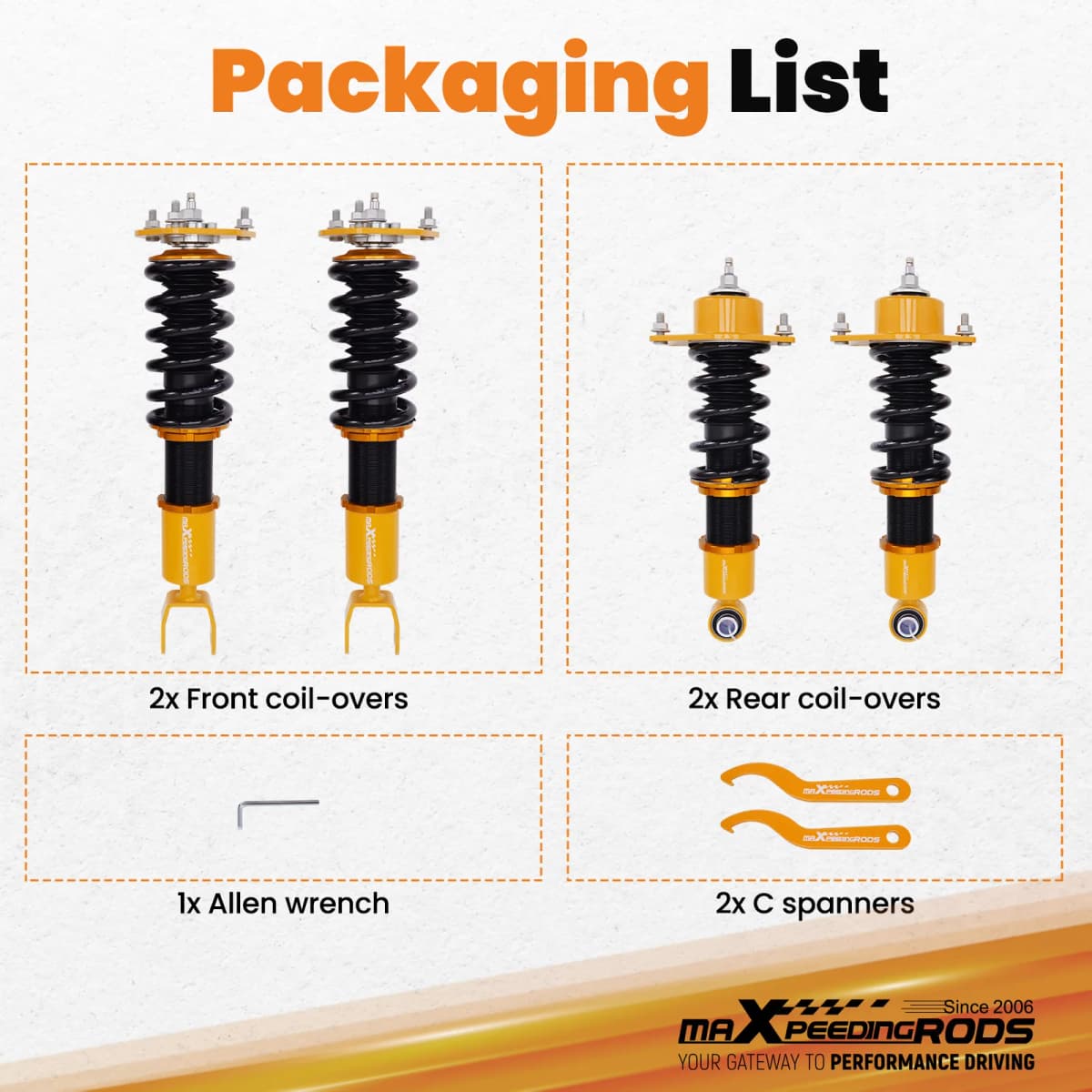

Complete coilovers 2 front and 2 rear as shown in the picture






Dimension
Size: 63*51*21 cm
Weight: 24.46 kg







Features
1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.
2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
3. Twin-Tube structure allows sufficient stroke within the shock absorber.
4. Pillow ball top mount - It improves the steering feel and response.
5. Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts.
6. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
7. Separate height adjustment does not affect damper stroke.
8. Height can be adjusted with coilovers installed on the vehicle.
9. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
10. Height Adjustment tools included.
11. Full rebuildable.







Notice
* No instruction included; Professional installation & alignment suggested.
* Please check our store for other auto parts you may be interested in.
