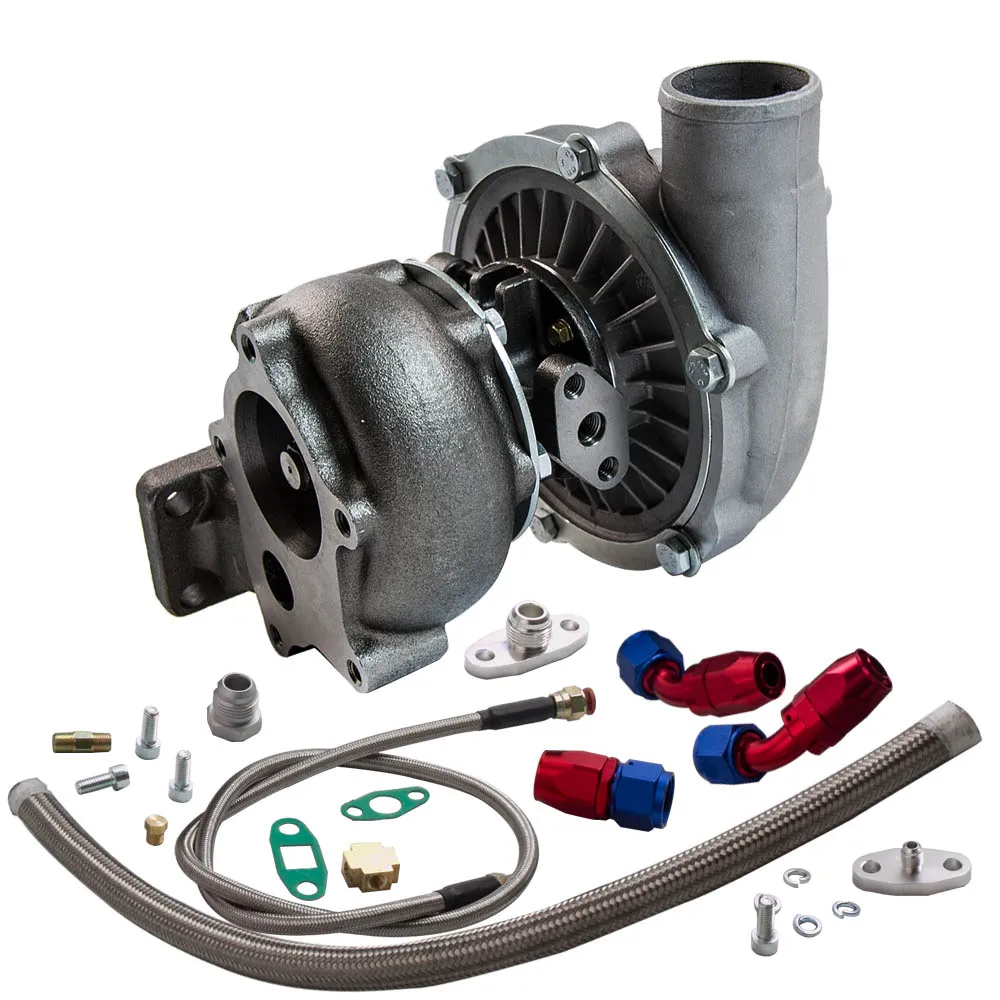

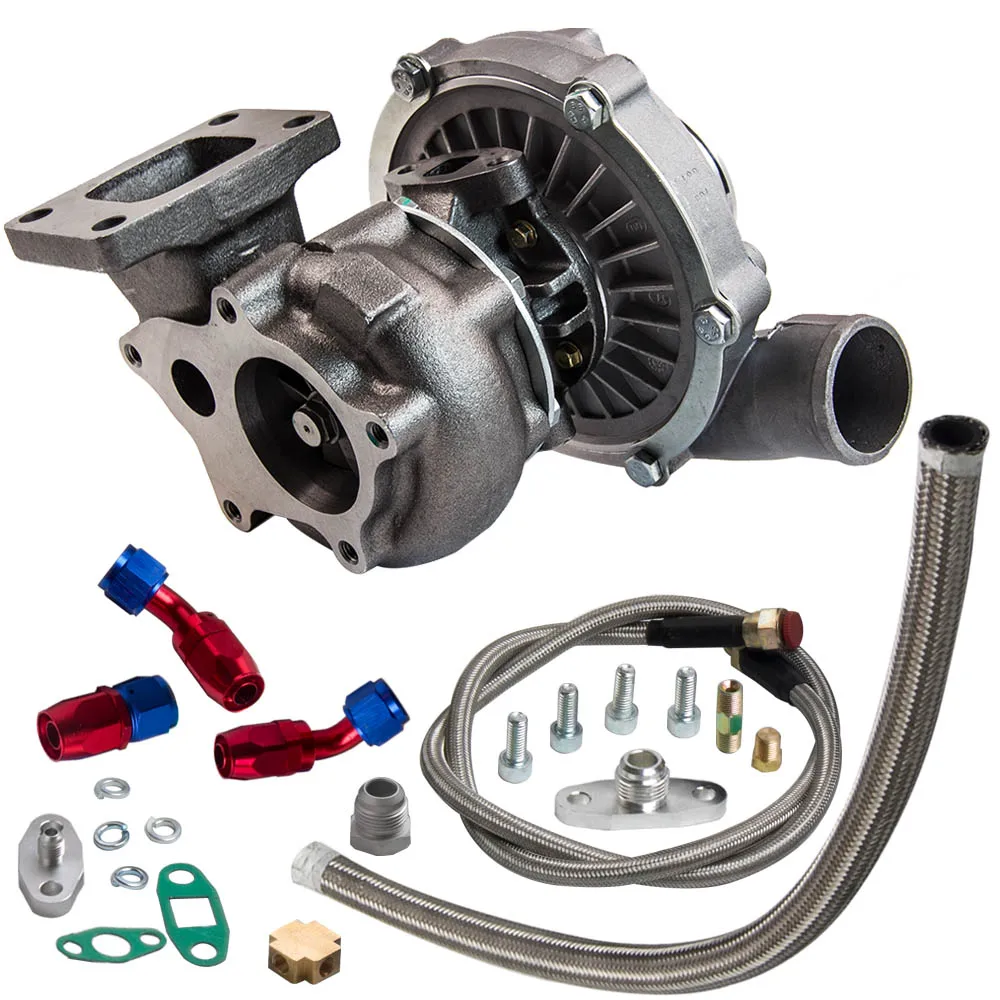

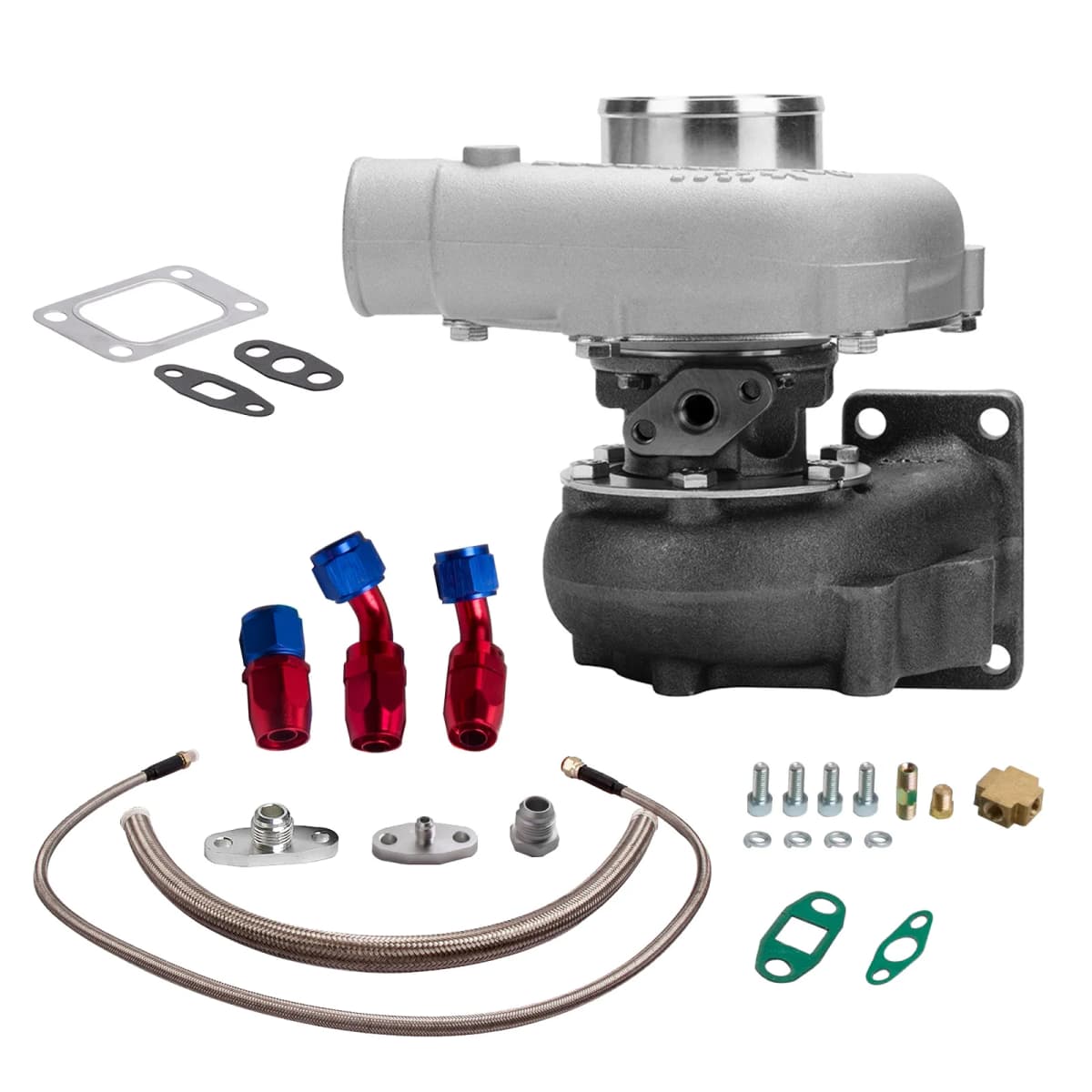

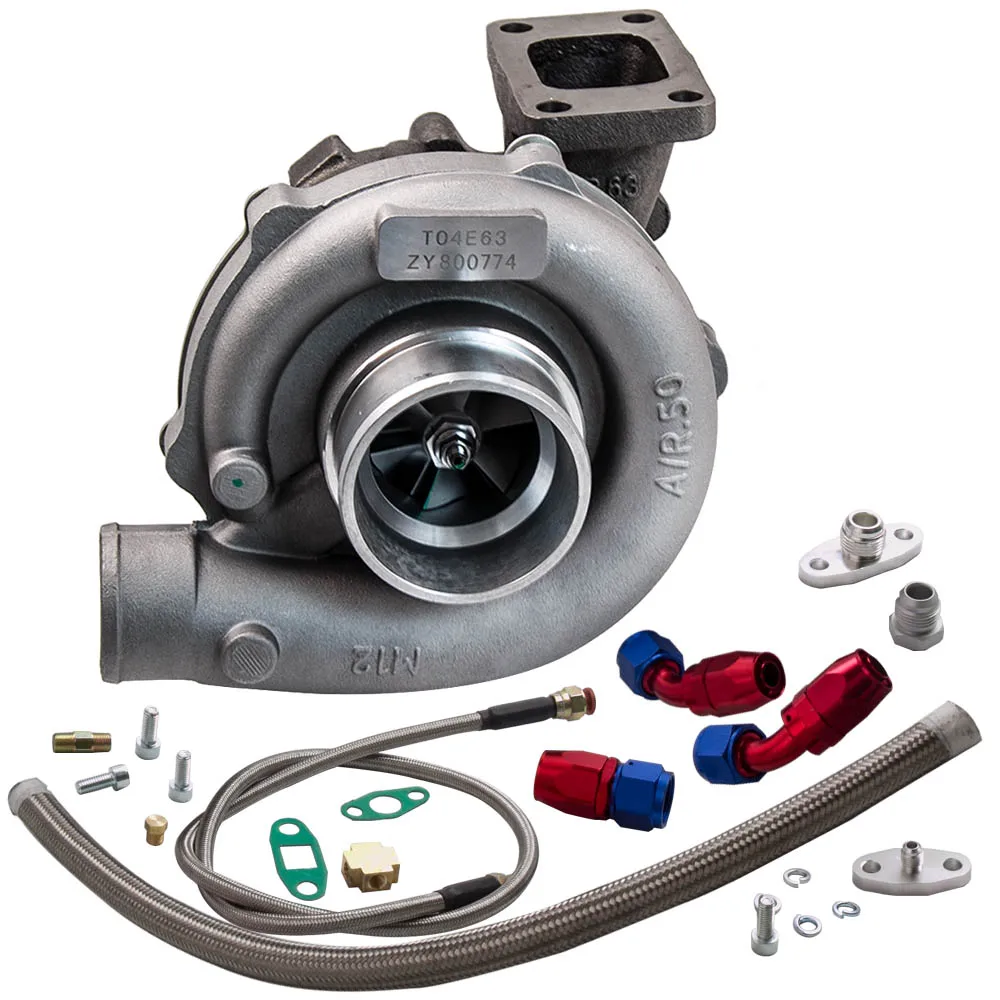

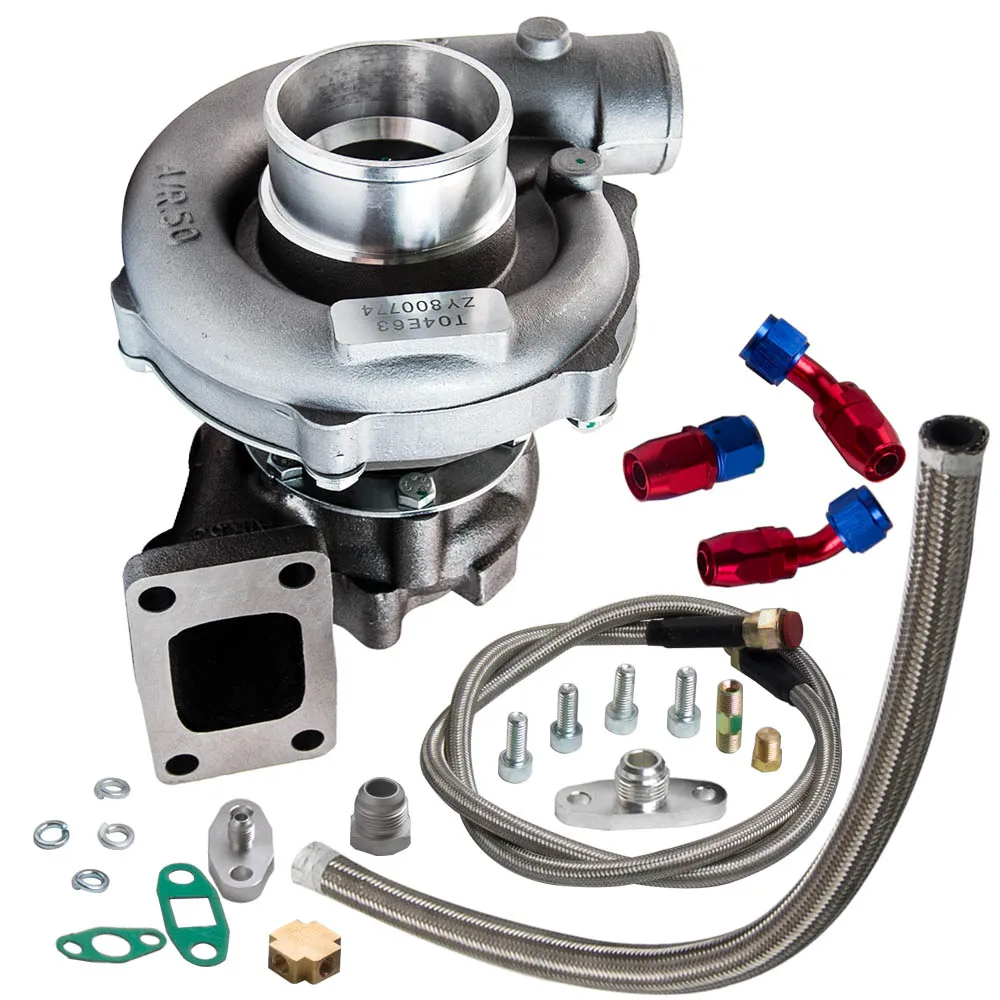

Universal Oil Line Kit Turbo T04E .57 A/R oil Cold Turbocharger 1.5-2.5L engine

T3/T4 T04E .57 A/R Performance Turbocharger +Oil Feed & Return Line Kit 300+HP Oil Cooled Turbo for 1.6-2.5L Engine

Fit for:

Perfect for1.5L-2.5Lengines

Perfect for 3.2L-5.0L engines in twin turbo application, capable to 800HP

boost pressures are 7psi(.5 Bar) to 21psi(1.5 Bar)

Exhaust (Turbo Manifold) Flange

T3 T4 4 bolt Flange Patterns

Exhaust (Downpipe) Flange

S sstandard T3 5 bolt downpipe flange pattern

Cooling Type

Oil Cooled

Wastegate

Without Wastegate

Horse Power

Boost Horse Power up to 300+HP

Compressor:

Trim: 44

A/R: .5

Inducer: 50.5

Exducer: 76

Turbine:

Trim: 73

A/R: .57

Inducer: 65.5

Exducer: 55.9

* OIL RETURN LINE: Length: 550mm || Inner Diameter: 21mm

* OIL FEED LINE: Length: 1000mm || Inner Diameter: 14mm

Notice

* Please check the specifications carefully before bidding. If you are not sure about these information, please feel free to contact us.

* This is universal application turbo, so modification might be required for some vehicles
