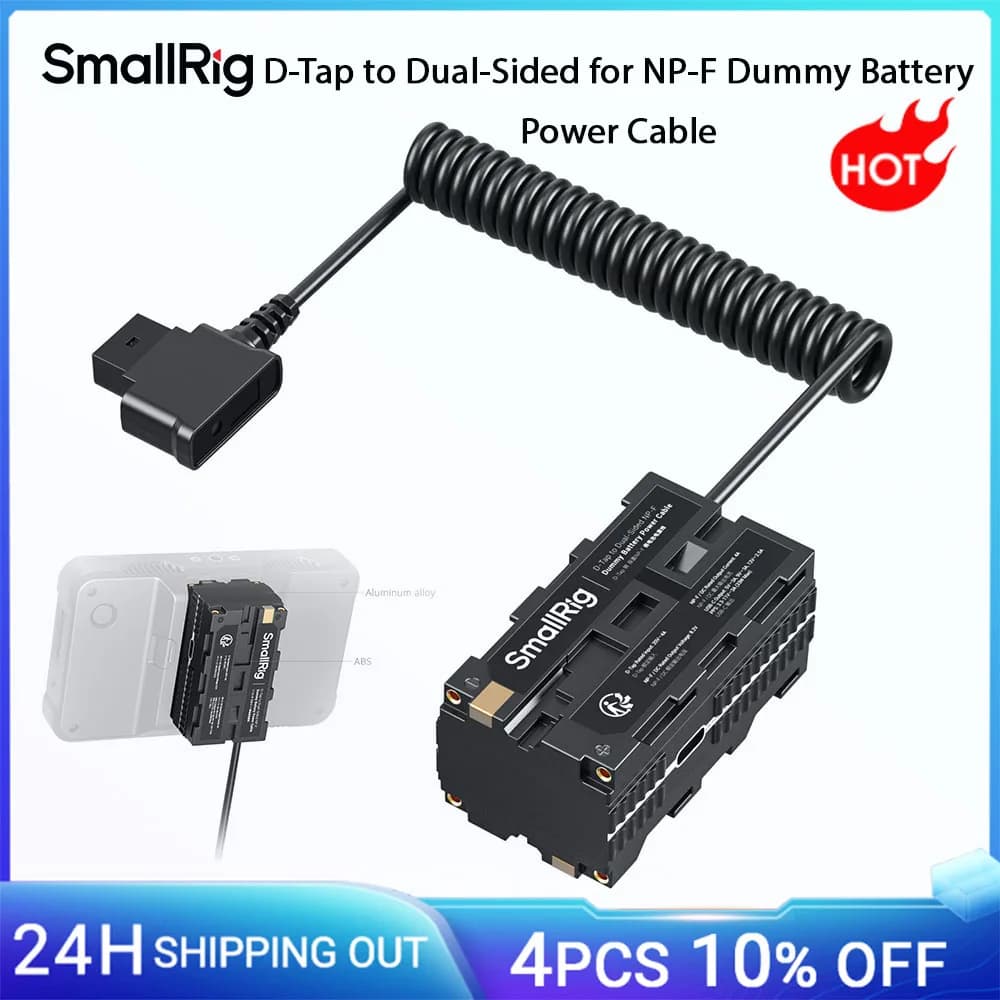

SmallRig D-Tap to Dual-Sided for NP-F Dummy Battery, with USB-C DC Port LED Display for Monitor Wireless Video Transmitters 4884

4884 Product Description

I. Product Name in Package: SmallRig D-Tap to Dual-Sided for NP-F Dummy Battery Power Cable 4884
II. Product Name in Marketing: SmallRig D-Tap to Dual-Sided for NP-F Dummy Battery Power Cable 4884

III.Key Features:
1. Four power outputs allow for simultaneous charging of four devices, offering easy portability and efficient cable management
2. Two screen displays and one indicator provide real-time monitoring of input and output status

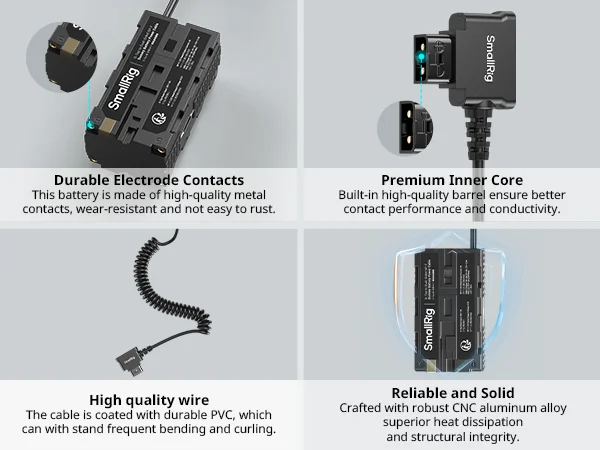

3. Constructed from metal, PC, and PU, the cable optimizes heat dissipation and enhances fire resistance, improving both efficiency and safety
4. Multiple circuit protections guarantee safe charging and reliable performance during shooting


IV.Description:

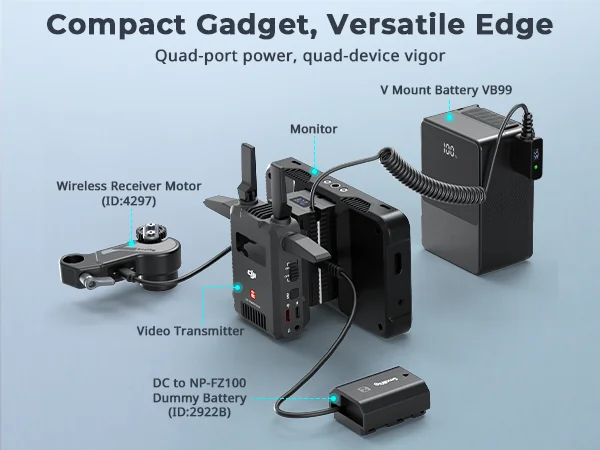

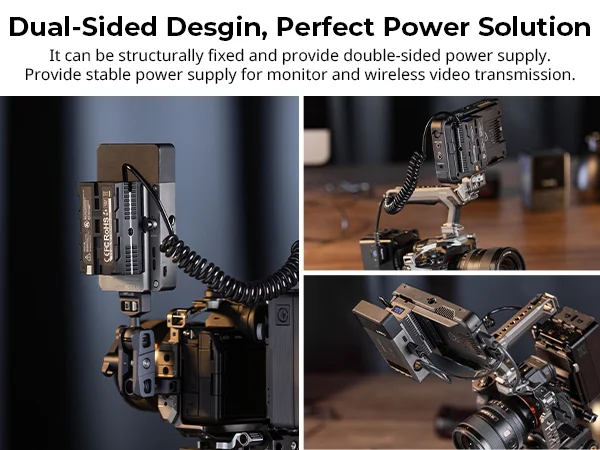

SmallRig D-Tap to Dual-Sided for NP-F Dummy Battery Power Cable 4884 is a multifunctional dummy battery power cable featuring one D-Tap input and four outputs: two for NP-F outputs, one DC output, and one USB-C output, enabling simultaneous charging of four devices. The for NP-F outputs power monitors and video transmitters, the DC output powers cameras via dummy batteries, and the USB-C output powers devices like follow focus motors and mobile phones.
Designed for portability and efficient cable management, this power cable is equipped with two displays and one indicator. The D-Tap port features a display for input voltage and an indicator for reverse plugging warning and input voltage range, while the dummy battery display shows for NP-F and DC input voltage.
Constructed from fire-resistant PC, PU, and metal for optimal heat dissipation, this cable enhances efficiency and safety. It incorporates multiple circuit protections—overheating, short-circuit, low-voltage, and overvoltage—to ensure safe charging and reliable performance during shooting.
.
V.Compatibility:
Monitors, video transmitters, follow focus motors, V-mount batteries, for NP-F batteries, direct-charge camera batteries, smartphones, tablets, laptops, etc.

VI.Certifications:
FCC, CE, PSE, RoHS
Sales Regions: United States, United Kingdom, Europe, Japan.

VII.Package:
D-Tap to Dual-Sided for NP-F Dummy Battery Power Cable x 1
User Manual x 1

VIII.Specifications
Items Parameters
Material ABS+Aluminum Alloy
D-Tap Rated Input 20V / 4A
for NP-F / DC Rated Output Voltage 8.2V
for NP-F / DC Output Current (Max) 4A
USB-C Output 33W (Max）
PD: 5V / 3A，9V / 3A，12V / 2.5A
PPS: 3.3-11V / 3A (30W Max)
Indicator / Display Functions Green Light: Forward plugging
Red Light: Reverse plugging, automatically cut off the power
Flashing Red Light: Input voltage 10V-12V
Red Light: Input voltage 12V-13V
Green Light: Input voltage ＞13V
D-Tap Input Voltage Display
for NP-F / DC Output Voltage Display
Overheating Warning (07P)
Short-Circuit Warning
Low-Voltage Warning (OC)
Overvoltage Warning (OC)
Circuit Protections for NP-F Port Overcurrent Protection:
Activates at 5.5A and resets when current drops to 5A or below
Short-Circuit Protection: Engages during a short circuit and resumes once resolved

Note: Weight and dimensions are measured manually. We appreciate your understanding in case of any discrepancies.

IX.Related Products
3579B, 3580B, 3581B, 4292, 4293, 4331, 4267, 4469, 4576, 4577

X.Specifications
Product Weight: 105.0 ± 5.0g / 3.7 ± 0.2oz

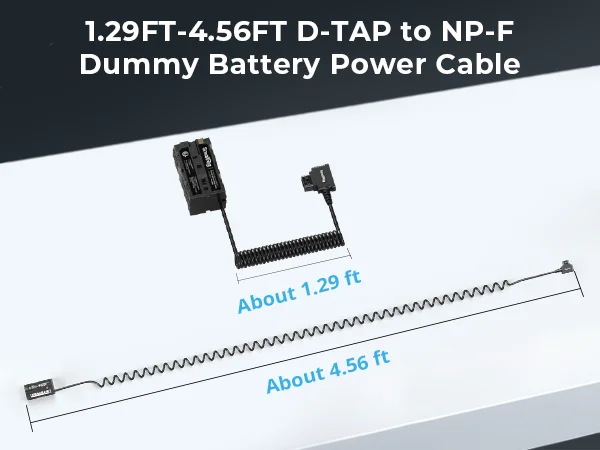

Product Dimensions: 400 x 40 x 30mm / 15.7 x 1.57 x 1.18 in
Package Weight: 143 ± 5.0g / 5 ± 0.2oz
Package Dimensions: 113 x 84.5 x42 mm / 4.4 x 3.3 x 1.65 in
