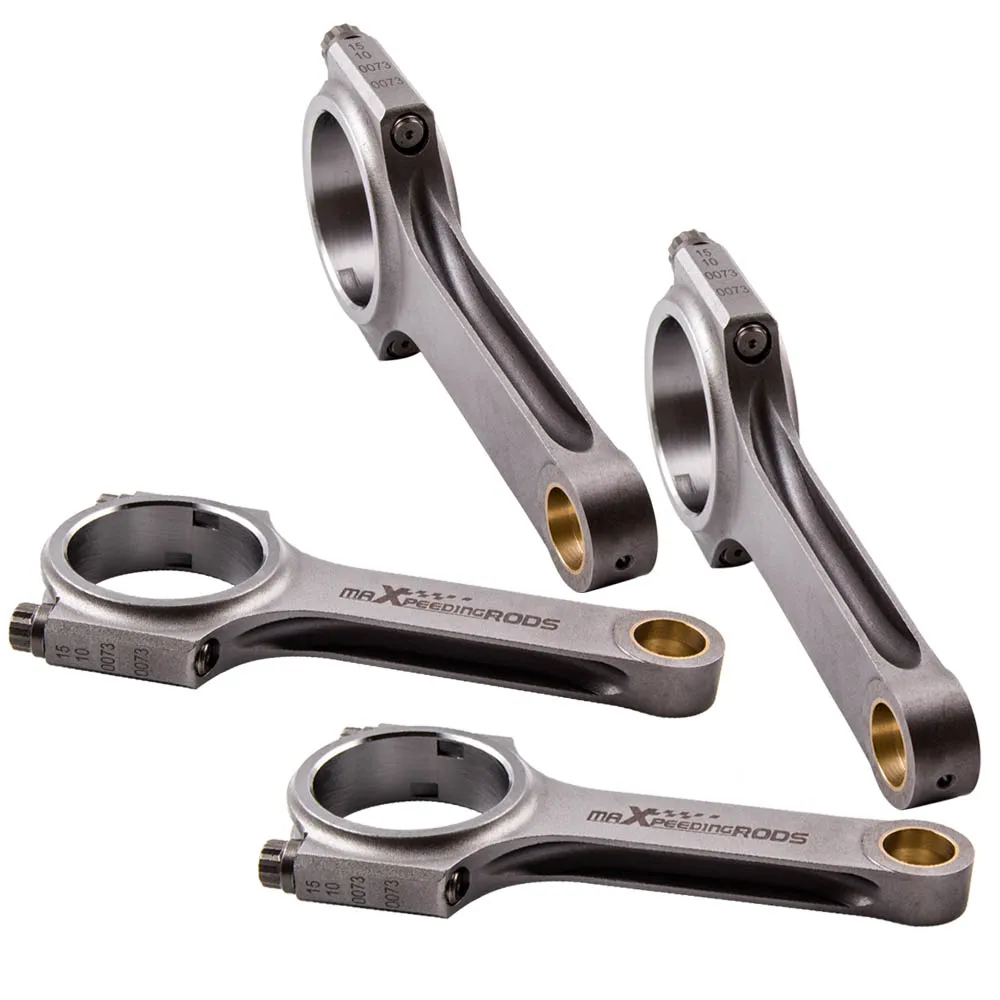

4x Forged 4340 H Beam Connecting Rods Conrods For Rover Coupe 1.8 ARP2000 5.24" Shot Peen EN24 Crankshaft Bellie Pluel Belias

Forged H-beam Connecting Rods + ARP2000 Bolts For Rover Coupe 1.8 16v 133.1mm

Application

For Rover 1.8 K series Engine.
For Rover Coupe 1.8 16v 1996-1998
For Rover K 1.8L 16V 18K4F
For MG Lotus Elise
For Rover 25 RF 1999-2005
For Lotus Elise 1995-2001
For MG TF 2002-2009 120 160
For MG ZR 2001-2005 120 160
For MG ZS 2001-2005 120
For MG ZT 2003-2005
For MG MGF RD 1995-2002
For Caterham Seven CF 1996-2015
For Rover Streetwise 2003-2005
Note:Small end width:15.05mm/0.593"

Specification

*Type: Forged 4340 aircraft chrome moly quality steel for racing
*H-beam Conrods Quantity: 4 Pieces as showing in picture
*Bolts: Including ARP 2000 3/8" bolts (Note: Extra cost for upgrading to ARP L19 bolts)
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
*Advertised Horsepower Rating:200HP/piece
*Top acceleration: 9000rpm
*package size：28CM*21CM*10CM

Dimension

Center to center length:133.1mm/5.24"
Big end diameter:51.68mm/2.035"
Small end diameter:18mm/0.709"
Big end width:22.5mm/0.886"
Small end width:15.05mm/0.593"

Feature

1. TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED；
2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
3. ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；
4. H-Beam design reduces weight without compromising strength；
5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；
6.High precision CNC machined,Precision rod cap alignment dowels；
7.Bores finished to +/- .01 mm；
8.Balanced to within +/- 1 g per rod；
9. Each rod is magnetic particle tested to ensure free of flaws；
10.Use X-rayed, sonic tested；
11.Custom Service.

Note

*Professional installation is highly recommended ；
*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
