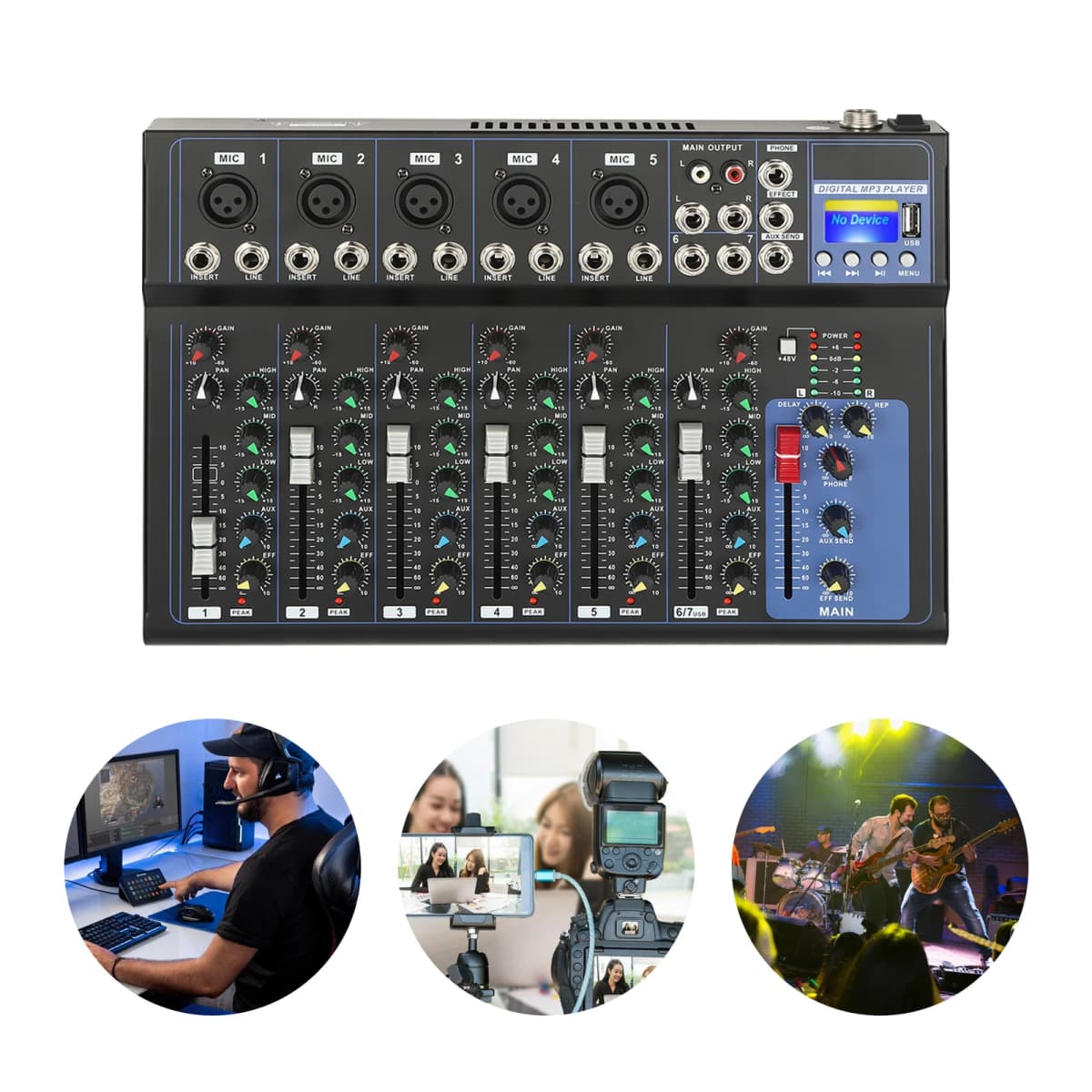

Bluetooth Audio Mixer USB DJ Sound Mixing Console 7-Channel Bands Mixing Boards for Live Streaming, Home KTV, Recording Studio

Description

This 7-channel mixer can enhance your audio mixing experience. With its high-quality audio capabilities, this mixer ensures crystal clear sound output for all your audio projects. Whether you are a musician or podcaster, our mixer provides precise control and versatility, allowing you to adjust levels, effects, and audio inputs effortlessly. With its sleek and compact design, this mixer is designed specifically for both professional studios and home setups.

Key Features

Multiple Connections: With its built-in USB module and wireless range of 32.81ft, it is compatible with mobile phones, computers, audio systems, electronic instruments, wireless microphones, and amplifiers, making it easy to turn your home into a professional recording studio.

Multiple Music Modes: It provides 6 music modes: natural, pop, rock, jazz, classical, and country, which brings you a good audio-visual experience.

Stunning Voice Effect:It can monitor your music in real time, providing a stepping stone to becoming a professional mixer! It has a built-in analog effect to help you better process the sound and create a professional-grade tuning effect for you.

7-channel Microphone Input: It has five mono microphone/line inputs, a set of stereo inputs, and also has a balanced time XLR type microphone input jack, allowing it to achieve a multi-user machine.

Three-band Equalizer: The main channel of the mixer is equipped with a three-band equalizer, which can independently control the high/medium/low channels, making the sound quality more rich and full.

Lightweight&Portable:  The ultra-thin design of only 1.45 inches makes the body lightweight(5.69lb) and exquisite, allowing you to carry it around and enjoy music anytime, anywhere.

High Safety: The built-in fuse has an overcurrent protection function. When the current flowing through the circuit reaches a certain level, it will cut off the current circuit and prevent other components in the circuit from being damaged.

Build to Last: The high-quality metal shell and exquisite craftsmanship make this product sturdy, Tahoma resistant, and has a longer service life.

Protective Packaging: To prevent the product from being damaged during transportation as much as possible, this product uses foam that can effectively resist normal compression and drops.

Quality Assurance: We have been working hard to provide better service and quality for our customers, which is our goal. If there is any quality problem with our bath seats. Please contact us in time.

Details

Power Interface: The power interface on the side of the body has undergone a CNC polishing process, which is directly inserted and pulled out, and is solid, durable, and convenient to use.

Indicator Light: It shows you the work of each circuit, allowing you to tune more accurately.

Knob Type Potentiometer: It has a concave and convex non-slip design on the surface, which has a good touch and makes adjustment more precise.

LCD Display: It can real-time display system functions, which is easy for you to adjust.

+48V Phantom Power:  It adopts 48V phantom power to be able to use professional condenser microphones to create a high-grade tuning experience for you, making the product more widely used.

Long Fader:  The tuning of the long fader is more precise, making it smoother and easier to push.

Non-slip Foot Pads: 4 non-slip foot pads not only make the product more stable during use but also prevent scratches on the desktop.

Application

It is suitable for home KTV, campus language, conferences, bars, stage performances, music dining bars, recording studios, campus presentations,  network anchoring, etc.

Specification

Material: Metal

Color: Black

Number of Channels: 7

Plug: UK Standard

Adapter Model: LWV 16PS

Input: AC 230V 50HZ 18W

Output: AC18V*2350mA

Connection Technology: Interface, USB, Bluetooth

Maximum Input Level of the Microphone: + 24dBu

Maximum Input Level of the Line: + 24dBu

Maximum Output Level: XLR Card + 26dBu

Main Level Meter: 5-segment LED

Frequency Response: 20Hz-20Khz ± 0.5dB

Common Mode Rejection Ratio((MIC 1kHz): >75dB

Total Chopping Distortion (THD + N): <0.01% (Channel Input to Mix Output)

Crosstalk (1 kHz): > 85 dB

Noise (22Hz - 22KHz): Equivalent Input Noise -116dBu Residual Output Noise <-80dBu

Mono/Stereo Channel EQ: High Frequency, Broom Type, +/-15dB,12KHz

Low frequency, Broom Type, +/-15dB,80KHz

High/Midrange, Peak/Valley Type, +/-15dB,2.5KHz

Mono: XLR Balanced, 2-pin Hot end, 2Kohm Sensitivity -60 to +14dBu

TRS Balanced, Tip Hot End 10Kohm Sensitivity -40 to +14dBu

XLR Phantom Power +48V

Stereo Channel: TRS unbalanced, tip hot end 10Kohm sensitivity -40 to+14dBu

L/R Output: TRS, Unbalanced, Tip Hot End, <75ohm, -2dBu, +18dBu Max

FX/AUX Output: TRS, Unbalanced, Tip Hot End, <75ohm,-2dBu,+18dBu Max

Headphones. TRS, Tip L, Recommended for Headphones from 30 to 600ohm

Bluetooth Wireless Control Range: Within 10m/32.81ft (Open Space)

Power Cord Length: 1.5m/4.92ft

Product Size: 33*23*3.7cm/13*9*1.45in

Package Size: 38*30*9cm/14.96*11.81*2.54in

Gross Weight: 2.77kg/6.11lb

Net Weight: 2.58kg/5.69lb

Package Included

1*7 Channel Mixer

1*Power Adapter

1*English Manual


Notes

Please read the manual completely before installation and use, and pay particular attention to the safety instructions included.

Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you place the order.
