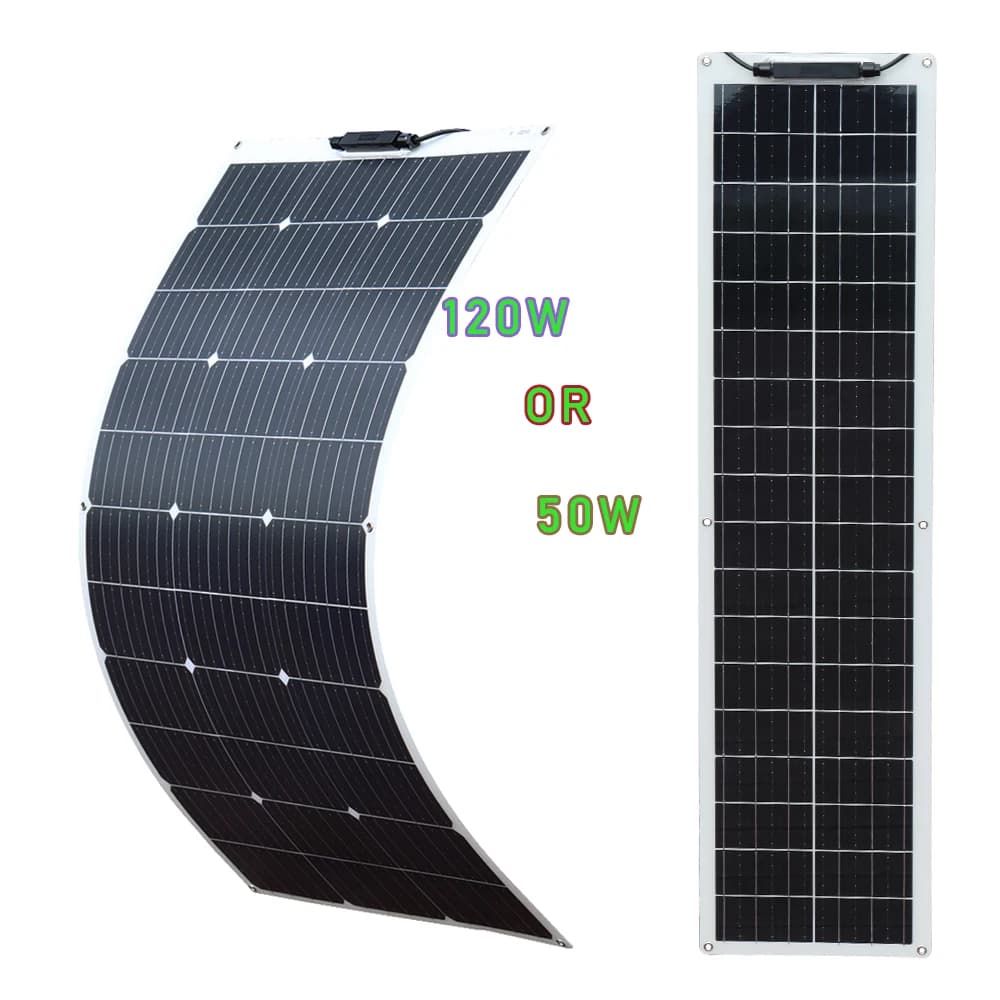

Solar Panel Battery Charger 50W 120W 12V Flexible Solar Panel 18V Photovoltaic Mono Module for Caravan Home Roof Car Motorhome

XINPUGUANG 50W 120W 12V Flexible Solar Panel 18V Photovoltaic Monocrystalline Module for Caravan Home Roof Car Motorhome Power Charger (50 Watt Solar Panel OR 120 Watt solar panel)

This link has different options:
50W Solar Panel
There are Three sizes of single solar panel: 1025*250*3mm /1150*235*3mm OR 820*370*3mm

50W solar panel (1025 × 250 × 3 mm) from a U.S. warehouse

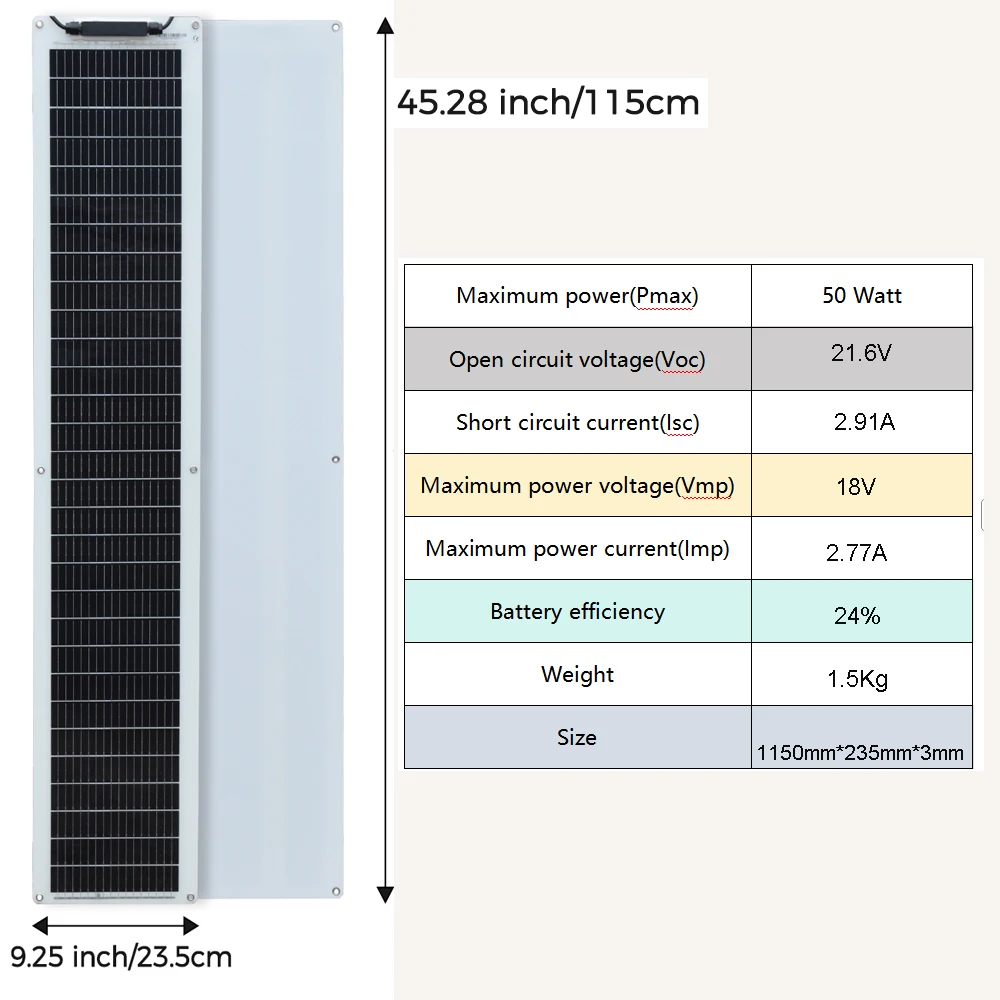

Czech Warehouse (50W-White-A) 50W solar panel dimensions: 1150 × 235 × 3 mm,

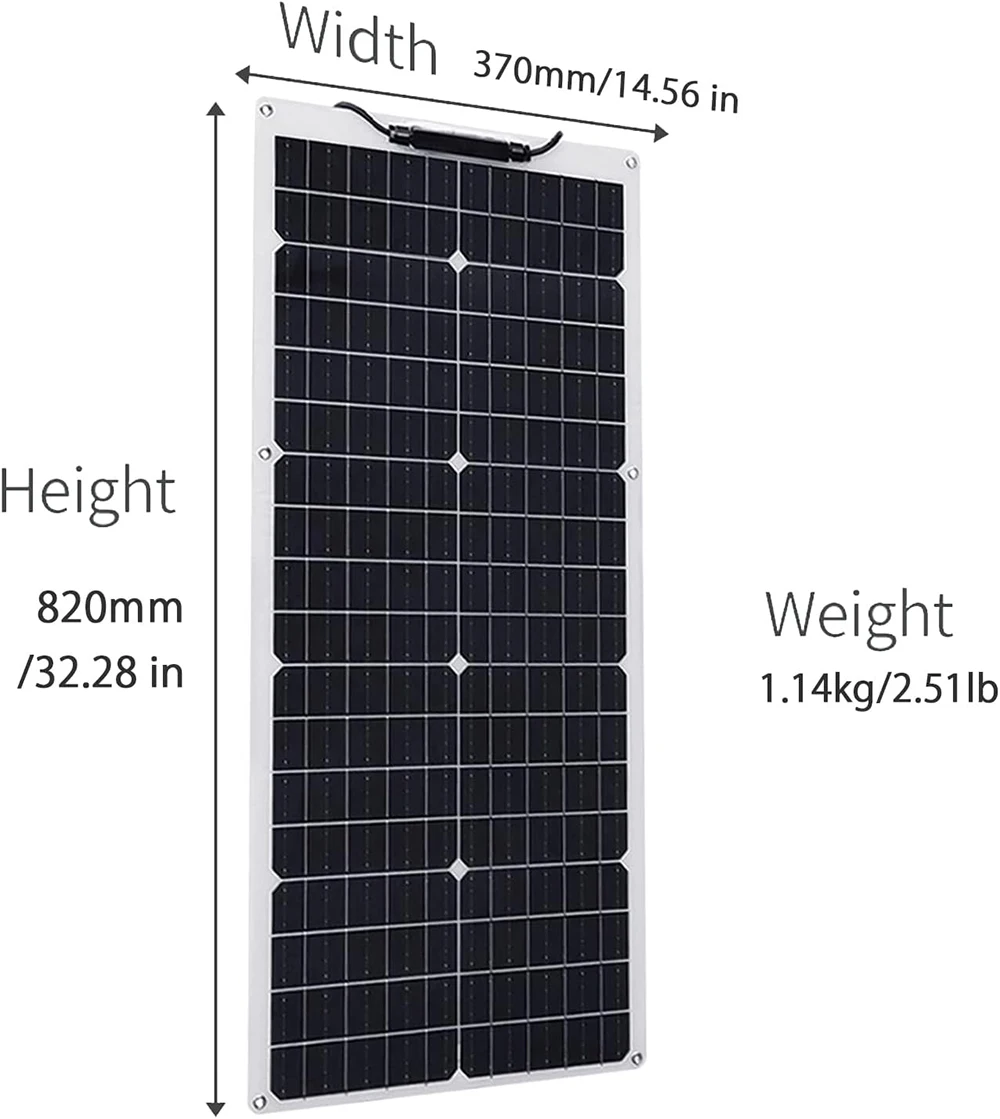

Czech Warehouse (50W-White-B) 50W solar panel dimensions: 820 × 370 × 3 mm,

50W-White-B Specification:

Cell material: Monocrystalline silicon
Pmax (Power at Maximum under STC) :50W
Imp (Current at Max Power, A): 2.52A
Vmp(Voltage at Max Power, V): 19.8V
Voc(Voltage at Open Circuit):21.8V
Isc (Current at Short Circuit,A): 2.65A
Solar Cell Efficiency: 24%
Size of module:820*370*3mm

Net Weight: 2.56Ib (1.1kg)
Length of Cables: 19.7(inches)
Standard Test Conditions ： lrradiance 1000w/m^2，Temperature 25℃, AM=1.5

1 floor: Pet

2 floor: Eva film

3 Floor: High efficiency solar cell

4 Floor: Eva Film

5 Floor: Tpt Backs heet

Waterproof level: IP67 (terminal box)

(The above data is based on the laboratory standard test environment)

For field connections, use minimun no.14awg copper wires insulated for a minimum of 90 ℃

Standard test conditions:

Am = 1.5 Irradiance = 1000w/m2 Temp.= 25 ℃

(The size is measured manually and there is a certain error. Customers who want exact size please do not buy, thank you)

Czech Warehouse 50W-White-A Specifications

18V 50W Solar Panel Specification:

Maximum power(Pmax) 50W

Output tolerance ± 5%

Maximum system voltage 600V DC

Open circuit voltage(Voc) 18V

Short circuit current(Isc) 2.77A

Maximum power voltage(Vmp) 21.6V

Maximum power current(Imp) 3.04A

Cell efficiency 24%

Operating temperature（NOCT） 45±2℃

Temperature range -40℃～+80℃

Number of cells 32pcs

Weight 1000g

Size 1150*235*3MM

Standard Test Conditions ： lrradiance 1000w/m^2，Temperature 25℃, AM=1.5
Solar Panel with 0.5-meter Adapter Cable

50W-White-A Specifications

Maximum power(Pmax) 50W

Output tolerance ± 3%

Maximum system voltage 600V DC

Open circuit voltage(Voc) 19.8V

Short circuit current(Isc) 2.52A

Maximum power voltage(Vmp) 23.76V

Maximum power current(Imp) 2.77A

Cell efficiency 24%

Operating temperature（NOCT） 45±2℃

Temperature range -40℃～+80℃

Number of cells 32pcs

Weight 1000g

Size 1025*250*3MM

Color White/Black

Standard Test Conditions ： lrradiance 1000w/m^2，Temperature 25℃, AM=1.5


1 floor: Pet

2 floor: Eva film

3 Floor: High efficiency solar cell

4 Floor: Eva Film

5 Floor: Tpt Backs heet

Waterproof level: IP67 (terminal box)

(The above data is based on the laboratory standard test environment)

For field connections, use minimun no.14awg copper wires insulated for a minimum of 90 ℃

Standard test conditions:

Am = 1.5 Irradiance = 1000w/m2 Temp.= 25 ℃

(The size is measured manually and there is a certain error. Customers who want exact size please do not buy, thank you)

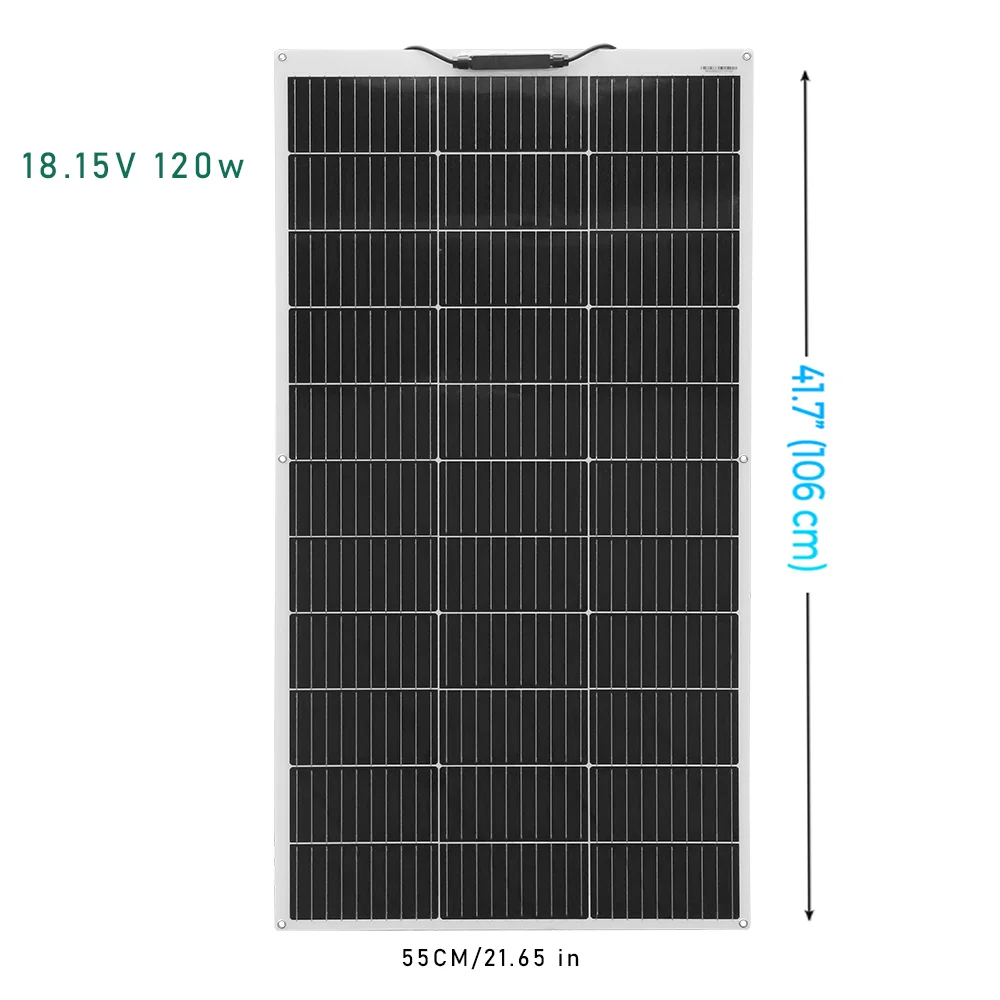

120W --White Specification

Maximum power(Pmax) 120W
Output tolerance ± 5%
Maximum system voltage 700V DC
Open circuit voltage(Voc) 21.78V
Short circuit current(Isc) 6.9 A
Maximum power voltage(Vmp) 18.15V
Maximum power current(Imp) 6.6A
Cell efficiency 24%
Operating temperature(NOCT) 45±2℃
Temperature range -40℃～+80℃
Number of cells 33pcs
Weight 2060g
Size 1065*550*3 mm
Standard Test Conditions : lrradiance 1000w/m^2,Temperature 25℃, AM=1.5

PERC technology monocrystalline cells with conversion rate up to 24%.

SOLAR HOME SYSTEM

• Small DC systems

• Telemetry use

• Home use

• Holiday houses

• Garage lighting

• Recreational use

• Lighting of streets in regions without

reliable grid

• Billboard lighting

• Sports field lighting

• Parking space lighting

• AC and DC loads possible

• Home use

• Industrial use

HYBRID SYSTEM

• PV and wind turbine or diesel generator

• DC and AC loads possible

• High reliability

• Small hydro generators

• Recreational use

• Caravan and camping

OFF-GRID CONNECT

• Covering self consumption

• Grid is used as back-up

• Reduces energy cost
