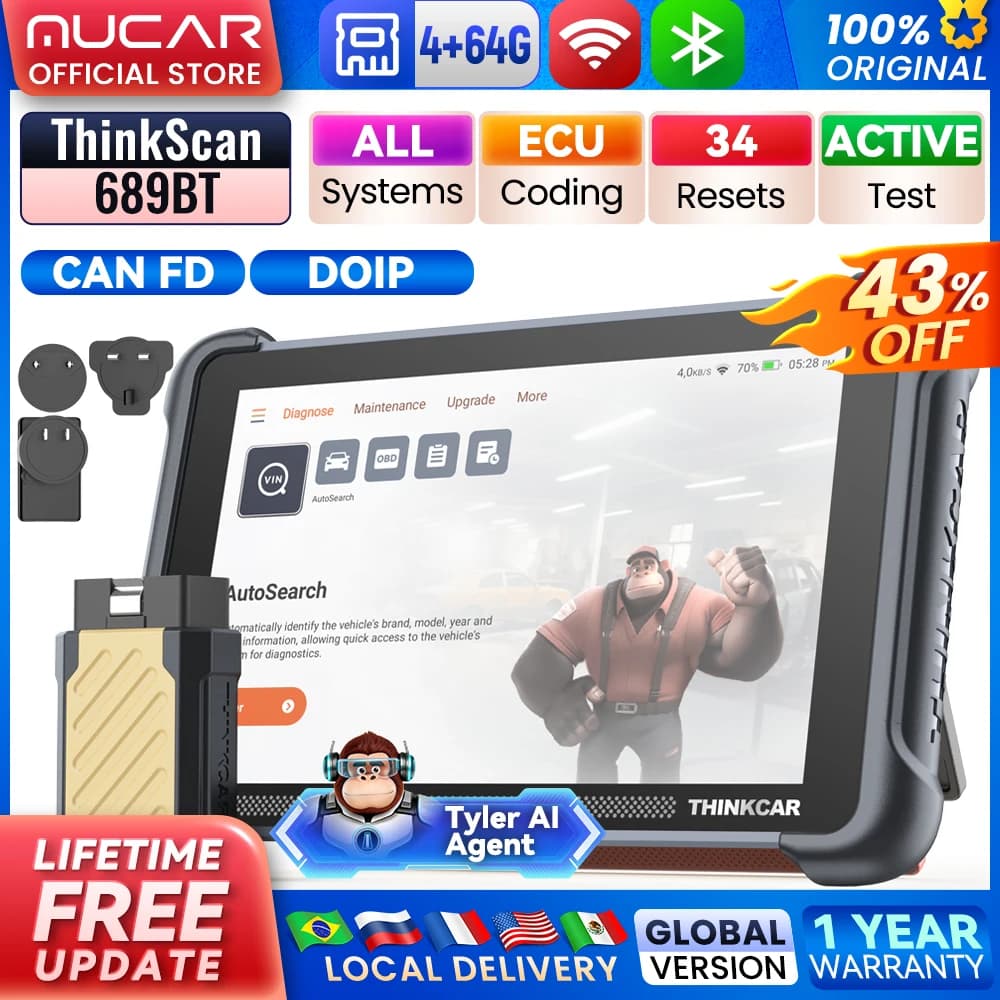

THINKCAR THINKSCAN 689BT All System Car Diagnostic Tool ActiveTest ECU Coding OBD2 Scanner 34 Services CAN FD DoIP Scan Tool

Nice Tips for EU membershipcustomer!!! Q: How to Pay Without VAT Tax?

A: Choose ship from China via Aliexpress Shipping method or DHL, actually will send from EU warehouse to you, delivery time 3 to 7 days!!!

THINKSCAN 689BT Lifetime Free Update

1.All systems diagnostic + 34 resets functions

2.ECU Coding + Active Test (Bidirectional control)

3.Support CANFD and DOIP protocol,Support diagnosis of more car models

4.AutoAuth for FCA SGW: Allowing you to unlock protected FCA vehicle SGW module on Chrysler, Dodge, Jeep, Alfa Romeo, and Fiat vehicles manufactured after 2017 and perform diagnostics (Note: There is an annual fee for Autoauth account)

5.Support more than 100 car brands,Worldwide Compatibility, NO IP restrictions

6.Android 10 with 4-core CPU, 4GB RAM 64GB ROM

Supported 28 language

English, German, Spanish, French, Italian, Portuguese, Russian, Polish, Turkish, Dutch, Hungarian, Chinese (Traditional), Greek, Slovak, Romanian, Arabic, Croatian, Slovene, Finnish, Japanese, Korean, Czech, Persian, Swedish, Serbian, Danish, Vietnamese , Bulgarian

Big Money Saver

Premium THINKSCAN 689BT Wireless Diagnostic Scanner, save up to 400USD per year, includes all useful features: Full bi-directional controls, Online/offline coding, 34+ services, OEM all system diagnostics, Worldwide vehicles coverage, CAN FD & DoIP, Configured with Gateway Accessory Kit, FCA AutoAuth, works on Chrysler, Dodge, Jeep, Fiat etc. in & after 2018. No need to think twice, 689BT scanner definitely becomes the best bang for your bucks.

3000+ Active Tests

Active testing is one of the most useful features in automotive maintenance and greatly improves mechanic efficiency. THINKCAR 689BT bidirectional scanner can send action commends to vehicle sub-systems or components for active test without using vehicle controls. It can perform various tests such as: EVAP Test, Fuel Trim Reset, Injector Buzz Test, Window/ Mirror/ Door Lock Test, Pump and Value Tests, etc. Get functions from "Diagnose>Car Model>System>Active Test".

Hot Advanced Features

689BT bidirectional tool newly adds ECU Online Coding(ONLY for VW/Audi/Skoda), Power Balance, Flash Hidden Functions, Reset Adaptive Data, Match Replaced Components, Customize OE-Settings. Such as: 1. changing the color of interior lights 2. switching on/off the auto hold, 3. customizing dash kits 4. activating the auto side mirror folding function 5. disables auto start-stop .6. remove/change Speed Limit. Note: Coding functions vary by model&year.

34 Services for 140+ Makes and Growing

One of the most important features in a business scanner, every item yields benefits. In 2024, 689BT car scanner diagnostic tool added 6 new services including Clutch, ECU, FRM, Gate, Rlsensor, and Turbo Reset. The popular Oil Reset, EPB, BMS, SAS Calibration, IMMO, ABS Bleeding, Injector Coding, Gearbox Match, Suspension, Crankshaft Relearn etc, still growing. Check compatibility before purchase.

OE Level All Systems Diagnostic

THINKSCAN 689BT obd2 scanner diagnostic tool is an universal automotive diagnostic scanner which can access to all available car systems such as Engine, Trans, Brake, TPMS, Battery, SRS etc. to read and clear codes. In addition, it displays real-time data (sensors, valves, RPM, etc.) in text, graphical and analog formats and saves them as reports with the customer.

Lifetime Update & Back-up

THINKSCAN 689BT is a comprehensive scanner automotriz, supports 28 languages, 140 worldwide car brands , like passenger cars, 12v pickup, hybrid vehicles and suvs (1996-2024). AutoAuth for 2018+ FCA cars . CAN FD & DOIP protocols boost 2X faster communication. Packaging configuration gateway accessories, saving you 60 bucks. It is an fantastic choice for DIYers, repair store. For any issues,ask for support from THINKCAR

FCA gateway account Available for purchase on the website:

https://www.thinkcar.com

1. Click "Explore" 2.choose "FCA"

Bi-directional control/3000+ active testing:

The ThinkScan 689BT obd2 diagnostic device operates commands on vehicle subsystems or components to actively test them without the need to control the vehicle. It can perform a variety of tests such as: lighting control, injector testing, rear-view mirror control, coolant pumps and more. Call up the function via diagnostics>vehicle models>system>active test. They save you a lot of time and money!

Advanced ECU coding:

ThinkScan 689BT OBD2 diagnostic device adds ECU online coding, power balance, refresh hidden functions, reset adaptive data, matching replacement components, adjust OE settings. For example: 1. Change the colour of the interior lighting. 2. Auto-hold on/off 3. Adjust dashboard kit 4. Disable automatic start/stop etc. (Note: coded functions vary depending on model and year of manufacture)

34+ popular reset functions

this car diagnostic device has 34 service functions (free lifetime). These include oil lamp reset, EPB, BMS, SAS, ABS, injector coding, transmission adjustment, clutch, ECU reset and turbo reset. These reset functions can quickly help you perform various maintenance work on vehicle systems. ThinkScan 689BT obd2 scanner is constantly expanding with new reset features. Please check compatibility before purchasing.

*Not all vehicles support all reset functions. For example, ODO reset can only be used for some models. Please send vehicle model and year to customer service for inquiry.

1. Oil Reset

Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.

2.EPB Electronic Park Brake Reset

It is important in the maintenance of electronic braking system's safety and efficiency.

3.BAT battery service

Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.

4.DPF Diesel Particulate Filter Reset

Specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

5.SAS Steering Angel Sensor Reset

Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.

6.TPMS Tire Pressure Monitoring System Reset

Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.

7.IMMO Matching

In order to prevent the car from being used by illegal keys, the IMMO matching function enables the anti-theft control system on the car to identify and authorize the remote key, so that the car can be opened and used normally. When the car changes the ignition switch key,ignition switch, integrated dashboard, engine control unit (ECU), body control module (BCM) and remote control battery, the IMMO matching is required.

8.ABS Bleeding

ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system.

9.Sunroof Reset

The sunroof needs to be reset when the sunroof control unit have communication problem or changed.

10.Suspension Reset

Try reset electronic suspension air ride with the massage system close all doors koeo flip through messages system go to suspension reset or on off.

11.Gearbox (Transmission )Reset

Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern. After you follow this programming method of the TCU / ECU drive the car.

12.AFS Headlamp Reset

'AFS' means Adaptive Front lighting System (at night with the Bi-Xenon headlights) it swivels either side, pressing that button means they stay pointing straight ahead and don't turn when you turn the steering wheel.

13.Injector Coding

Leaking injectors and some dead injectors can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off.

14.Throttle Adaptation

The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair.

15.Gear Learning

The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running.

16.EGR Reset

Reduce nitrogen oxides (NOx) in the exhaust gas and improve fuel economy at partial load.

17.A/F Reset

This function is applied to set or learn Air/Fuel ratio parameters.

18.Adblue Reset(Diesel Engine Exhaust Gas Filter)

After the diesel exhaust treatment fluid (car urea) is replaced or filled up, urea reset operation is required.

19.Airbag Reset

This function resets the airbag data to clear the airbag collision fault indicator.

20.Coolant Bleeding

Use this function to activate the electronic water pump before venting the cooling system.

21.AT Learning

This function can complete the gearbox self-learning to improve gear shifting quality. When the gearbox is disassembled or repaired (after some of the car battery is powered off), it will lead to shift delay or impact problem. In this case, this function needs to be done so that the gearbox can automatically compensate according to the driving conditions so as to achieve more comfortable and better shift

22.Language Change

This function is used to change the system language of the vehicle central control panel.

23.Nox Sensor Reset

Nox sensor is a sensor used to detect the content of nitrogen oxides (Nox) in engine exhaust. lf the Nox fault is re-initialized and the Nox catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine Ecu.

24.ODO Meter Check

Only supports reading the current mileage of the car, does not support modifying the mileage

25.Stop/Start Reset

This function is used to open or close the automatic start-stop function via setting the hidden function in ECU(provided that the vehicle has a hidden function and supported by hardware).

26.Seat Calibration

This function is applied to match the seats with memory function that are replaced and repaired.

27.Transport Mode

ln order to reduce power consumption, the following functions may be disabled, including limiting the vehicle speed, not waking up the door opening network, and disabling the remote control key,etc.At this time, the transport mode needs to be deactivated to restore the vehicle to normal.

28.Windows Calibration

This feature is designed to perform door window matching to recover ECU initial memory, and recover the automatic ascending and descending function of power window.

29.Gateway Module Data Calibration:After replacing the gateway control unit , there may be a VIN inconsistency , so the VIN needs to be changed

30.ECU Reset:After performing the ECU coding, some ECUs may not display the new code and will need to run this function to display the correct code

31.Clutch Matching:This function is used to learn the engagement point of the clutch at which the engine torque is transmitted to the gearbox . To be camied out after replacing the control unit , replacing / removing the gearbox or replacing the clutch

32.Rainfall Light Sensor:The rain sensor is used to adjust the wiping frequency and the light sensor adjusts the light intensity of the automatic headlights depending on the ambient light and darkness. After replacing the windscreen or the sensor. the rain/driving light sensor must be initialised.With this service function, initialisation performs an adjustment of the rain / driving light sensor.

33. FRM Matching:This function resets the FRM control unit ( installed in BMW and MINI vehicles ) . The reset clears fixed faults in the footwell module related to a short circult of the lights

34. Turbocharging Matching:For learning after replacement of turbocharger system components or resetting the turbocharger leaming value

Autoauth for FCA SGW

FCA vehicles (Fiat Chrysler Automobiles) have been protected with an SGW security module (Secure since 2017 Gateway) to prevent unauthorized diagnostics and security attacks.This module limits diagnostic capabilities without authorized diagnostic tools. This limits functions ranging from Bi-directional testing to DTC clearing. The vehicle's SGW will need to be "unlocked" by the authenticated tester, and the Diagnostic tools.Now FCA US is using the Automatic Authentication Authority (AutoAuth) to manage user accounts for access to SGW vehicles

Use the latest software update function AutoAuth to provide systems diagnosis, active test, retrieve module info, etc., making the diagnostics more secure. Applicable to FCA vehicles(Chrysler, Dodge, Jeep, Fiat) equipped with a security gateway module (SGW) in 2017 and later. (Note: There is an annual $50 fee for Autoauth account, but the payment is charged by AutoAuth directly.

Available for purchase on the website: https://www.thinkcar.com

1. Click "Explore" 2. Choose "FCA" )

Before purchasing a gateway account,THINKSCAN 689BT can reading version information,reading fault codes, and reading data streams

After purchasing a gateway account,THINKCAR THINKSCAN 689BT can support reading version information, reading fault codes, reading data streams, action testing, clearing fault codes, special functions, and maintenance functions.

Fit for FCA Vehicles from 2017-2024 including 300/Pacifica/Challenger/Charger/Durango/Journey/Ram 1000/Ram 1500(DS)/Ram 1500(DT)/Ram 2500/Ram 3500 Cab Chassis/Ram 3500 Cab Chassis 10K/Ram 3500 Pickup/Ram 4500/Ram 5500/ProMaster City/Cherokee/Compass/Compass (Brazil, China, India, Mexico)/Grand Commander/Renegade/Wrangler (JL)/Giulia/Giulietta/Stelvio/500X/500X/500BEV/Toro/Doblo/Ducato/Novo Strada/Mobi/... More keeps growing

Full system diagnosis

The Thinkscan 689BT car diagnostic tool is a universal OBD-II diagnostic tool that allows access to all available car systems such as ECM, transmission, ABS, airbag, SAS, DPF, EVAP, TPMS, BMS, EPB, fuel system, light system and air conditioning etc. In addition, it displays real-time data (sensors, valves, speeds, etc.). The data can be displayed in text, graphic and video formats and saved as customer reports.

OE-level OBD-II diagnostic tools

Compatible with OBDII vehicles post-1996, it supports over 140 brands, including for Ford, for Chevrolet, for Dodge, and for Jeep. Whether you're a DIYer, garage owner, car trader, technician, engineer, diagnostic expert, home repair specialist, student, hobbyist, retired professional, or weekend tinkerer, the TK689BT offers comprehensive diagnostics with precision and ease. Its versatility makes it the premier choice for anyone dedicated to vehicle maintenance and repair.

Essential Diagnostic Tool for 140+ Vehicle Brand

The ultimate diagnostic tool supports a wide range of crucial protocols, including CANFD—now supporting for SGM, for GM, for CHRYSLER, and more—along with OBDII and EOBD, ensuring compatibility with over 140 vehicle brands. Main supported standards include ISO 14230-4 (KWP2000), ISO 15765-4 (CAN), ISO 9141-2 (ISO), ISO 14229 (UDS), and SAEJ 1850 (VPW & PWM). These protocols are essential for comprehensive vehicle diagnostics, allowing the scanner to read and clear trouble codes, monitor real-time data, and perform system tests wit high accuracy and efficiency.

Supported 28 language

English, German, Spanish, French, Italian, Portuguese, Russian, Polish, Turkish, Dutch, Hungarian, Chinese (Traditional), Greek, Slovak, Romanian, Arabic, Croatian, Slovene, Finnish, Japanese, Korean, Czech, Persian, Swedish, Serbian, Danish, Vietnamese , Bulgarian

DoIP

With Diagnostics over DoIP, diagnostics introduced over UDS are used over TCP/IP and Ethernet. This enables much higher data rates than with CAN. That makes it save both in terms of time and expenses in the case of complex diagnostic tasks and flash applications. Compatible with BMW (F&G chassis), Volvo models (2018 later), Land Rover & Jaguar models (2017 later).

Upgraded OBD2 Scanner supporting CANFD: The ultimate diagnostic tool supports a wide range of crucial protocols, including CANFD—now supporting for SGM, for GM, for CHRYSLER, and more—along with OBDII and EOBD

GM:

[2021][Chevrolet][Onix] CANFD6&14,[Chevrolet][Tracker] CANFD6&14,[Chevrolet][Suburban] CCMA,[Cadillac][Escalade ESV] CCMA,[Cadillac][Escalade] CCMA,[GMC][YUKON XL] CCMA,[GMC][YUKON] CCMA,[Chevrolet][Onix] ALL SYSTEM,[Chevrolet][Tracker] ALL SYSTEM,[Chevrolet][Suburban] CCMA,[Cadillac][Escalade ESV] CCMA,[Cadillac][Escalade] CCMA,[GMC][YUKON XL] CCMA,[GMC][YUKON] CCMA

[2023][Chevrolet][Montana] ALL SYSTEM,[Chevrolet][Montana] CANFD6&14

[2024][Buick][Electra E5] VSIM,[GMC][Sierra] H/U TCM 10 Speed (MGM)/10 Speed (MGU),[Buick][Electra E5] VSIM,[GMC][Sierra] H/U TCM 10 Speed (MGM)/10 Speed (MGU)

What is the CAN FD protocol

As the number of automotive ECUs continues to increase, the number of messages transmitted on the bus is also increasing. In the traditional CAN network, each frame of the message can only carry 8 bytes of data, and the CAN bus can only support a maximum transmission rate of 1Mb/s. In order to increase the utilization of the CAN bus, the CAN FD (Flexible Data-rate) standard was introduced based on CAN.

Compared with traditional CAN, CAN FD supports a higher transmission rate and a variable speed function, that is, a lower transmission rate is used for bus arbitration in the arbitration segment. After winning the arbitration, the data in the data segment is transmitted at a high rate, supporting a maximum transmission rate of 8Mb/s. The data field length of CAN FD has also been expanded, and a maximum of 64 bytes can be transmitted at a time.
