100W 12V Flexible Solar Panel kit System 18V Photovoltaic Monocrystalline Module 10A Charge Controller for Caravan Home Roof Car

XINPUGUANG 100W 12V Flexible Solar Panel kit System 18V Photovoltaic Monocrystalline Module 10A Charge Controller for Caravan Home Roof Car Motorhome Power Charger (100w)

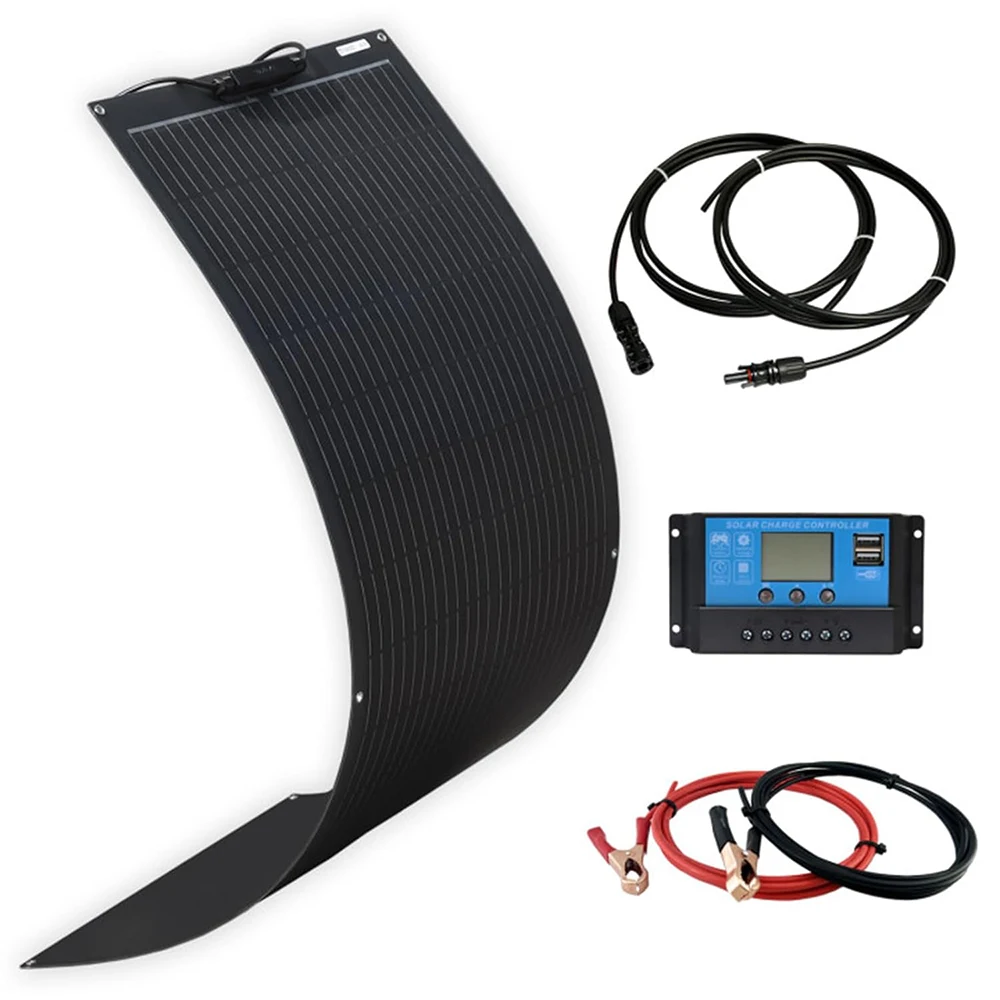

( 100W Kit-Black/ 100W Kit-Black /100W Kit-White)Solar Panel kit:1 set black cable 3m with connection(2.5mm2), 1 x USB controller 12v / 24v / 10A, 1 x 100w solar panel, 1 set 3m cable with alligator clip (2.5mm2)

OR

(100W-White/ 100W-Bladk)Solar Panel : 1pcs Solar Panel

[High Efficiency]PERC technology monocrystalline solar cell.WUZECK solar panel provides high conversion efficiency up to 23%,

[Ultra-thin and ultra-lightweight design] Flexible solar panels are lightweight and portable, weighing 3.96lb and 0.11inch thick.Solar panels are easy to transport, install, hang and remove.

[Bendable and versatile ] Flexible solar panels are bendable and can be shaped to fit a variety of surfaces, This makes them a great choice for use on boats, RVs, trailers,and other vehicles.

[Easy to install] Flexible solar panels are easy to install and can be mounted using a variety of methods, including adhesive backing, grommets, and tie-downs. This makes them a great choice for DIY enthusiasts who want to install own solar panels.

[Compatible with for a variety of batteries] Lead-acid battery (Sealed, Gel, Flooded) and Lithium battery (LiCoMnNiO2, LiFePO4),Multiple protection functions can better protect the battery.

Product Description

16.5V 100W Flexible solar panel Specification

Maximum power(Pmax) 100 Watt

Maximum system voltage 700V DC

Open circuit voltage(Voc) 19.8V

Short circuit current(Isc) 6.66A

Maximum power voltage(Vmp) 16.5V

Maximum power current(Imp) 6.06A

Weight 1.8kg/4.0lb

Size 1140X460X2.5mm / 44.88X18.11X0.098 inch
Cable length 90cm/10FT
Operating Temperature -45℃ to 80℃ /-49℉ to 176℉

Operating temperature(NOCT) 45 plus or minus 2 Celsius system

STC: lrradiance1000w/m2,Temperature 25 Celsius system, AM=1.5

Please note: If you test the solar panel, the solar panel must be tested under the sun. The solar panel is exposed to sunlight at different times and the temperature is different, which will affect the output power of the solar panel.

1 Years Warranty, 8-10 Year Lifetime
Minor reduction in efficiency under partial load conditions at 25degC: at 100 W/m2, 95%- (+/-5%) of the STC efficiency (1000 W/m2) is achieved.

Extra: We keep right to change the specification of the data, and there is about ±5%deviation for all specification, pls notice this point.

OR

PERC technology monocrystalline cells with conversion rate up to 23%.

Water resistance

Waterproof IP67 junction box and PV connector，Ideal for outdoor environment.

2 Boat

3RVs/Trailer

[Highly efficient]The solar panel uses high efficiency 210MM monocrystalline solar cells with a conversion efficiency of 23%-24%. Built-in bypass diode to better protect the solar panel.
[Ultra-light and Flexible] A single solar panel weighs only 4.0 pounds and is only 0.098 inch thick. It can be easily picked up and carried. The solar panel be bent up to 260°. Ideal for mounting on RV ,roofs, campers, trailers, boats, cabins, tents, and other uneven surfaces.
[Highly Robust] The solar panels come with an IP67 waterproof rating .Withstand heavy snow loads of up to 5400 Pa and high wind loads of up to 2400 Pa,suitable for outdoor weather.
[Effective protection] Solar controller has short-circuit protection, open-circuit protection,reverse protection, over-load protection. The intelligent charger regulator is suitable for lead-acid, geland lithium phosphate battery.
[Nice Details] The component contains a bypass diode, and the circuit uses input over current protection and reverse protection design.The solar panel has 6 pre-punched holes are available to attach fasteners，and can also be installed with silicone and adhesive tape.

Safety Instructions:



1.Make sure your battery has enough voltage for the controller to recognize the battery type before first installation.

2.The battery cable should be as short as possible to minimize loss.

3.The regulator is only suitable for lead acid batteries: OPEN, AGM, GEL,lithium ions batteries).

4.The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.

System Connection:



1.Connect the battery to the charge regulator - plus and minus.it will show 1 ,if it detects 12V battery, 2 if it detects 24V battery.

2.Connect the photovoltaic module to the regulator - plus and minus.

3. Connect the consumer to the charge regulator - plus and minus.

SOLAR HOME SYSTEM

• Small DC systems

• Telemetry use

• Home use

• Holiday houses

• Garage lighting

• Recreational use

• Lighting of streets in regions without

reliable grid

• Billboard lighting

• Sports field lighting

• Parking space lighting

• AC and DC loads possible

• Home use

• Industrial use

HYBRID SYSTEM

• PV and wind turbine or diesel generator

• DC and AC loads possible

• High reliability

• Small hydro generators

• Recreational use

• Caravan and camping

OFF-GRID CONNECT

• Covering self consumption

• Grid is used as back-up

• Reduces energy cost
