XINPUGUANG Flexible Solar Panel OR Monocrystalline Solar Battery Charger Kit Off- Grid System 1000W, 600W,400W,200W,100W

XINPUGUANG Flexible Solar Panel OR Monocrystalline Solar Panels Kit kit Off- Grid System 1000W, 600W,400W,200W,100W Solar Cell Module Wholesale for Motorhome RV Caravan Camper Boats Roofs battery Charger 12V /24V/36V/ 48V

About this item

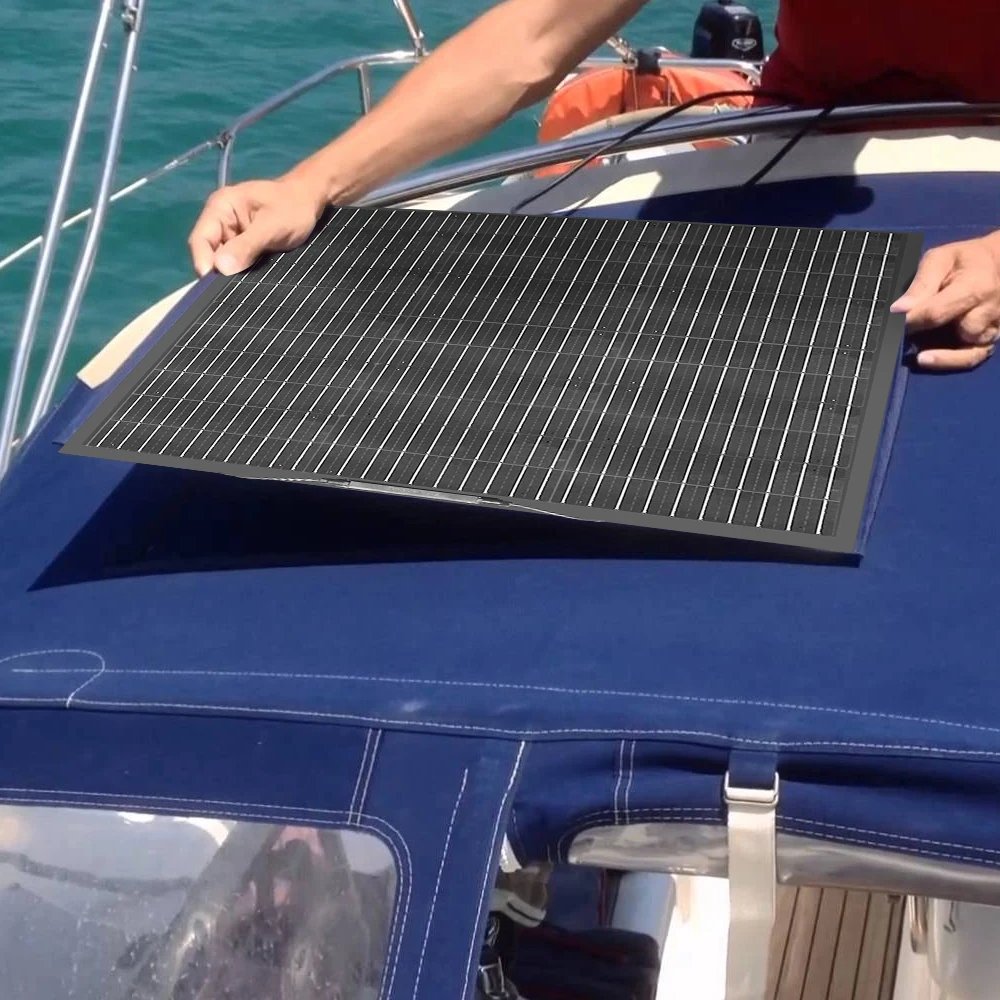

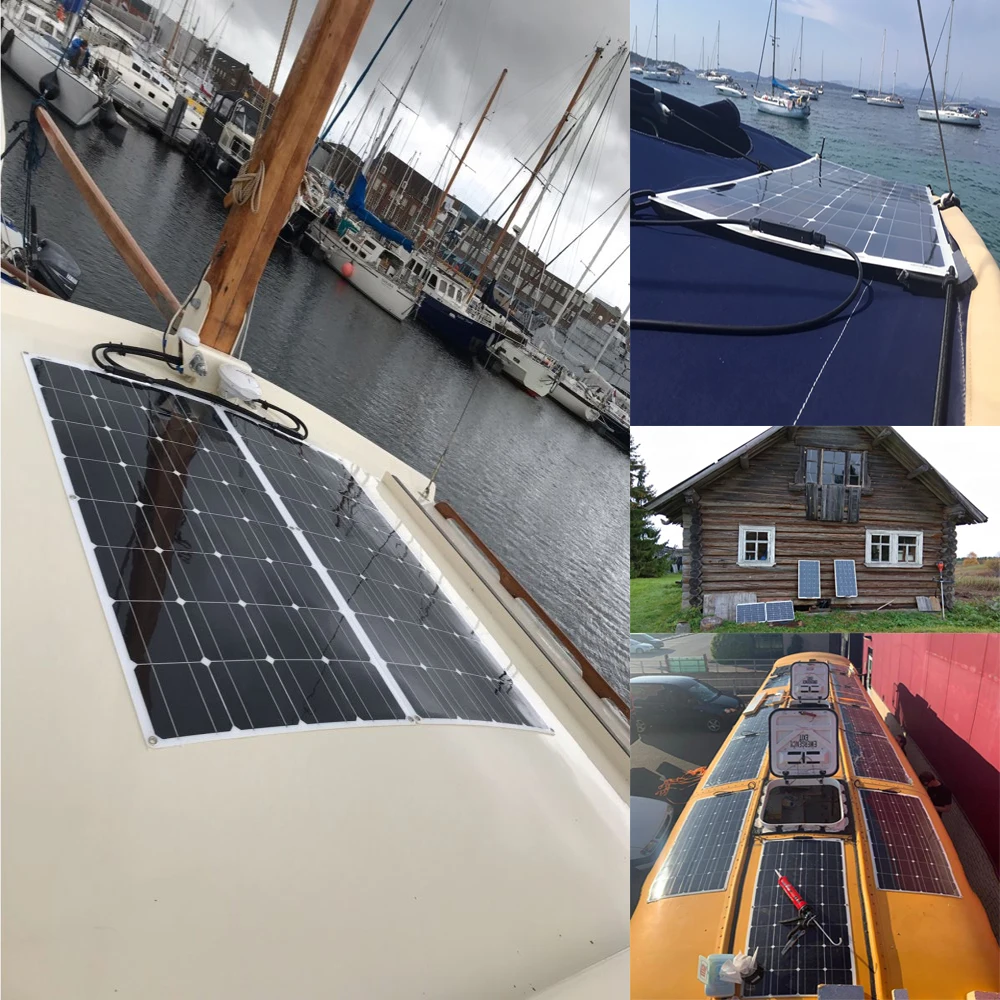

Wide Application: 100W is a semi-flexible high-performance solar cell that is ideally suited both as a solar module for the mobile home and especially for marine use on sailing yachts, motor yachts and other types of boats.
Maximum Stability: Our semi-flexible solar modules Thanks to the integrated bypass diodes in the junction box.

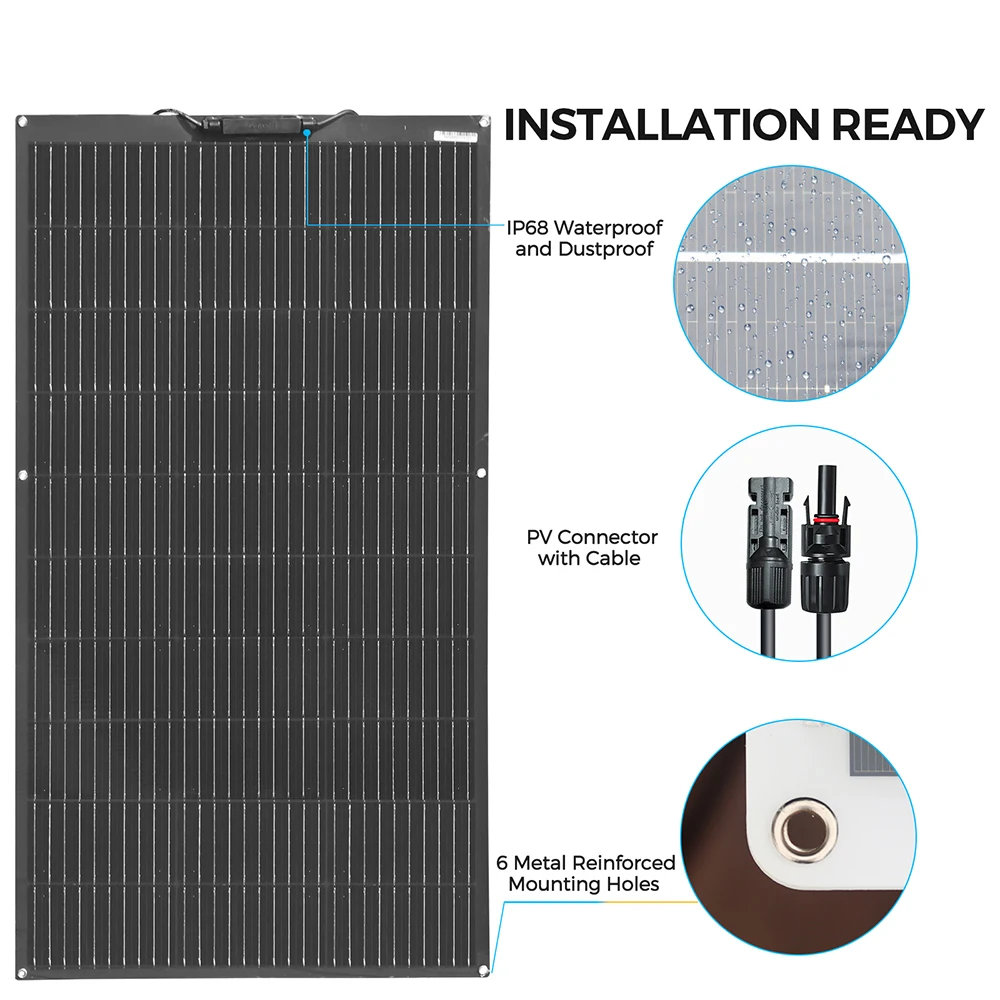

Waterproof: The junction box and diodes have been pre-installed and are sealed and waterproof. The solar panel is supplied with a 90cm solar cable with which several panels can be connected in series or in parallel.
Anti-Backflow: Built-in blocking diode to prevent battery discharge at night ,and prevent flexible panel from current backflow to damage circuit board in cells.
Easy Construction: Thanks to the junction box on the front, the modules can be glued to almost any surface.

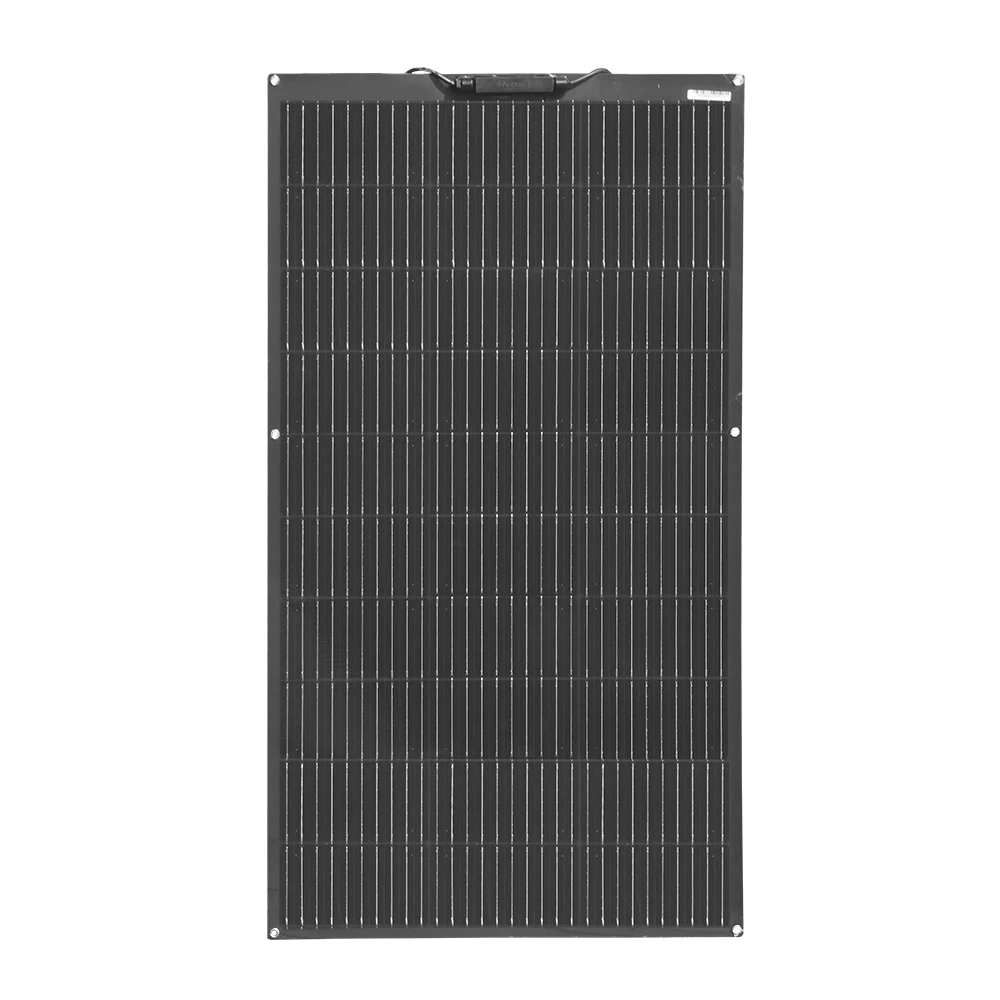

18V 100W Flexible solar panel Specification

Maximum power(Pmax) 100W

Output tolerance ± 5%

Maximum system voltage 700V DC

Open circuit voltage(Voc) 21.6V

Short circuit current(Isc) 6.11 A

Maximum power voltage(Vmp) 18V

Maximum power current(Imp) 5.55A

Cell efficiency 23%

Operating temperature（NOCT） 45±2℃

Temperature range -40℃～+80℃

Number of cells 33pcs

Weight 1800g

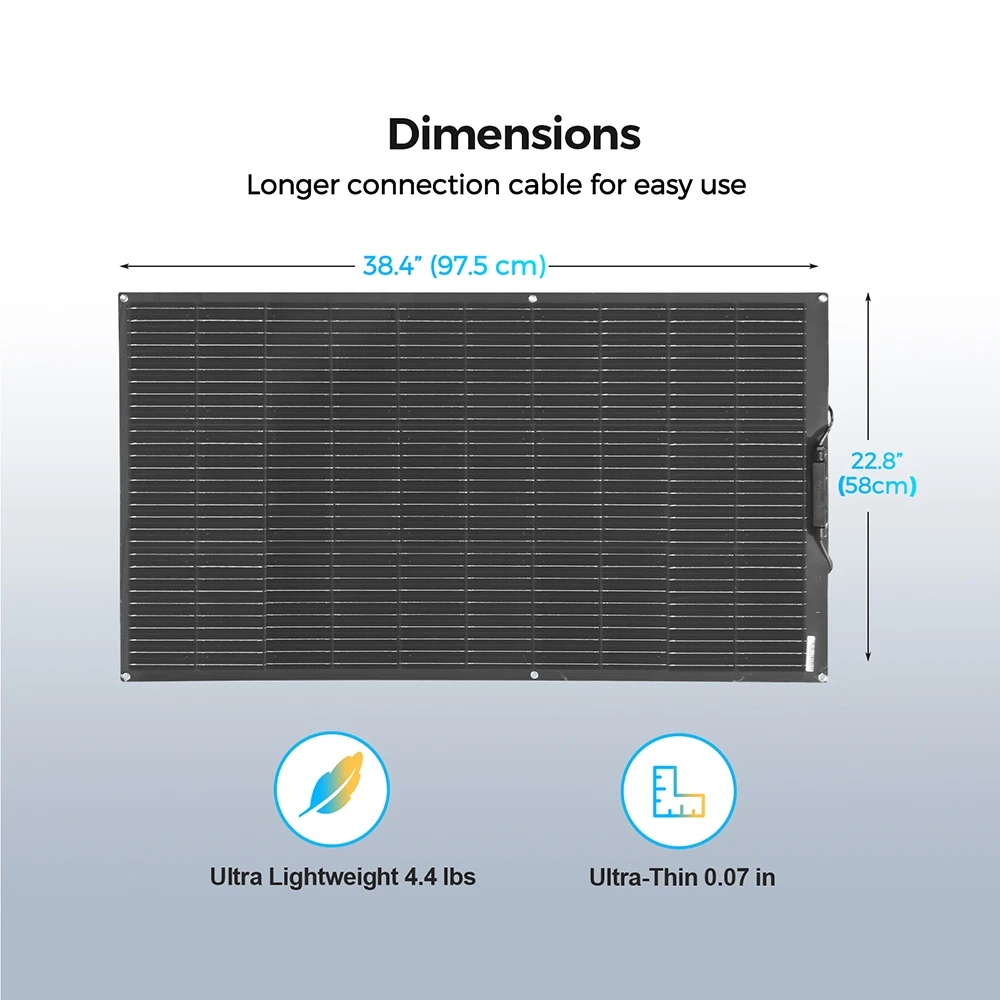

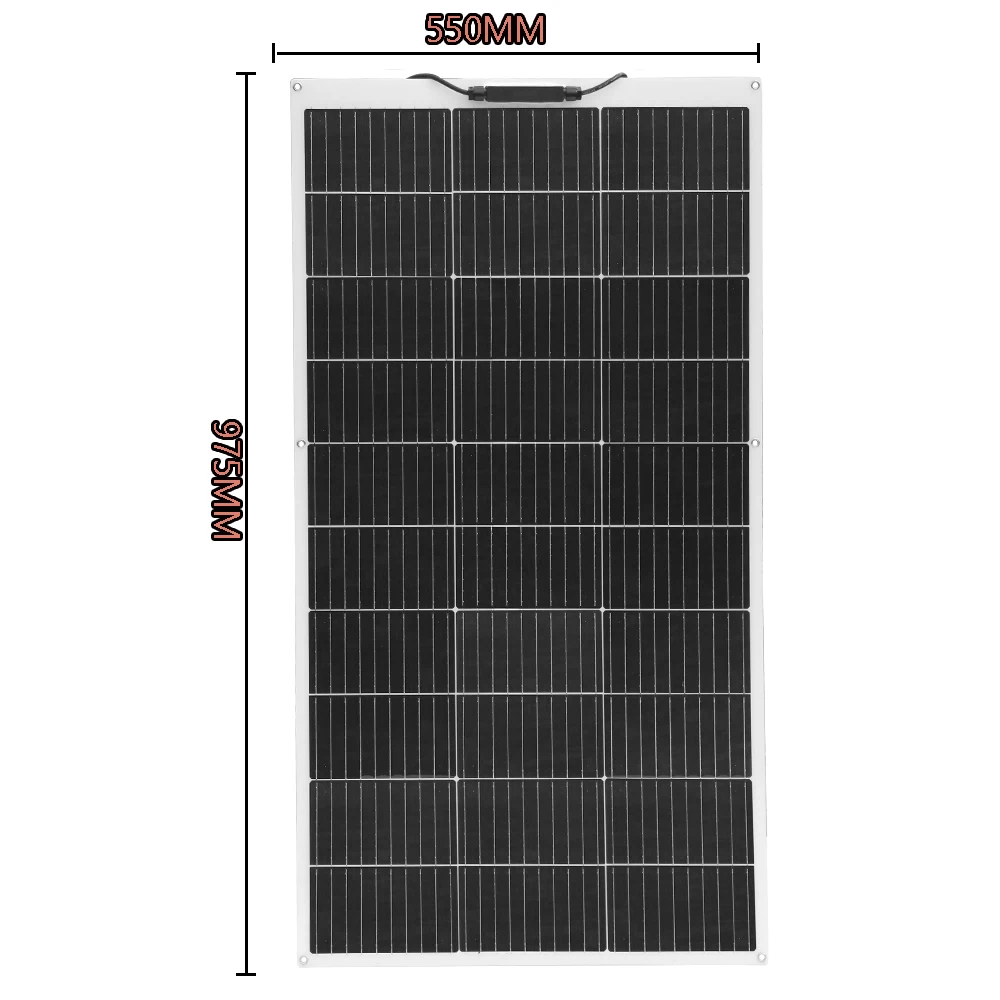

Size 975*540*3 mm

Standard Test Conditions ： lrradiance 1000w/m^2，Temperature 25℃, AM=1.5

Solar panels need to be in the sun to have output, and depending on the light, temperature, the output power will vary

OR

Features:

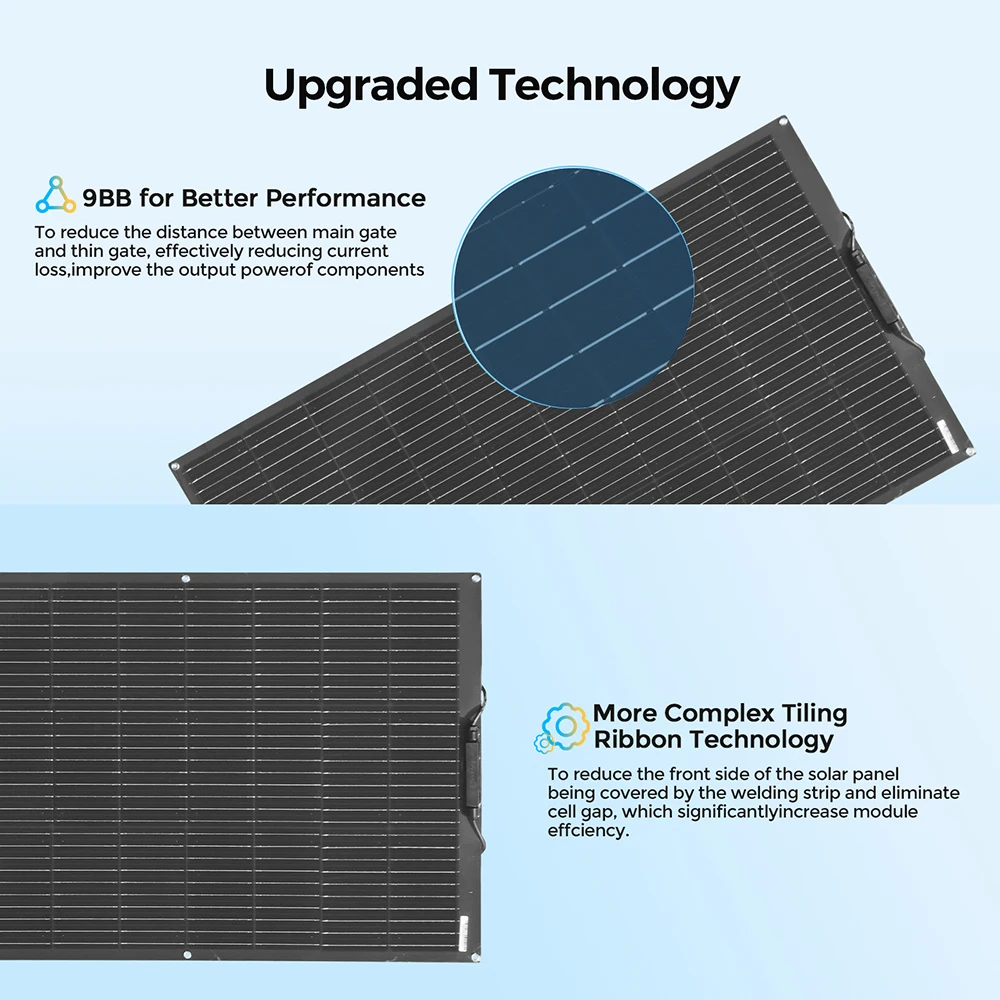

1.[Excellent performance] Using high-quality monocrystalline silicon cells, high-efficiency monocrystalline silicon solar cells provide good performance even in low light conditions

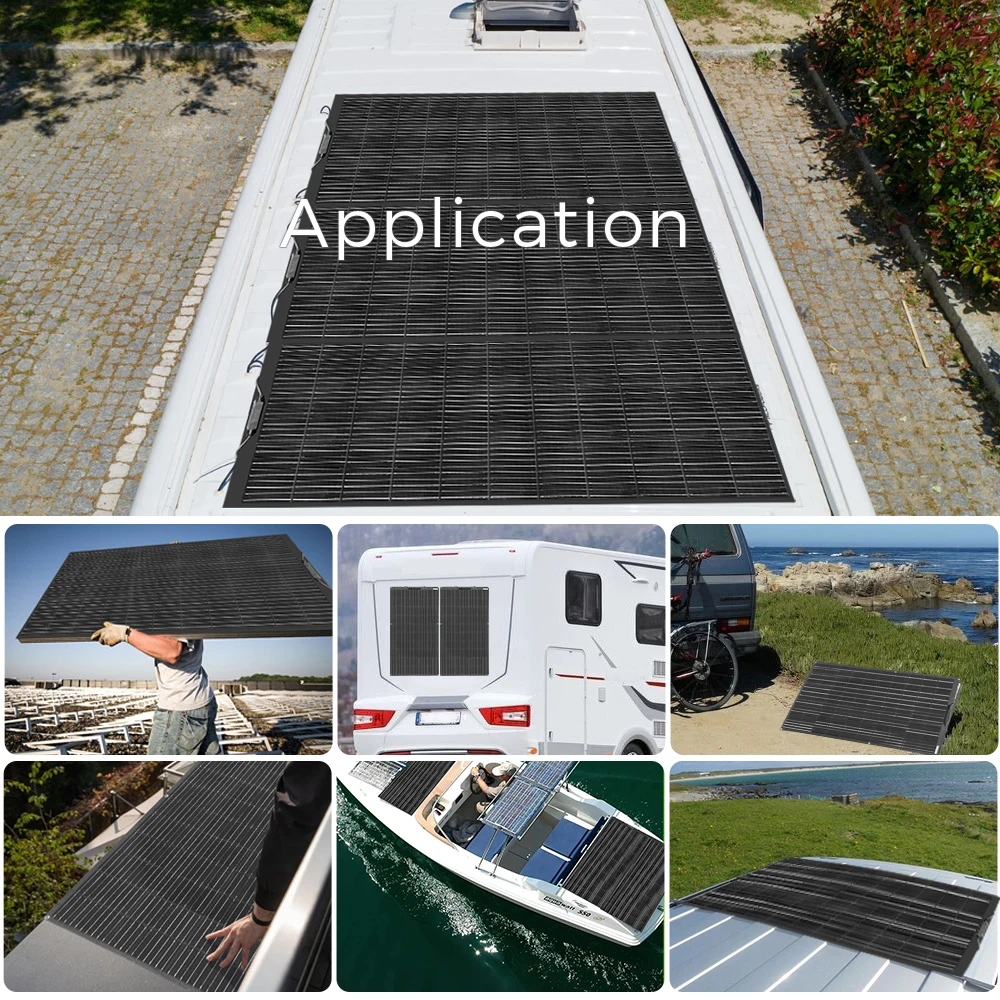

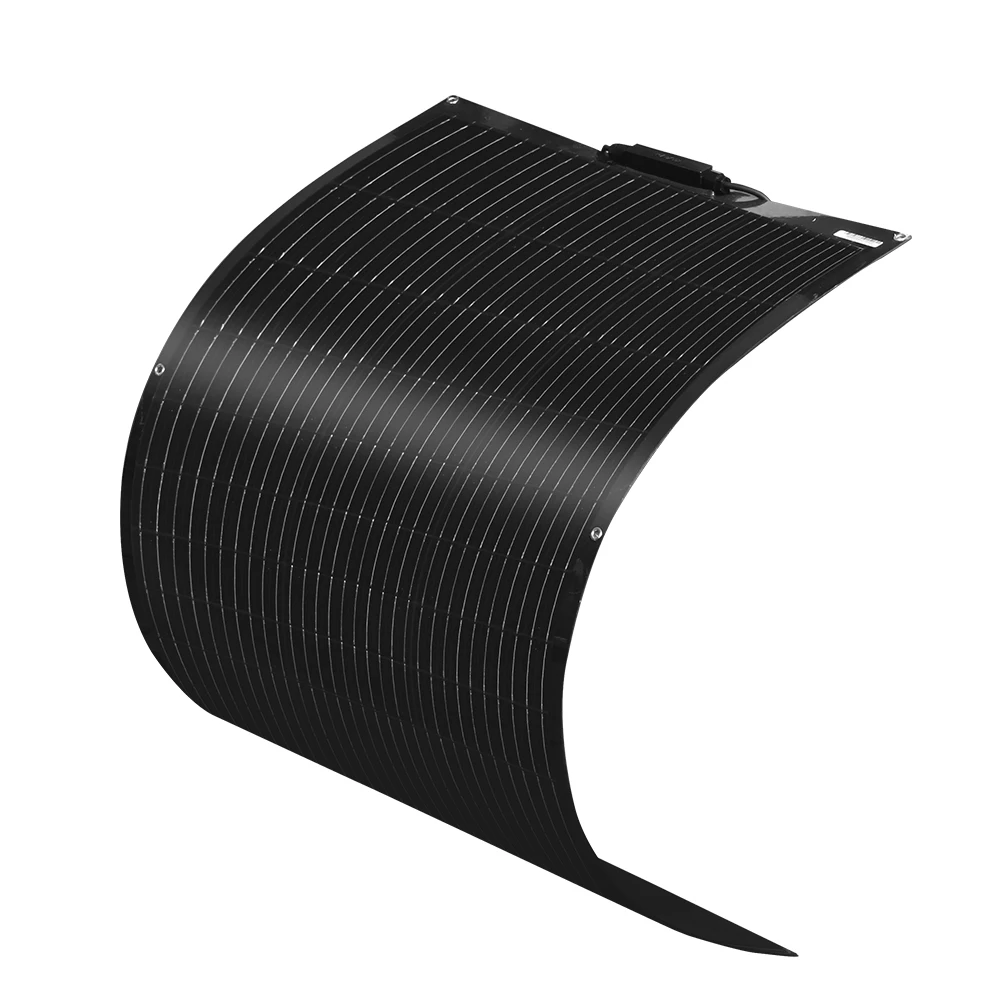

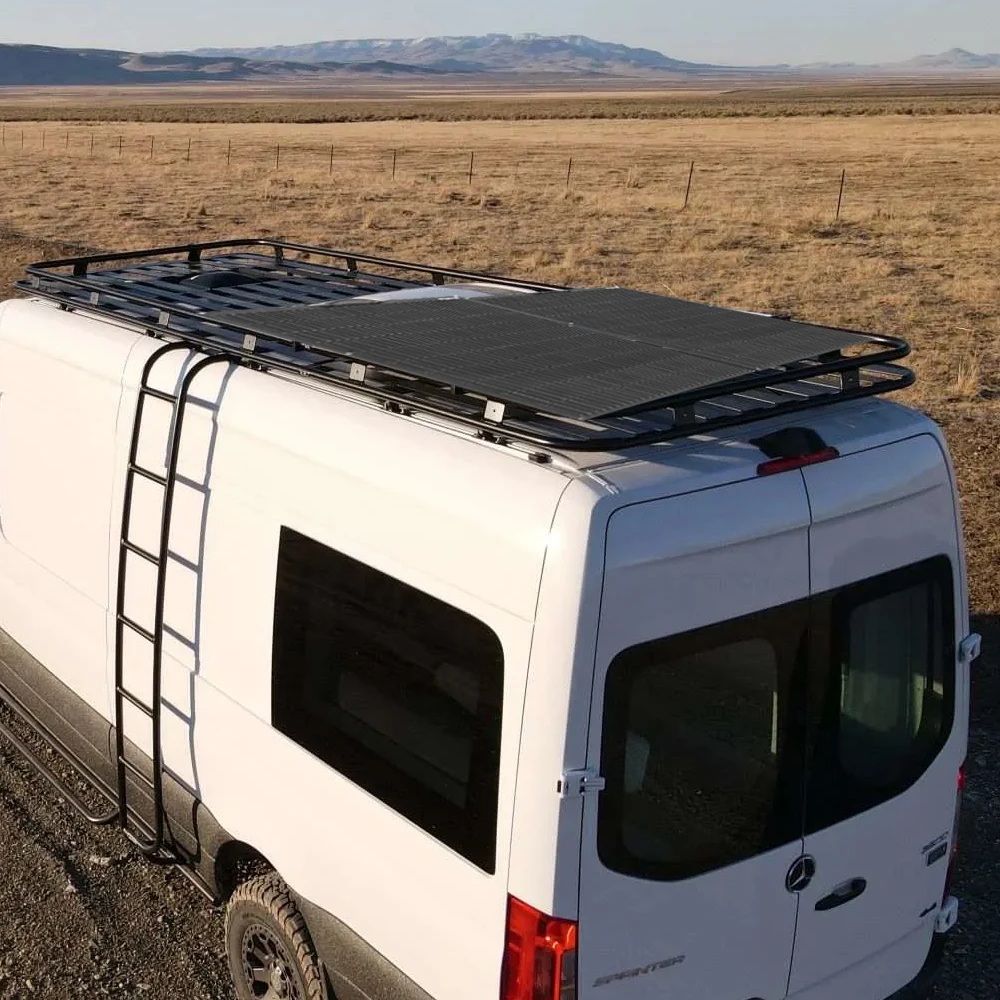

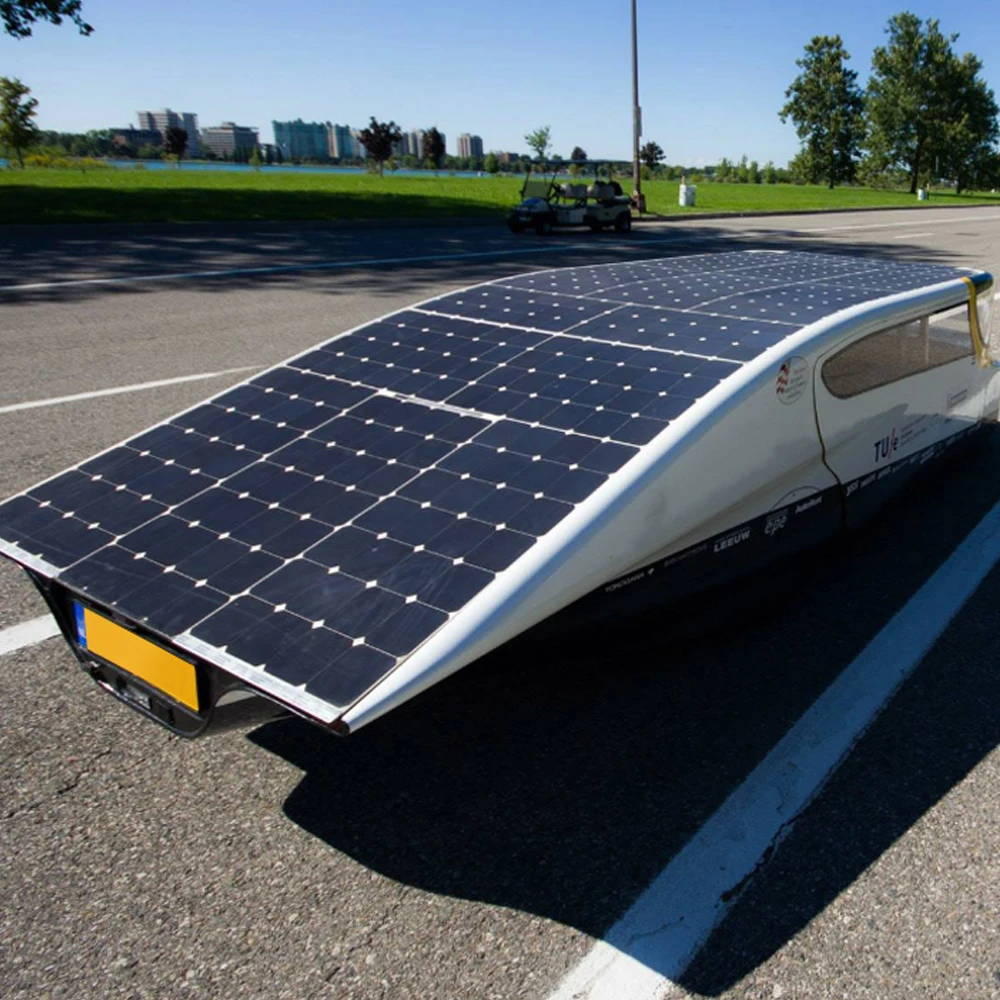

2.[Flexible] This flexible solar panel is a good choice for curved surfaces of RV, boat,sailboat, yacht,truck, car, coach, cabin, camper , tent , trailer, golf cart or any other irregular surface.

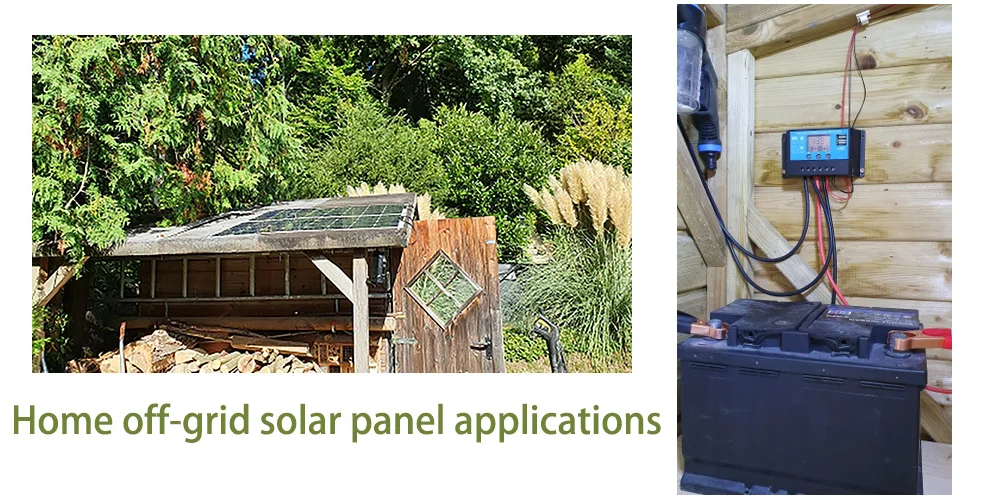

3.[Practicality] Light energy converts electrical energy and has strong practicability. It is a good supplement for power shortages and places where the city power cannot reach, such as mountains, marine, deserts, etc.
4.[Nice Details] The water resistant flexible solar panel is far more durable than traditional glass and aluminum models; The junction box is sealed and waterproof.
5.[Easy Installation]The solar panel has 6 grommet mounting holes are available to attach fasteners,and can also be installed with silicone and adhesive tape. 12-month guarantee service.

1pcs 100W Packing list

1 x 100W 18V /16.5V Solar Panel

2pcs 100W Packing list

2 x 100W 18V /16.5V Solar Panel

4pcs 100W Packing list

4 x 100W 18V /16.5V Solar Panel

6pcs 100W Packing list

6 x 100W 18V /16.5V Solar Panel

10pcs 100W Packing list

10 x 100W 18V /16.5V Solar Panel

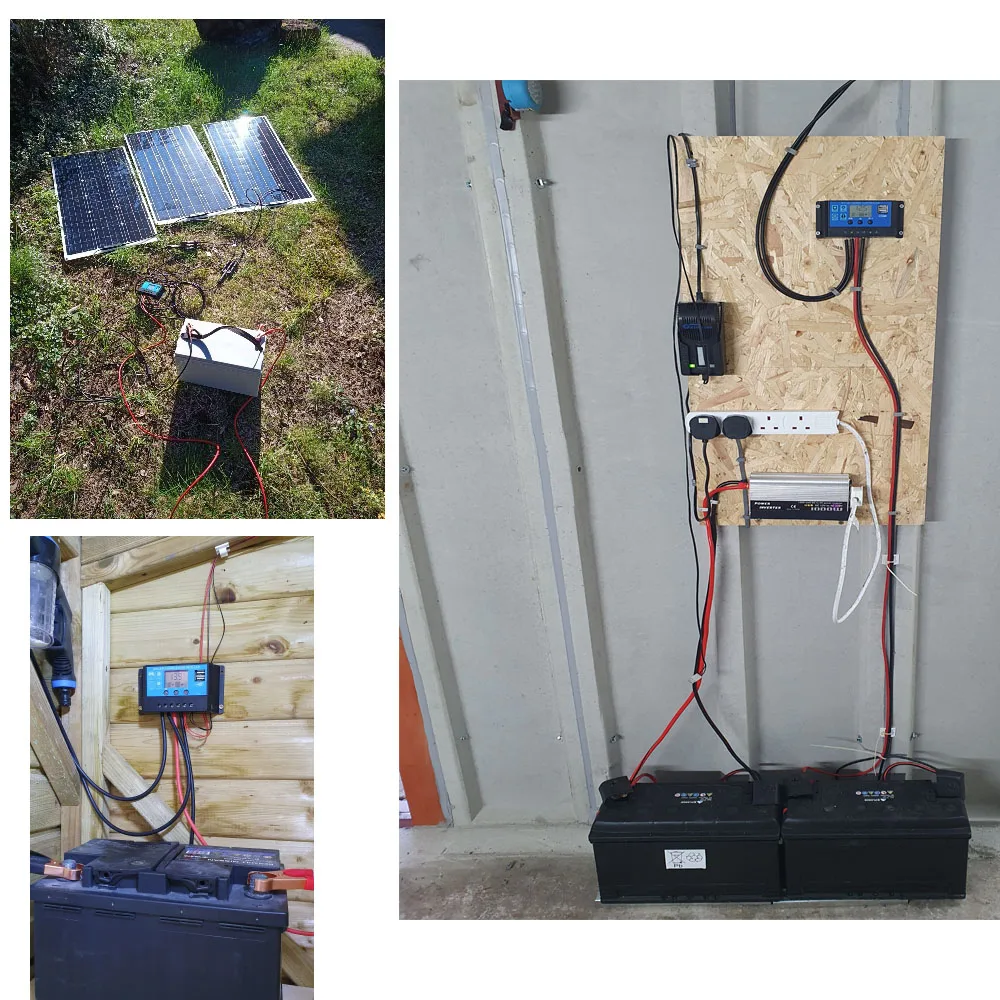

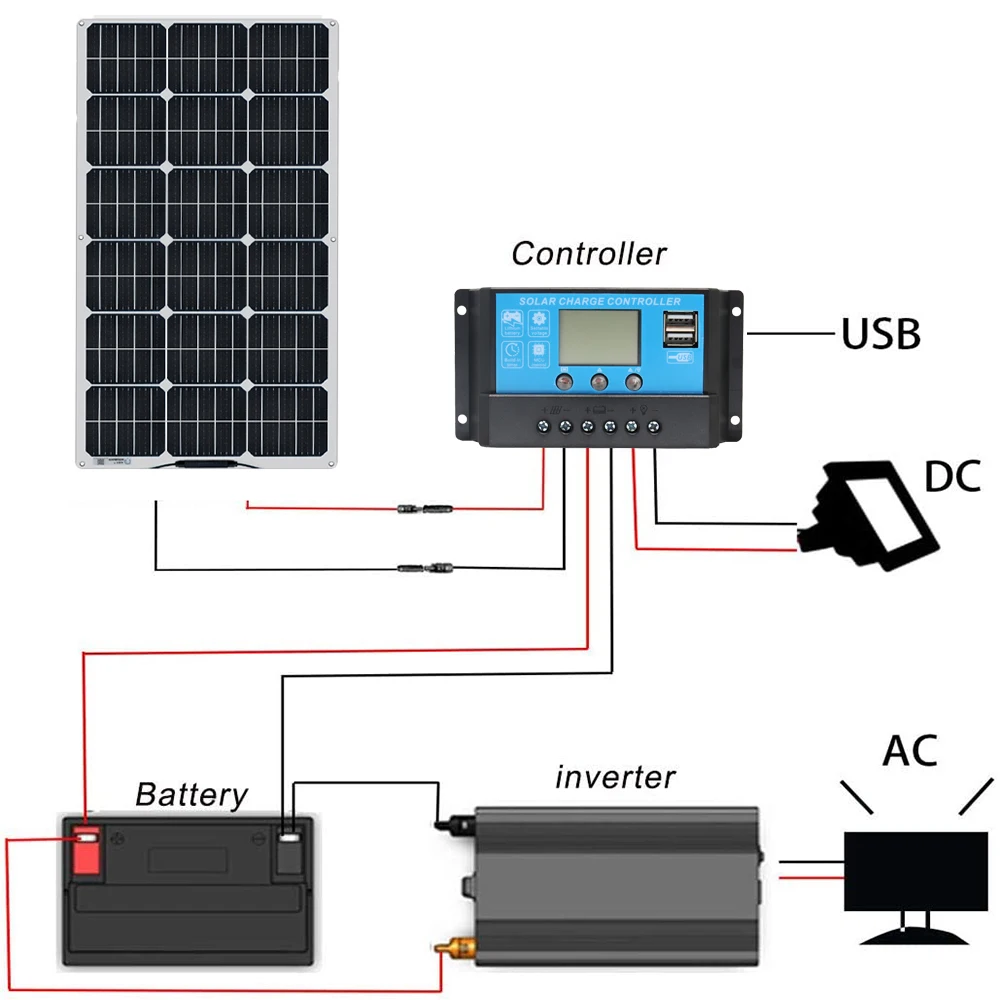

12V solar kit 100W Packing list

1 x 100W 18V /16.5V Solar Panel

1 set 3m cable with PV connector

1 set 1.5m cable with Alligator clip

1 X 10A Controller

200W solar kit Packing list

2 x 100W 18V/16.5V Solar Panel (200W Kit)

1 set 1.5m cable with PV connector

1 set 3m cable with Alligator clip

1 X 20A Controller

1 X 2 in 1 adapter
