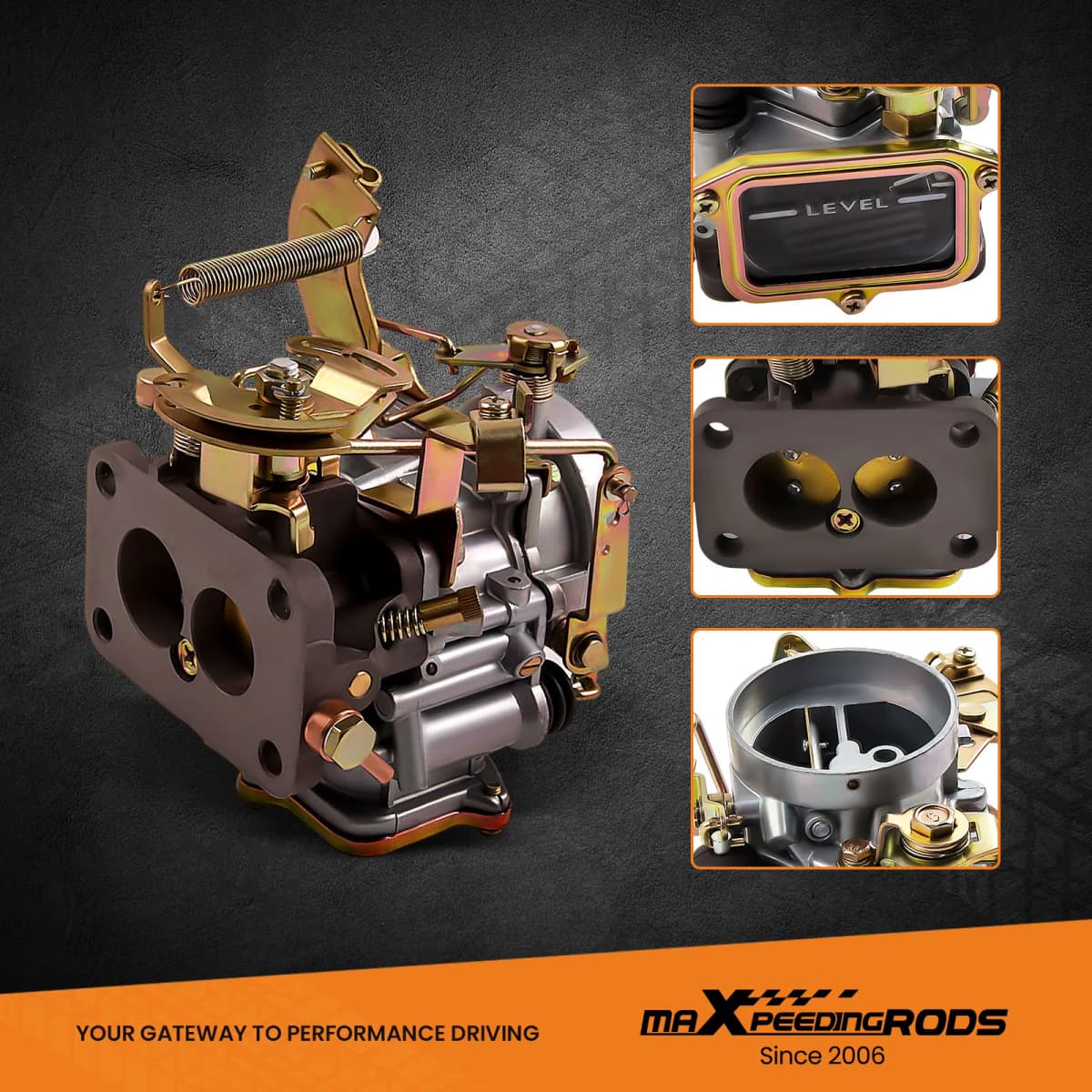

Carburetor Carb For Nissan Pickup Truck 520 521 620 720 710 65-86 J15 Engine 16010-B5200 16010-B0302

Carburetor Carb For Nissan Pickup Truck 520 521 620 720 710 65-86 J15 Engine 16010-B5200 16010-B0302

​Fitment:
for 1.5 L J13 J16 J15 Engine

for Datsun Pickup 1970-1981
for Nissan Cabstar 1972-1976
for Nissan Homer 1972-1976
for Nissan Hommy 1975-
for Nissan Caravan 1975-
for Datsun 521 : 1965-1972
for Datsun 620 : 1972-1979
for Datsun 720 : 1980-1986
for Datsun Violet 710 Sedan : 1973–1977
for Datsun Cabstar PA321 : 1968-1976







Part Number:

16010 B5200, 16010 B0302,
16010-B5200, 16010-B0302






Specification:
Choke Type: Mechanical Choke
Bolt Hole Spacing Length & Width: 80.5×44.3mm(Center To Center)
Intake Side Inner Diameter(two): 28/32mm
Choke Air Horn Inner Diameter: 65mm
Choke Air Horn Outer Diameter: 70mm
Venturi Diameter(two): 23/29mm






Features

- Base Plate Measurement: Please check the picture

- Drive Type: Mechanical Choke

- Condition 100% Brand new

- Direct Fit, No Modification Needed







Package Included:

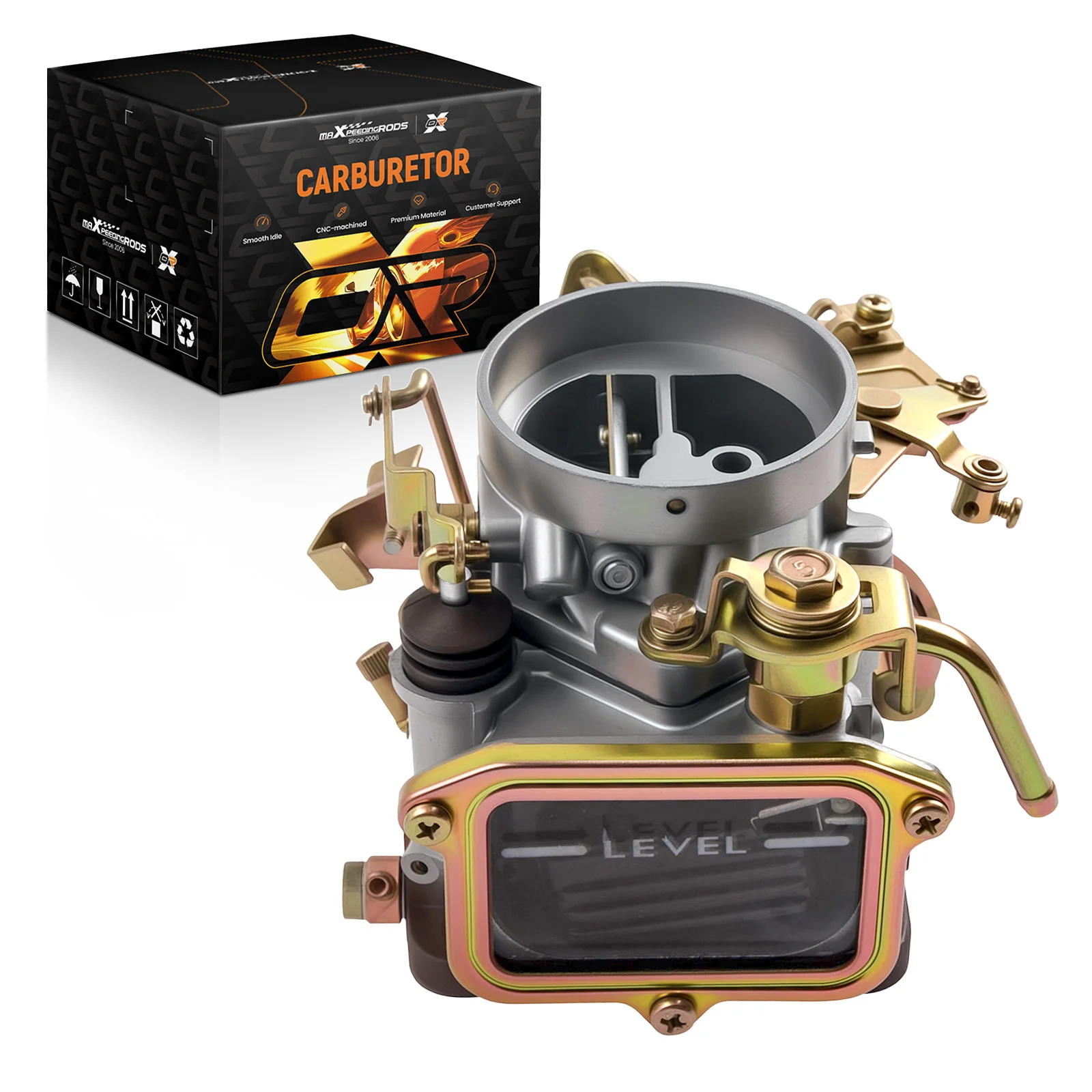

1x Carburetor
