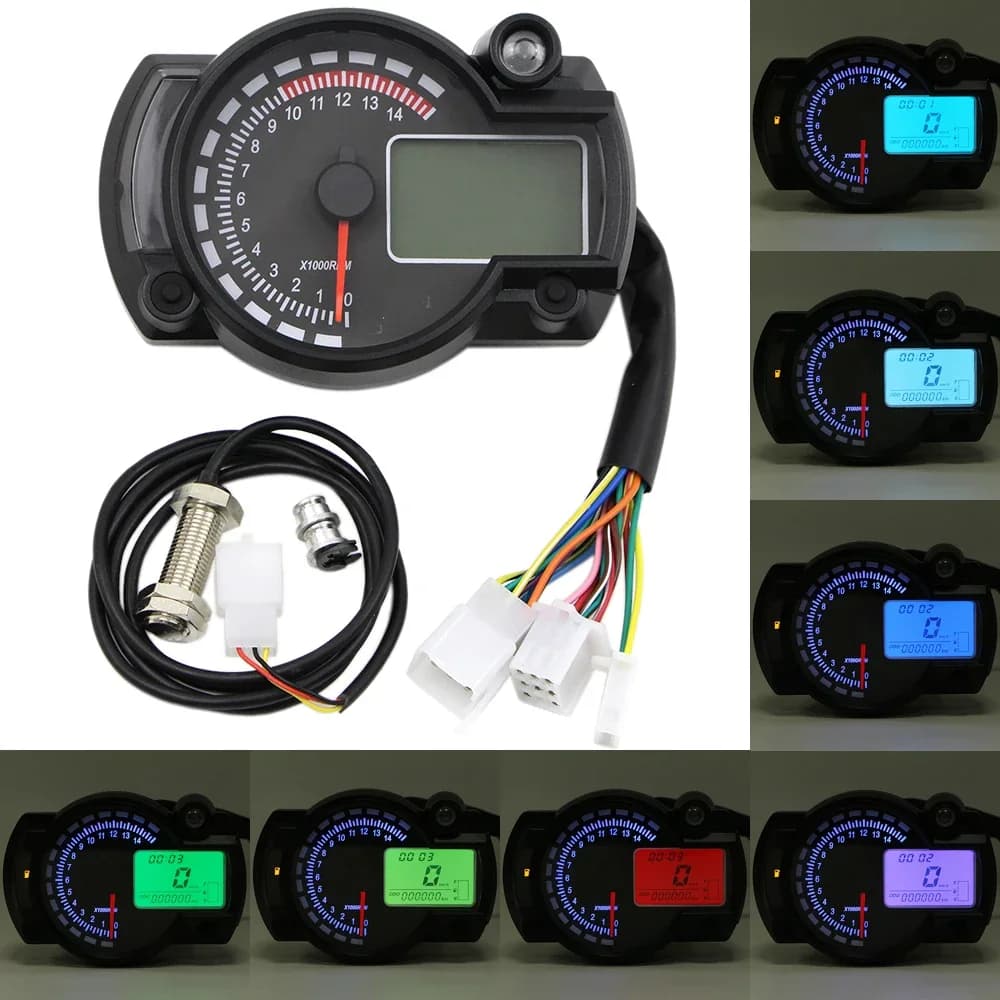

15000rpm Motorcycle Instrument Speedometer Odometer Tachometer Trip Meter LCD Digital Gauge 12V Universal

Fitment:

Universal Fit for Most Motorcycle ,Off Road, ATV of DC 12V.

Specifications:

Condition: 100% Brand new
Color: Black

Voltage: DC 12V
Display: LCD Digit Display

Material: High Quality ABS Plastic
Display: LCD Digit Display

24-hour real-time clock (can be adjusted by the functioning knob)
Odometer Display: Max 99999.9km

Tachometer: Rev Max 15000r/min (Alarming when rev is over 10000r/min)
Speedometer Display: Max 199km/h

Trip Meter Display: Max 999.9km, can be reset
Metric-inch interconversion via the function Knob

5-segment fuel lever, Gear position 1 to 6 (Alarming when fuel lever is low)
High Beam: blue; Turn Left&Right Indicator Blinker: green; Neutral Gear: green

LCD / Dashboard Backlight: Blue, normally ON
Light Color Switch: 7 Color LED, to long press the right button

All Backlight will automatically self check when electrified.

Feature:

High cost performance multifunction motorcycle meter.
Anti-UV & anti-glare LCD screen, direct indication for monitor convenience.

7 different backlight colors free to switch, with self-check function.
ABS Environmental protection and flame retardant material, long life performance.

Package Includes:

1x Motorcycle Speedometer
1x English Instructions

Wire Connection:

Black wire for positive 12V, Green wire for negative 12V
Function Knob Instruction: (The left button is the knob A, and the right button is the knob B.)

1. Press knob A for 3s to get the time adjusting mode. Short press Knob A for 24-hour clock number increment, short press knob B for shift between Hour and Minute.

2. Short press knob B for shift between odo&trip meter and max speed&rev ever recorded.

(1). When meter displays odo, long press Knob B to switch the backlight between blue and orange.

(2). When meter displays trip, long press B to reset trip meter.

(3). When trip meter and max recorded speed&rev are displayed, press knob B for 3s to reset the record.

3. Press knob A and B at the same time to get to the parameter setting mode:

(1). When c1992 is displayed, meter is at the wheel perimeter(mm) setting mode: short press knob A for number adjustment, and short press knob B for digit switch.

(2). Short press knob B to exit the wheel perimeter setting and get to the mode of metric interconversion, press knob A to switch between KM/H and MPH.

(3). Short press knob A to select the cylinder number, to multiply rev, X1,X2, X4.

(4). Shot press knob B again to the pulse setting mode: eg. ''Pulse 9'' stands for the pulse count of the sensor, short press knob A to adjust the Pulse (1-12). Press knob A to switch between FFL (P) and carburetor(n) mode.
