100 Watt Fiberglass Flexible Solar Panel 1000W-100W , Portable Bendable 12 Volts Mono Cell for RV Camping Home Boat Marine

XINPUGUANG 1000W-100W 100 Watt Fiberglass Flexible Solar Panel, Portable Bendable 12 Volts Mono Cell for RV Camping Home Boat Marine Curve Surface Black (1pcs-10pcs 100W solar panels)

Package list:

1 pcs 100w solar panel (100W-1x100w)

OR

2 pcs 100w solar panel ( 200W-2x100W)

OR

3 pcs 100w solar panel ( 300W-3x100W)


4 pcs 100w solar panel (400w-4x 100W)

OR

6 pcs 100w solar panel (600w-6x100W)

OR

10 pcs 100w solar panel ( 1000w-10x100W)

About this item Solar Panel

[Highly efficient]The solar panel uses high efficiency 210MM monocrystalline solar cells with a conversion efficiency of 23%-24%. Built-in bypass diode to better protect the solar panel.

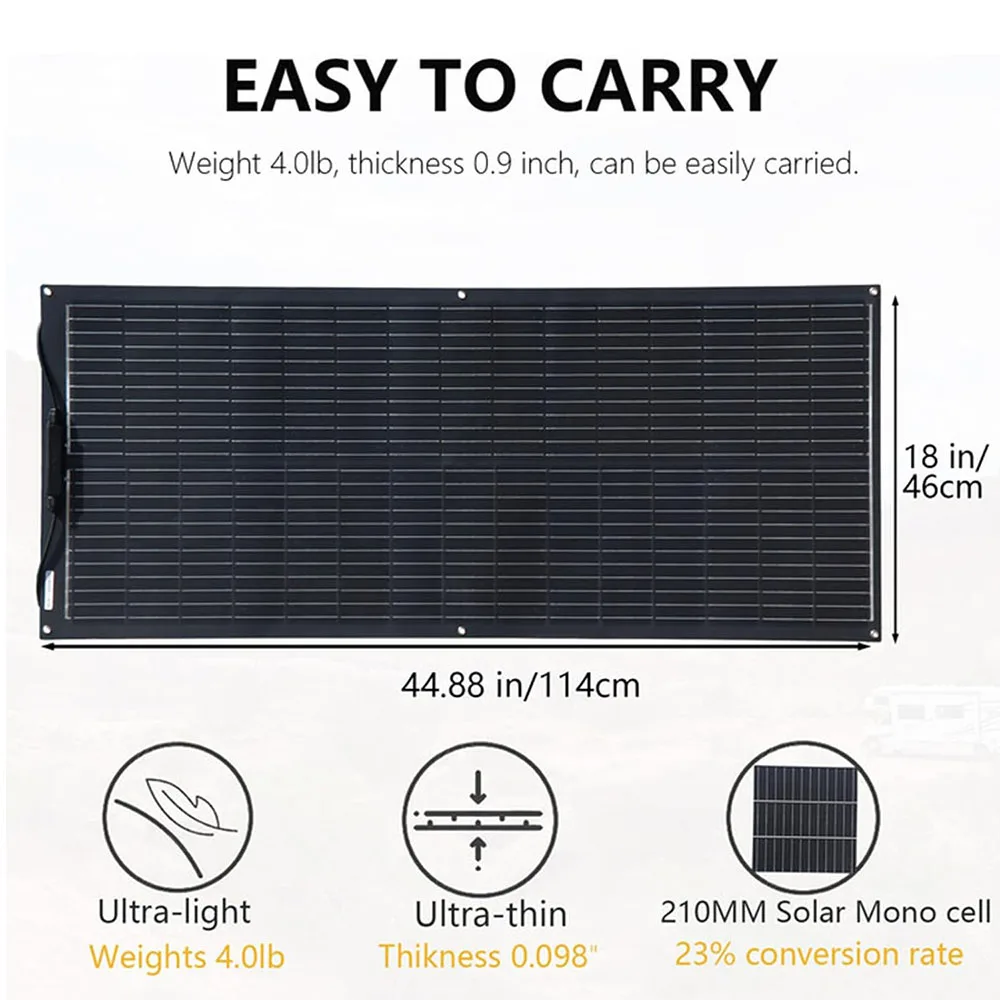

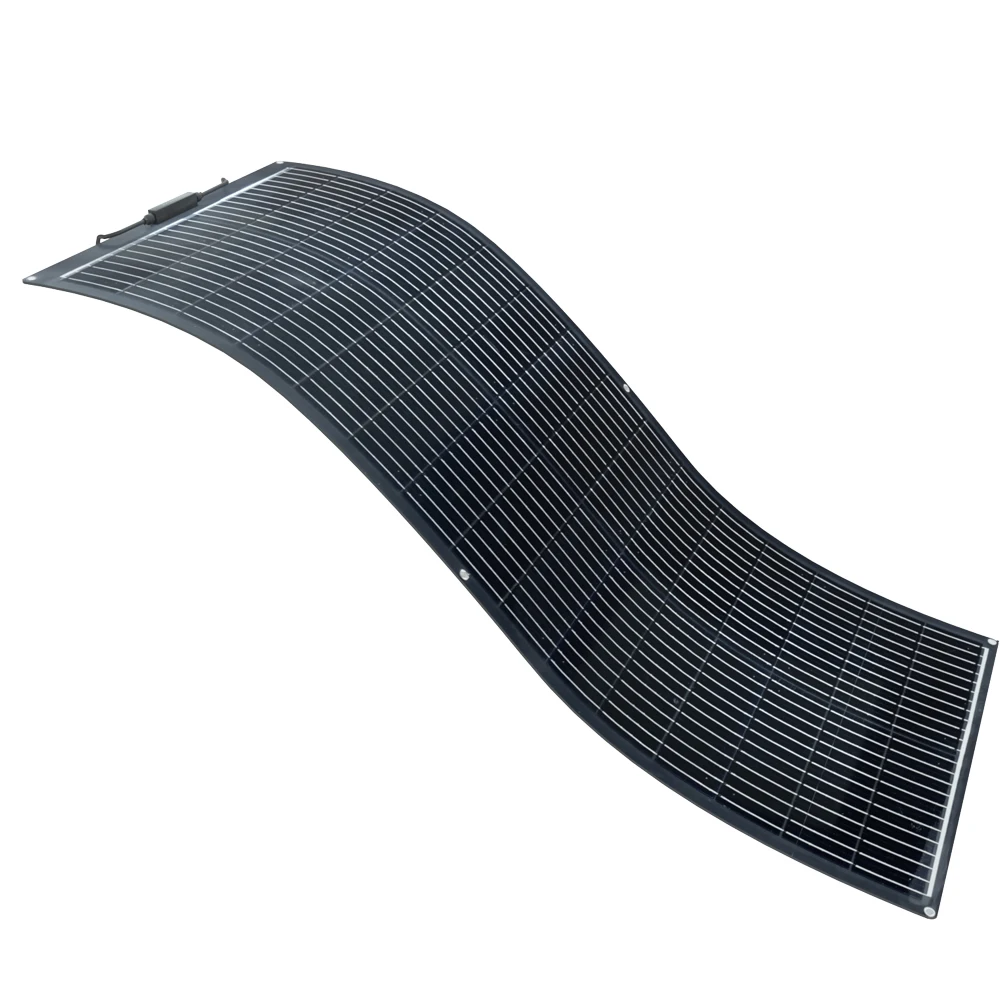

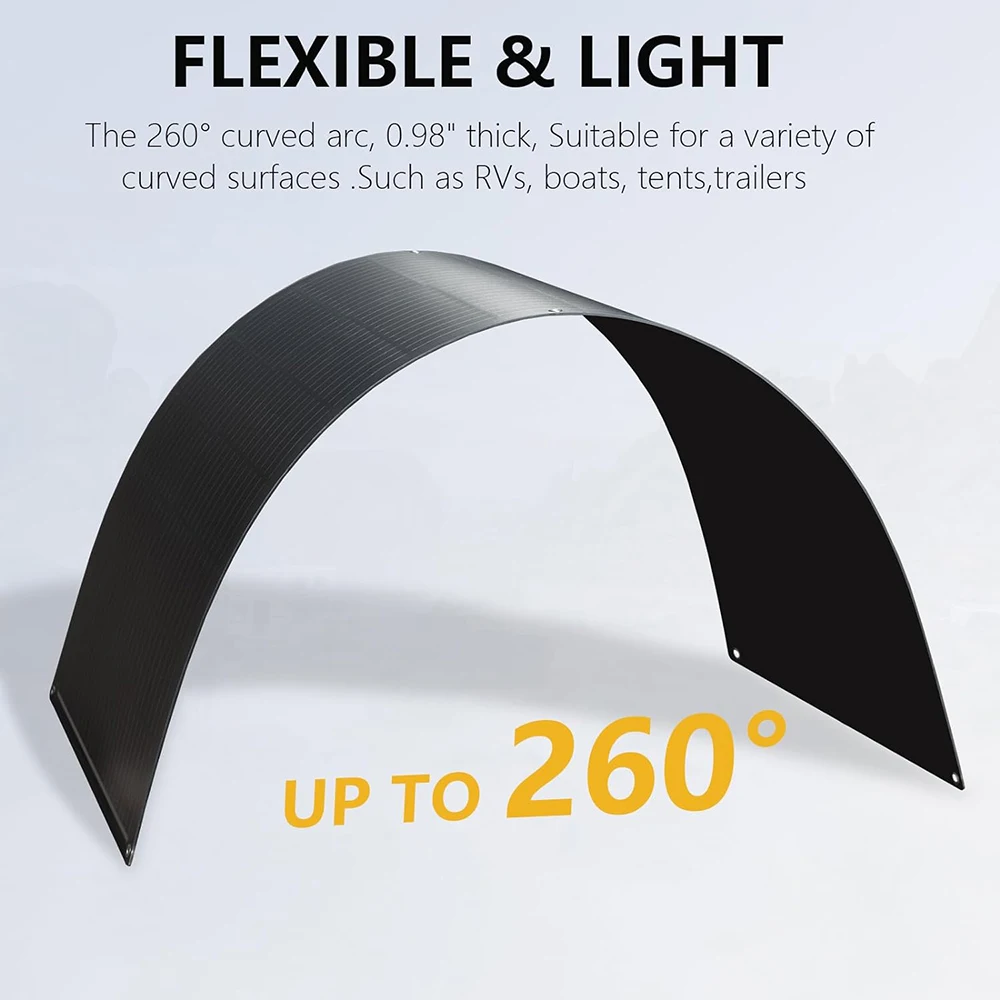

[Ultra-light and Flexible] A single solar panel weighs only 4.0 pounds and is only 0.098 inch thick. It can be easily picked up and carried. The solar panel be bent up to 260°. Ideal for mounting on RV ,roofs, campers, trailers, boats, cabins, tents, and other uneven surfaces.
[Highly Sturdy ] The solar panels come with an IP67 waterproof rating .Withstand heavy snow loads of up to 5400 Pa and high wind loads of up to 2400 Pa,suitable for outdoor weather.
[Effective protection] Solar controller has short-circuit protection, open-circuit protection,reverse protection, over-load protection. The intelligent charger regulator is suitable for lead-acid, geland lithium phosphate battery.
[Functional] Solar panels are connected to a 12V/24V system depending on the battery, perfect solution for power supply. which can effectively deal with the difficult problems caused by power shortage and power outage.

Solar Panel Specification

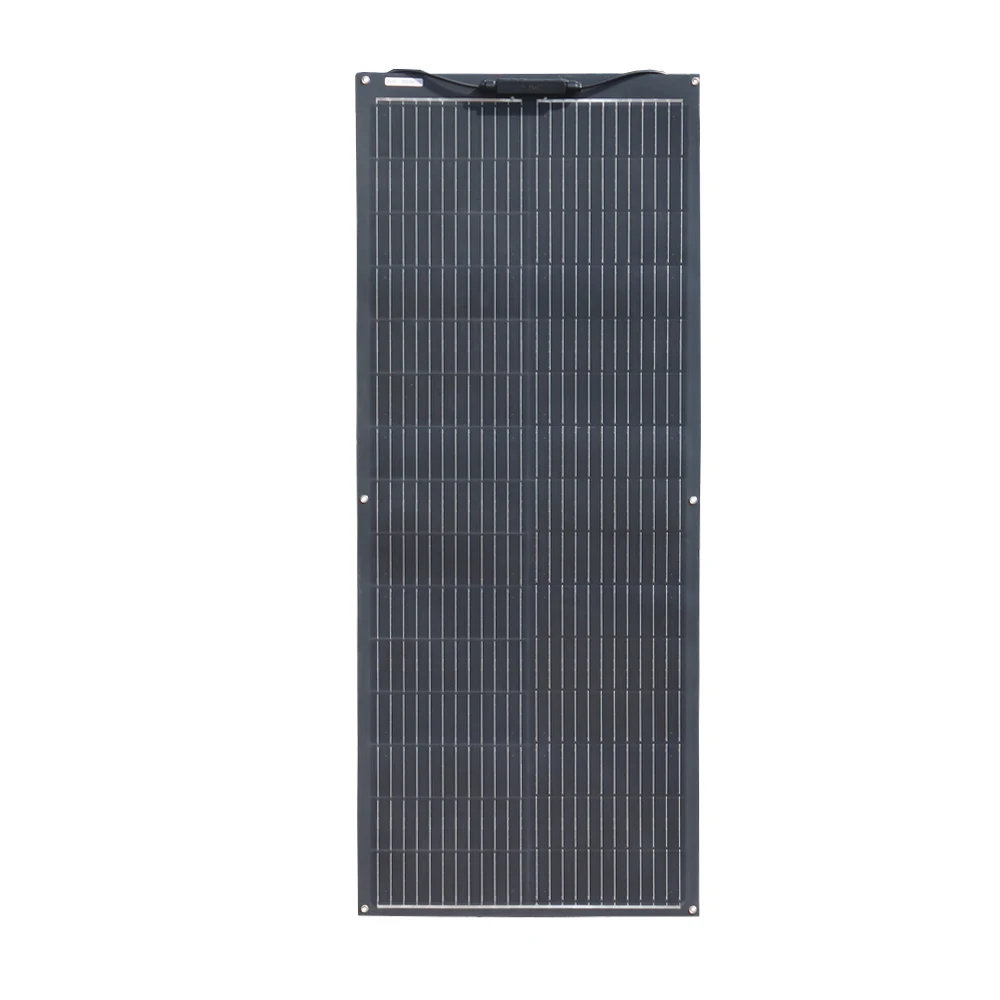

100 W Solar Panel
Output power 100 Watt
Operating voltage 16.5V
Operating current 6.06A
Open circuit voltage 19.8V
Short circuit current 6.66A
Dimensions 1140X460X2.5mm / 44.88X18.11X0.098 inch
Weight 1.8kg/4.0lb
Cable length 90cm/10FT
Standard test conditions irradiance 1000w/m2, temperature 25°C, AM=1.5
Operating Temperature -45℃ to 80℃ /-49℉ to 176℉

Solar module products

a. This product must not be in contact with highly corrosive substances to avoid excessive bending and long-term bending;
b. The solar panel should be prevented from stacking and falling down, the solar flexible panel cannot be disassembled, do not collide with hard objects, avoid trampling, and avoid scratching the surface with hard objects during use;
c. A large number of scratches or dirt on the surface of the solar panel may result in low efficiency of the solar panel, which may seriously cause burnout;
d. The suitable ambient temperature range of solar panels: -20 ℃-80 ℃, do not exceed this range;
e. The solar panel must be installed in an area with good sunlight and no shadow. The solar panel may work in the shaded sunlight for a long time and there may be a risk of burnout;
f. When used in series connection, the "+" of the previous component is connected to the "-" of the next component. The same panel cannot be directly connected to the positive and negative poles.

Solar panel connection installation method

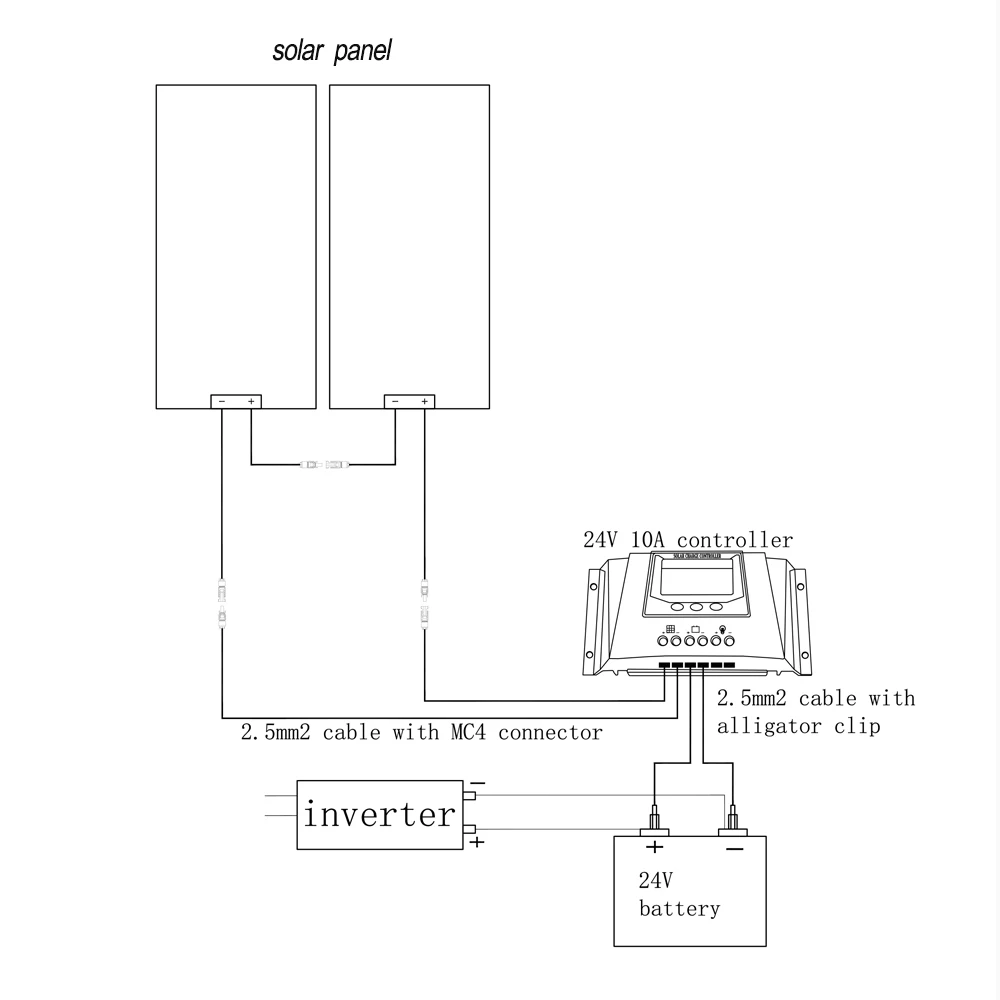

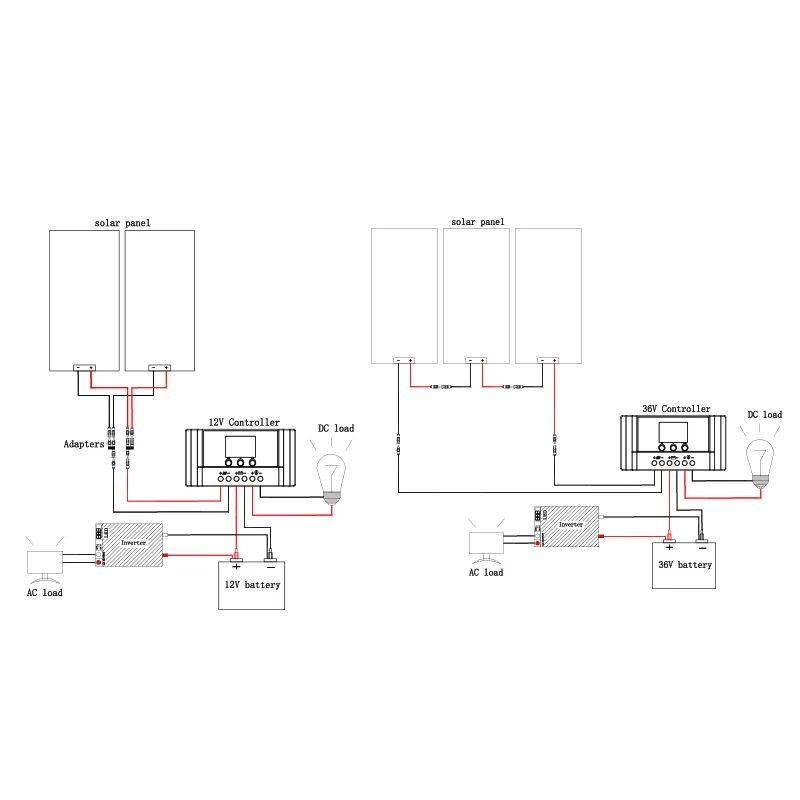

When you use a 12V battery, use a parallel connection; when you use a 24V battery, use two serial connections. Please install the solar panel on a smooth surface with good sunlight and no shadow, and try not to install it on uneven areas. Solar panels can be fixed with glue or bolts.

Precautions for installation of solar system

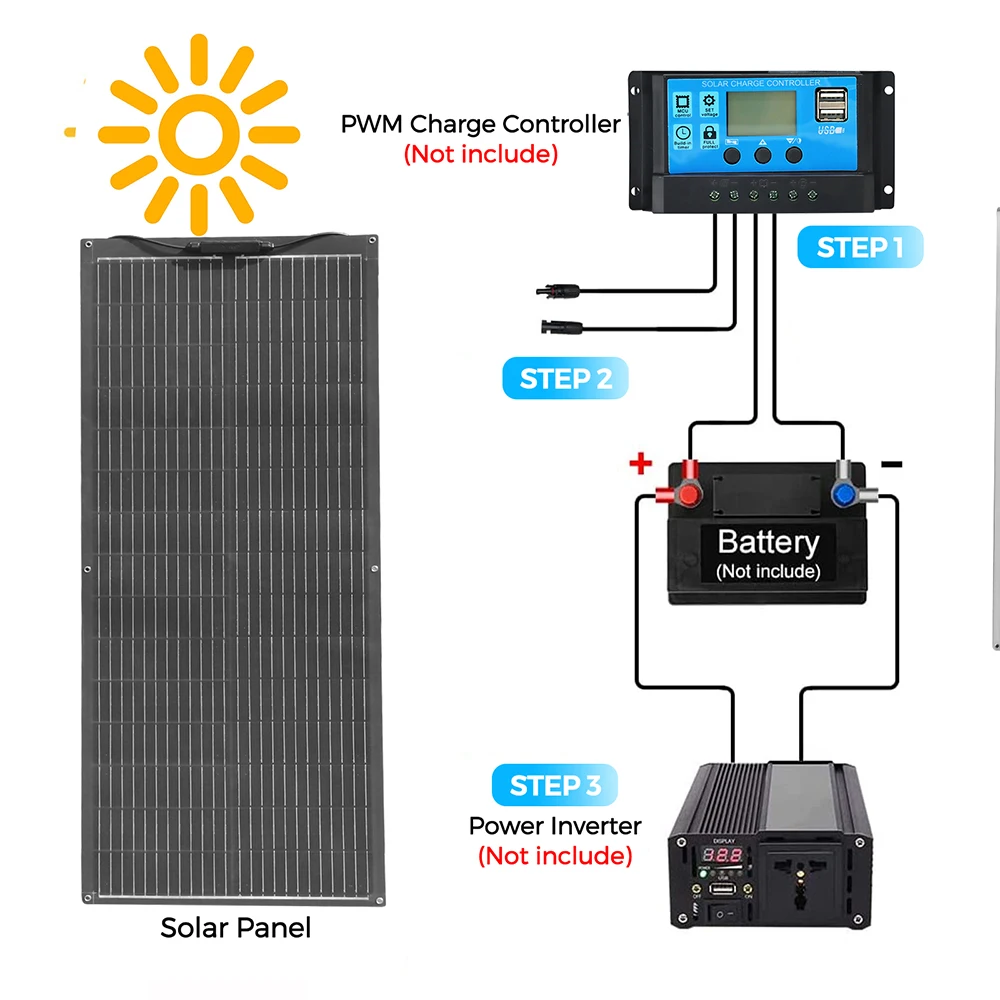

a When connecting this solar system, first connect the controller to the battery, and then connect the solar panel. Do not reverse the connection order.
b Please install the controller in a well-ventilated area such as indoors or shadows to avoid exposure of components and prevent water from entering the controller.
c The total power of the solar panel and DC load cannot be greater than the rated power of the controller (voltage × current), otherwise there may be a risk of burning the controller.
d The inverter cannot be connected to the controller, but must be connected to the battery.
e After installation, check whether all line connections are tight to avoid the danger of heat accumulation due to virtual connection.
f The positive and negative poles of the solar panel in the same series connection cannot be short-circuited to prevent damage to the solar panel.
g The positive and negative poles of the controller and battery should be checked clearly. Do not connect the positive and negative poles in reverse.
