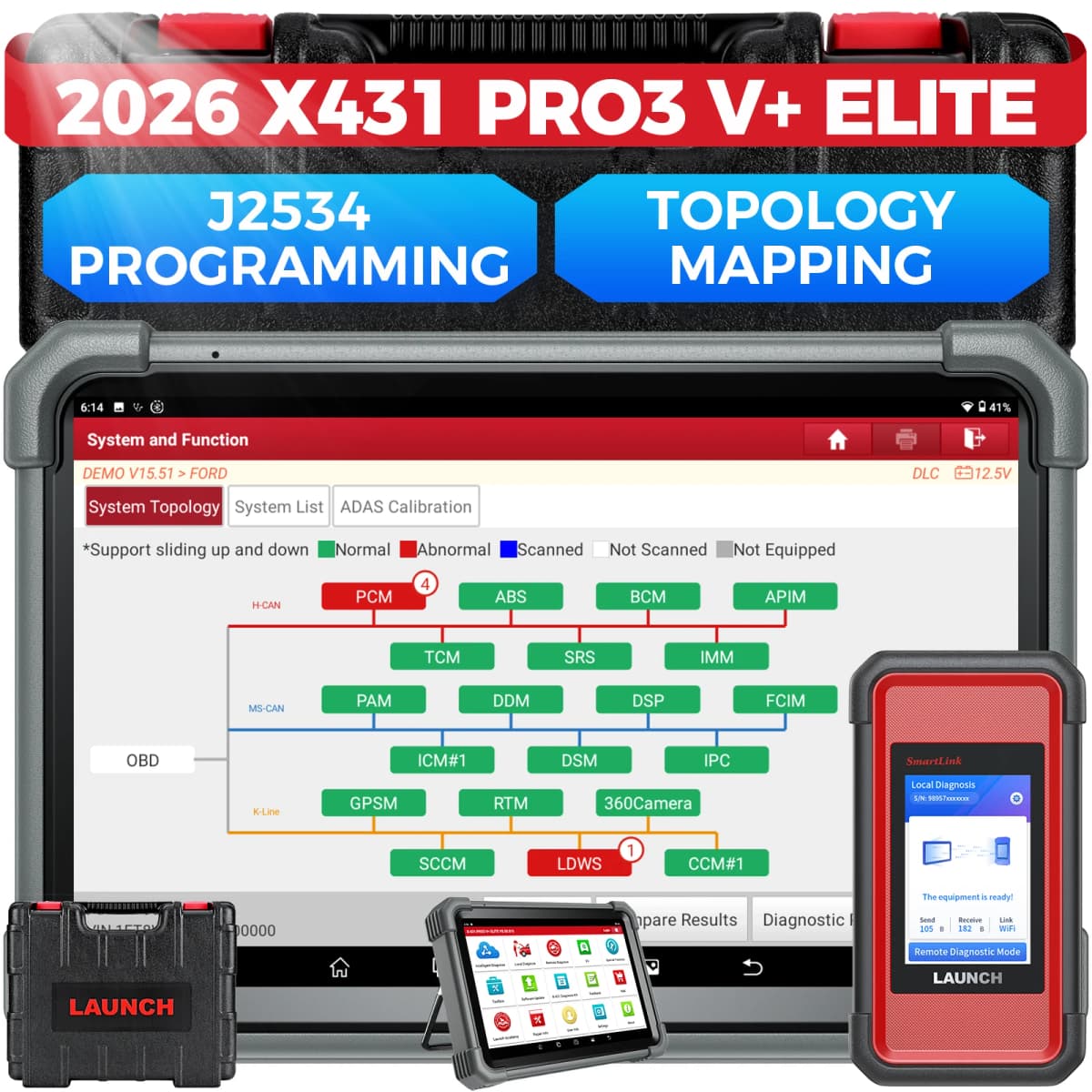

LAUNCH X431 PRO3 V+ ELITE 2026 New Car Diagnostic Tool Professional All System Scanner Auto Diagnosis Tools for 24V Trucks

LAUNCH X-431 PRO3 V+ ELITE

—— Simplified Process, Smoother Operation.

X-431 PRO3 V+ ELITE is developed based on the Android 10.0 system, with powerful hardware and software upgrades. It is equipped with SmartLinkC second-generation connector, which supports not only local diagnosis but also super remote diagnosis, and the diagnostic level reaches the original factory level; It supports mainstream diagnostic protocols such as CAN 2.0, CANFD, DoIP and J2534 diagnostic communication standards, and can be expanded into commercial vehicle or new energy vehicle diagnostic equipment as needed.

[LAUNCH SmartLink, Ultimate Remote Diagnostics]

Dual diagnosis mode supports Local Diagnosis and Super Remote Diagnosis.

✅Local Diagnosis

1. Wide coverage of vehicle models, and accurate diagnosis.2. Full vehicle model and full system testing.3. Support the Volkswagen Audi boot function.4. Support topology map.5. Multi-system parallel communication to improve diagnostic efficiency.

✅Super Remote Diagnosis

Different from traditional remote diagnostics, SmartLink is a brand new remote diagnostics, with a patent certificate and Technology and Science Progress Award. It allows users on the vehicle side to get efficient and effective data change and repair solutions by communicating with remote technicians via SmartLink C. While for technicians, it brings more chances and business as they can offer remote guidance and repair services through a SmartLink box.

Why did LAUNCH roll out SmartLink?
1. Wider Compatibility: Not only available for X431 devices, but SmartLink also supports specialized detection equipment and third-party diagnostic tools to perform more features.
2. No Device/Distance Limit: You won’t be bothered by your scanner with limited support, as all available services depend on the capability of the remote diagnostic equipment.
3. Easier Operation: The vehicle side only requires a SmartLink remote diagnostic box. All are based on a good Internet environment, with no need for third-party remote desktop control software or a computer.

[Smartlink C V2.0 diagnostic connector]
Display: 3.97-inch TFT screen
Resolution: 320*480
Memory: 256M
Storage: 8GB
Operating voltage: DC 9~36V
Power consumption: <6W
Local diagnosis mode: Bluetooth/wired
Remote diagnosis mode: Ethernet
Operating temperature: -10~50℃
Size: 200mm*110mm*47mm

✅Pin Detection

Pin detection detects the voltage and supported protocol type of the vehicle's OBDII diagnostic socket pin to help determine the status of the OBDII diagnostic interface.

[Cover up to 200+ Makes, Real Car Doctor for 99% Vehicles]

It supports new and old models of 200+ global car brands in America, Asia, Europe, etc., including new energy vehicles.

1. 12V/24V Compatible: works on 12V/24Vfuel vehicles. Supports both passenger cars and commercial cars (Need to buy the service separately in the "MALL").

2. Autoauth for FCA SGW: serves FCA SGW-equipped cars, including 2018+ Fiat, Chrysler, Alfa Romeo, Dodge, etc.

3. J2534/D-PDU Protocols: supports Toyota, Honda, Volvo, Subaru, Land Rover/Jaguar, Ford, GM, BMW, etc., with no need for adapter.

4. CANFD/CAN2.0/DoIP: covers Land Rover/Jaguar (2017+), BMW F/G chassis, GM (2019+), Volvo (2018+), etc.

Electric Vehicle Function Module
This function requires activating & purchasing the EV Diagnosis Add-On Kit.

[60+ popular special services safeguard your daily driving]

1. Oil Reset: Help reset the oil service light and oil life interval after oil service or repair.

2. EPB Reset: Reset brake pads to ensure they're in proper shape after you've swapped out the discs or pads.

3. Injector Coding: Write the injector's actual code or rewrite code in the ECU to the injector code of the corresponding cylinder to accurately control cylinder injection quantity.

4. Windows Calibration: Perform door window matching to recover ECU initial memory, And recover the automatic ascending/descending function of the power window.

5. Sunroof Initialization: Set sunroof lockup close, close on rainy days, slide/tilt sunroof memory function, outside temperature threshold, etc.

6. A/F Reset: Set or learn air/fuel rate parameters.

7. High Voltage Battery Diagnostics: It is used for high voltage battery diagnosis and status information detection.

8. Relative Compression: The compression problem is determined by comparing the average starting motor speed of each cylinder with the average speed of all cylinders.

9. FRM Matching: Clear the fault of the light short circuit.

10. Turbocharging Matching: Learn after replacing the parts of the boost system, or resetting the learning value of the turbocharger.

More else?
SAS Reset, BMS Service, ABS Bleeding, Tooth Learning, Suspension Matching, Gearbox Matching, Headlight Calibration, Tire Pressure Reset, 0d0meter Calibration, Language Change, Coolant Bleed, High Voltage Battery Diagnostics, etc.

How to access 100+ special functions:

Brand>>System>>Module>>Special Functions Get More Services from1.Diagnose>>Car Model>>System>>Special Function

[New topology brings 200% work & cost efficiency]

1. Color-coded system structure faithfully reflects true relationships between all vehicle modules, serving as a valuable reference for practical repair, saving time and money for a dealership visit.

2. Multi-system parallel communication allows for comprehensive analysis of all systems within the car in seconds, providing detailed diagrams of all components.

3. Graphic display of different states of each system helps quickly and accurately locate the fault of the car, greatly improving work efficiency.

Topology Fault Code

[Update Service]

We offer a 2-year free update service. After 2 years, you can still use it without any limitation.

The software updates quickly and can be upgraded online with one click. The newly added smart upgrade function can automatically filter out commonly used software according to the user's software usage to improve efficiency.

[Toolbox, Explore More Function]

X-431 PRO3 V+ ELITE supports multi-module (optional) expansion, one machine with multiple functions.

1. TPMS: It can be used with a tire pressure tool (optional) for sensor activation, reading, tire pressure diagnosis, learning, programming, detection, and other functions.

2. ADAS: It supports ADAS calibration function with ADAS PRO or ADAS MOBILE (optional), which can realize the calibration of adaptive cruise control, lane departure warning, rear collision warning, panoramic monitoring, blind spot monitoring, night vision system, etc.

[Specification]

Processor: 2.0GHz 4-core
Operating system: Android 10.0
Memory: 4GB
Storage: 64GB
Battery: 47.880Wh (7.6V, 6300mAH)
Display: 10.1 inches 1280*800
Camera: 8 million pixels
WIFI: 2.4GHz/5GHz (dual-band)
Interface: TYPE A *1 &TYPE C*1
Working temperature: 0~50℃
Size: 274*190.5*40.5mm

[Package List]
