100 Watt -1000W Solar Panel 12 Volt Monocrystalline Solar Panels High Efficiency Module RV Marine Boat Caravan Off Grid (1-10PC

1000W - 100 Watt Solar Panel 12 Volt Monocrystalline Solar Panel High Efficiency Module RV Marine Boat Caravan Off Grid (1-10PCS 100W)

The BOGUANG 100W Lightweight Monocrystalline Solar Panel enhances module efficiency while minimizing its weight.

It is the perfect option for any off-grid solar system, especially for transportation applications such as RVs and boats.

This solar panel frame features a lightweight substrate and laminate, perfect for outdoor applications.

Note: All prices of products that choose to ship from China do not include taxes,
After the package arrives at the recipient's country, the government customs of the receiving country may receive customs duties from the recipient, products that choose to ship from China: the recipient needs to assist in customs clearance to pay for the customs duties. Please be aware of this.

The solar panel needs to be installed under the sunlight, do not have any items to block the sunlight above the solar panel. No Especially the solar panel battery cell can not block the sunlight, solar panel can not be placed on top of the items.

Packing list

1 x 100W 16.5V Solar Panel (100W)

or

2 x 100W 16.5V Solar Panel (100W 2pcs)

or

3 x 100W 16.5V Solar Panel (100W 3pcs )

or

4 x 100W 16.5V Solar Panel (100W 4pcs)

or
5x 100W 16.5V Solar Panel (100W 5pcs)

or

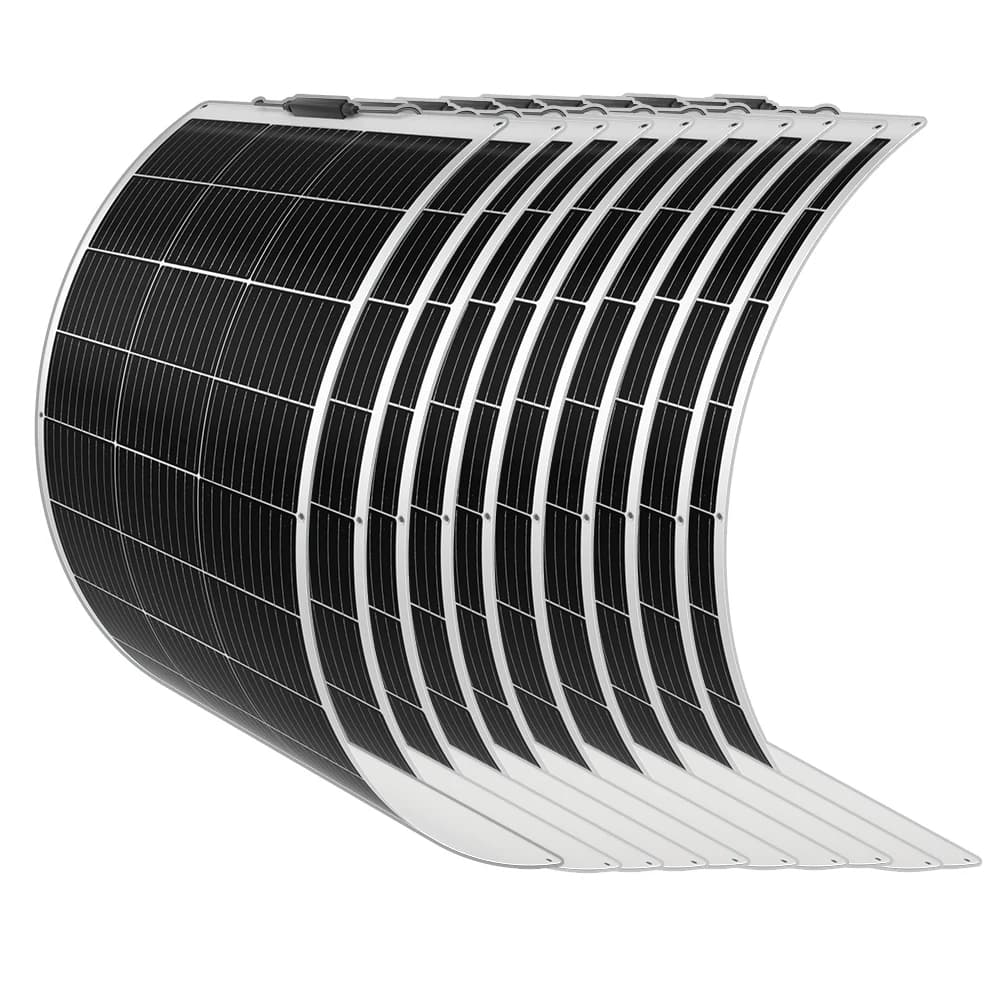

10x 100W 16.5V Solar Panel (100W 10pcs)

Features:

* Conversion efficiency 24%.

* Generate electricity all day in the sun.

* Can be used for fish tank circulation system, monitoring group, household photovoltaic energy storage,

* Lightweight and easy to install.

* Outdoor photovoltaic power generation portable device.

* Wide range of compatibility: sailboats, yachts, marine applications, motorhomes, expedition vehicles, commercial trucks, caravans, off-grid and telematics sites, etc.

Flexible solar panel Specification

Maximum power(Pmax) 100W

Maximum system voltage 600V DC

Open circuit voltage(Voc) 19.8V

Short circuit current(Isc) 6.66A

Maximum power voltage(Vmp) 16.5V

Maximum power current(Imp) 6.06A

Number of cells 30pcs

Weight 2KG

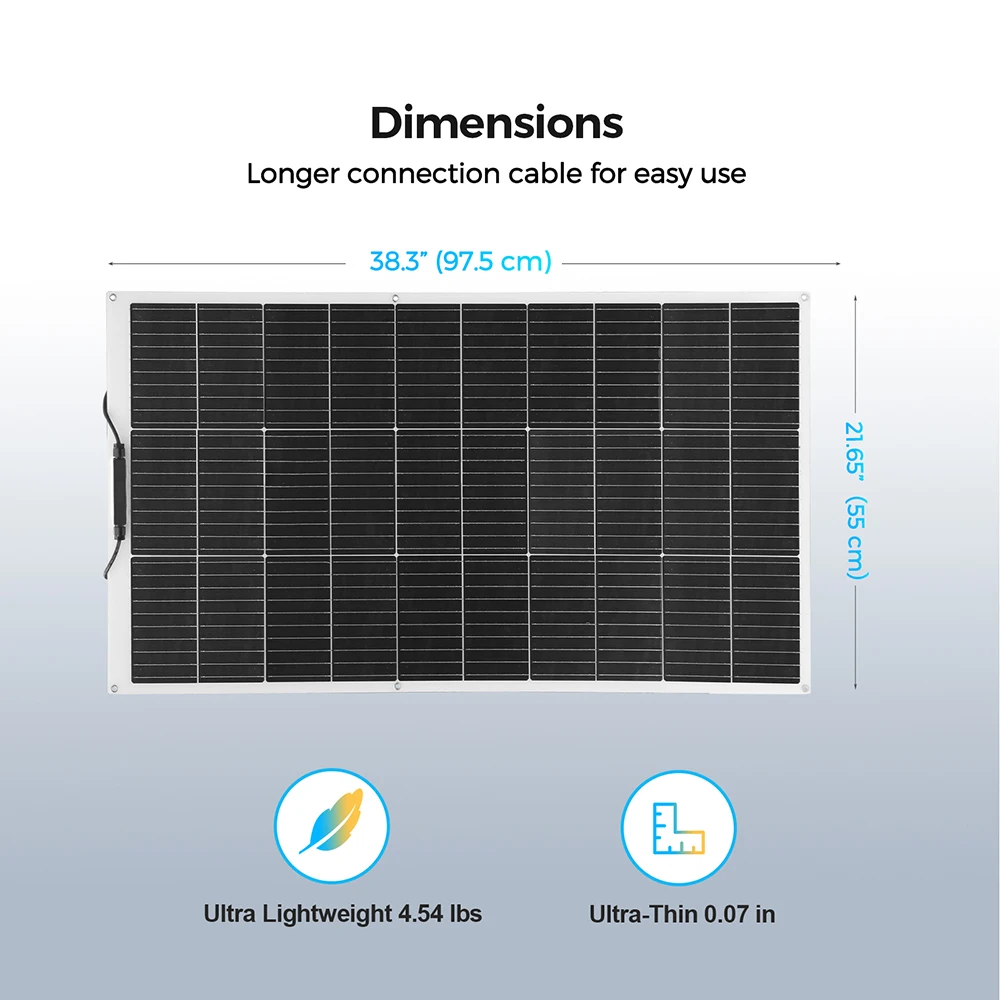

Size 975mm*550mm*3mm

Operating temperature(NOCT) 45 plus or minus 2 Celsius system

STC: lrradiance1000w/m2,Temperature 25 Celsius system, AM=1.5

Please note that the solar panel power output refers to the test output at STC: lrradiance1000w/m2,Temperature 30 Celsius system, AM=1.5
The output power of other tests in different environments will be different. In addition, the solar panel needs to be in the sun to have output. If you want to test, you need to test it in the sun

Features:

1.[Excellent performance] Using high-quality monocrystalline silicon cells, high-efficiency monocrystalline silicon solar cells provide good performance even in low light conditions
​
​
​2.[Flexible] This flexible solar panel is a good choice for curved surfaces of RV, boat,sailboat, yacht,truck, car, coach, cabin, camper , tent , trailer, golf cart or any other irregular surface.
​
​
​3.[Practicality] Light energy converts electrical energy and has strong practicability. It is a good supplement for power shortages and places where the city power cannot reach, such as mountains, marine, deserts, etc.
​
​
​4.[Nice Details] The water resistant flexible solar panel is far more durable than traditional glass and aluminum models; The junction box is sealed and waterproof.
​
​

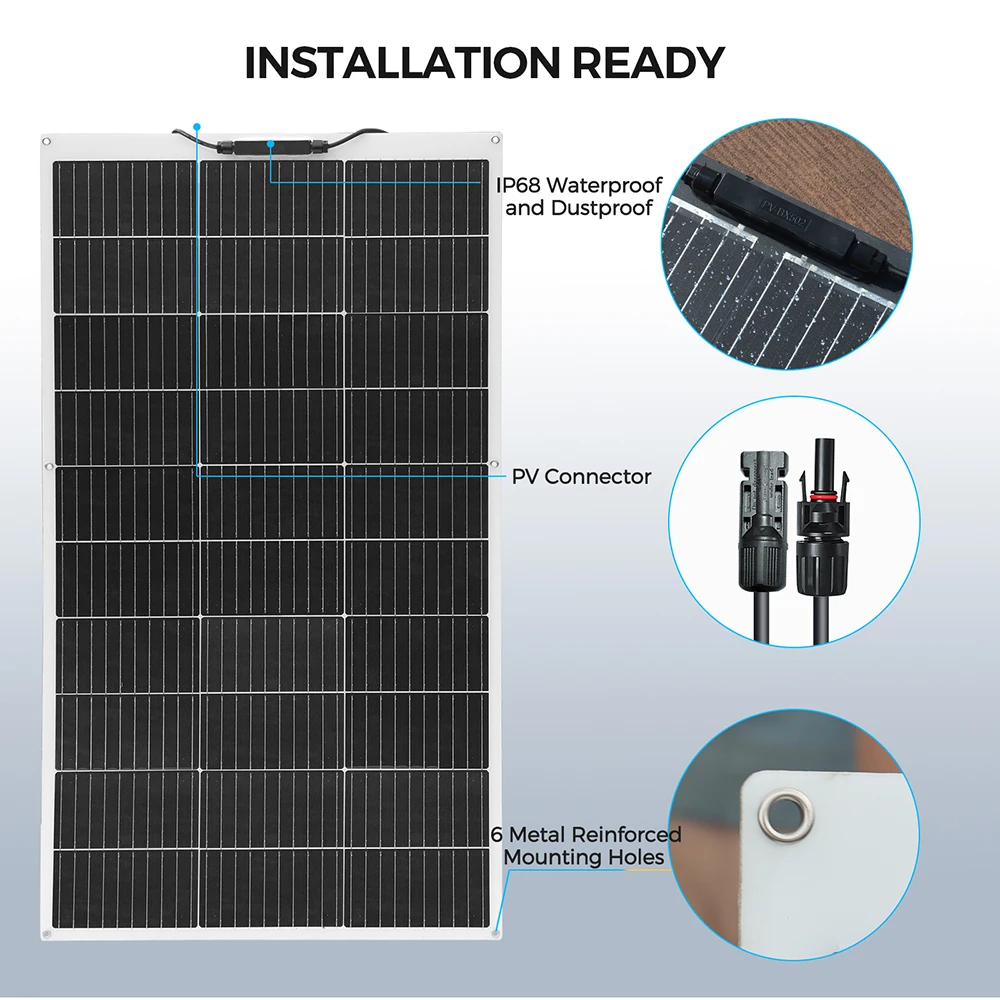

​5.[Easy Installation]The solar panel has 6 grommet mounting holes are available to attach fasteners，and can also be installed with silicone and adhesive tape. 12-month guarantee service.

Solar module products

a. This product must not be in contact with highly corrosive substances to avoid excessive bending and long-term bending;
b. The solar panel should be prevented from stacking and falling down, the solar flexible panel cannot be disassembled, do not collide with hard objects, avoid trampling, and avoid scratching the surface with hard objects during use;
c. A large number of scratches or dirt on the surface of the solar panel may result in low efficiency of the solar panel, which may seriously cause burnout;
d. The suitable ambient temperature range of solar panels: -20 ℃-80 ℃, do not exceed this range;
e. The solar panel must be installed in an area with good sunlight and no shadow. The solar panel may work in the shaded sunlight for a long time and there may be a risk of burnout;
f. When used in series connection, the "+" of the previous component is connected to the "-" of the next component. The same panel cannot be directly connected to the positive and negative poles.

Solar panel connection installation method

When you use a 12V battery, use a parallel connection; when you use a 24V battery, use two serial connections. Please install the solar panel on a smooth surface with good sunlight and no shadow, and try not to install it on uneven areas. Solar panels can be fixed with glue or bolts.

Solar module productsa.

a. This product must not be in contact with highly corrosive substances to avoid excessive bending and long-term bending;
​b. The solar panel should be prevented from stacking and falling down, the solar flexible panel cannot be disassembled, do not collide with hard objects, avoid trampling, and avoid scratching the surface with hard objects during use;
​c. A large number of scratches or dirt on the surface of the solar panel may result in low efficiency of the solar panel, which may seriously cause burnout;
​d. The suitable ambient temperature range of solar panels: -20 ℃-80 ℃, do not exceed this range;
​e. The solar panel must be installed in an area with good sunlight and no shadow. The solar panel may work in the shaded sunlight for a long time and there may be a risk of burnout;
​f. When used in series connection, the "+" of the previous component is connected to the "-" of the next component. The same panel cannot be directly connected to the positive and negative poles.

Solar panel connection installation method

When you use a 12V battery, use a parallel connection; when you use a 24V battery, use two serial connections. Please install the solar panel on a smooth surface with good sunlight and no shadow, and try not to install it on uneven areas. Solar panels can be fixed with glue or bolts.

What is the meaning of 12V in the product title，Why is this value different from the voltage of the solar panel？

When you open the product page, you will see a title like "xxx Watt 12 Volt Solar Panel". The "12V" here does not refer to the voltage of this solar panel (VOC or VMP), but to the fact that one xxxW solar panel is suitable for 12V system.

What does off-grid and on-grid mean ?solar panel？

On-grid simply means solar power equipment (array or solar panel) is connected to the electrical grid, while off-grid refers to systems that are not connected to the grid and therefore store the generated power for later use.

Why is my solar panel under producing ?

Solar panel performance may be hindered for a number of reasons. Most commonly environmental conditions such as indirect sunlight, temperature rise, cloudy sky, and dirt and stain build up on the top glass will cause a reduced power output.

How many solar panels do I need ?

To determine solar panel needs, calculate the power load (Watts) and capacity (Watt-hours). Size the battery bank based on minimum capacity, then adjust panel quantity or power input accordingly.

What do I need to complete my off-grid solar power system ?

A solar panel must be connected to a charge controller to regulate current and to a battery to store power. You’ll need adapter kit cables to connect the panel(s) to the controller, plus tray cables to link the controller to a deep-cycle battery.
