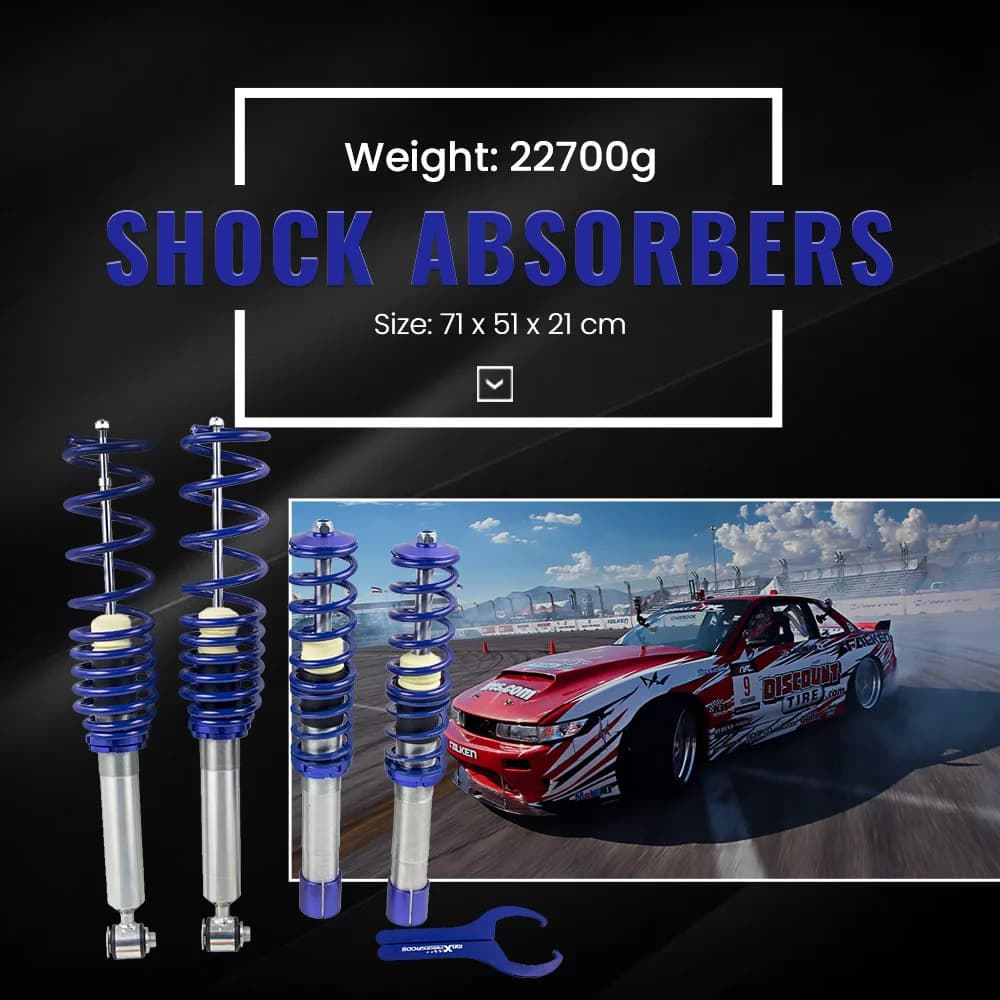

Coilovers Suspension Kit for BMW E39 Saloon 1995-2004 540i 535i 520i 525td td

Notice:No Top Mount Included. Modification Required If You Use OE Top Mount

Applications

For BMW 5 E39 1995-2003 RWD Saloon

Model: 520i, 523i, 525i, 528i, 530i, 535i, 540i, 520d, 525d, 530d, 525td, 525tds

Note: Not for Wagon or M5 Models

Will not fit Self Leveling/Air suspension model

Front OE top mounts need to be modified, add spacer on shaft

Specifications

Adjustable height: Front lowering 35mm-75mm

Adjustable height: Rear lowering 35mm-75mm

Spring rate Front: 6 kg/mm (356 lbs/in)

Spring rate Rear: 2.5 kg/mm (140 lbs/in)

Spring length Front: 140mm

Spring length Rear: 355mm

Coilover overall length Front: 380mm-530mm

Coilover overall length Rear: 455mm-655mm

Shock type: Twin tube

Spring Preload: No

Top mounts: Front and rear OE top mounts required

Damping: non-adjustable

Feature

* Twin-Tube structure allows sufficient stroke within the shock absorber.

* Height can be adjusted with coilovers installed on the vehicle.

* High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.

* Height Adjustment tools included.

* Steel front shock bodies with special surface treatment to improve the durability.

Notice

- Professional installation & alignment suggested.
