CE FCC ROHS Patented Product 5G/H 5grams Adjustable High Concentration Narrow Gap Discharge Quartz Tube Ozone Generator Kit

Important note:

It is the responsibility and duty of every citizen to contact local customs for assistance in customs clearance and payment of import duties.

Maybe you will get your goods directly, maybe the local customs will ask you to assist with customs clearance and payment of import duties, you can check and understand the local customs policies.

The Brazilian government requires that every imported goods need to pay the import duty.

If you are from Brazil, when your goods arrive in Brazil, if you are not willing to assist in customs clearance and pay the duty, please do not order this product.

.

When you get this product, please read the installation and operation instructions carefully, it is very important.

.

Our test equipment:

AC voltage regulator, DC voltage regulator, voltage stabilizer, intelligent program-controlled frequency conversion power supply, electrical parameter meter, ozone concentration analyzer, oxygen cylinder, oxygen machine, air compressor, oil-water separator, pressure regulating valve, flow meter, ambient temperature and humidity meter, aging test bench...

AC200V-AC240V, we will set: AC240V 50HZ for you.

AC100V-AC130V, we will set: AC130V 60HZ for you.

If the local voltage or frequency is special, when you order our products, you can leave a message to us.

.

.

.

Patented product, high ozone concentration, smaller size, larger heat dissipation area, lower temperature rise, high efficiency, longer service life, built-in 316L stainless steel tube.

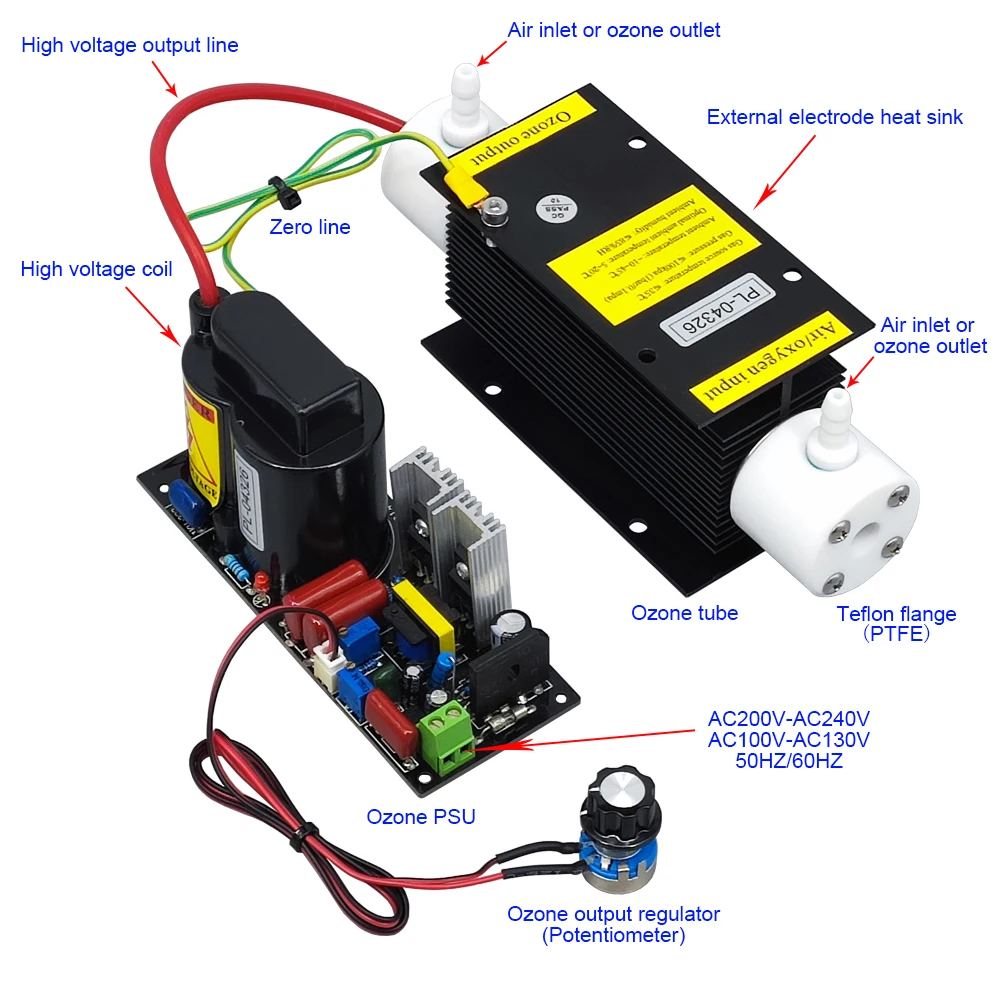

(The ozone PSU cannot work alone, you need to correctly install the ozone tube and the ozone PSU, connect them together, this ozone tube needs a fan to cool it, and then you can turn on the power.)

.

.

.

High-end air cooling ozone generator kit:

Product model: PL-5QBAOS

Ozone output: 5G/H

Maximum power: 50W

Optimal power: 45W

Air flow: ≤30L/min

Oxygen flow: ≤3L/min

.

Gas source temperature: ≤35℃

Gas pressure: ≤100kpa (1bar/0.1mpa)

Ambient temperature: -10~45℃

Optimal ambient temperature: 1-20℃

Environmental humidity: ≤85%RH

.

Gas source: Air source, oxygen source

Flange: PTFE

External electrode: pure aluminum foil

Dielectric material: high-purity quartz glass tube

Inner electrode: 316L stainless steel tube

Discharge gap: 0.5mm

.

Patented product

Brand: Pinus longaeva (We can print your logo and paste it on the ozone tube)

Product certification: CE FCC ROHS

Product application: Air purification and water sterilization

Service life / Warranty: More than 20000 hours / 2 years

Customized: Can be customized

.

We have set the correct parameters for this ozone PSU, so please do not adjust the knob on the ozone PSU.

TK(203): set the maximum power of the ozone PSU (rotate to the right to increase the power).

ph(103): adjust the output linearity of ozone PSU.

.

Size:

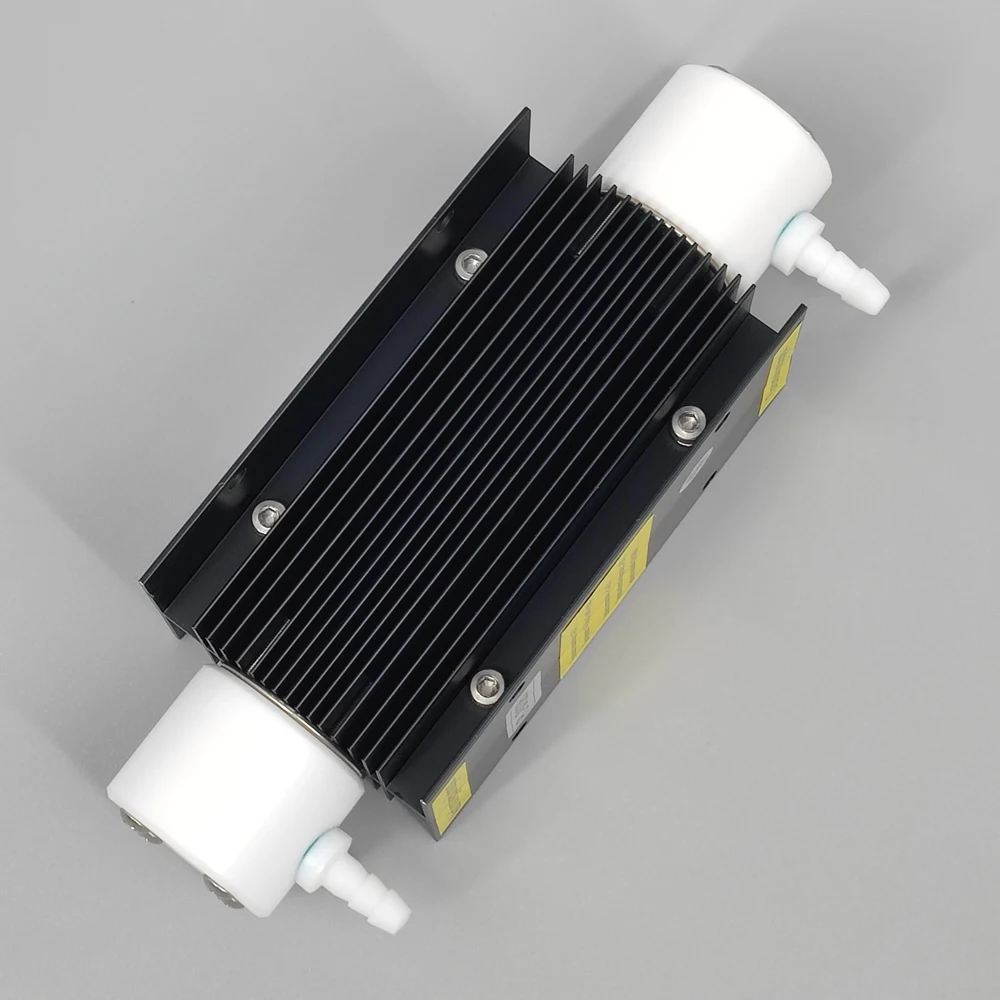

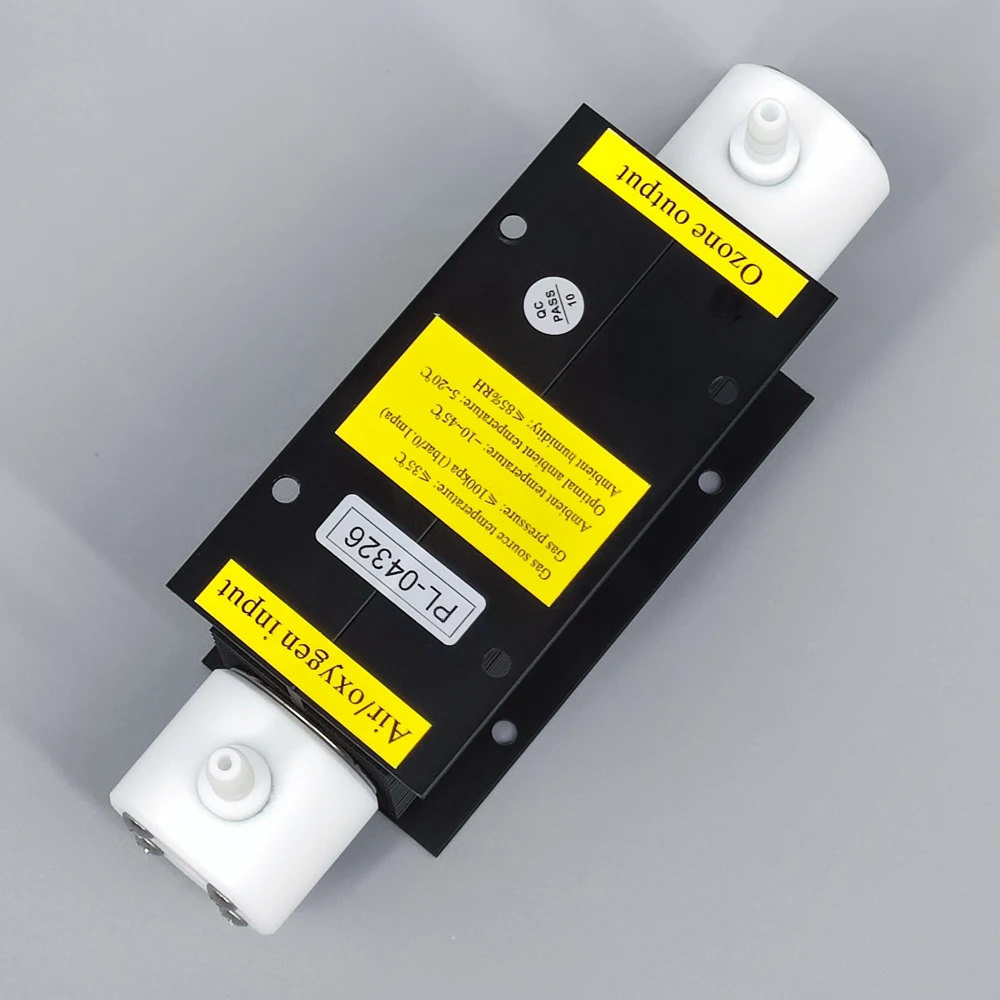

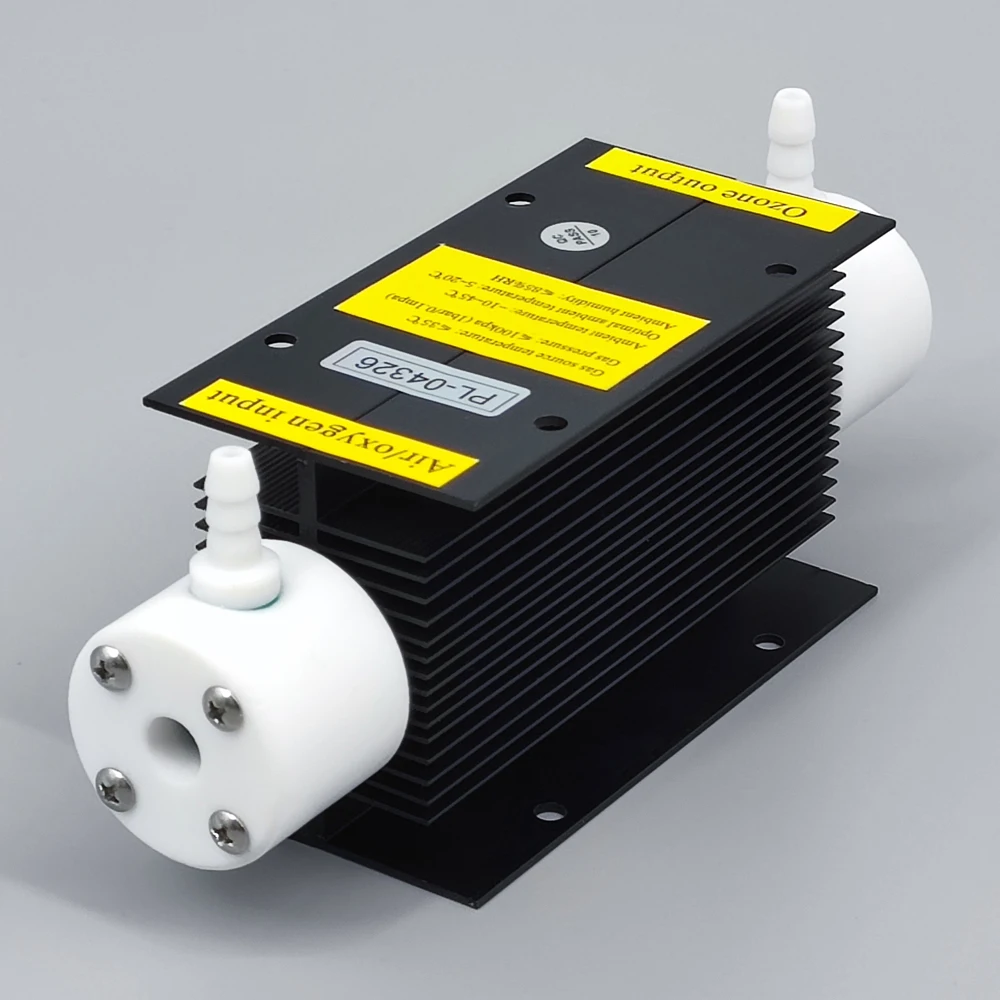

Ozone tube: 173*56*63mm  0.45kg

Ozone PSU: 125*48*65mm  0.35kg

.

.

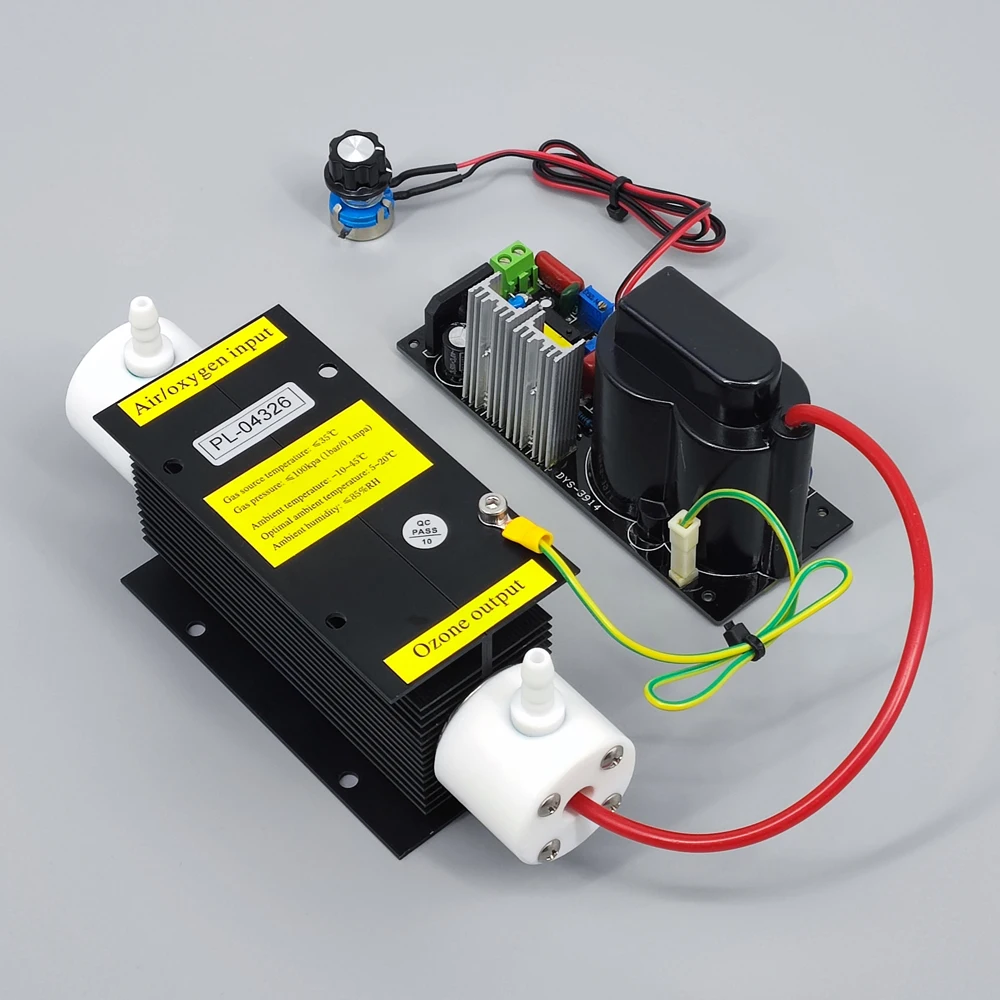

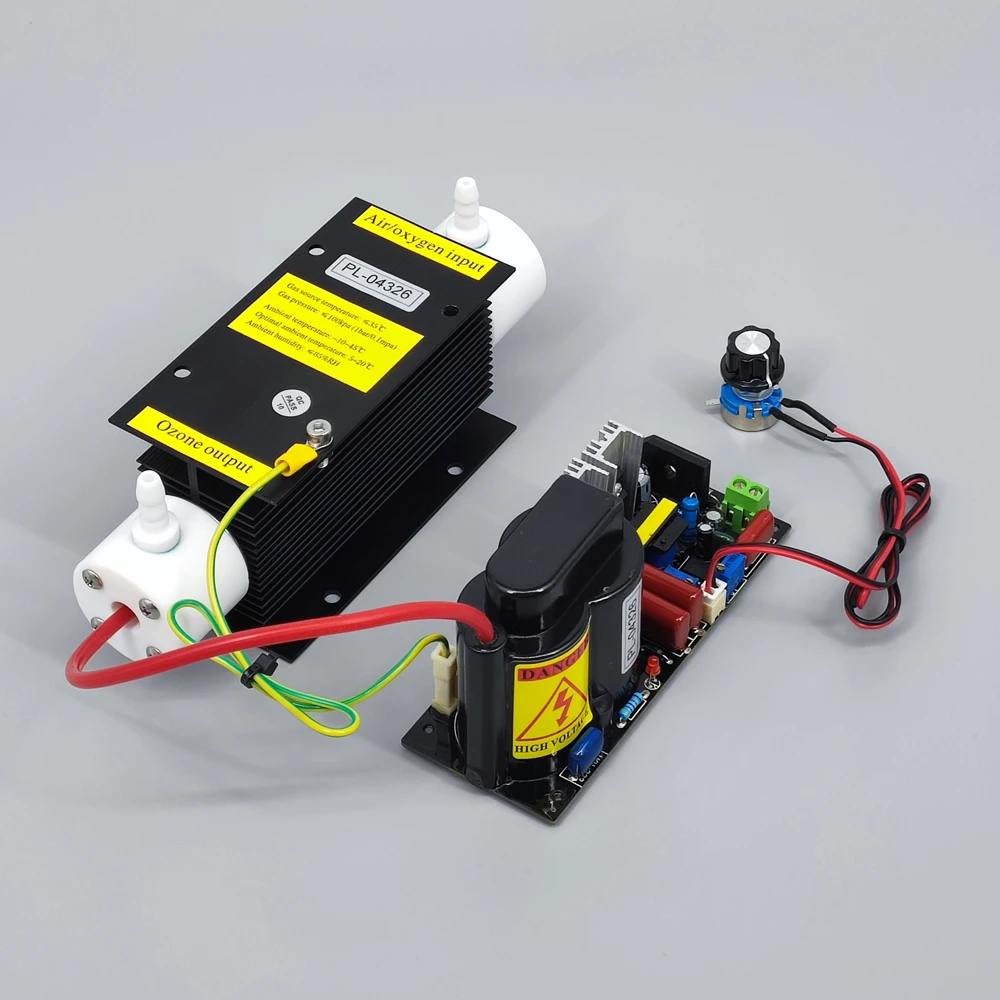

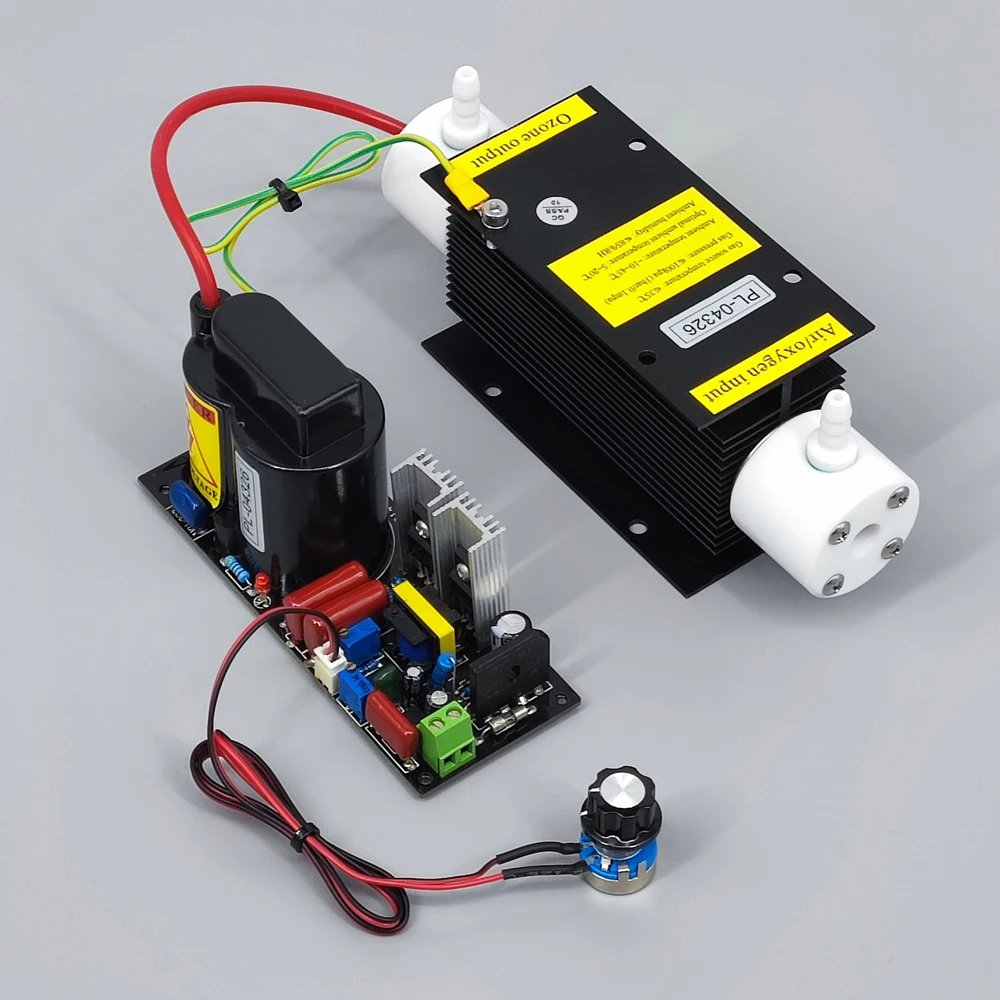

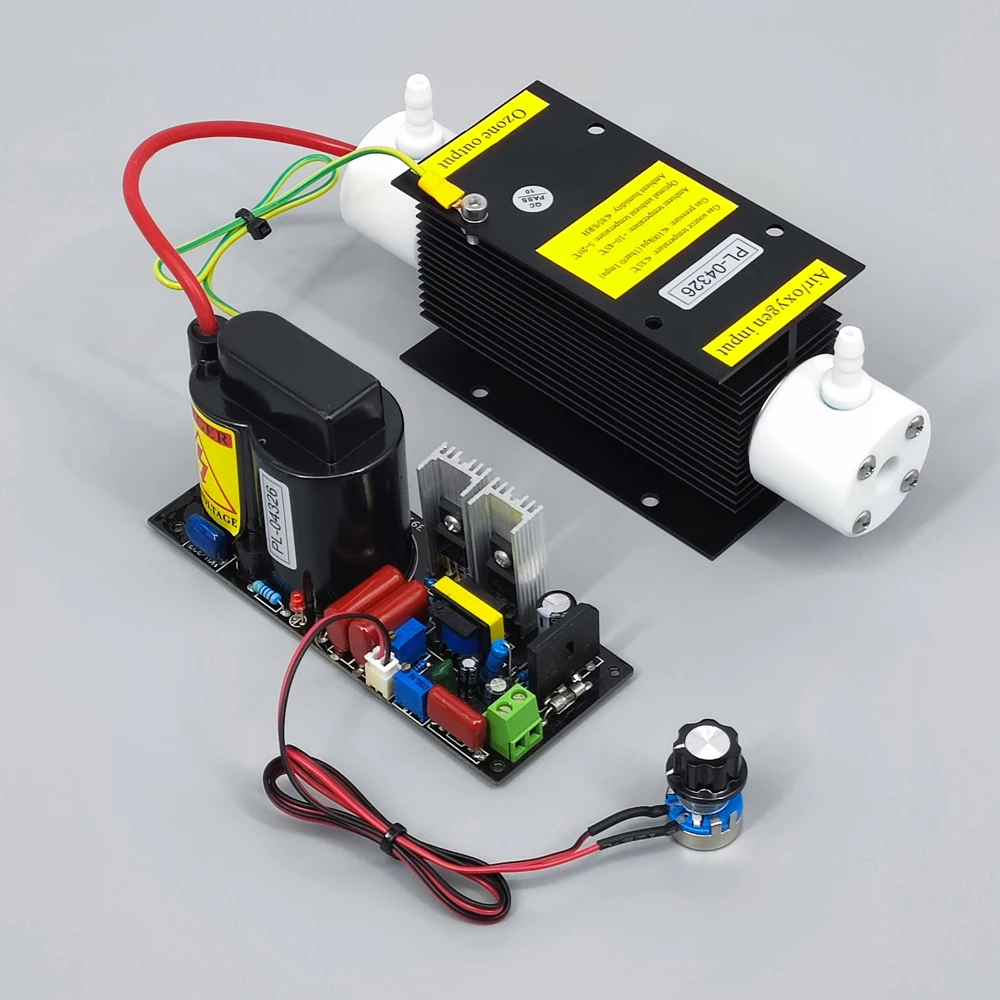

Product picture:

(When the product works, there is no electricity on the black radiator, which is very safe)

.

.

.

.

.

.

.

.

.

.

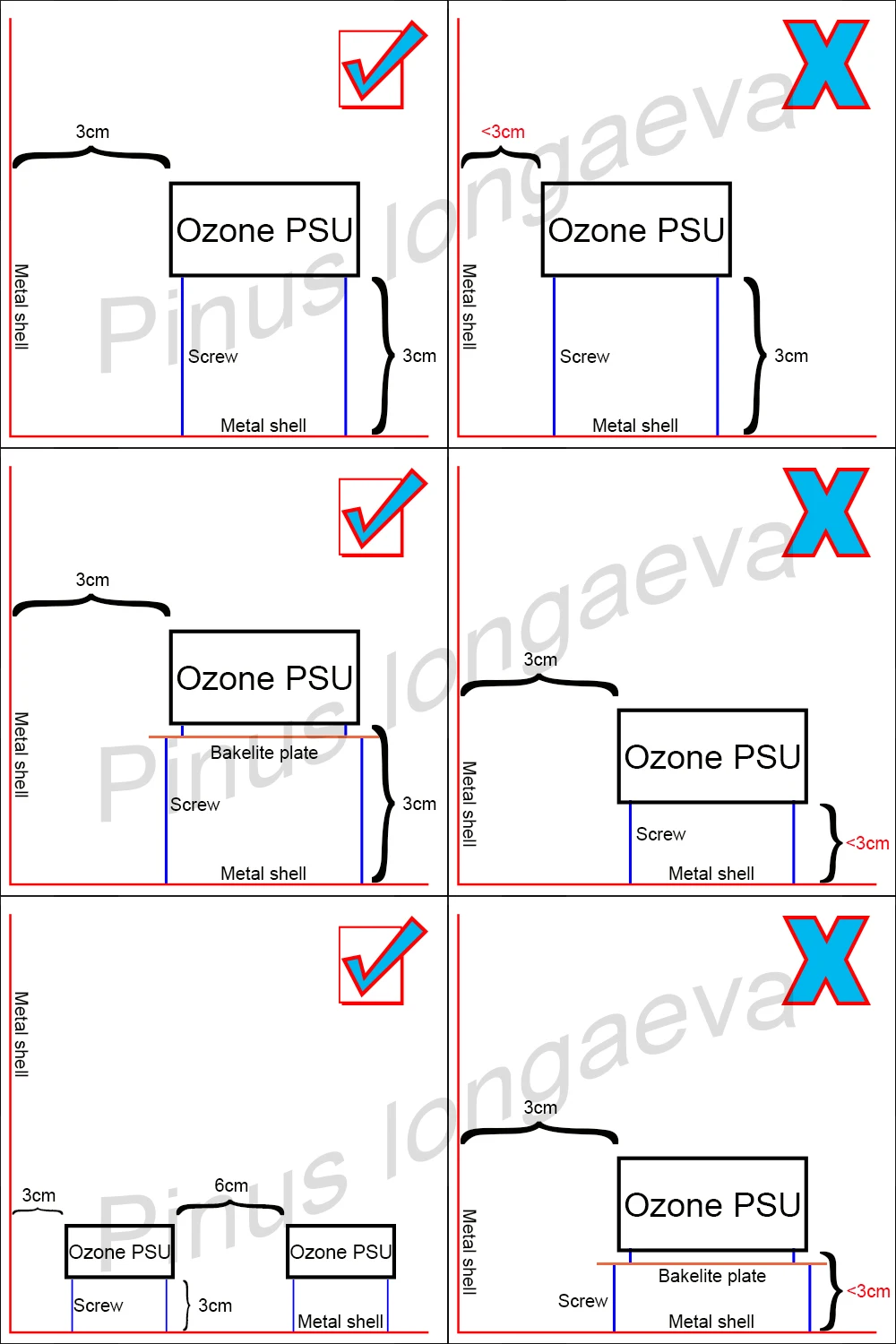

Installation requirements:

1. Ozone tube: You need to install it on the insulating board, away from the metal shell for more than 2cm. (If you install it on a metal shell, please connect an additional ground wire.)

2. Ozone PSU: You can use 4cm long screws to install the ozone PSU (ozone power supply) away from the ozone tube (metal shell or other electrical appliances) more than 3cm.

3. The closest distance between the ozone PSU and the metal shell or other electrical appliances is 3cm.

4. The closest distance between 2pcs ozone PSU is 6cm.

5. Red high voltage wire: Away from the metal shell and other wires for more than 2cm.

6. You need a dry and clean air source or oxygen source.

7. You should push the thick red wire at the middle of the ozone tube and fix another wire on the radiator.

8. You need cooling fan to cool the ozone tube and the ozone PSU.

9. If you need to disinfect water, you can connect ozone output to air stone or venturi through the teflon tube.

.

There is no need to distinguish between inlet and outlet.

Inlet: We recommend that you use 4*7mm silicone tube or 5*8mm PU tube.

Outlet: We recommend that you use 6*8mm Teflon tube.

If you need to change the connector, please contact us.

When you get our products, you will get installation instructions, operation instructions and wiring diagrams.

If you still have any questions, you can contact us at any time.

.

.

Dehydroxylation high purity silica quartz tube ozone generator kit:

#1: Quartz tube composition:

99.9% silica, with strong hardness, high temperature resistance, low coefficient of thermal expansion (CTE), thermal shock resistance, good chemical stability & electrical insulation properties.

#2: High efficiency:

Narrow- gap discharge of 0.5mm, with high ozone conversion rate and low noise.

#3: Low power consumption:

High-voltage high-frequency corona discharge, with a power consumption rate of 8KW.h/kg O3.

#4: High voltage resistance:

The operating voltage of the tube is only 1/6 of its breakdown voltage, with a high dielectric constant.

#5: High quality:

The dielectric material is made of high-purity silica quartz, sintered at the high temperature, with high precision and uniform discharge. It is equipped with the 316L stainless steel inner electrode, PTFE flange gas nozzle and anti-corrosion high-purity fluorine rubber ring seals.

Using the latest patented high-density aluminum alloy heat sink technology is applied for external air cooling of heat dissipation, which can achieve more efficient heat dissipation. And the long time ozone decay is very low, <1/10.

#6: Service life:

More than 20,000 hours.

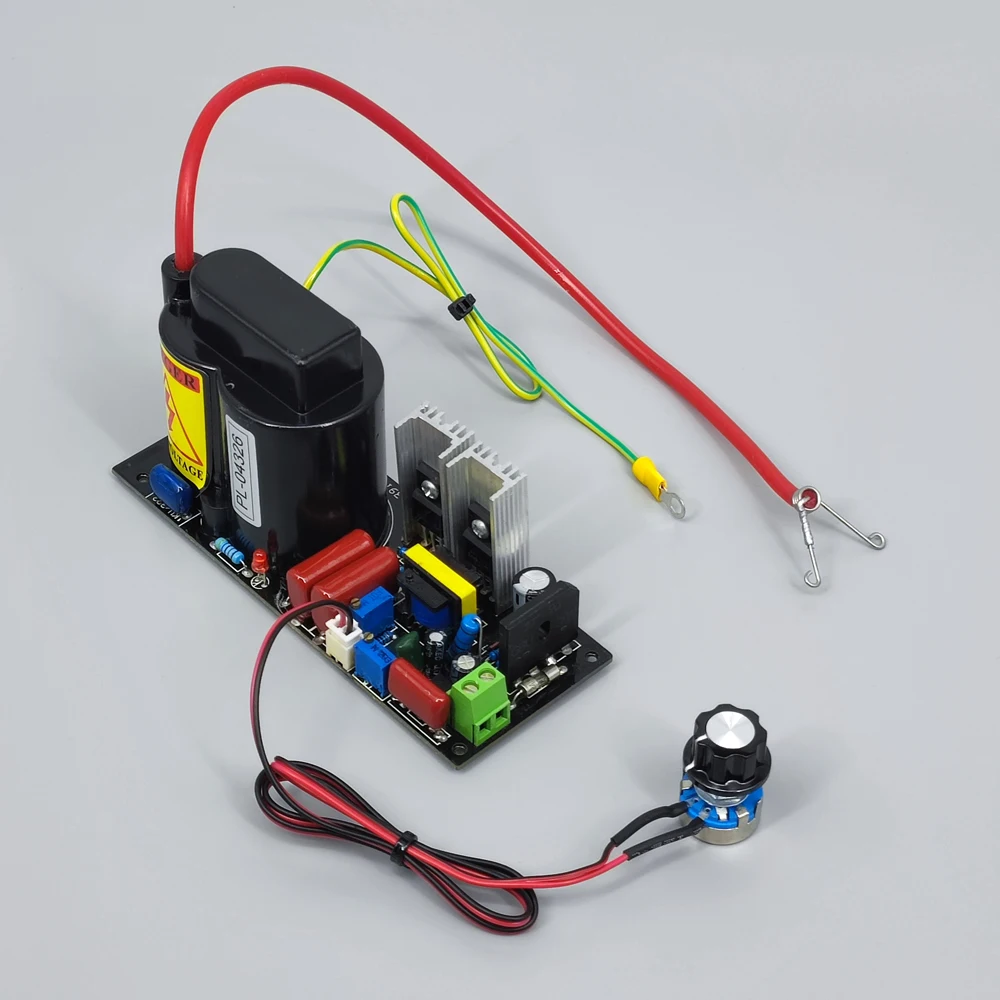

#7: Ozone PSU:

With over-current and over-voltage protection, short-circuit protection, open-circuit protection.

If the quartz glass tube is damaged, ozone PSU will automatically stop output high voltage.

.

.

.

.

.

.

.

.
