CE FCC ROHS 80W 100W Ozone PSU Ozone Generator High-Voltage Power Supply Parts Adjustable for 5G 7G 10G Ozone Tube

Remarks:

We have updated our website, the total product price = ex-factory price + shipping cost, which will be more reasonable.

This will ensure that you can buy this product at the lowest price.

Since the shipping cost of each country is not the same, if we set the shipping cost as free shipping, it will cause you have to pay more.

.

When we send this goods to you, we will fill in the low product value for you, in order to avoid you paying expensive tariffs.

Maybe you will get your goods directly, maybe the local customs will ask you to assist in customs clearance and pay the customs duties. You can check and understand the local customs policies.

If your goods stay at the local customs for a long time (maybe the local customs or the local courier company will call you), please contact the local courier company and provide them with a tracking number in order to assist in customs clearance and take away your goods.

If you are unwilling to assist in customs clearance and pay customs duties, please do not order it.

.

Our test equipment:

AC voltage regulator, DC voltage regulator, voltage stabilizer, intelligent program-controlled frequency conversion power supply, electrical parameter meter, ozone concentration analyzer, oxygen cylinder, oxygen machine, air compressor, oil-water separator, pressure regulating valve, flow meter, ambient temperature and humidity meter, aging test bench...

AC200V-AC240V, we will set: AC240V 50HZ for you.

AC100V-AC130V, we will set: AC130V 60HZ for you.

If the local voltage or frequency is special, when you order our products, you can leave a message to us.

.

.

.

High-end 100W adjustable ozone PSU

(The ozone PSU cannot work alone. you need to correctly install the ozone tube and the ozone PSU, connect them together, and then you can turn on the power)

.

.

.

Product parameters:

Product name: High-end 100W adjustable ozone PSU

Input voltage: AC200V-AC240V/AC100V-AC130V, 50/60HZ

Maximum power: 100W

Optimal power: ≤100W

Output frequency: 20-30khz (automatic control output frequency)

Output voltage: 3.5-4.5kv

Product application: 5-10G/H ozone tube/ceramic plate ozone generator

Customized: can be customized

Brand: Pinus longaeva (We can print your logo and paste it on the ozone PSU)

Product certification: CE FCC ROHS

Service life / Warranty: more than 20000 hours / 2 years

.

Ambient temperature: -10~45℃

Optimal ambient temperature: 5-20℃

Environmental humidity: ≤85%RH

.

Size:

Ozone PSU: 157*73*65mm  0.4kg

.

TK: set the maximum power of the ozone PSU (rotate to the right to increase the power)

ph: control the output linearity, please do not adjust it.

.

Note:

We will set the parameters of this ozone PSU according to our black ozone tube, if you have our black ozone tube, you can connect them together.

If you are not a professional, if you do not have a power meter and oscilloscope, please do not debug and connect our ozone PSU with other companies' ozone tubes together.

.

.

Product features:

With over-current and over-voltage protection, short-circuit protection, open-circuit protection.

If the quartz glass tube is damaged, ozone PSU will automatically stop output high voltage.

.

.

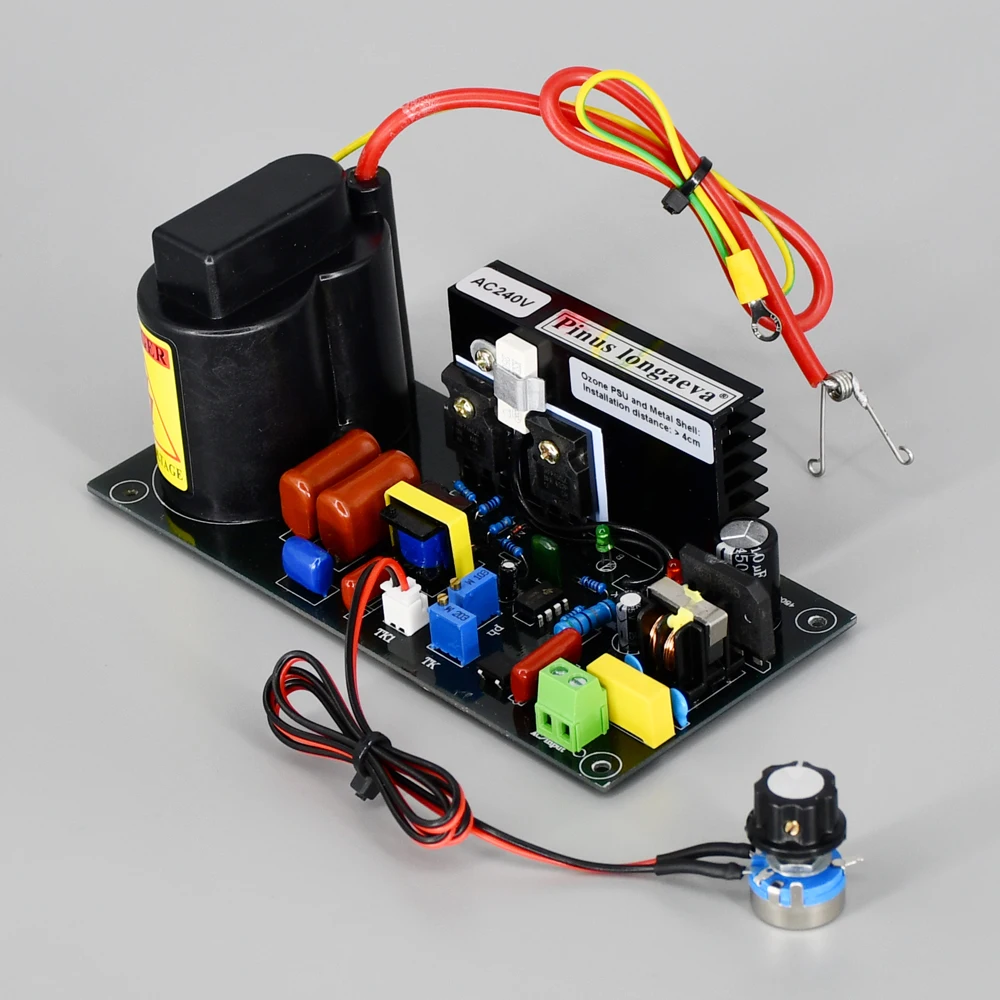

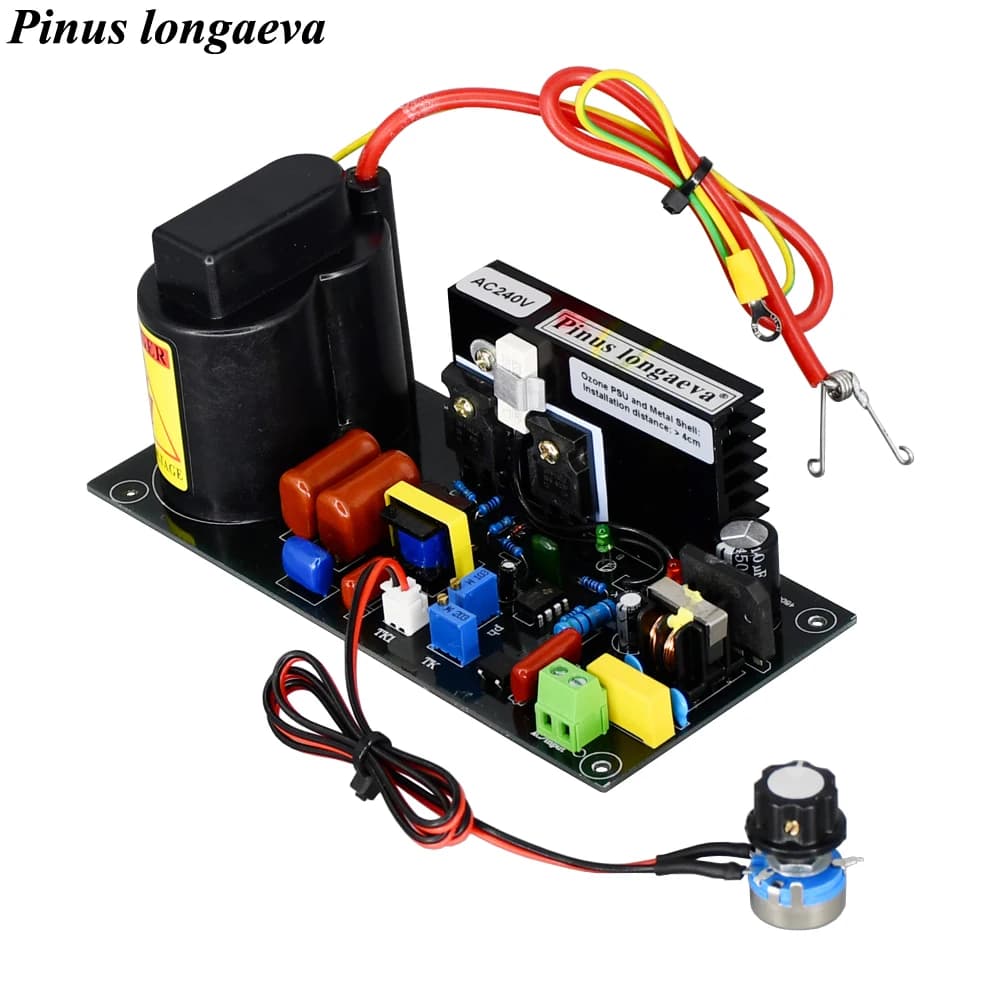

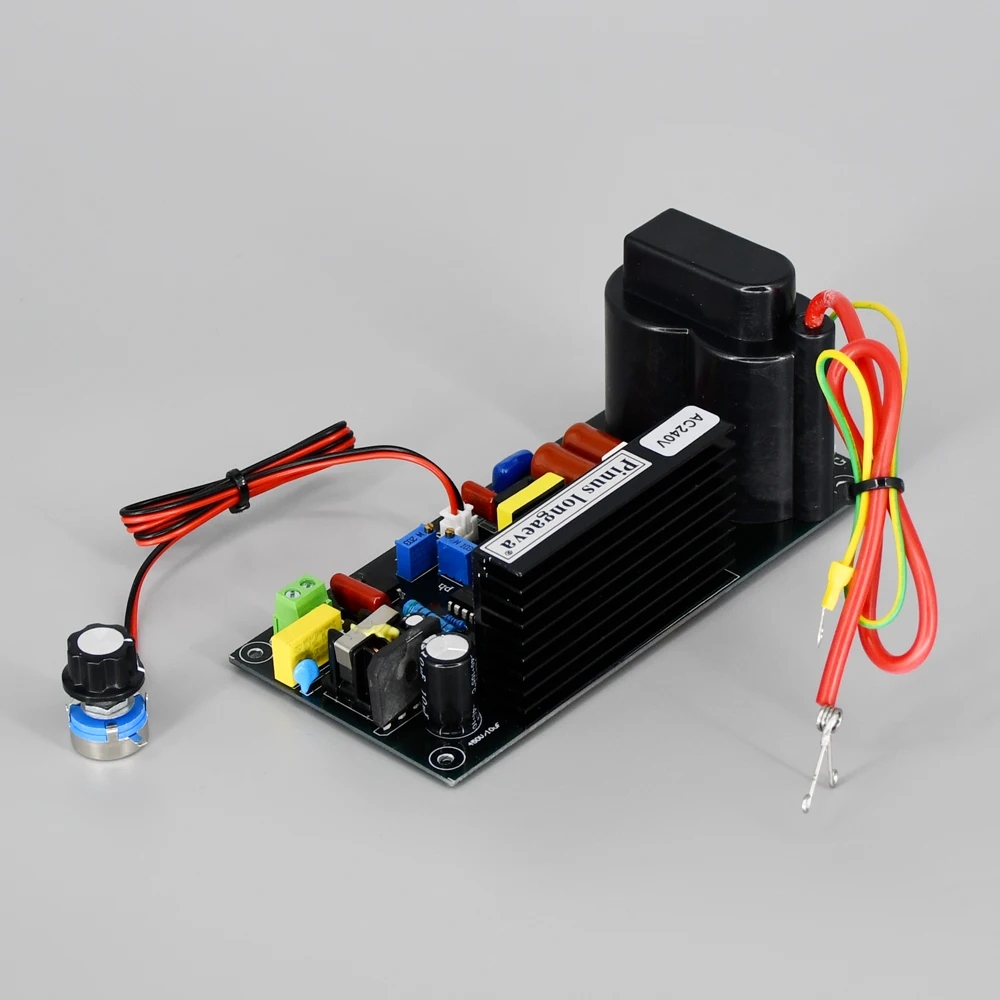

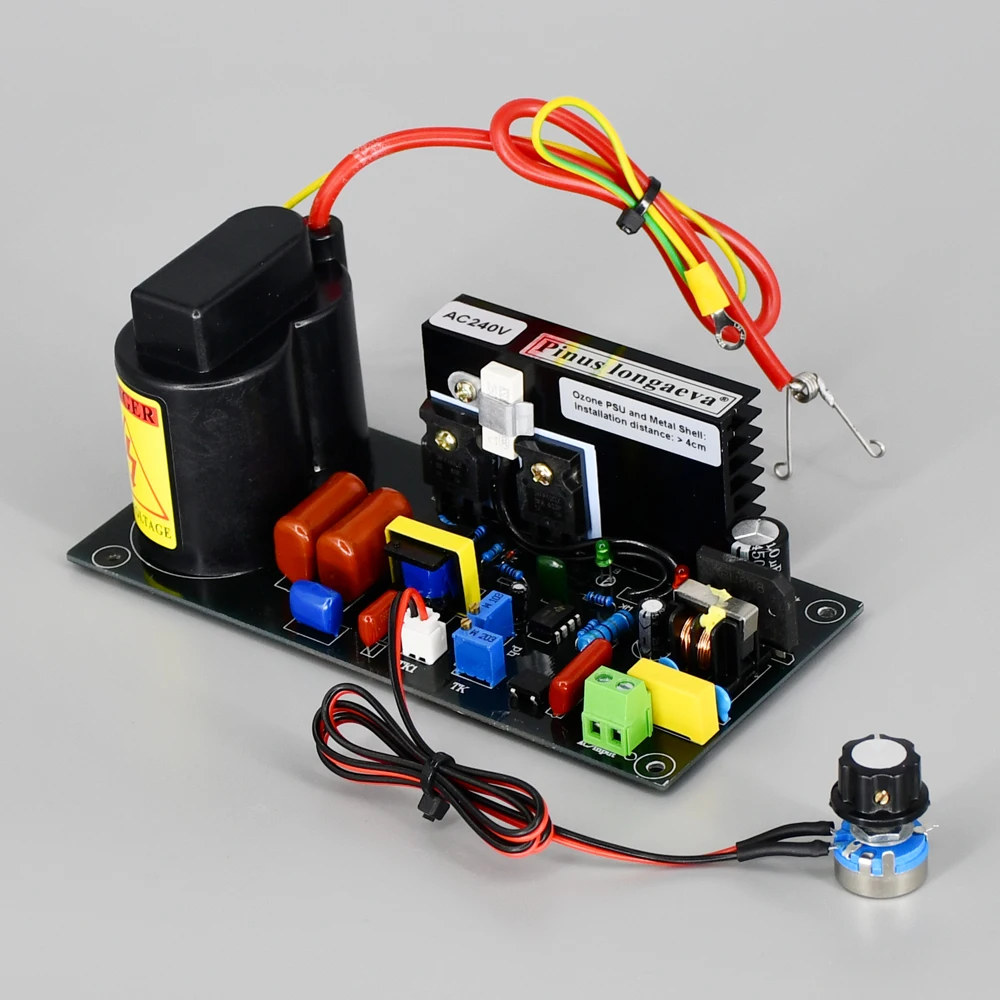

Product picture:

(This is only an ozone PSU, does not contain ozone tube and other parts, if you need a completed ozone generator kit or ozone machine,

please click here>>>

).

.

.

.

.

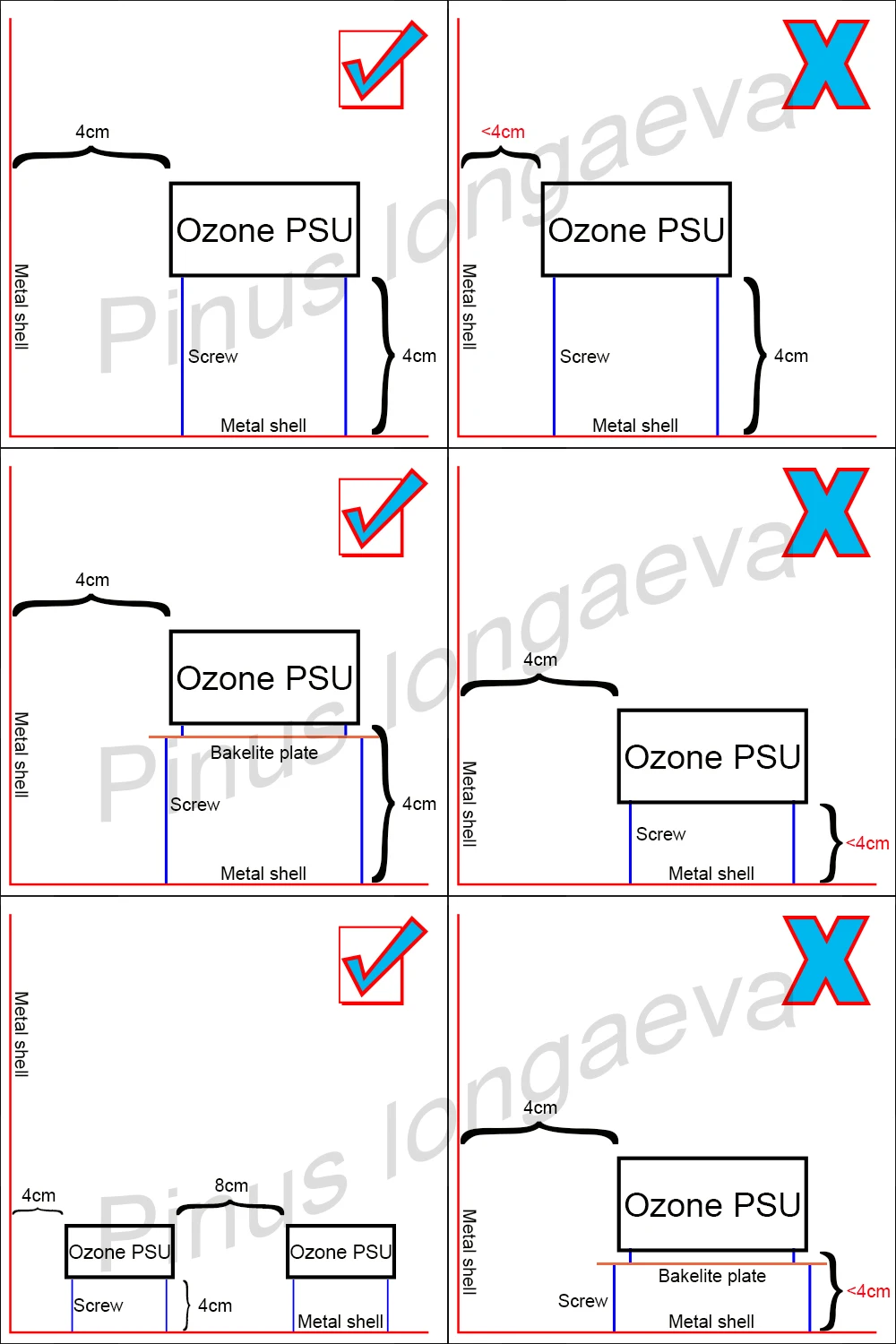

Installation requirements:

1. Ozone PSU: You can use 5cm long screws to install the ozone PSU (ozone power supply) away from the ozone tube (metal shell or other electrical appliances) more than 4cm.

2. The closest distance between the ozone PSU and the metal shell or other electrical appliances is 4cm.

3. The closest distance between 2pcs ozone PSU is 8cm.

4. Red high voltage wire: Away from the metal shell and other wires for more than 2cm.

5. You should push the thick red wire at the middle of the ozone tube and fix the yellow wire on the heat sink (external electrode).

6. You need cooling fan to cool the ozone PSU.

7. Please install the ozone PSU in a dry and ventilated environment.

.

.

When you get our products, you will get installation instructions, operation instructions and wiring diagrams.

If you still have any questions, you can contact us at any time.

.

.

NOTE:

If the ozone PSU (high voltage power supply) is purchased separately, please note:

Due to the special nature of the high-voltage power supply, its electrical parameters will vary under different load conditions, especially the power levels. In the event that the power supply is purchased separately without the load confirmation of our company and quality problems including low, unstable or burnt load occur after use, the company will not provide warranty free of charge. For this kind of after-sales maintenance, a separate fee will be charged.

.

If warranty is required, please inform us of the load characteristics before purchase or send the load directly to us. We will adjust the corresponding electrical parameters according to the load characteristics.

.

Our company specializes in designing and developing various high-voltage high-frequency power supplies. If you cannot find a suitable high-voltage power supply, we can develop and manufacture according to your requirements or we can manufacture the high-voltage power supply with the same electrical parameters according to the sample you provide.

.

.

.

.
