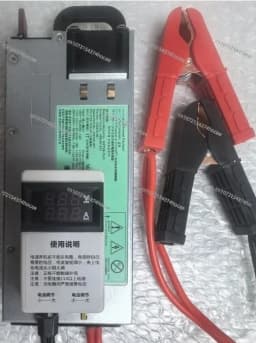

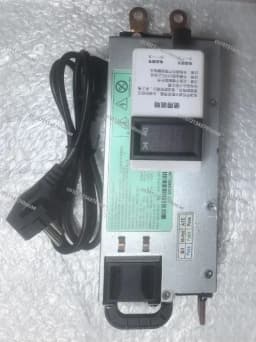

14.6V100A 120A Automotive Programming Regulated Power Supply, Lithium Iron Phosphate, Ternary Lithium, Lead-Acid Battery Charger

12.6V, 14.6V, 100A adjustable charger.
RV, car programming, ternary lithium battery, lithium iron phosphate, lead-acid battery adjustable charger.
Server power supply modification. Input voltage AC110-240V, output voltage 3-15V, current 3-100A adjustable. Voltage error 0.1V, current accuracy 3A. Charging method constant current, voltage regulation, current returns to zero after full. Adjust the charging voltage value without load, and adjust the current size after connecting the battery; the voltage value cannot be adjusted during charging.
Input AC or DC 100-240V, output DC 5-15V, 3-100 adjustable, maximum continuous 100A, maximum output power 1200w.
Charging: no-load voltage regulation, load current regulation. First constant current and then constant voltage; during the charging process, the voltage is first low and then high, the current gradually decreases, the full current is zero stop charging, and turn to standby.

Attention! Do not recharge single batteries!!!
Functions: short circuit, voltage limit, overcurrent, anti-backflow, over temperature protection, constant current and constant voltage function. No output polarity protection, positive and negative electrodes will be damaged when connected to the reverse!!! Voltage display accuracy 0.1V, current error of + -2a.
If the default clip head is output, the 120A gray Anderson plug can be replaced for free. The output cable adopts double 6 square high temperature resistant silicone material tinned copper wire, and the length includes the clip 43 cm. The delivery is not equipped with a product type input power cord, household rice cooker, and computer power cord.
This machine does not have the function of anti-reverse connection. Be sure not to connect the anti-positive and negative electrodes when charging, and be responsible for connecting the anti-burning machine. Except for remote areas nationwide, adjust the charging voltage according to your own battery needs. Pay attention to the positive and negative electrodes when connecting the battery, adjust the charging current, and pay attention to electricity safety.
