SDITER WIFI 380V 9KW Electric Heater Control Panel for Sauna Parts Multifunction Temperature Light Fan Music Massager Switch

3P/380V/240V-9KW Multifunctional WIFI Sauna Control Panel for Electric Heat Infrared,Electric Therapy,Lights,UV,Fan Switch

Product Features

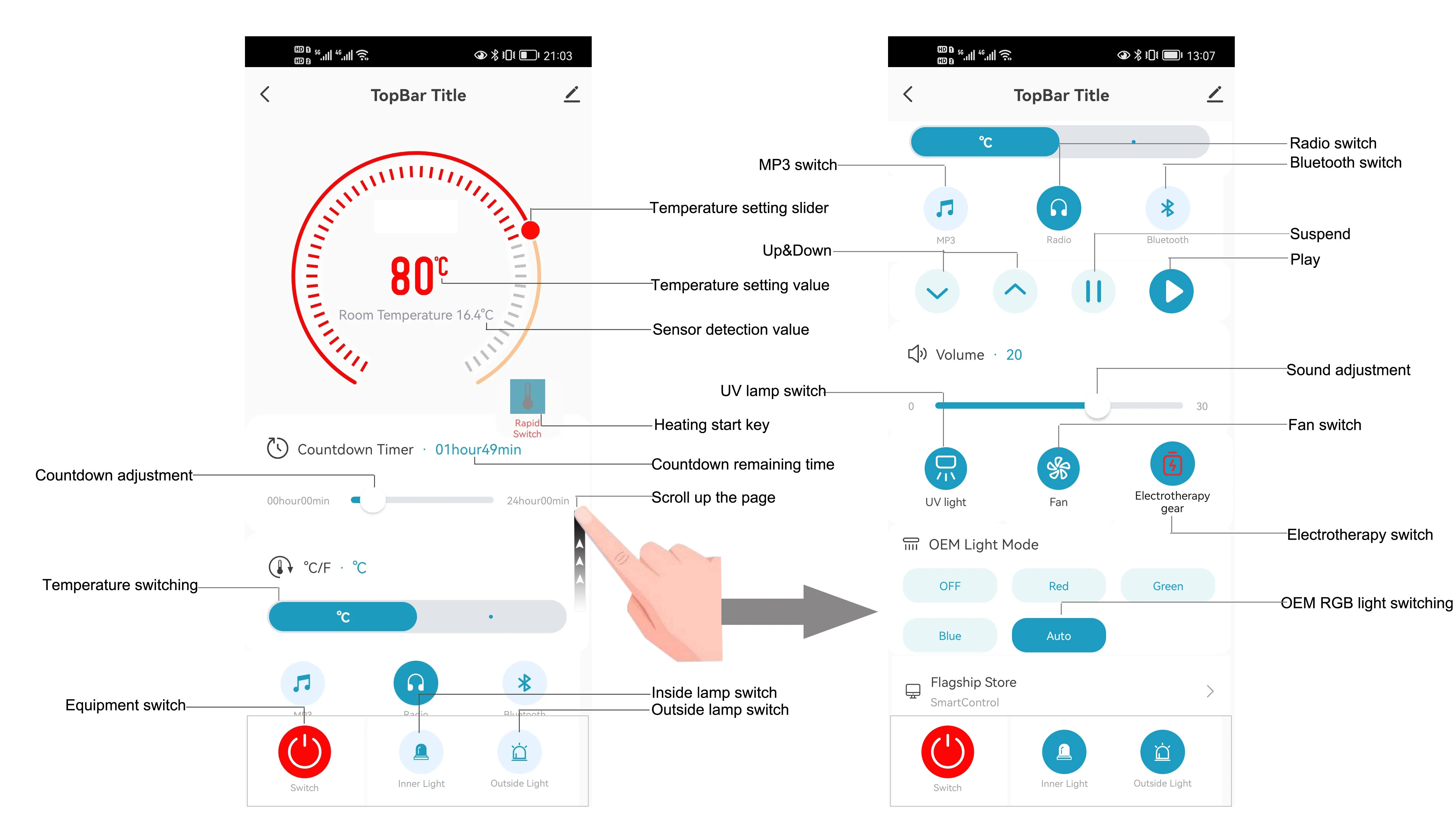

Embed TUYA WIFI smart chip, Mobile APP for remote adjustment and management of sauna room controller, 3 sets of heating 30A relays, Support heating equipment operating voltages of 440VAC, 380VAC, 240VAC, 230VAC, 220VAC, 110VA,supporting high-power infrared heating tubes/graphene/far-infrared light waves

Power down memory function

Countdown to work for 24 hours

Low-frequency pulse electrotherapy, stimulate acupuncture points, dredge meridians, improve circulation and good metabolism

Celsius temperature and Fahrenheit temperature free switching(°C/℉)

Multi functions: Heat, MP3, FM, inside and outside light, RGB LED light, fan, AUX(UV/Oxygen bar etc.)

Dual panels: indoor display operation panel and outdoor display operation panel (optional);

Parameters

Temperature controlling range: 0~110°C(32℉  ~230℉)

Temperature measuring range: 0~110°C  (32℉  ~230℉)

Time Setting：1~24 H

Equipment working input voltage: 110~240VAC 50HZ/60HZ

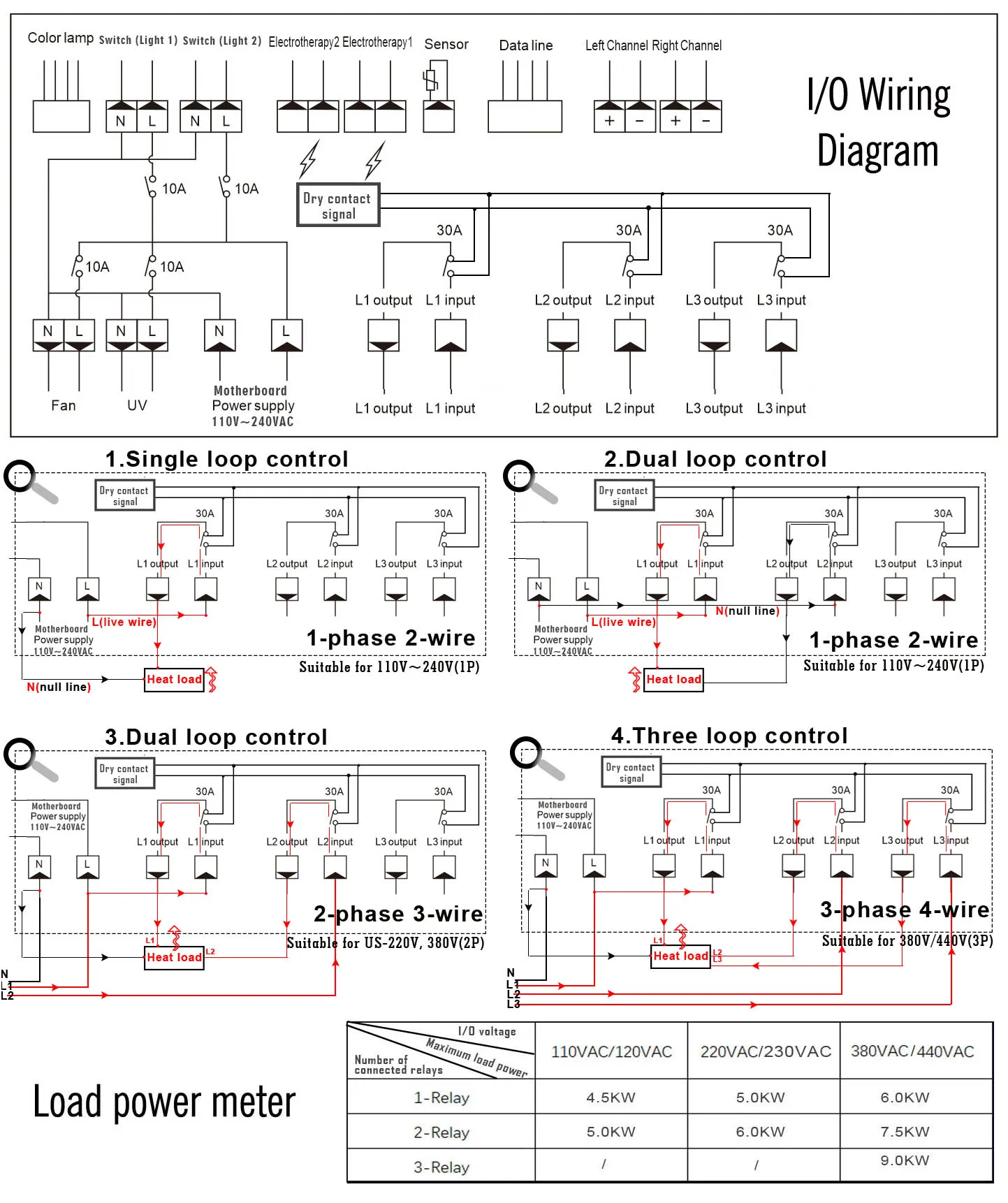

Equipment working output:

1. Electric heating (load) output control voltage range110VAC,220VAC,230VAC,240VAC,380VAC,440VAC;

2.3-sets of electric heating 30A relays,Heating control output maximum power 9.0KW;

3. Fan (switch) 10A relay, maximum load 220V10A;

4. UV lamp (switch) 10A relay, maximum load 220V10A;

5. Inside lamp (switch) 10A relay, maximum load 220V10A;;

6. Outside lamp (switch)10A relay, maximum load of 220V10A;

7. Speaker 25W, output left and right channels;

8. Two groups of low-frequency pulse electrotherapy, 0~9 grades;

9. OEM 12V RGB LED lamp (optional);

(If you want to connect bigger load, please buy AC contactor on your local market, and connect AC contactor before using.)

Accuracy: ±1°C

Input: 1 NTC sensor(wire: 1m for standard, can be customized)

Consumption: ≤3 w

Ambient requirements: temperature/ -10~60°C; humidity/20~85% (No condensate)

Panel Outline Dimensions: 195mm x 126mm
