CE FCC ROHS 80W 100W 10g Ozone PSU Ozone Generator High-Voltage Power Supply Parts Adjustable for 7G 10G Ozone Tube

Our test equipment:

AC voltage regulator, DC voltage regulator, voltage stabilizer, LCR digital bridge tester, intelligent program-controlled frequency conversion power supply, electrical parameter meter, ozone concentration analyzer, oxygen cylinder, oxygen machine, air compressor, oil-water separator, pressure regulating valve, flow meter, ambient temperature and humidity meter, aging test bench...

AC200V-AC240V, we will set: AC240V 50HZ for you.

AC100V-AC130V, we will set: AC130V 60HZ for you.

If the local voltage or frequency is special, when you order our products, you can leave a message to us.

When you get this product, please read the installation and operation instructions carefully, it is very important.

(If you don't understand English, please contact us for the document.)

.

.

.

High-end 100W adjustable ozone PSU

(The ozone PSU cannot work alone, you need to correctly install and connect the ozone tube and ozone PSU together, turn on the air source first, or turn on the air source and ozone generator kit at the same time)

.

.

.

Product parameters:

Product name: high-end 100w adjustable ozone PSU

Input voltage: AC200V-AC240V/AC100V-AC130V

Maximum power: 100w

Optimal power: ≤90w

Output frequency: 4-20khz (can be customized)

Output voltage: 2-8kv (can be customized)

Suitable for: 7g/h-10g/h quartz ozone tube

.

Ambient temperature: -10~45℃

Optimal ambient temperature: 1-20℃

Environmental humidity: ≤85%RH

.

Brand: Pinus longaeva (we can print your logo and paste it on the ozone tube)

Product certification: CE FCC ROHS

Service life / Warranty: more than 20000 hours / 2 years

Customized: can be customized

.

Indicator light:

Red: power on indicator

Green: working indicator

.

Size:

Ozone PSU: 155*76*55mm   0.4kg

.

Note:

We will set the parameters of this ozone PSU according to our black ozone tube, if you have our black ozone tube, you can connect them together.

If you are not a professional, if you do not have a power meter and oscilloscope, please do not debug and connect our ozone PSU with other companies' ozone tubes together.

.

We have set the correct parameters for this ozone PSU, so please do not adjust the knob on the ozone PSU.

TK: set the maximum power of the ozone PSU (rotate to the right to increase the power).

F: set the output frequency (you need an oscilloscope) (rotate to the right to increase the frequency).

ZDK: feedback and compensation power, used to stabilize the output power of ozone PSU.

.

Product features:

1. lower temperature rise, more stable, longer service life.

2. ozone tube short circuit/open circuit, the ozone PSU will automatically reduce output power.

3. the low output frequency is conducive to reducing the heat of the ozone tube, when the oxygen flow rate is less than or equal to 1L/min, it can effectively improve the ozone concentration.

4. the output power of the ozone PSU is very stable.

5. we have added the function of switching input voltage (AC240V/AC130V), please let us know if you need to switch the input voltage.

.

Please let us know:

If you need us to change the length of the red high voltage line or the black line,

If you need us to change the length of the potentiometer wire.

.

Due to system reasons, maybe some countries can not see all the products on our website, if you need a product list, please leave a message to us. We are the manufacturer, we produce 0.5g/h-100g/h ozone generator kits, ozone machines, oxygen machines.

.

.

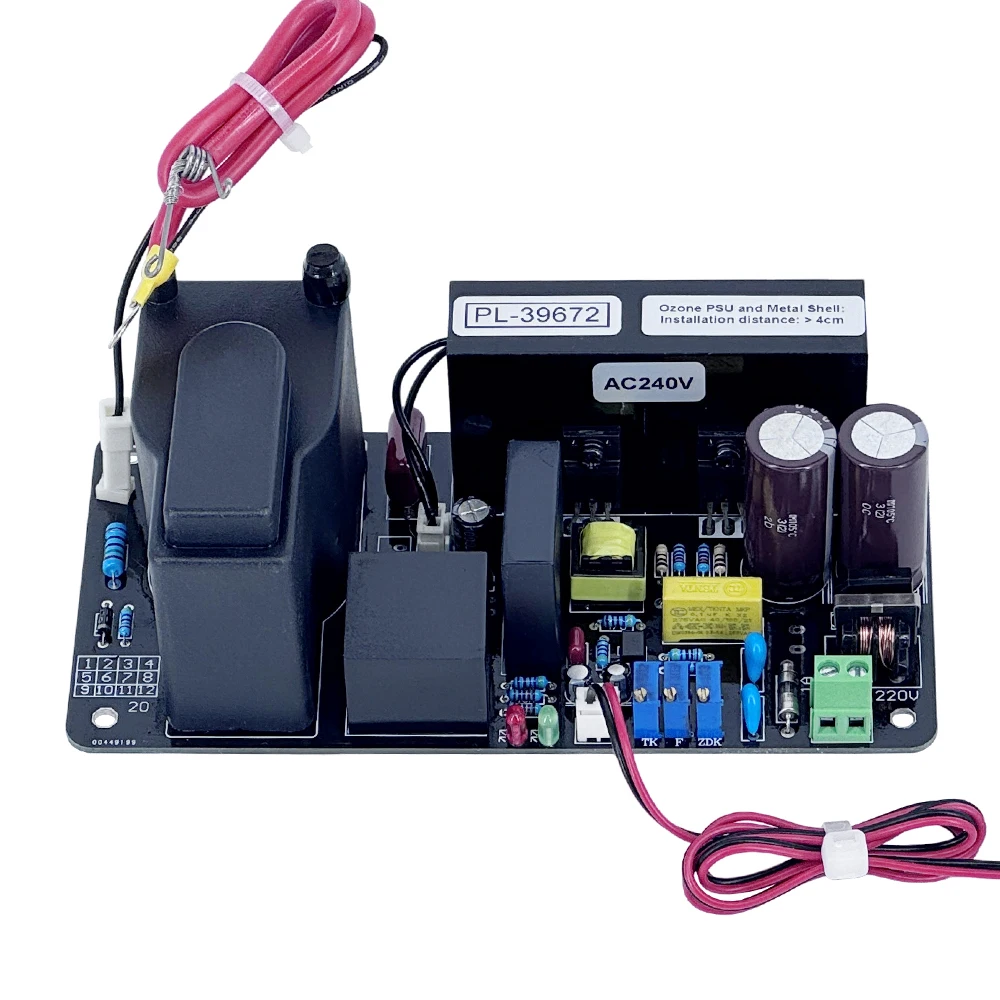

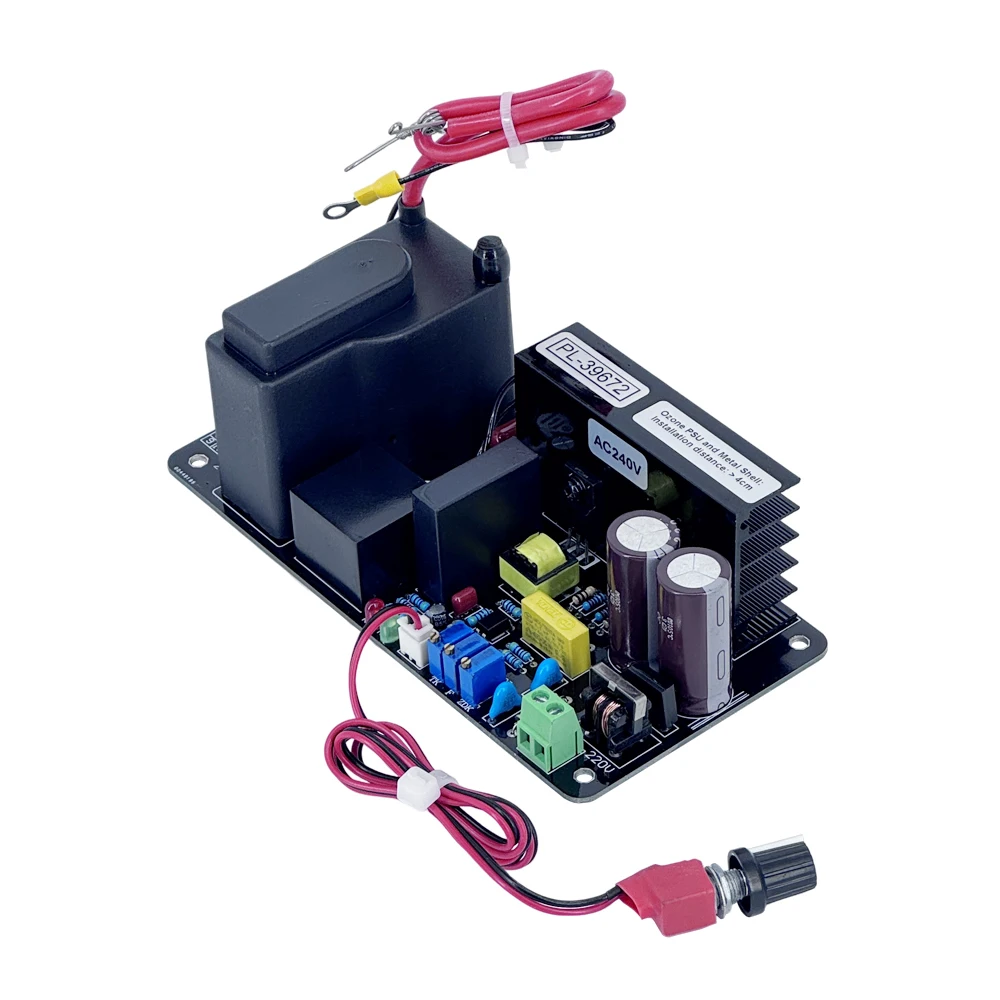

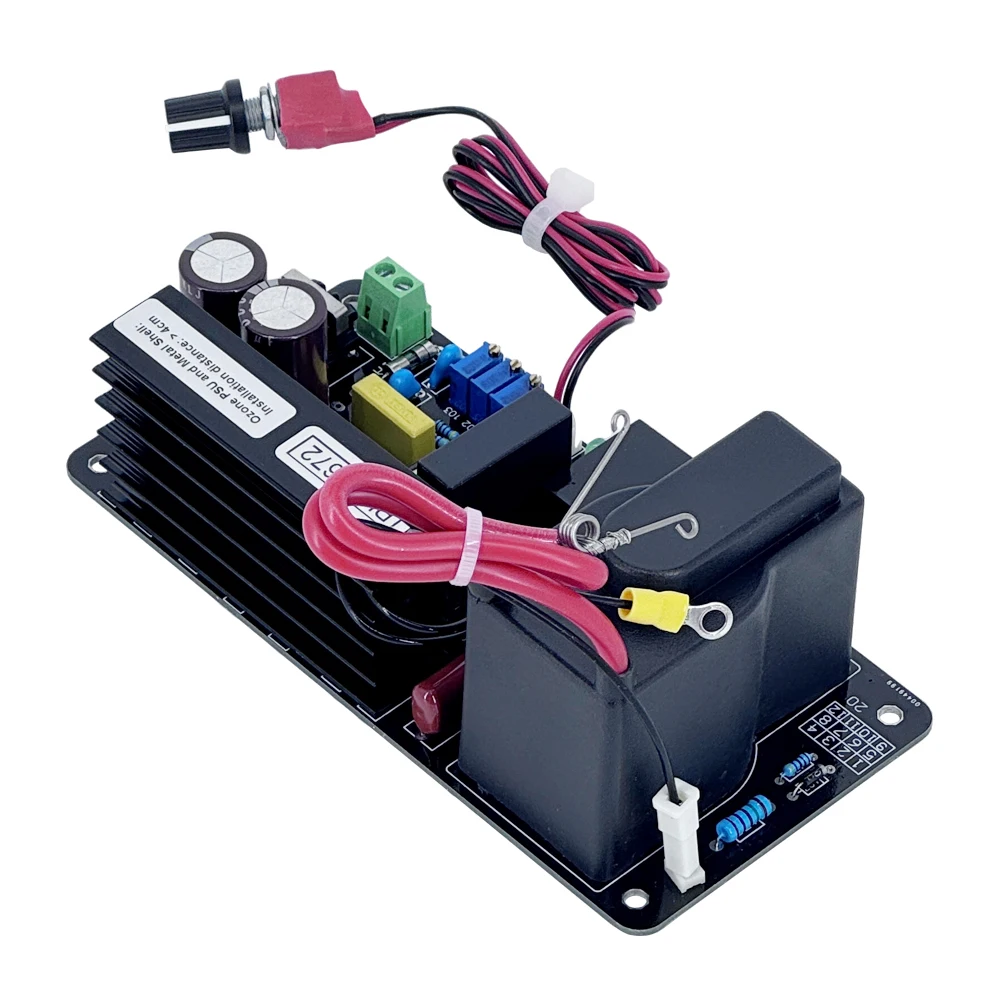

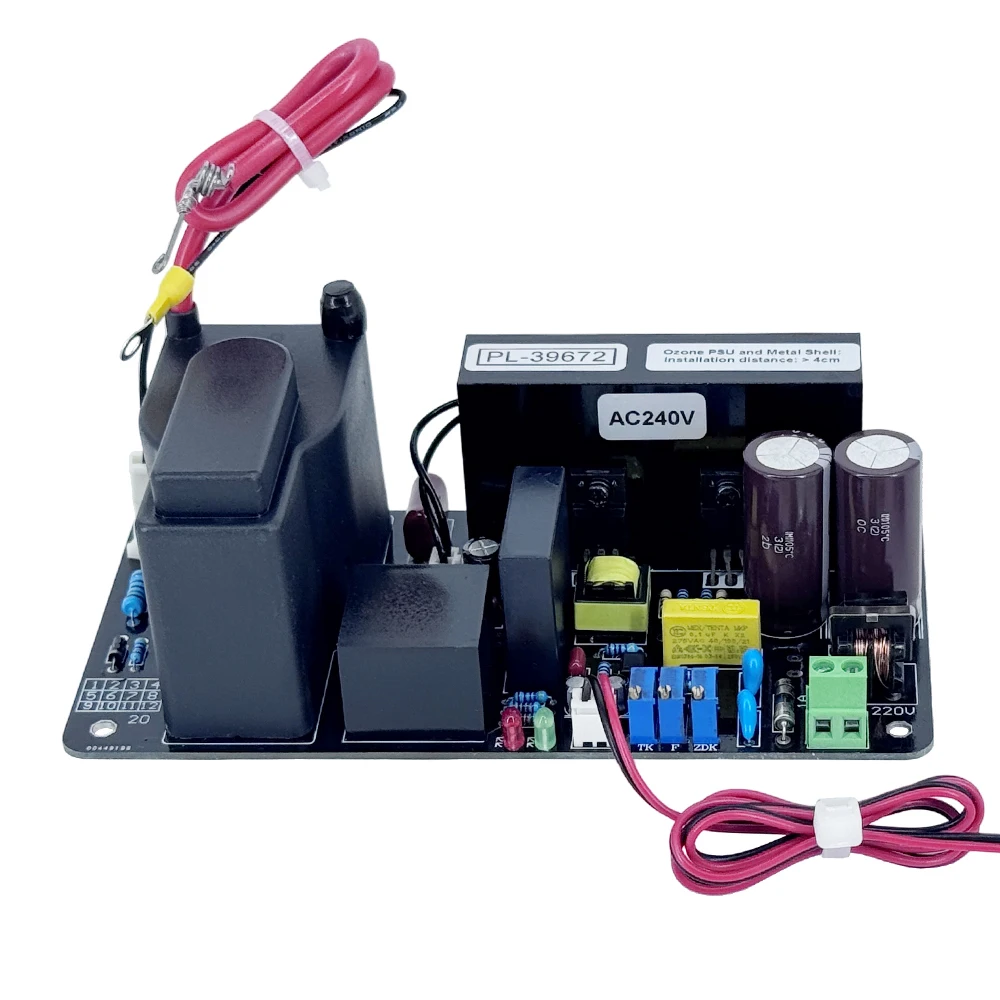

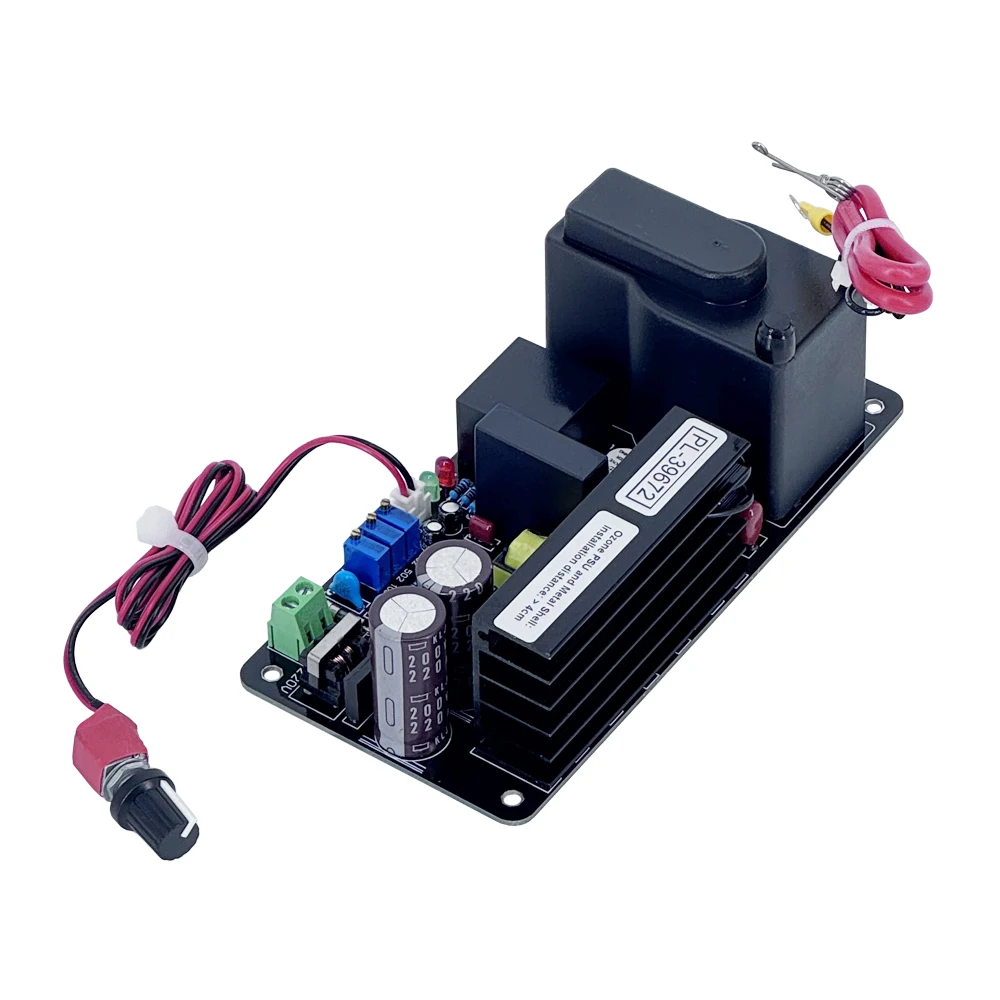

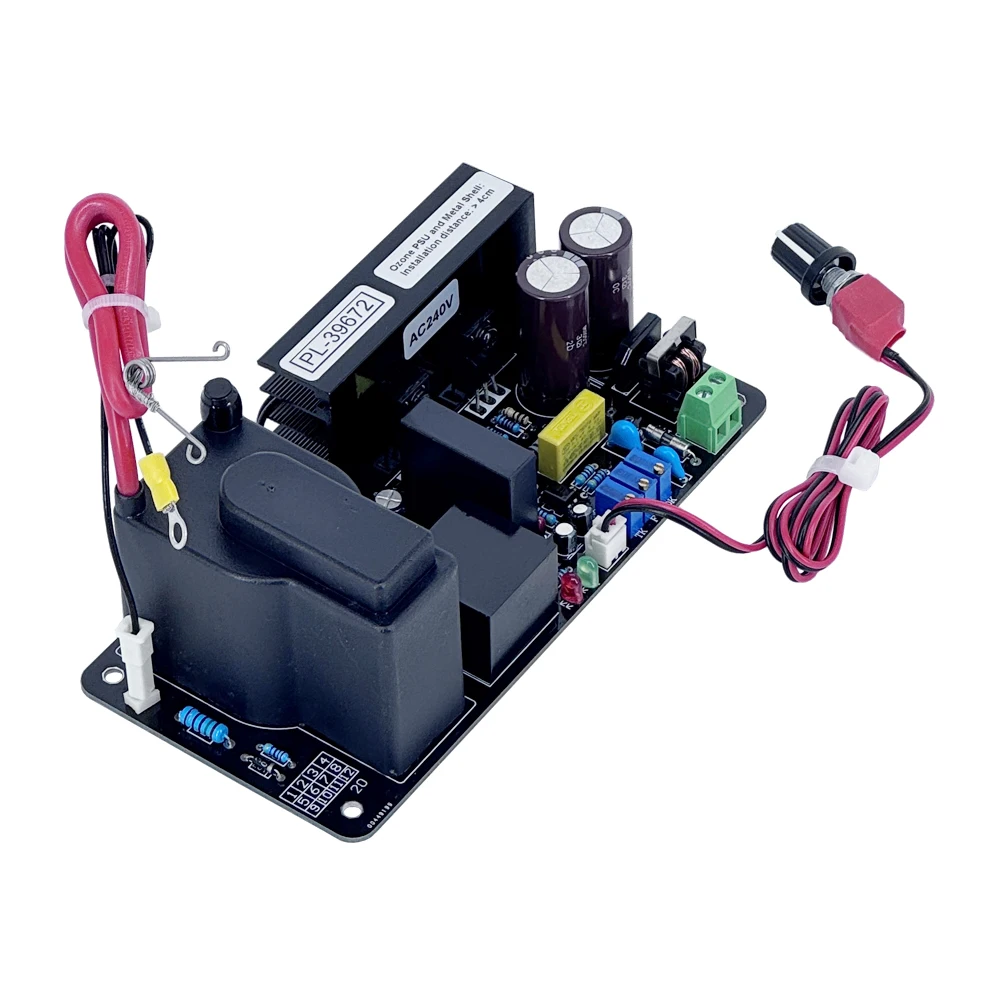

Product picture:

(This is only an ozone PSU, does not contain ozone tube and other parts, if you do not have an ozone tube, we recommend that you buy an ozone tube and an ozone PSU at the same time)

.

.

.

.

.

.

.

Installation requirements:

1. Ozone PSU: you can use 5cm long screws to install the ozone PSU (ozone power supply) away from the ozone tube (metal shell or other electrical appliances) more than 4cm.

2. The closest distance between the ozone PSU and the metal shell or other electrical appliances is 4cm.

3. The closest distance between 2pcs ozone PSU is 8cm.

4. Red high voltage wire: away from the metal shell and other wires for more than 2cm.

5. You should push the thick red wire at the middle of the ozone tube and fix the black wire on the ozone tube heat sink (external electrode).

6. Please install the ozone PSU in a dry and ventilated environment.

7. You need to turn on the air source first, or turn on the air source and ozone generator kit at the same time.

.

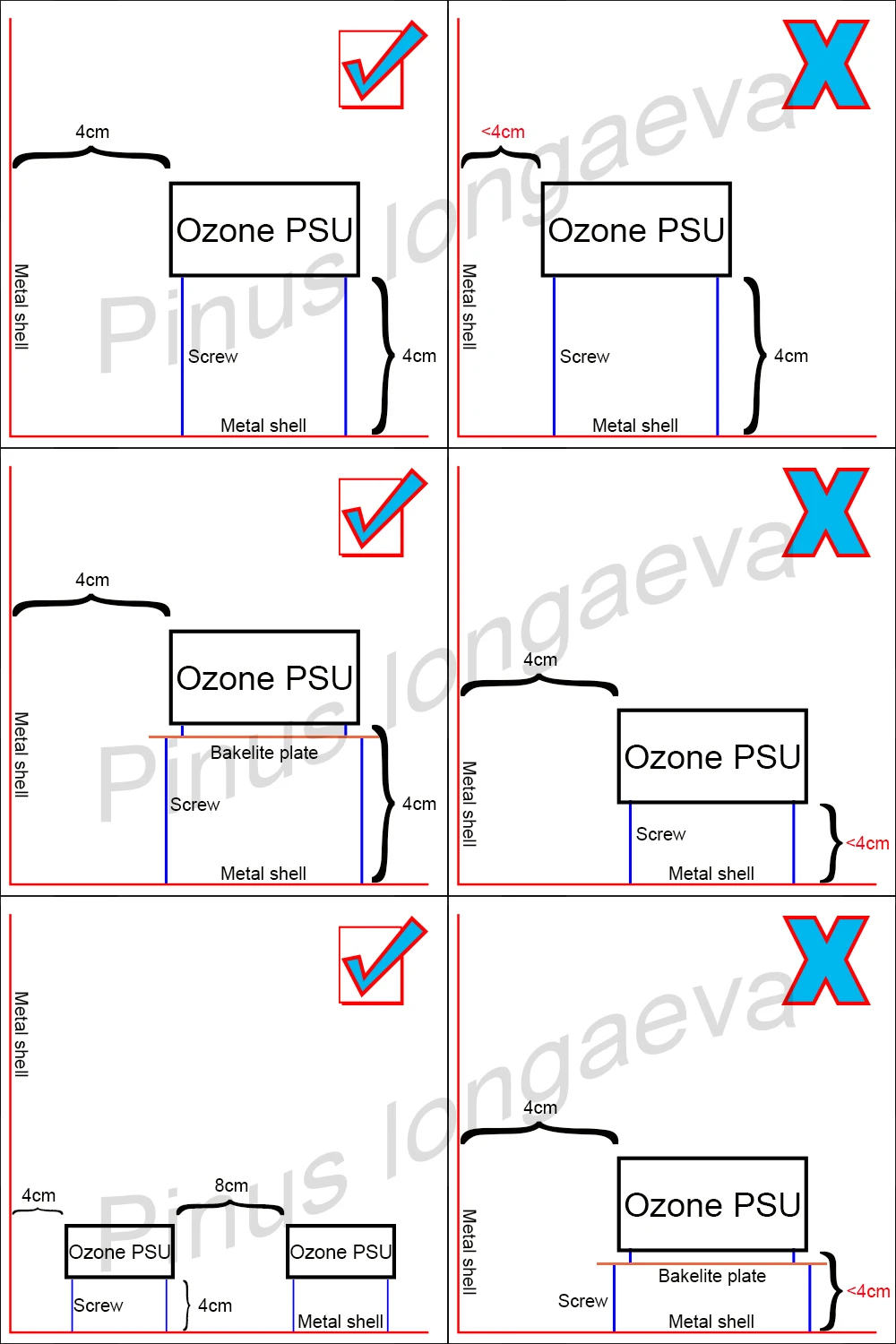

Ozone PSU away from ozone tube / metal plate / metal shell / other electrical appliances (A B C D), more than 4cm.

.

.

The left side is correct and the right side is wrong:

.

.

Note:

If the ozone PSU (high voltage power supply) is purchased separately, please note:

Due to the special nature of the high-voltage power supply, its electrical parameters will vary under different load conditions, especially the power levels. In the event that the power supply is purchased separately without the load confirmation of our company and quality problems including low, unstable or burnt load occur after use, the company will not provide warranty free of charge. For this kind of after-sales maintenance, a separate fee will be charged.

.

If warranty is required, please inform us of the load characteristics before purchase or send the load directly to us. We will adjust the corresponding electrical parameters according to the load characteristics.

.

Our company specializes in designing and developing various high-voltage high-frequency power supplies. If you cannot find a suitable high-voltage power supply, we can develop and manufacture according to your requirements or we can manufacture the high-voltage power supply with the same electrical parameters according to the sample you provide.

.

.
