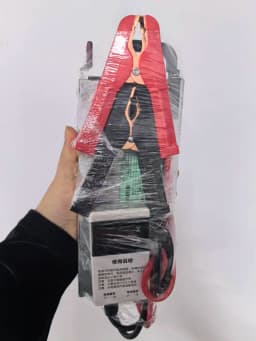

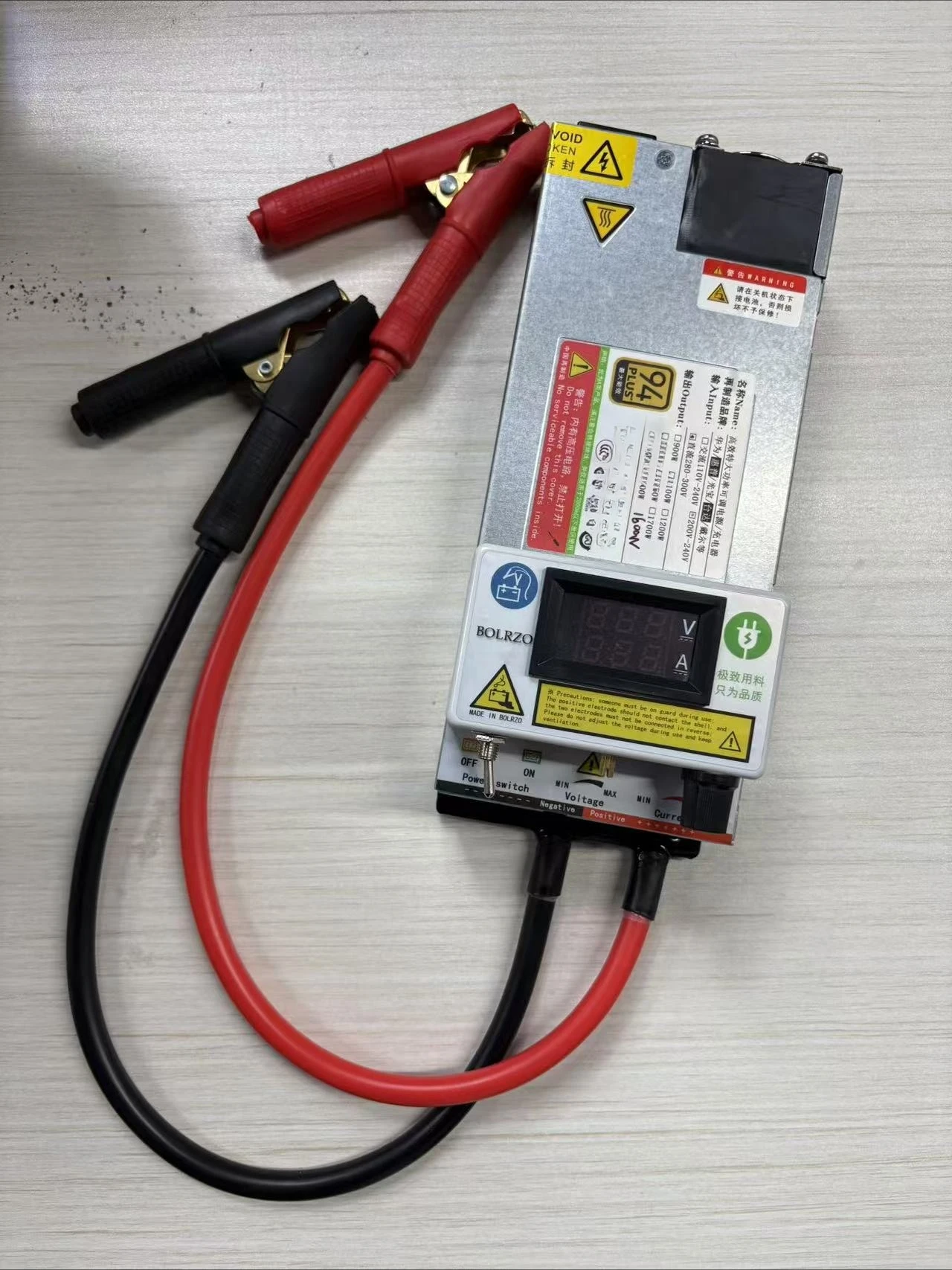

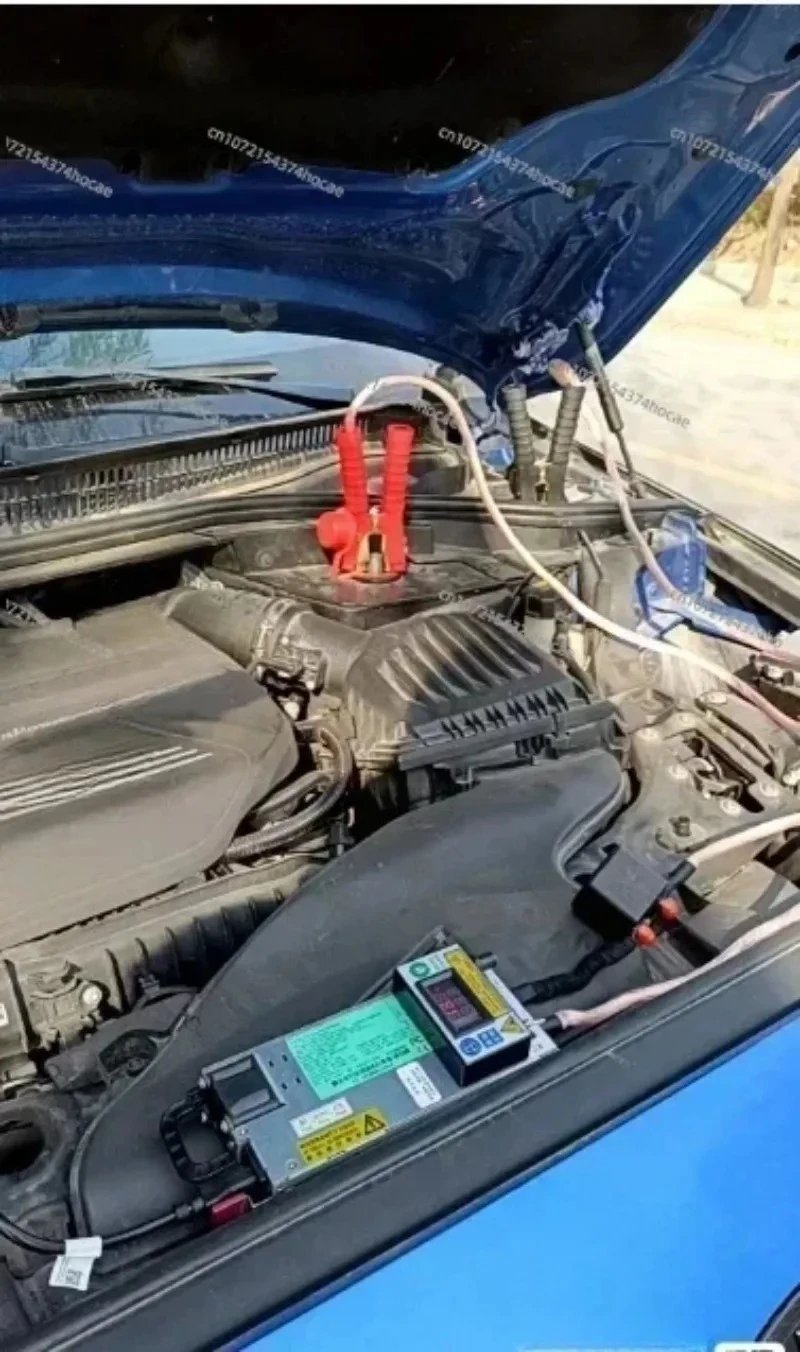

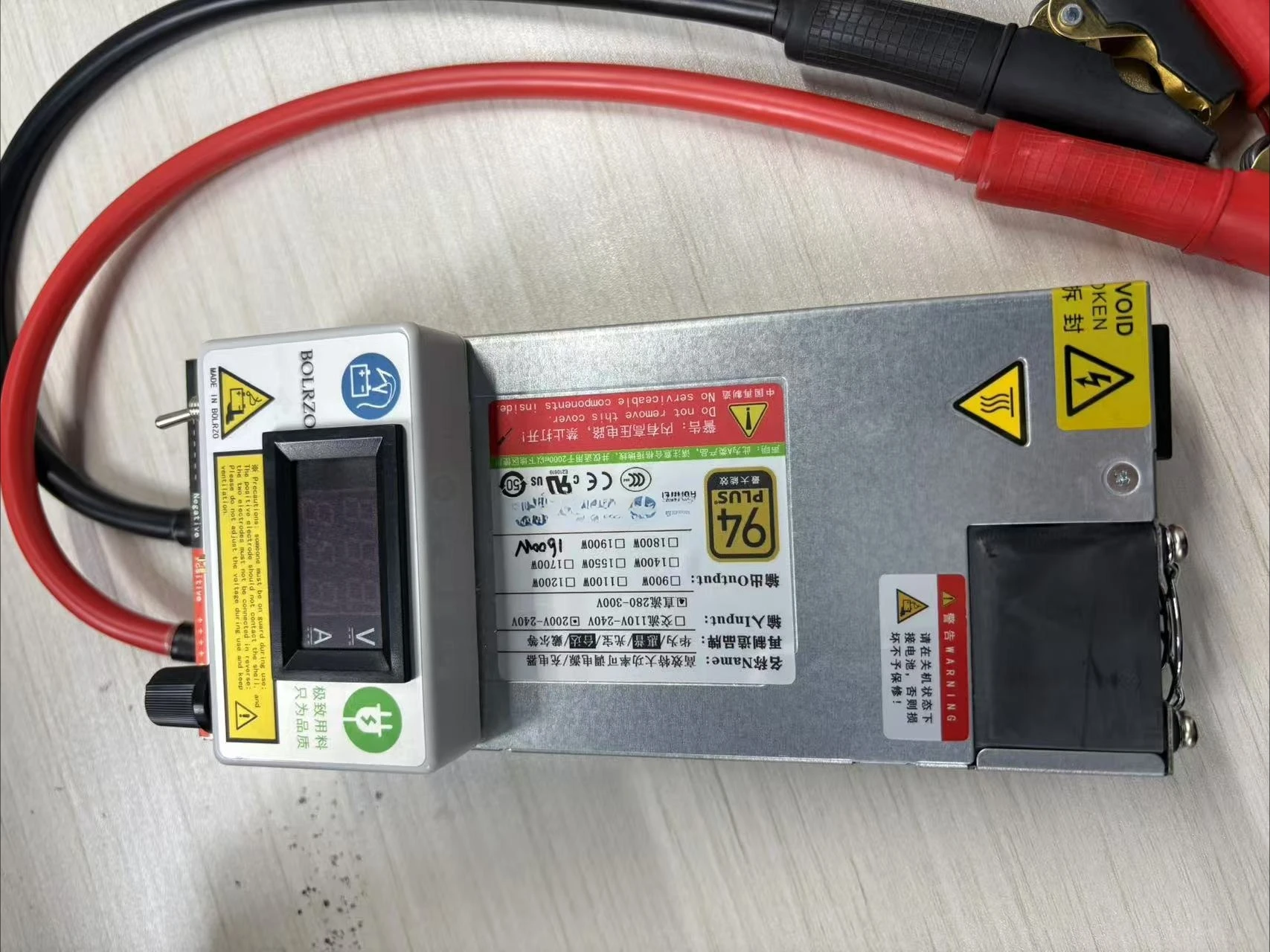

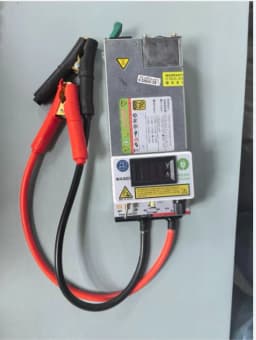

12.6V 14.6V, 100A 120A ternary charger, car programming power supply, audio adjustment power supply, high power, RV charging

makeexplainuse
1. Do not connect the battery, power on, and turn on the power supply to adjust the charging voltage first Recommended 13.8-14 v. The current file pointer points to: 11 o'clock direction (62A charger), 9 o'clock direction 120 charger) 2. Shut down, connect the battery, and then turn it on (note that the positive and negative electrodes are not connected incorrectly,), at this time, you can see how much current, if it is too large, it will be small. The current can generally only be small, and cannot be forced to increase. This is determined by the battery charging factor. The more the battery is full, the smaller the current is, or the battery life is not enough, the internal resistance is too large, and the current is also very small. 3. Theoretically, when the current is charged to 0, it is fully charged, but according to experience, the charging current finally shows 1-2A, which can be ended in advance. It is meaningless to rush down, time-consuming, and it cannot be charged for a few Ah. Basically 80-90% capacity efficiency is high, and there is no need to tear 100%. Charging time, generally losing power batteries, fast charging is basically full in 4-6 hours (based on battery performance), unlike that old charger that takes all night. So usually it is only recharged, make up for 1 hour and a half. It is enough to really charge and disconnect easily. According to the test, when the start-stop battery is completely out of power, it can be charged for about 30 minutes to hold the car (the voltage knob must not be adjusted during the charging process, who is curious, who is responsible, and it is best not to put the charger on the battery to prevent the positive electrode of the battery from touching the charger shell short circuit damage)
12V 13.8v 14.6V 13.6V 220v mains charger, lithium battery 4 strings lithium iron phosphate 3 strings ternary charger, car programming power supply, audio adjustment power supply, high power, RV charging
1. Do constant voltage power supply equipment, voltage range 0-15V, necessary for car programming, necessary for car audio. (You can tell me to limit the maximum voltage, such as the maximum 14.6v) (if the reverse module is installed, the voltage should not be lower than 11v)
2. Make a lithium battery charger, the current can be adjusted from 0-110A. (The ammeter exceeds 100A and does not show the maximum. It can be tested by other tests. It is recommended to use just 100A and 99A. Occasionally, emergency charging is required to turn on more current)
As we all know, lithium batteries must be charged with constant current first, and finally changed to constant voltage when they are full. If the adapter that cannot charge with constant current charges the lithium battery, it is easy to damage the lithium battery.
[Stable]
This power supply is particularly stable, safe and reliable, with short circuit protection, overvoltage protection, overcurrent protection. So this is the most cost-effective adapter charger.
