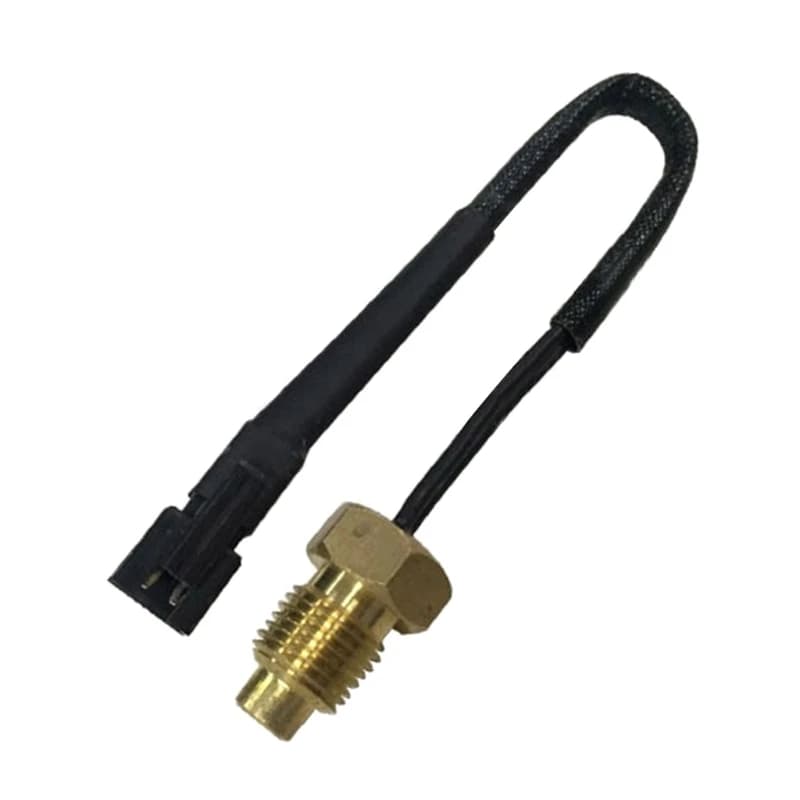

CPDD NTC 50k Motorcycle Water Temperature Meter Temp Probe Digital Temperature Transmitter SM-2A Plug Easy to install

Features:
brand new and high quality
The NTC temperature is a high-precision, high-reliability NTC thermistor packaged with insulating, thermally conductive, and waterproof polymer materials (sometimes with the help of a housing probe) into the required extending the and combining a set of terminal connectors into a set Thermal sensitivity for easy installation or remote temperature measurement and control.
High sensitivity and rapid response. The use temperature is wide, the stability is good, and the reliability is high.
Products with different and values ​​can be provided, with strong interchangeability and high
The structure is simple, the installation is simple, and the waterproofness is good.
Applications: water heaters, wall-hung boilers, ovens, microwave ovens, frying pans, cooking machines, water dispensers, boiling buckets, dishwashers, washing machines, and other household appliances, automobile air conditioners, refrigerators, freezers, and low temperature drying ovens, thermostats Temperature measurement and control in other occasions.
Specifications:
Material: Metal + Plastic

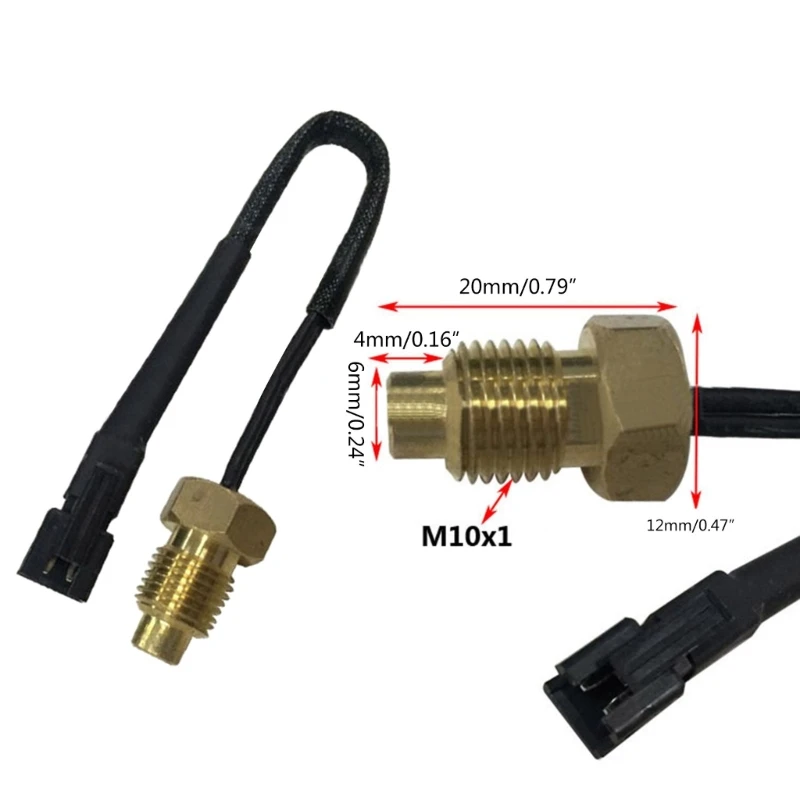

Size: As Shown
Nominal Resistance: R25 (25°c): (commonly Used) 1.5k, 2k, 5k, 10k, 20k, 30k, 47k, 50k, 100k, 200k, 500k,
Resistance Accuracy: ±1%, ±2%, ±3%
Value R25/50: (commonly Used) 3435k, 3600k, 3950k, 3990k, 4100k, 4200k,
Value Accuracy: ±1%
Operating Temperature
Dissipation Power Coefficient: ≥5 Mw/℃ (in Static Air)
Maximum Rated Power: 45mw
Thermal for Time Constant: ≤7s (in Static Air)
Temperature Coefficient of Resistance: -2～-5%/℃
Insulation Performance: 500v for Dc Test Single Insulation Resistance ≥100mΩ
Withstand Performance: 1500v 5s, 0.5ma Without Breakdown
Package Includes:
1x Temperature Probe
Note:
1.Please allow 1-2cm errors due to manual measurement, make sure that you do not mind before you order.
2.Due to the difference between different monitors, the picture may not reflect the actual color of the item.
