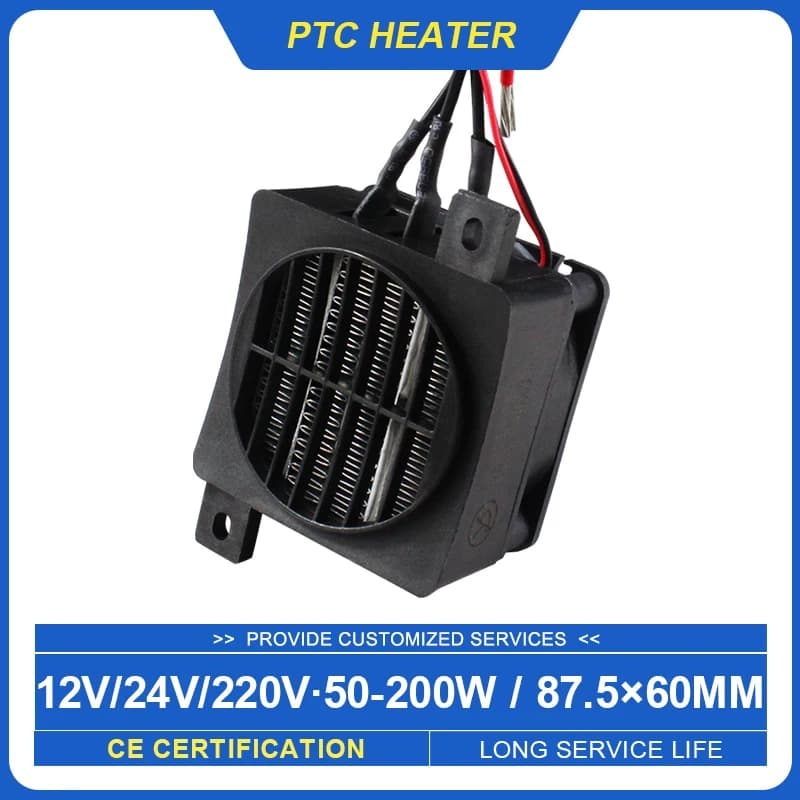

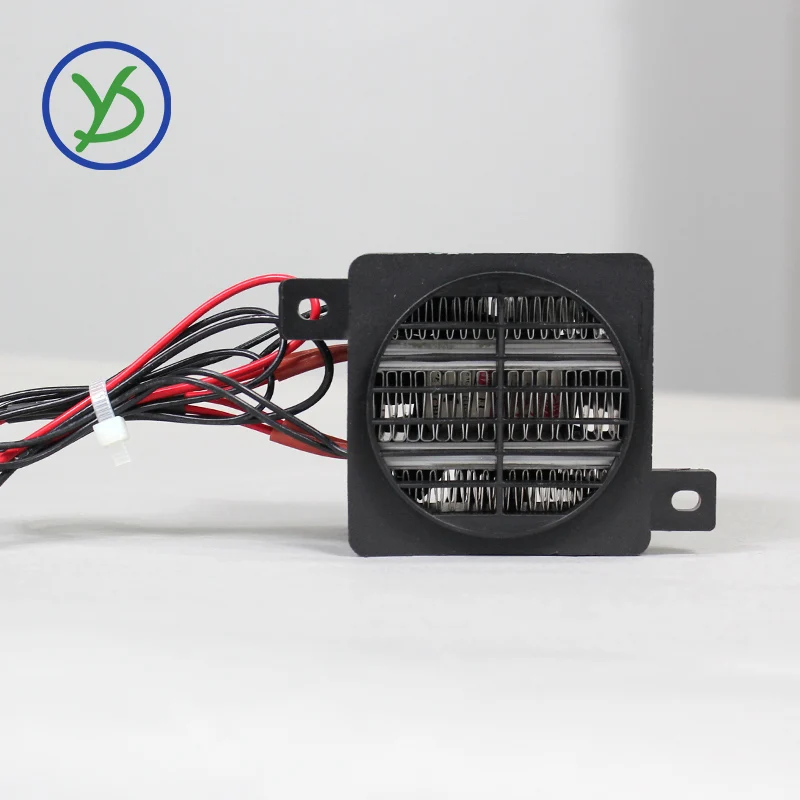

Insulation 12V 24V 48V 220V 50W~200W Thermostat Fan Heater Ceramic Heater With Fan Heat Blower For Incubator PTC Ceramic Heater

We are a professional manufacturer of PTC heaters, with our own factory and certification of related products, and can provide customized services.

Item Description

1. Introduction:

Input voltage: 12V 24V 48V 220V DC

Power:50~150W

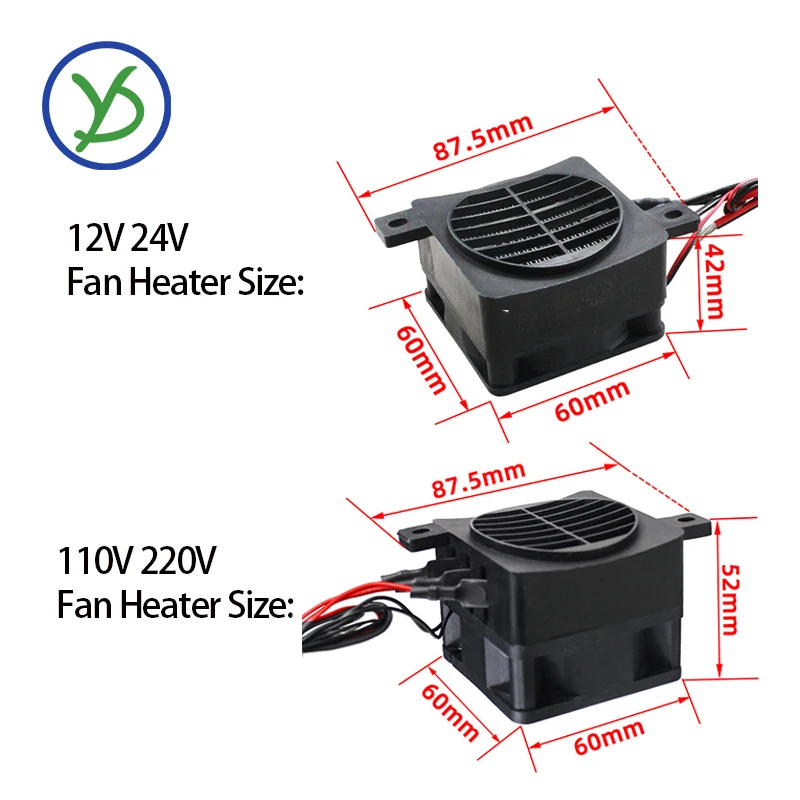

Size:87.5 x 60 x 42mm/87.5 x 60 x 52mm（Includes mounting holes）

Mounting hole size:φ4mm

Heat material: PTC Thermistor

Heat methods: heat radiation by air flow

Lead wire: high temperature line

The length of lead wires : 200mm

The length of bare wires : 10mm

Surface insulate: Yes

Use: this PTC part is used for heating air or solid. the PTC material has a characteristic that it is constant temperature on the surface.

Notice: the power is reference value. the better the dissipation is, the bigger the power is.In different working environments, power will have a plus or minus 25% tolerance.

If you have strict requirements on power accuracy, this product is not suitable for you.

2. Advantage:

Safety

Heat up quickly, long service life.

Self-control temperature

Small sound

3. Application:

Equipment

Electric Heater

General electric appliance

Air curtain machine

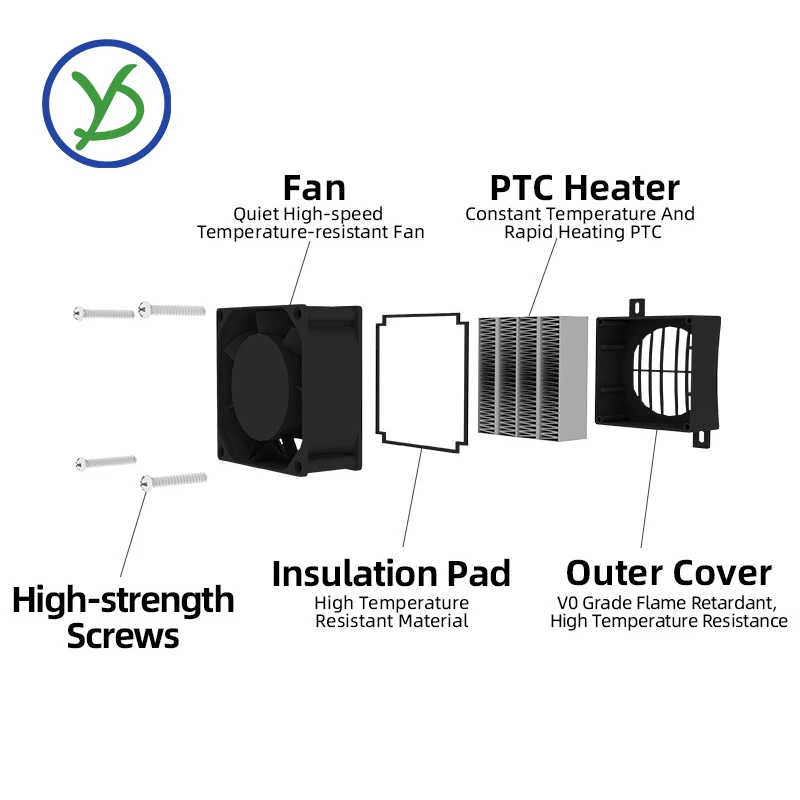

PTC Insulative corrugated heater(PTC Air heater insulator,PTC Heater for warm air-conditioner) is a kind of large power Non-Surface-Electrified PTC heater with wind blowing.PTC element is fixed in aluminium tube and keep insulated with the aluminium tube.

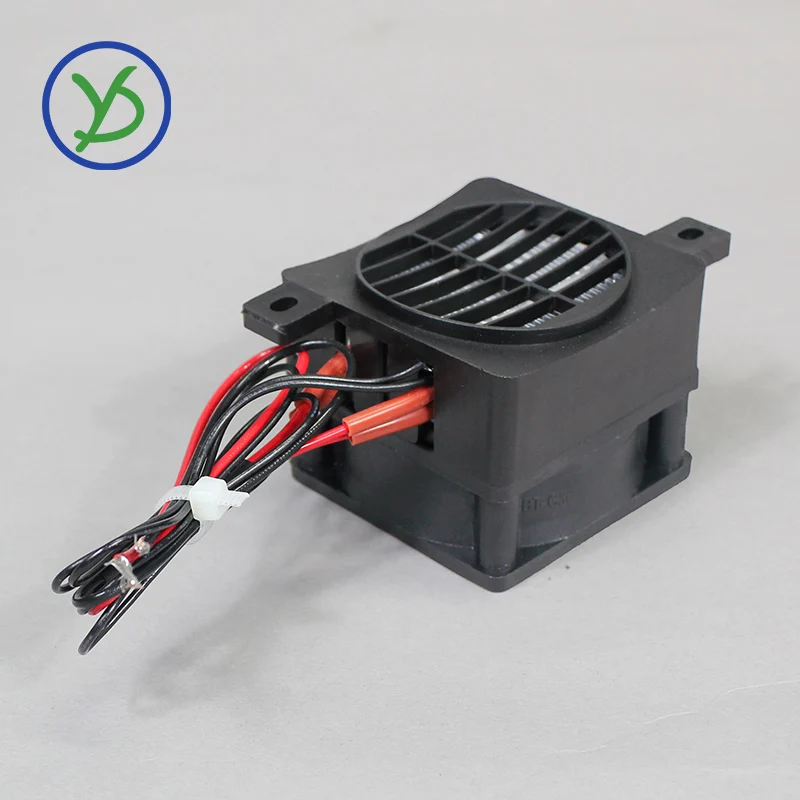

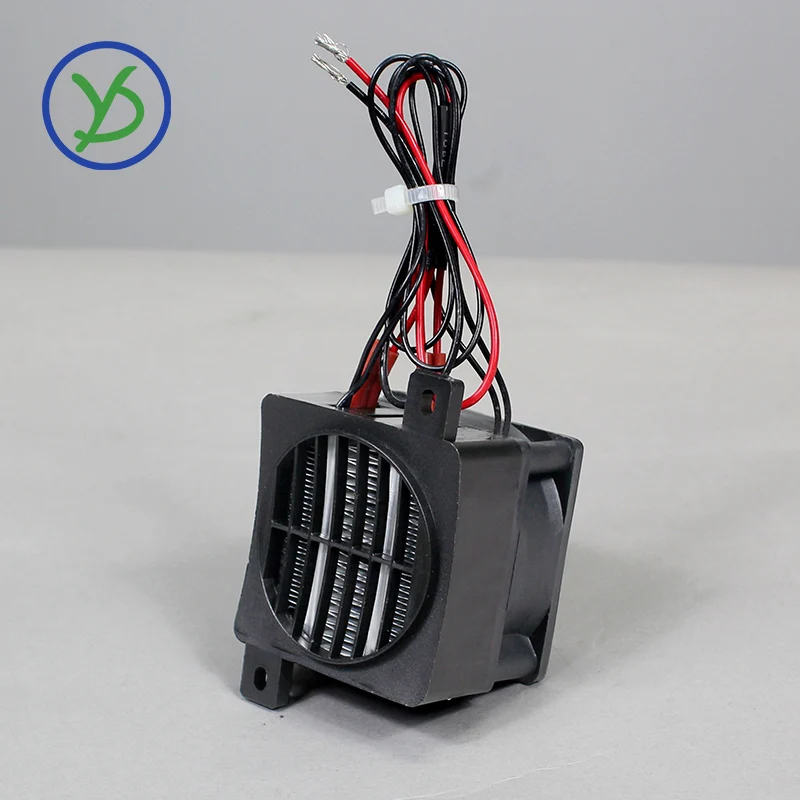

Item Show
