220V 4 inch 6 inch 8inch Hanging Wall White Ventilador Small Ventilator Extractor Exhaust Fans Toilet Bathroom Kitchen Fan

220V White Hanging Wall Window Glass Small Ventilator Extractor Exhaust Fans Toilet Bathroom Kitchen

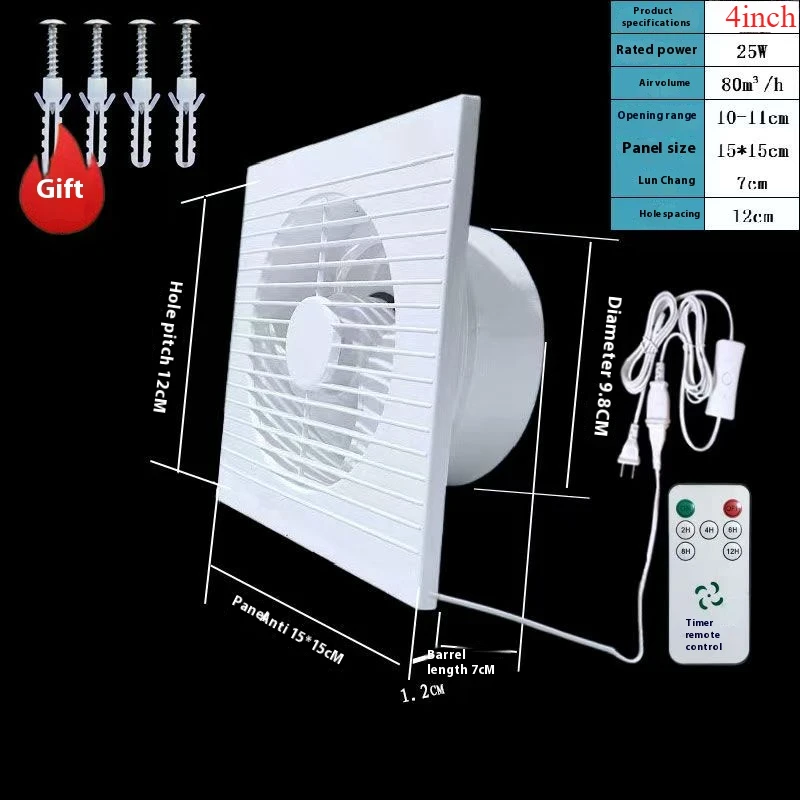

4 inch Product Description

Shell Material: Polypropylene (PP)

Color: white

Installation: hanging,Wall,window

Rated power: 25W

Voltage: 220V

Frequency: 50Hz

Noise: 36dB

Air volume: 80m3 / h

pannel Size:150x150mm

Fan Hole Size 100x100mm

6 inch Product Description

Shell Material: Polypropylene (PP)

Color: white

Installation: hanging,Wall,window

Rated power: 32W

Voltage: 220V

Frequency: 50Hz

Noise: 39dB

Air volume: 200m3 / h

Pannel Size:200x200mm

Fan Hole Size 150mm

8 inch Product Description

Shell Material: Polypropylene (PP)

Color: white

Installation: hanging,Wall,window

Rated power: 38W

Voltage: 220V

Frequency: 50Hz

Noise: 42dB

Air volume: 300m3 / h

pannel size:250x250mm

Fan Hole Size:180mm

Features:

* High-grade panel, moisture-proof rust, durable, high-grade appearance

* Ultra-quiet motor, back hollow design, effective cooling, fast speed ultra-quiet, is conducive to extend the life of the machine

* New flame retardant ABS material, easy to deformation long life

* High temperature flame retardant blades, the use of wing-type film, the resulting wind pressure than other similar leaves to large, high efficiency, unequal distribution, can effectively reduce the noise

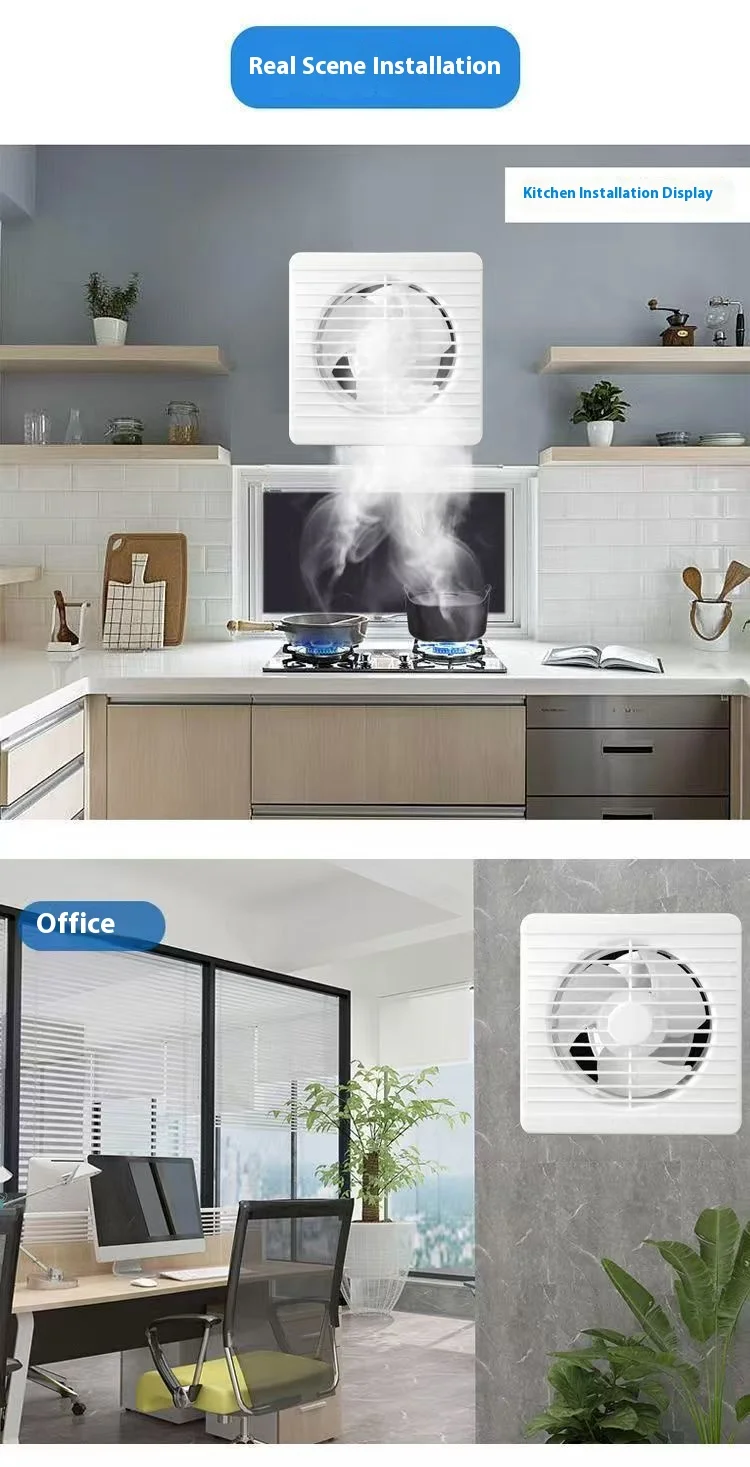

Application: bathroom kitchen wall

Installtion:

1. Should be installed above the ground height of 2.3 meters, according to the circuit diagram for fixed wiring

2. Do not install the ventilation fan in places where the temperature is too high, such as cooking equipment or other high-temperature hot stove above or next

3. Before installation, make a wooden frame, the wooden frame fixed to the predetermined wall, door window or ceiling holes, the body embedded in the wooden frame, with a small screw to the ventilation fan fixed in the wooden frame

4. Pipeline ventilation fans can not be installed in the pipeline, directly installed in the wall out of the exhaust. Can also be installed in the outlet pipe, exhausted by the pipeline
