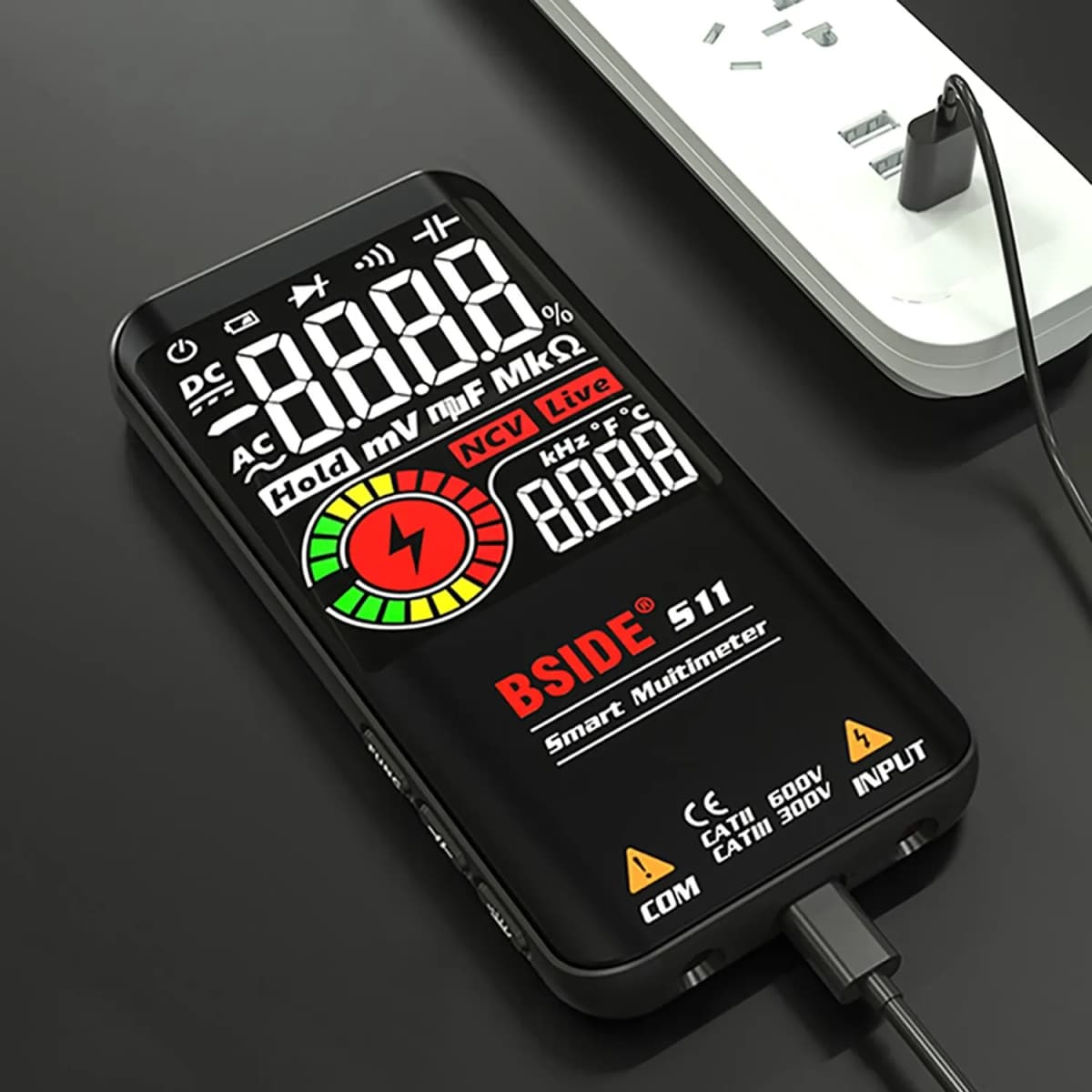

BSIDE Digital Multimeter Smart Electrician Tester USB Charge T-RMS DC AC Voltage Capacitance Ohm Hz NCV Professional Multitester

BSIDE S10/S11 Digital Multimeter Smart Electrician Tester USB Charge T-RMS DC AC Voltage Capacitance Ohm Hz NCV Professional Multitester

Productintroduction:

This series products belong to the latest generation of BSIDE brand smart multimeter！

The 3.5-inch large display design leaves an excellent user experience for buyers；The easy-to-use/Single Button to Switch design is well recognized by buyers；The ultra-thin body design is very portable.

Provide Three products to choose from(S10/S10+Bag/S11-Black ). Exquisite appearance / reliable performance / complete functions, can meet the needs of different groups of people, and is very suitable as a gift.

Ordering Notice:

SKU1:S10 EBTN color display [2*1.5V AAA Battery Powered（Not included）];

SKU2：S10 With Quality EVA Bag [2*1.5V AAA Battery Powered（Not included）];

Skul3: s11-black BBTN color display(USB charging, built-in 800ma lithium battery);

Specifications:

Display : 9999counts.

S10：2*1.5V AAA Battery Powered(Not included)

S11 : USB charging, Built-in 800mA lithium battery;

Screen : 3.5inch.

DCVoltage : 0~620V±(0.5%+3);Resolution:0.001V.

ACVoltage : 0~620V±(0.5%+5);Resolution:0.001V.

Resistance : 1Ω-999.9Ω±(2.0%+5);1kΩ-60MΩ±(1.0%+3);Resolution:0.11Ω.

Capacitance : 1nF-999.9nF±(6.0%+5);1uF-99.99mF±(3.0%+3);Resolution:0.001nF.

Frequency :

1Hz-1000Hz±(1.0%+5)(ACV:2V-10V); Resolution:0.001Hz.

1KHz-60KHz±(1.0%+5)(ACV:10V-620V) ; Resolution:0.001Hz.

DutyCycle : 0.1%-99.9%±(3.0%+5)(ACV:2V-620V);Resolution:0.1%.

Diode : Autoidentifydiodeifleifelsthan3.0V.

V-Alert(non-contactvoltagedetection):beepalarmsounds.

LiveCheck : alarmbeepsounds,LCDscreendisplaystripe.

Continuity : Iftheresistanceislessthan30Ω,thebeepersounds.

S10 Power : 1.5V(AAA)x2(Not included).

S11 Power : Built-in rechargeable lithium battery.

Size : 147*85*42mm.

Weight : 180g.

PackageIncludes:

1*Multimeter. 1*Test Leads.
​
​1*English user Manual.

1*Packing Box.
​
​1*USB charging cable.（S11）
​
​1 * EVA portable cloth bag.
​
​1*Protective shell.（S11）

1*Warranty card (12 months)
