Fast Charging Tester 10 in 1 USB 4.5-36V 0-8A Voltmeter Current Voltage Meter Volt Ammeter Detector Power Bank Charger Indicator

Features:

Voltage measurement range: DC 4.5~36V

Current measurement range: 0-5A/0-8A

Capacity totalization range: 0-99999mAh

Power Accumulation Range: 0-99999mWh

Power measurement range: 0-150W

Impedance measurement range: 1-999.9Ω

Temperature measurement range: 0-80℃

Timing time: 999 hours and 59 minutes

Input interface: 5A high current USB interface/Type-C interface

Output Interface: USB/Type-C

USB D+ voltage range: 0~2.99V

USB D-voltage range: 0~2.99V

Refresh Time: >500mS/times >500mS/times

Measurement rate: about 0.5 times/second

Display: IPS true color digital LCD screen

Self-consumption current: <0.02A

Operating Temperature: -10~60°C

Working humidity: 10~80%RH (no condensation)

Working air pressure: 80~106kPa

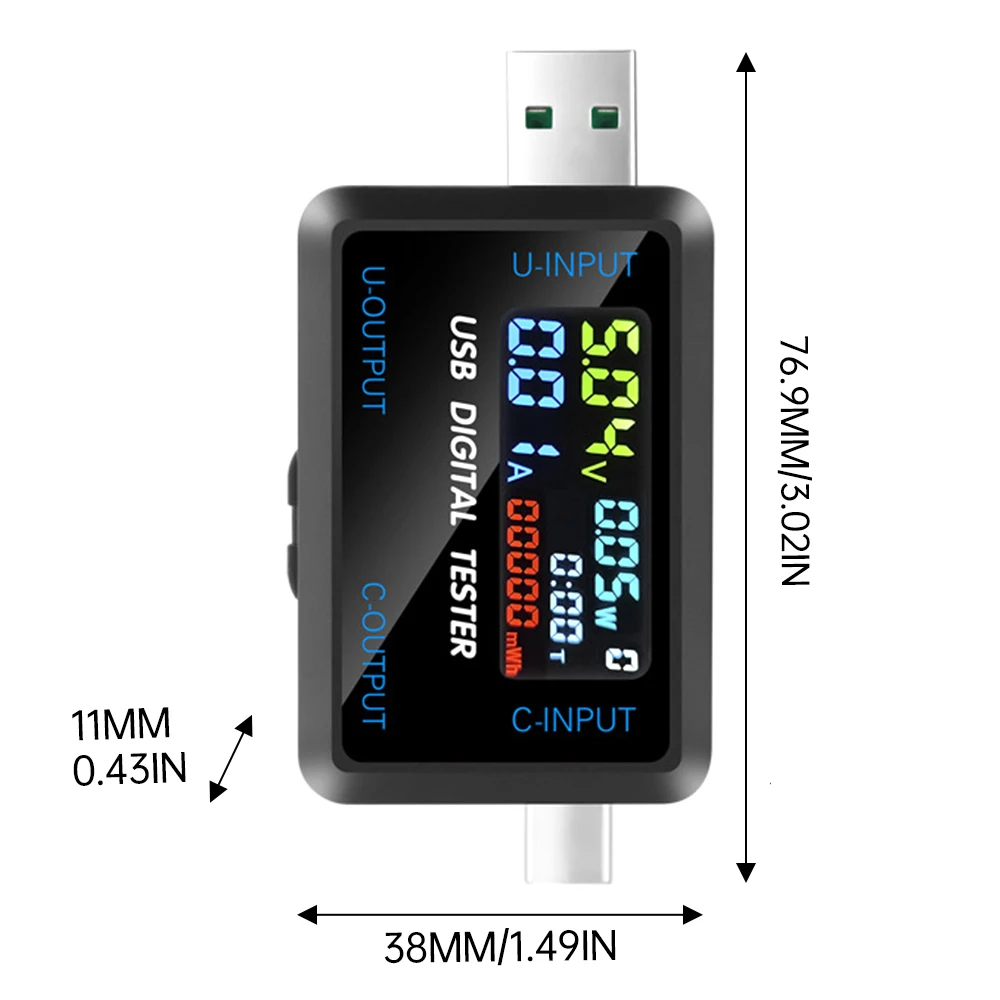

Product Dimensions:

USB:77.6*27*11mm

Type-C:73.6*27*11mm

USB+Type-C:76.9*38*11mm

Multi-function button operation instructions:

Short press mode button

1: is to switch the screen

2: Quickly triple-tap the switch button to reset the power to zero (mWh) and the timing reset to zero the current group (0.00)

3: Long press the on/off button for 2 seconds to change the accumulated data storage group number (NO.X).

Interface Description:

USB, Type-C interfaces: "Input" is connected to the power terminal, "OUTPUT" is connected to the load

USB+Type-C interface: USB interface input=USB interface output, Type-C interface input=Type-C interface output.

Note: Type-C interface will not display without load

Package include:

Package A: volt-ammeter（USB）x1

Package B: volt-ammeter（Type-C）x1

Package C: volt-ammeter（USB+Type-C）x1
