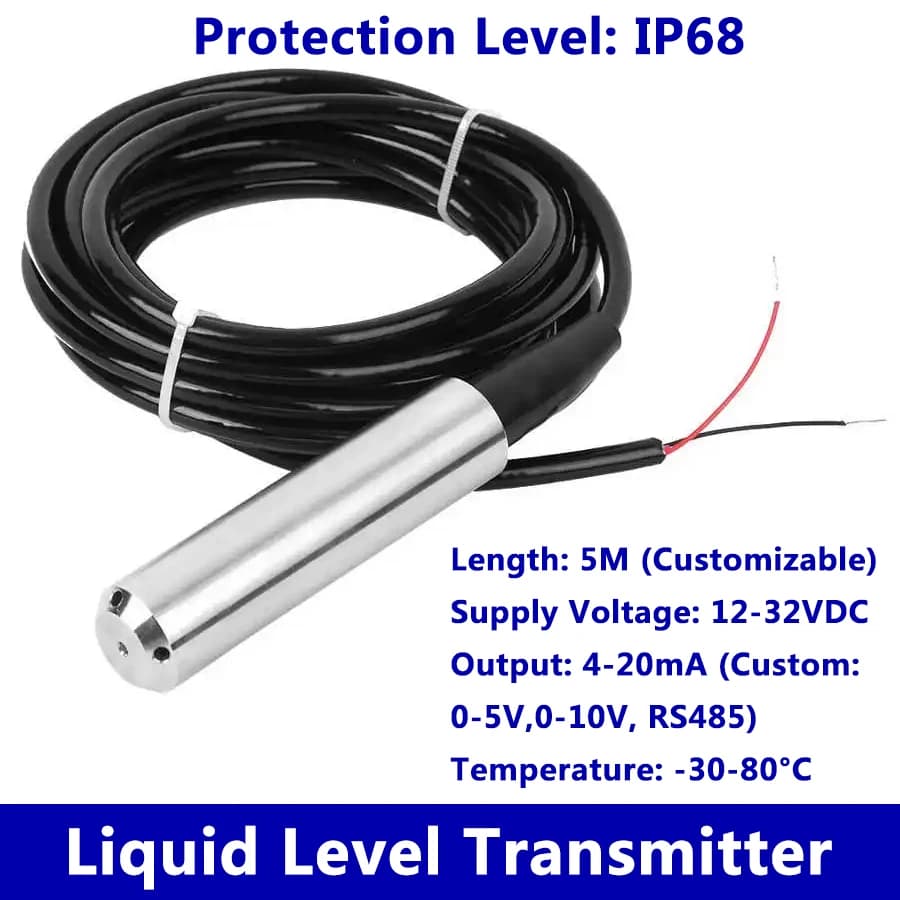

Level Sensor TL-136 Liquid Level Transmitter Water Level Sensor Detector 12-32VDC 4-20mA Signal Output Liquid Sensor

TL-136 Liquid Level Transmitter Water Level Sensor Detector 12-32VDC 4-20mA Signal Output

Feature:
1. Input level transmitter, high diffusion of silicon, more accurate monitoring of water level.
2. All digital conditioning circuit, 4-20mA signal output is more stable.
3. IP68 multilayer waterproof protection, safer to use.
4. 45 degree oblique angle anti-shock, detachable anti-blocking designed.
5. The measured medium is water that do not corrode stainless steel.
Specification:
Item Type: Liquid Level Sensor
Tested Medium: Water (liquid that does not corrode stainless steel)
Air Guide Cable Length: 5 meters
Measuring Range: 0-1m / 0-2m / 0-3m / 0-4m / 0-1m / 0-5m (optional)
Measurement Accuracy: 0.2% FS-0.5% FS (conventional)
Output Signal: 4-20mA
Supply Voltage: 12-32VDC
Medium Temperature: -20-75 ℃
Ambient Temperature: -30-80 ℃
Temperature Compensation: -10-70 ℃
Overload Capacity: <200%
Protection Level: IP68
Temperature Source Shift: ± 0.01% FS / ℃
Long-term Stability: ± 0.2% FS / year
Machine Impact: 20g (20-5000HZ)
Product Material: 304 stainless steel
Package List:
1 x Liquid Level Transmitter
