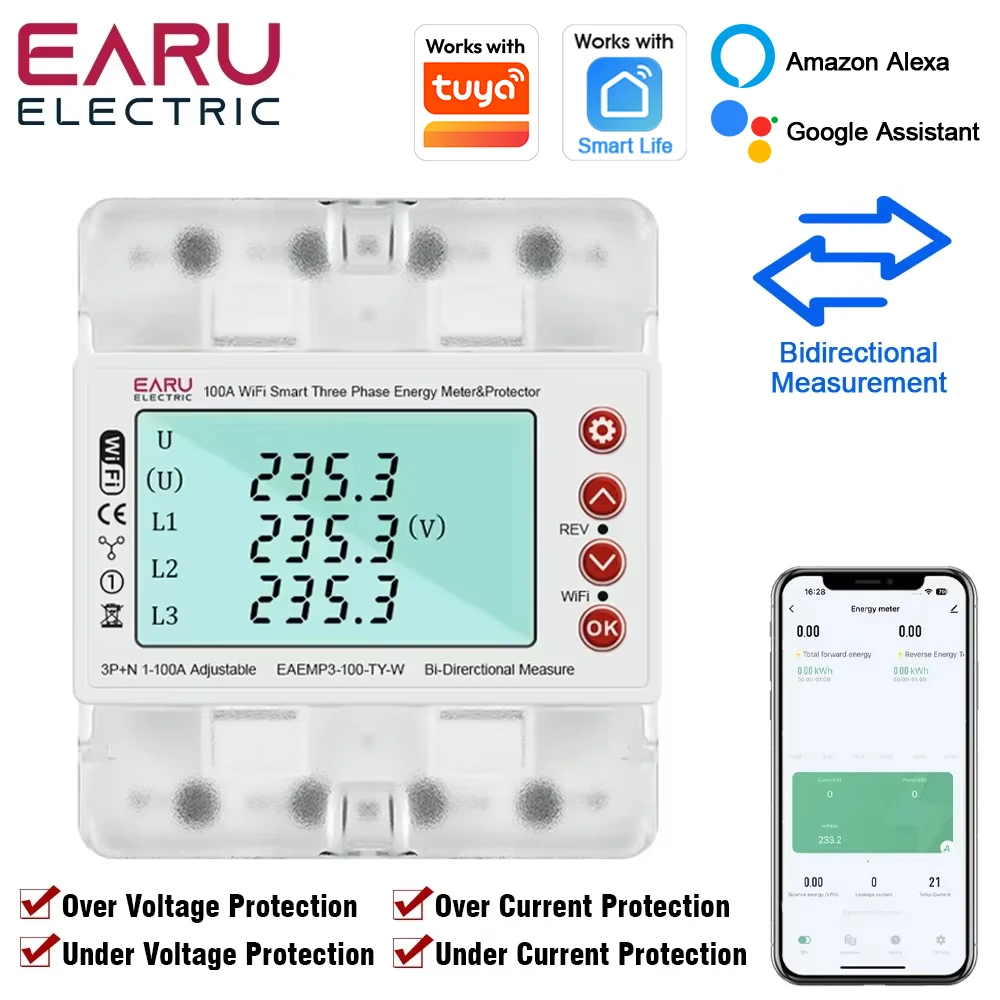

EARU Three Phase Tuya WiFi Smart Bidirectional Energy Power kWh Meter Over Under Voltage Protector Relay Switch Current Limit

Our factory can provide OEM service to manufacture this device with your brand, logo, if you get any need, feel free to contact the buyer!

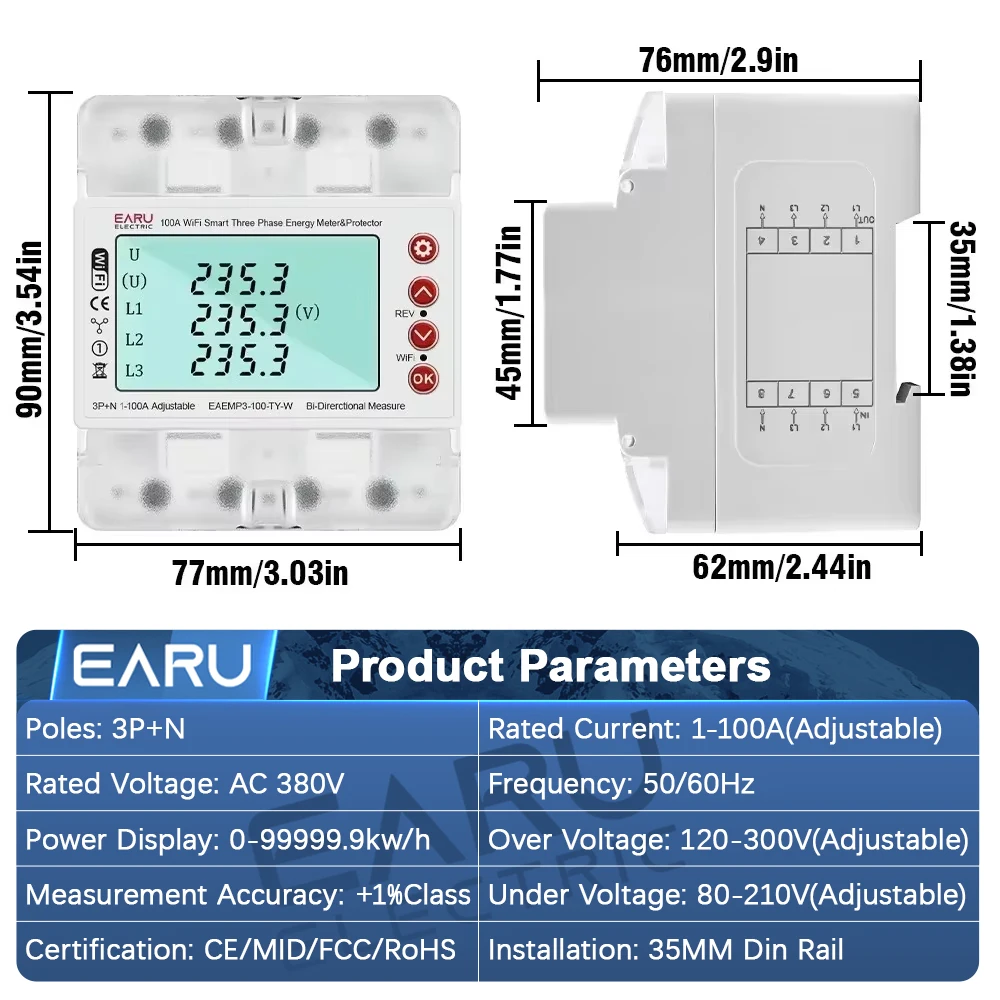

Product specification

Rated voltage: AC380V; Frequency: 50Hz/60Hz

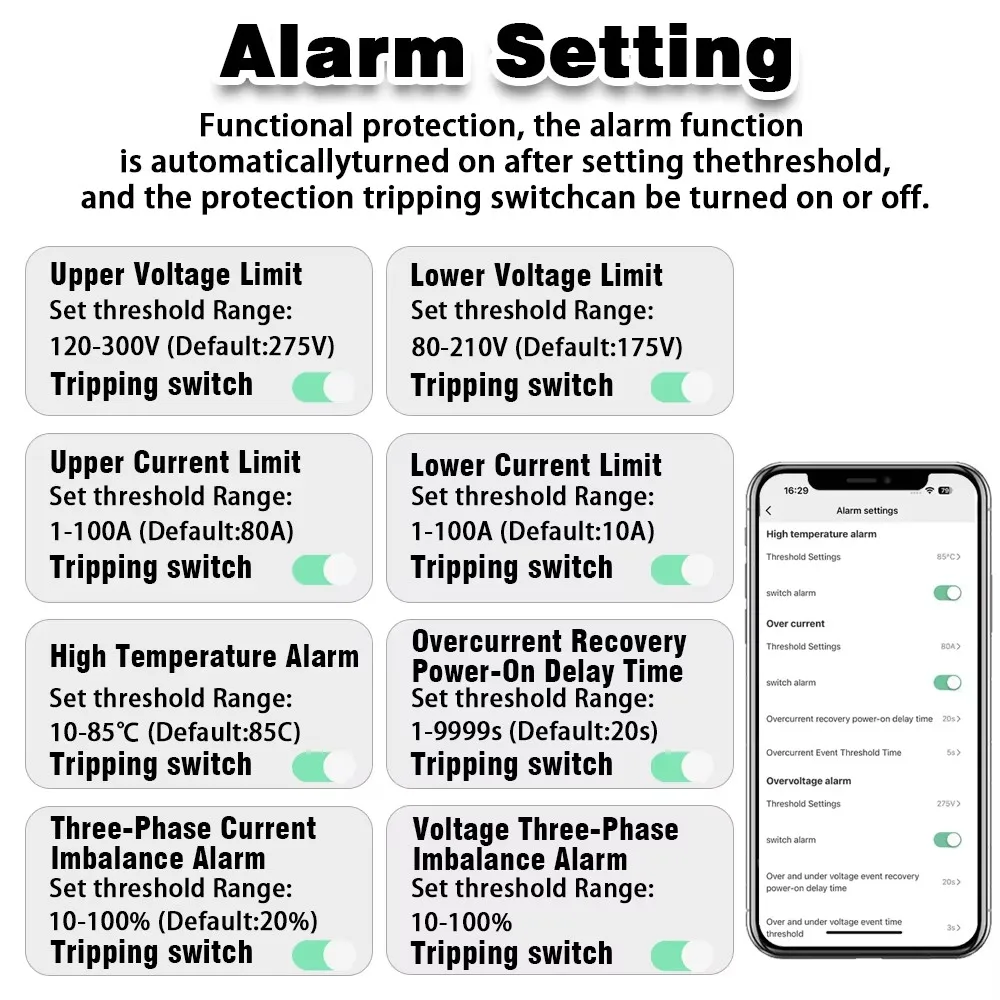

Function:

1. Upper Voltage Limit:120-300V (Adjustable) (Default:275V)

2.Lower Voltage Limit:80-210V (Adjustable) (Default:175V)

3.Upper Current Limit:1-100A (Adjustable) (Default:80A)

4.Lower Current Limit:1-100A (Adjustable) (Default:10A)

5.High Temperature Alarm:10-85℃ (Adjustable) (Default:85℃)

6.Overcurrent Recovery

Power-On Delay Time:1-9999s (Adjustable) (Default:20s)

7.Overcurrent Event

Threshold Time:1-999s (Adjustable) (Default:5s)

8.Over and Under Voltage Event

Recovery Power-On Delay Time:1-9999s (Adjustable) (Default:20s)

9.Over and Under Voltage

Event Time Threshold:1-9999s (Adjustable) (Default:3s)

10.Three-Phase Current

Imbalance Alarm:10-100% (Adjustable) (Default:20%)

11.Voltage Three-Phase Imbalance Alarm

12.Lost Current Recovery Delay Time

13.Time Threshold of Lost Flow Event

14.Power Display Range：0-9999999.9kWh(Adjustable)

15.Reclosing Allowed Times:1-30 (Adjustable) (Default:1)

16.Reclose Recover Seconds:1-99 (Adjustable) (Default:1)

17.Power-On Delay Power-On-Time:1-9999 (Adjustable) (Default:5)

18.Device Sharing

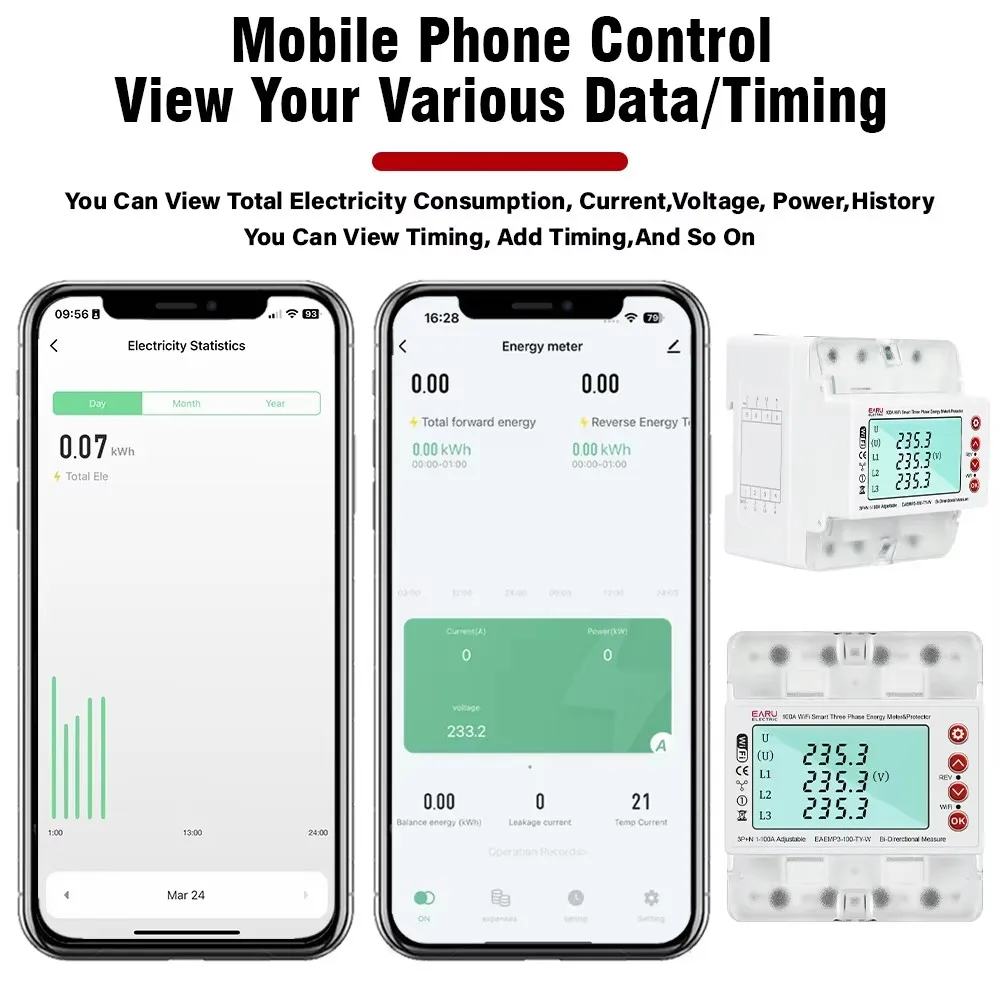

19.Remote Control

20.Voice Control
