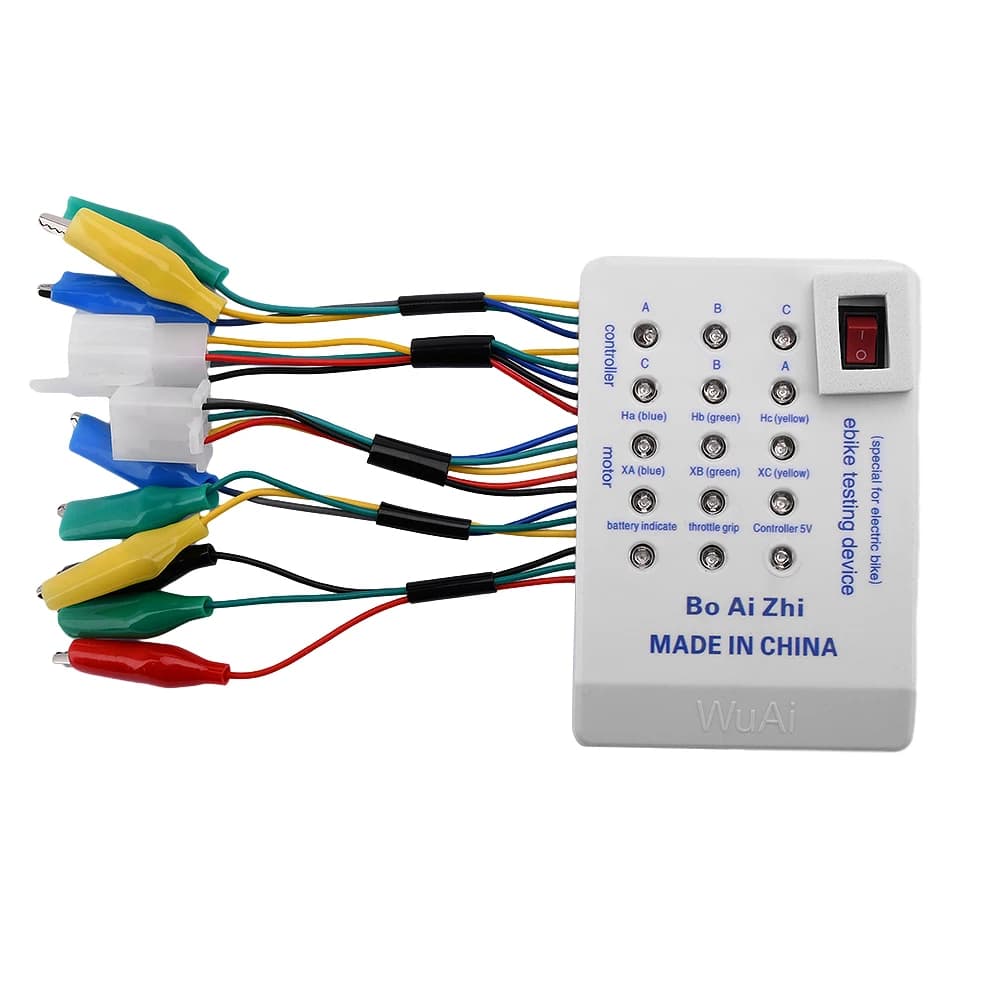

24 36 48 60 72V Spared Accessories Electric Car Durable E-bike Tester Riding Brushless Motor Device Scooter Controller Portable

Features:
1. Quickly detect the quality of brushless motors and the detection of motor Hall phase sequence motor windings,
2. Quickly detect the phase angle of the motor and controller at 60 degrees or 120 degrees
3. Quickly detect the quality of the controller;
4. Fast wiring of brushless motor and controller;
5. Quickly detect the quality of the brake lever
Product parameters and analysis:
Note: Only when using Hall detection and handle detection, it is necessary to turn on the power. Please replace the battery when the signal light brightness is insufficient
1. Motor coil detection: Connect the three clamps on the motor coil end of the detector to the three thick wires of the motor and rotate the motor. The three signal lights will flash alternately, indicating normal operation. If one of them doesn't light up, then that winding is faulty.
2. Motor Hall Detection: Connect the Hall wire end of the motor on the detector to the Hall wire of the motor, slowly rotate the motor, and the three signal lights should turn on and off
When the 60 ° signal light is illuminated, it indicates that the motor is at 60 °, otherwise it is at 120 °
4. Motor phase sequence detection: (1) Hall phase sequence (a) 60 ° motor (b) 120 ° motor, (2) winding phase sequence
Through this step, the winding of the controller and motor can be aligned with the color line of the Hall sensor.
5. Handle detection: Connect the three clamps on the handle detection end of the detector to the handle and rotate the handle. The handle signal light should change on and off, otherwise it is a fault.
6. Controller detection: This instrument is suitable for detecting various brushless controllers
Connect the Hall input terminal of the controller to the Hall line terminal of the detector controller
Connect the main output terminal of the controller to the main terminal of the detector controller and connect the controller power supply. If the 5V indicator light on the detector is not on, it indicates that there is a fault in the 5V output of the controller; The six signal lights of the detection controller on the rotating handle detector should be lit up in sequence (two signal lights are a group). If they are not lit up or two groups are flashing at the same time, the controller has a fault
