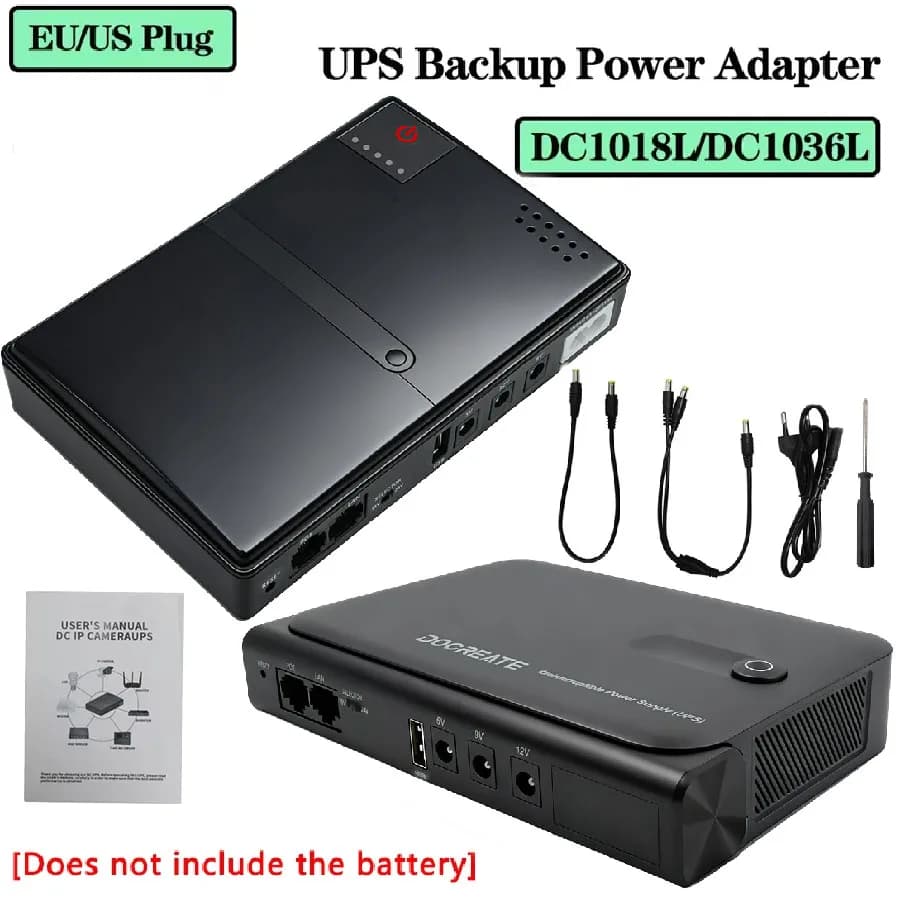

NEW DC18W/36W DC1018L/DC1036L 1A/2A 5V/9V/12V Large Capacity Multipurpose Mini Portable UPS Backup Power Adapter for WiFi Router

Note: When using the UPS for the first time, you must plug in the power cord to activate the product. Installing the battery and using the product without activation will prevent it from starting
Note: Due to the presence of capacitor components in the electronic components of the product, there is a charging and discharging phenomenon of the capacitors. Therefore, the displayed voltage on the product's display screen has a +0.5V difference from the actual voltage.
No Battery AC85-265V DC1018L Router 5V9V12V Optical Cat Monitor Backup Uninterruptible DC Power Supply Charger Cell Phone UPS
Please note: This product package does not contain batteries. Please bring your own 4*18650 batteries for installation and use. Thank you!
Battery installation:
1. Use 18650 lithium battery and install according to the instructions.
2. The battery discharge rate used is 2C\3C
3. When installing, ensure that the voltages of the four batteries are consistent (the error is less than 0.05V)
Specifications：
Model: DC1018L 1A
Input Voltage: AC85-265V 50/60Hz
Output power:18W
Output : USB 1*5V(2A)
DC 1*5V(1A) 1*9V(1A) 1*12V(1A)
POE 1*15V(0.6A)/ 24V(0.6A)
Battery Capacity: 10400mAh
Plug: US Plug/UK Plug/EU Plug
Operate temperature -10°C—40°C
Size:Approx.16x10.2x3.2cm/6.29x4.01x1.25inch
Features：
1. The built-in lithium battery can be used while charging without waiting. The UPS is a backup energy storage power supply
2. Convenient to carry, small size, convenient to carry when traveling, and free to put in the bag/car
3. High quality flame-retardant shell material, large capacity lithium battery is more durable, durable, safe and durable
4. It supports the power supply of two devices at the same time, supports the power supply of two devices, and has an intelligent circuit design with over charging, over discharging and short circuit protection
5. Multi output, widely compatible with equipment, is widely used in fingerprint attendance machine, fire safety system, safety monitoring system, access control system, camera, portable DVD, etc.
Package include：
1 * Power supply
3 * cable

Note: When using the UPS for the first time, you must plug in the power cord to activate the product. Installing the battery and using the product without activation will prevent it from starting
Package   No Battery   include, Please install 4pcs 18650 batteries to use this product.
Features：
1. Seamless switching:   After power failure, UPS will continue to supply power, without interruption of network and shutdown.
2.LED screen:   real-time display of equipment information, electricity, temperature, voltage and current at a glance.
3. Replaceable battery:   the design of replaceable battery can prolong the service life of the equipment (four 18650 batteries are used, and the battery is not included by default).
4. Safety protection:   the equipment is provided with reverse connection protection, over-temperature protection and overload protection, which makes it more secure to use.
5. Multi-interface:   supports DC 5V/9V/12V/24V, and can connect routers, cameras, switches, NAS, small hosts, etc.
Specifications:
Product name: 36W- Uninterruptible Power Supply (UPS)
Product model: DC1036L
Output current: 16.4V/DC 2.5A
Input current: 85-265VAC 50-60Hz
Output power: 36W
Battery type: 4*18650 Lithium-ion batteries(not included)
Product size: 171*113*37mm
Product net weight: 446g
Display screen: LED
Shell material: Fire-proof ABS
Packing list:
Uninterruptible Power Supply(As shown in picture)
Note:
The products are all measured by hand, and there may be errors.
Due to the illumination and display, there is color difference between the photo and the real thing, please understand.
