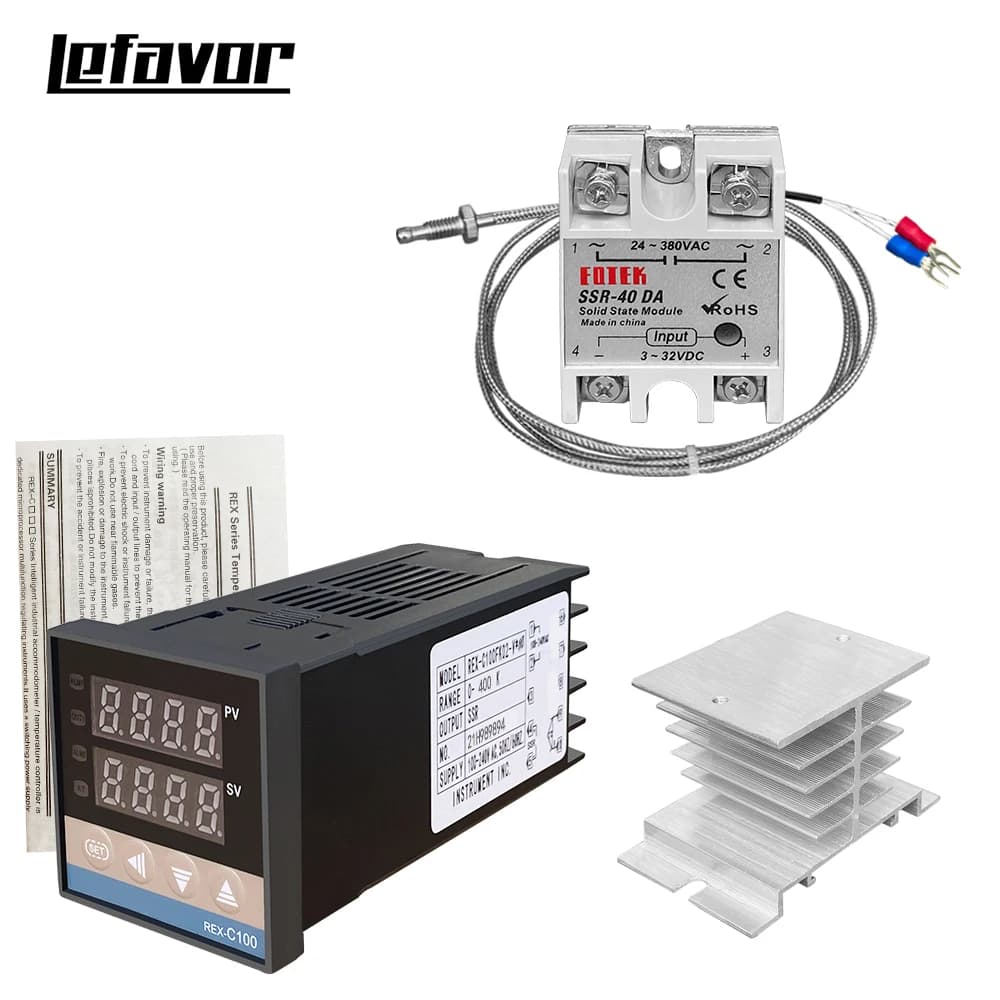

Digital Thermostat Temperature Controller SSR Output K Type Thermocouple Sensor SSR 40DA Solid Relay Sensor REX-C100

REX-C100 digital thermostat  temperature controller SSR output  K type  thermocouple sensor 48 x 48 +SSR 40DA solid relay+sensor

Specifications:

 1.Thermostat

Note: This thermostat can only be connected to K-type thermocouples

Measuring accuracy: ±0.5%FS

Cold-end compensation tolerance: ±2 ( can be modified by software in 0~50 )

Resolution: 14 bit

Sampling cycle: 0.5 Sec

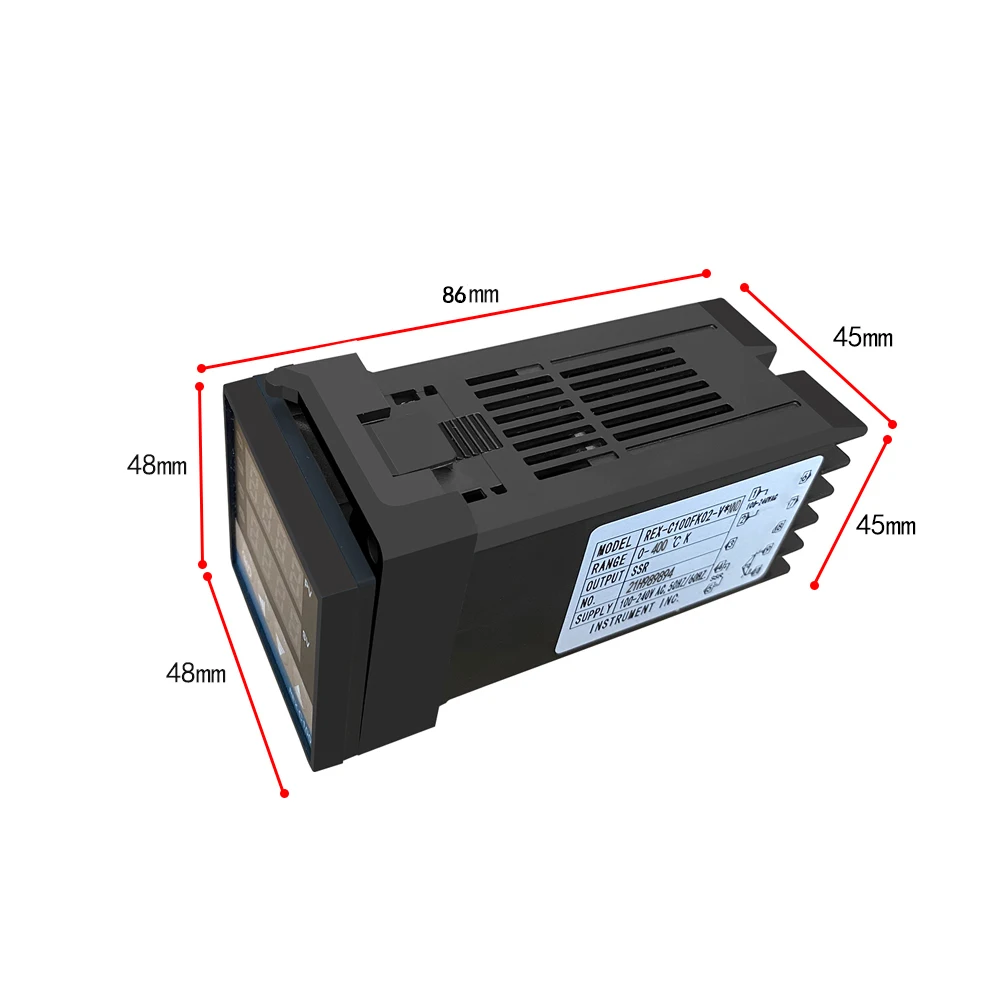

Dimensions:48 x 48 x 110 (mm) ±0.2mm

Process value (PV), Setting value (SV)

Output, No alarm function

Self-tuning control

output: contact capacity 250V AC 3A (resistive load

Contact capacity of output: 250V AC 3A (resistive load)

Setting value (SV): identical to measuring range (PV)

Proportional band (P): 0~full range (ON/OFF control when set to 0)

Integral time (I): 0~3600 sec (No integral action when set to 0)

Derivative time (D): 0~3600 sec (No derivative action when set to 0)

Heat-reset proportional cycle: 1~100 sec

temperature range: 0 to 400

Insulation resistance: >50M ohm(500V DC)

Insulation resistance: 1500V AC/min

Power Consumption: 10 VA

Service environment: 0~50,

environment with no corrosive gas 30~85% RH

K Type Probe Sensor :

Cable Length: 1M

Sensor diameter:4.5mm

Temperature rang :0-600
