2026 New 1PCS SOP8 WSON8 Chip Burn Test Probe , Compatible With Multiple Programmers, Suitable For SPI Flash BIOS EEPROM Chips

Product Title

SOP8/WSON8/QDFN8 SMD Microchip Spring Probe for IC Testing, Reading, Writing and Program Burning

Product Selling Points

1. The probe features an integrated acrylic housing with anti-slip and shock-absorbing design, solid construction and outstanding anti-interference capability. Compatible with SOP8/WSON8/QDFN8 chips, it is fitted with elastic limit stoppers to realize fast positioning and stable contact.

2. Equipped with a 30cm integrated flexible ribbon cable that can be plugged in and replaced. The tail pin base can be directly connected to a programmer to maintain stable signal transmission during chip burning.

3. The limiting baffle fits the concave-convex outline of chips, making chip loading and unloading effortless. The chip holder is detachable to adapt to various working scenarios.

4. Wide range of applications: online burning for TV mainboards, industrial control mainboards, automotive electronics, household appliance mainboards, computer mainboards, air conditioner storage chips and more.

Product Parameters

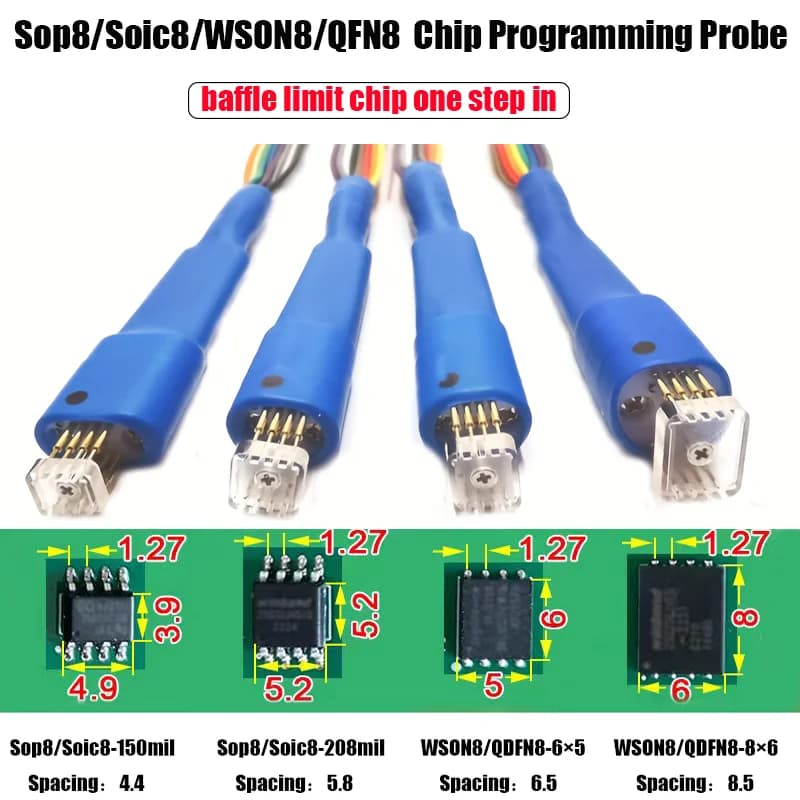

1. Standard SOP8-150mil/SOIC8-150mil: Chip width 3.9mm, chip length 4.9mm, matching probe pitch 4.4mm

2. Wide-body SOP8-208mil/SOIC8-208mil: Chip width 5.28mm, chip length 5.28mm, matching probe pitch 5.8mm

3. Standard VSON 6×5 / WSON 6×5mm package: Chip width 5mm, chip length 6mm, matching probe pitch 6.5mm

4. Standard VSON 8×6 / WSON 8×6mm package: Chip width 6mm, chip length 8mm, matching probe pitch 8.5mm

Cable Length: Approx. 30cm

Product Dimensions: 76 × 18 × 9mm

Special Notice

This product must be used together with an IC programmer and supporting programming software. The programmer and software shall be prepared separately by users.
