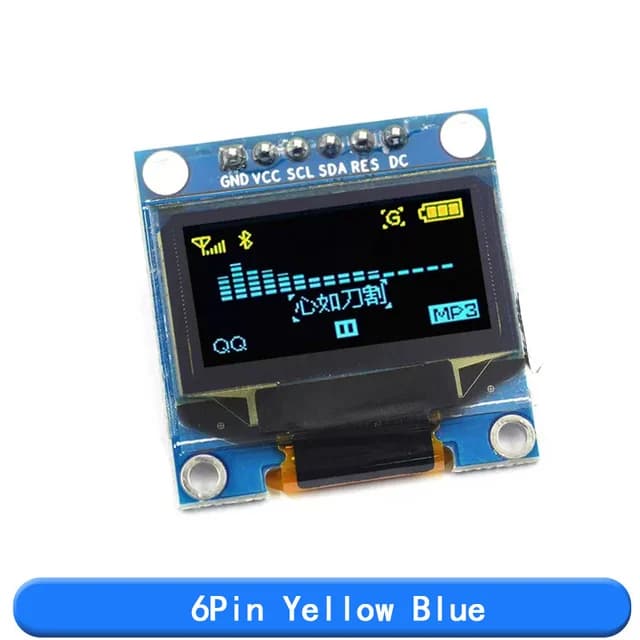

0.96 inch oled IIC Serial White OLED Display Module 128X64 I2C SSD1306 12864 LCD Screen Board For Arduino

Interface type: IIC interface

Pin definition: GND,VCC,SCL,SDA

1:GND(OLED power supply)

2:VCC (OLED 3.3~5V)

3:SCL(OLED IIC Clock line)

4:SDA(OLED IIC Cable

The instructions on four needles IIC interface module

Four needles iic interface is relatively simple,only two signal lines

1. The GND power supply

2. The VCC power supply is (3 ~ 5.5 V)

3. The SCL OLED D0 feet,for the clock pin in the IIC communication

4. The SDA OLED D1 feet,in the IIC communication pin for the data

7PIN:

Drive IC: SSD1306

Resolution: 128*64

PIN NO.: 7Pin

Color: White

Interface: SPI and IIC interface

Provide detail datasheet

Interface Definition

1>GND    =Ground Power

2>VCC     = VDD(2.8V~5.5V)

3> D0       = Clock Line

4> D1       = Data Line

5> RES    = Reset

6> DC      = data/command

7> CS      = Chip Selection
