PD3.1 140W 2S-6S Bidirectional PD Fast Charging 3S 4S 5S Lithium Battery Li-ion Lifepo4 BMS Charger Discharger Power Bank Module

IP2366 Power Bank Control Board - PD3.1 140W Fast Charging Solution

Key Features:

🔥 140W Ultra-High Power

28V/5A Bidirectional Charging & Discharging

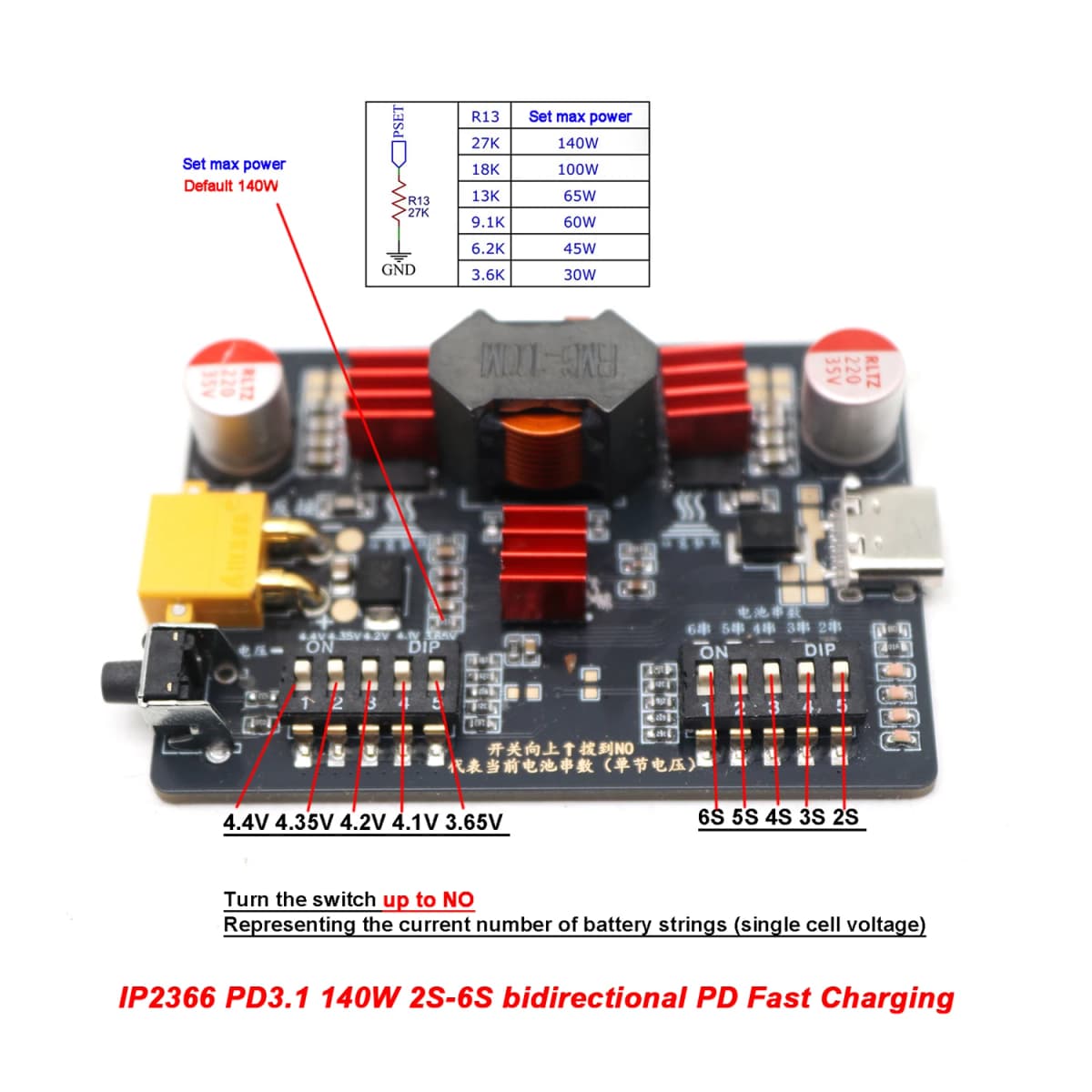

Supports 2-6S Battery Configurations (Adjustable) Adjust the toggle switch

Turn the switch up to NO

Representing the current number of battery strings (single cell voltage)

✔️ 4S: 100W Output

✔️ 6S: 140W Max Output

🔌 Universal Compatibility

PD3.1 Certified (Requires PD3.1 Cable)

Backward Compatible with 5V/9V/12V/15V/20V PD Standards

Integrated Multi-Protocol Support:

✅ PD3.1 Input/Output

✅ PPS 3-21V/3A

✅ QC2.0/QC3.0/QC3.0+

✅ FCP/AFC/SCP

✅ DRP Try.SRC

Advanced Design:

XT60 Interface with XT30/XT60 Plug Support

High-Current Flat Copper Wire Inductor (Low Heat Generation)

Adjustable Single Cell Voltage (2-6S Li-ion Battery Support)

Smart Thermal Management:

🌡️ Auto Power Reduction at High Temperatures

⚠️ Heat Dissipation Required During Operation

Application Scenarios:

✔️ PD140W Power Bank Motherboard

✔️ Drone Battery Charger Solution

✔️ Fast Charger for Smartphones/Tablets

✔️ High-Power Portable Charging Stations

Safety Notice:

Strict polarity protection (Reverse connection prohibited)

Professional heat dissipation design required

Built-in over-temperature protection
