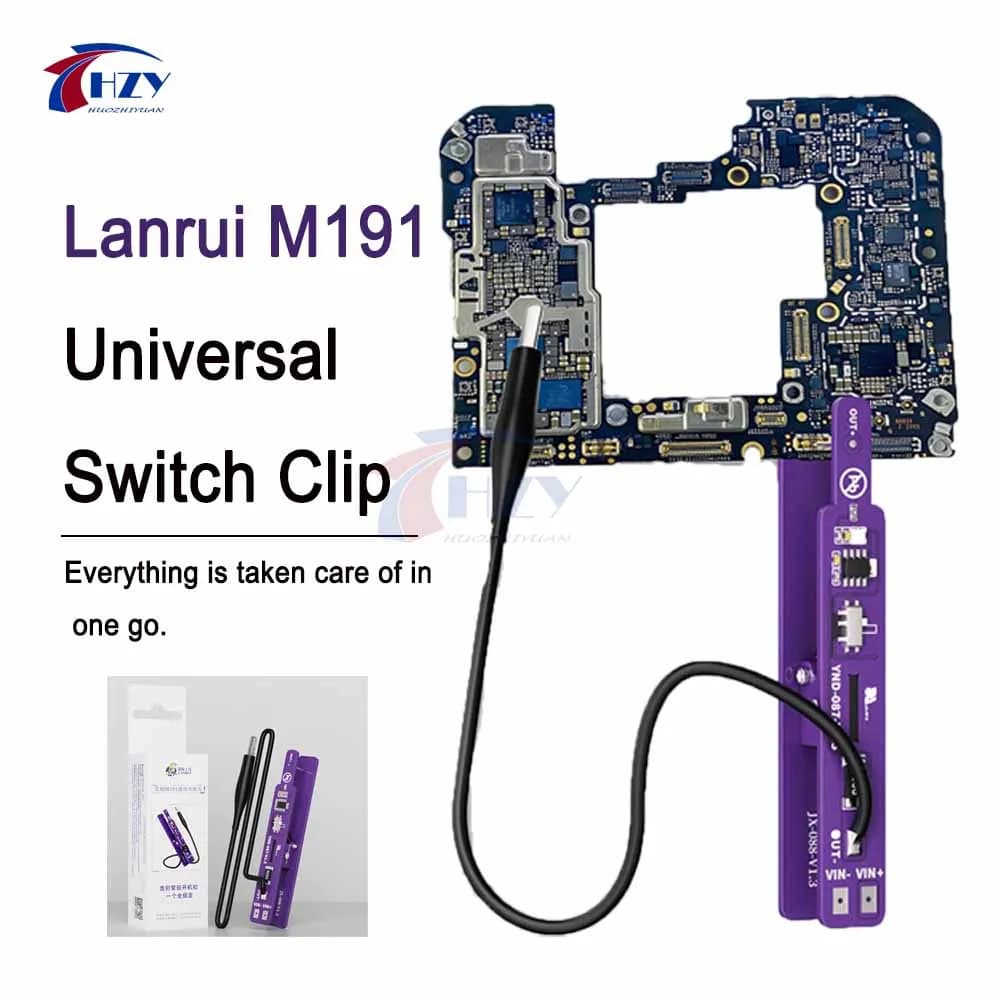

Lanrui M191 Universal Switch Clip Power On Tool Dual Mode Detection Current Tester For iPhone Android Tablet iPad Repair Tool

Lanrui M191 Universal Switch Clip Power on Tool 2 Modes for iPhone Android Tablet IPad Current Leakage Detection Repair Tools

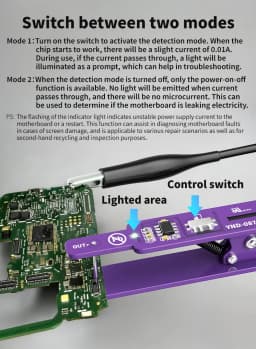

Switch between two modes

Mode 1: Turn on the switch to activate the detection mode. When the chip starts to work, there will be a slight current of 0.01A. During use, if the current passes through, a light will be illuminated as a prompt, which can help in troubleshooting.

Mode 2: When the detection mode is turned off, only the power-on-off function is available. No light will be emitted when current passes through, and there will be no microcurrent. This can be used to determine if the motherboard is leaking electricity.

PS: The flashing of the indicator light indicates unstable power supply current to the motherboard or a restart. This function can assist in diagnosing motherboard faults in cases of screen damage, and is applicable to various repair scenarios as well as for second-hand recycling and inspection purposes.

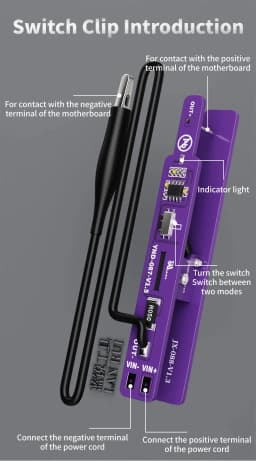

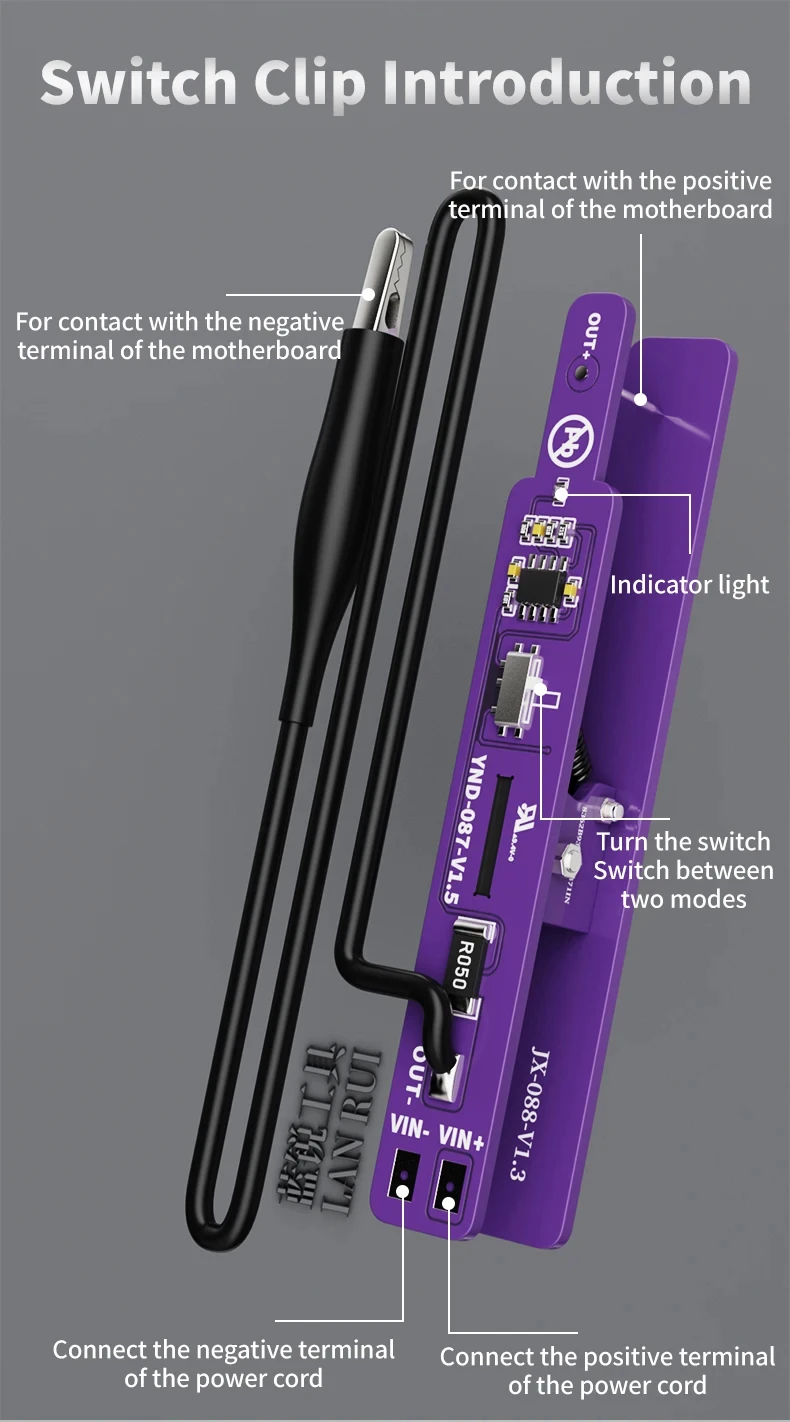

Indicator

For contact with the negative terminal of the motherboard

For contact with the positive terminal of the motherboard

Indicator light

Turn the switch / Switch between two modes

Connect the negative terminal of the power cord

Connect the positive terminal of the power cord

Application Number for Design Patent: 202530759778.X

Practical Patent Application Number: 202522728763.4
