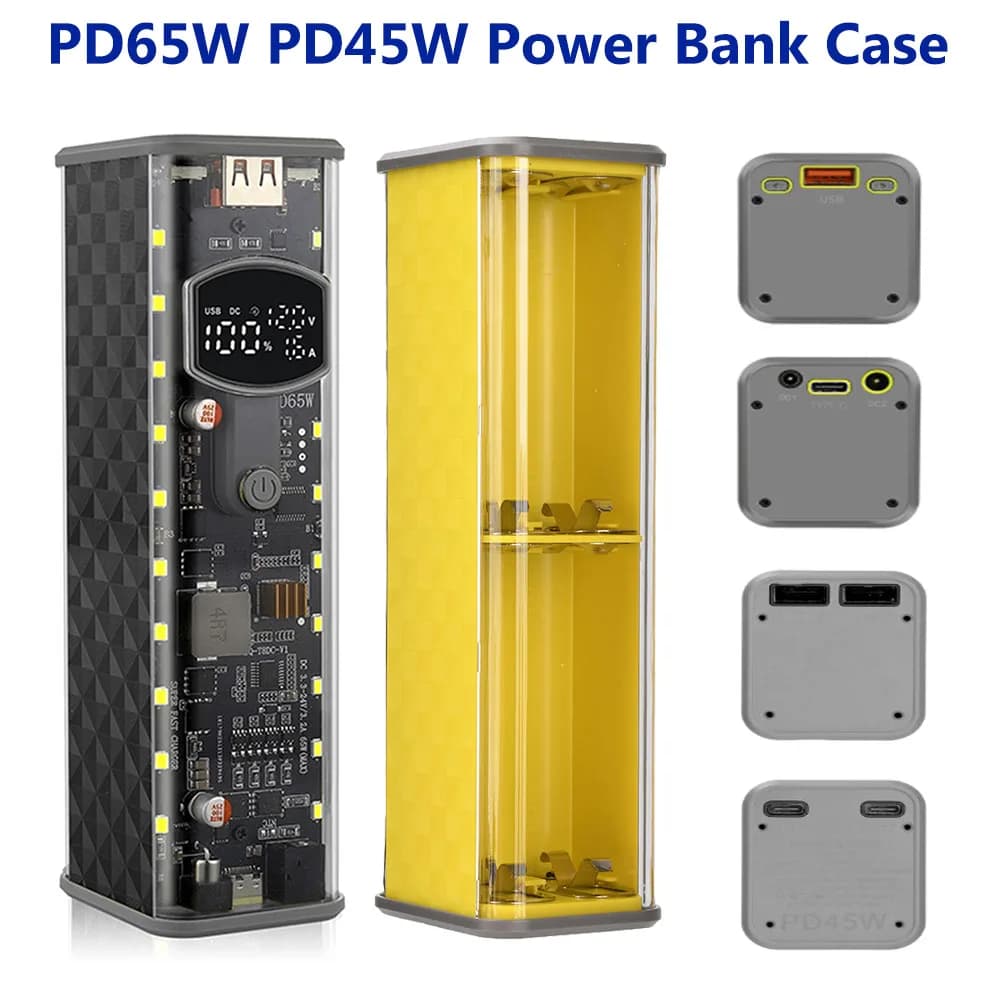

PD65W PD45W Transparent Power Bank Case 8 Cell 18650 DIY Power Bank Case Kit Fast Charging Battery Holder Case with LED Light

PD65W PD45W Transparent Power Bank Case 8 Cell 18650 DIY Power Bank Case Kit Fast Charging Battery Holder Case with LED Light

PD 65W

Features

1. PD 65W high-power fast charging, compatible with multiple devices for efficient charging experience

2. Solder-free 8-cell 18650 battery case for large-capacity energy storage, DIY-friendly and safe

3. Adjustable DC output voltage 3.3–24V, compatible with laptops and other electronics

4. Multi-protocol fast charging recognition for efficient and convenient charging

5. Multifunctional display with real-time voltage/current readout and high-brightness LED outdoor light

Parameter

Battery Case Solution: DC65W + PD65W + Super Flash Charge 60W + Super Fast Charge 40W + Flash Charge 30W + Fast Charge 25W + Standard Charge 15W (Most smartphone manufacturers limit non-original devices to 33W or below)

Output Power: 65W

Peak: 68W/3.2A (MAX)/3.3V-24V

Input Power: 65W MAX

Note: Requires high-performance charger and charging cable

DC Port Output Parameters:

DC1 Specification: 3.8*1.35 (Suitable for most air conditioners, fans)

DC2 Specification: 5.5*2.1 (Compatible with most DC power devices)

Output Voltage: 3.3-24V

Note:Only DC ports support voltage adjustment. Simultaneous multi-port output is limited to 5V.

Output Power: 65W (MAX)

Output Current: 3.2A (MAX)

Button Operation: Long-press power button to enter DC mode. Single-click left/right function buttons to adjust voltage range. Long-press left/right function buttons for continuous voltage adjustment.

USB Output & Supported Fast Charging Protocols

5V/3.2A (Standard Output); SCP: 40W; UFCS: 60W

SVOOC: 65W (Requires high-performance fast-charging cable)

VOOC 4.0: 30W (requires high-performance flash charging cable)

VOOC 1.0: 20W (requires flash charging cable); PE 1.1: 7.5W

PE 2.0: 30W; QC3+: 45W; QC3.0: 36W; QC2.0: 24W; AFC: 18W; FCP: 18W; SFCP: 18W

Most phones are limited to 33W; simultaneous multi-port output is restricted to standard 5V charging

Type-C Output & Supported Fast Charging Protocols: (Supports laptop charging)

5V/3.2A (Standard Output); PD3.1: 65W; PPS: 60W;

SCP: 40W; UFCS: 60W;

SVOOC: 65W (requires high-performance flash charging cable)

VOOC 4.0: 30W (requires high-performance flash charging cable)

VOOC 1.0: 20W (requires flash charging cable); PE 1.1: 7.5W

PE2.0: 30W; QC3+: 45W; QC3.0: 36W; QC2.0: 24W; AFC: 18W; FCP: 18W; SFCP: 18W;

Most phones are limited to 33W; multi-port output lacks fast charging

Type-C Input & Supported Fast Charging Protocols

5V/3.2A (Standard Input); PD3.1: 65W (MAX); SCP: 40W; UFCS: 60W;

SVOOC: 65W (requires high-performance flash charging cable);

VOOC 4.0: 30W (requires high-performance flash charging cable)

VOOC 1.0: 20W (requires flash charging cable); AFC: 18W; FCP: 18W;

Supports 5V simultaneous charging and discharging;

Note: If proprietary phone protocols are unsupported (USB lacks fast charging), use PD charging (TYPE-C output). PD public protocols offer more stable output and higher power delivery.

Button Functions

All buttons display battery level with a single press;

Power button: Double-click to enter/exit LED light mode; Single-click to adjust light mode; Long press to enter/exit DC mode;

Left Button: Double-click to power off. In non-DC mode, long press to enter low-current mode. In DC mode, single-click to step up voltage by 0.1V, long press for rapid stepping.

Right Button: In non-DC mode, long press to view battery pack voltage. In DC mode, single-click to step down voltage by 0.1V, long press for rapid stepping down.

PD 45W

Specifications:

Output Power: PD 45W (Peak 48W)

Input Power: 30-65W

USB Output and Supported Smartphone Protocols:

5V/3.1A (Standard Output); SCP: 40W; UFCS: 33W;

SVOOC: 45W; VOOC 4.0: 30W (Requires High-Performance Fast Charging Cable); VOOC 1.0: 20W (requires fast charging cable);

PE 1.1: 7.5W; PE 2.0: 30W; QC 3+: 45W; QC 3.0: 36W; QC 2.0: 24W; AFC: 18W; FCP: 18W; SFCP: 18W;

Multi-port simultaneous output is limited to 5V;

Type-C output and supported phone protocols:

5V/3.1A (normal output); PD3.1: 45W; PPS: 44W;

SCP: 40W; UFCS: 33W; SVOOC: 45W;

VOOC4.0: 30W (requires a high-performance flash charging cable);

VOOC1.0: 20W (requires a flash charging cable); PE1.1: 7.5W;

PE2.0: 30W; QC3+: 45W; QC3.0: 36W; QC2.0: 24W; AFC: 18W; FCP: 18W; SFCP: 18W; Multi-port output, no fast charging;

Type-C input and supported phone protocols:

5V/3.1A (normal input); PD3.1: 65W (MAX); SCP: 40W; UFCS: 33W; SVOOC: 45W; VOOC4.0: 3 0W (requires high-performance flash charging cable); VOOC 1.0: 20W (requires flash charging cable); AFC: 18W; FCP: 18W;

Supports 5V simultaneous charging and discharging;

Button Function: Long press to turn on LED light

Colors: Black frame + gray + transparent, yellow frame + gray + transparent

Effective Voltage: 12.3V-16.5V (spring has voltage drop)

Note:

If the phone's proprietary protocol is not supported (USB does not support fast charging), PD charging (TYPE-C output) can be used. PD's public protocol output is more stable.

Fast Charging Specifications (Supported Protocols):

(With data transmission charging cable, communication handshake can be successful if one of the following protocols is supported)

Compatible with BC1.2, IP (charging cable control)

Integrated SCP SuperCharge output protocol

Integrated QC2.0/QC3.0 output fast charging protocol

Integrated FCP, AFC input/output fast charging protocol

Supports PPS, PE2.0, SFCP output fast charging

Supports PD2.0/3.0, PE1.1 input/output protocol

Package include

Power Bank Housing*1 (Battery not included)

Accessory Kit*1
