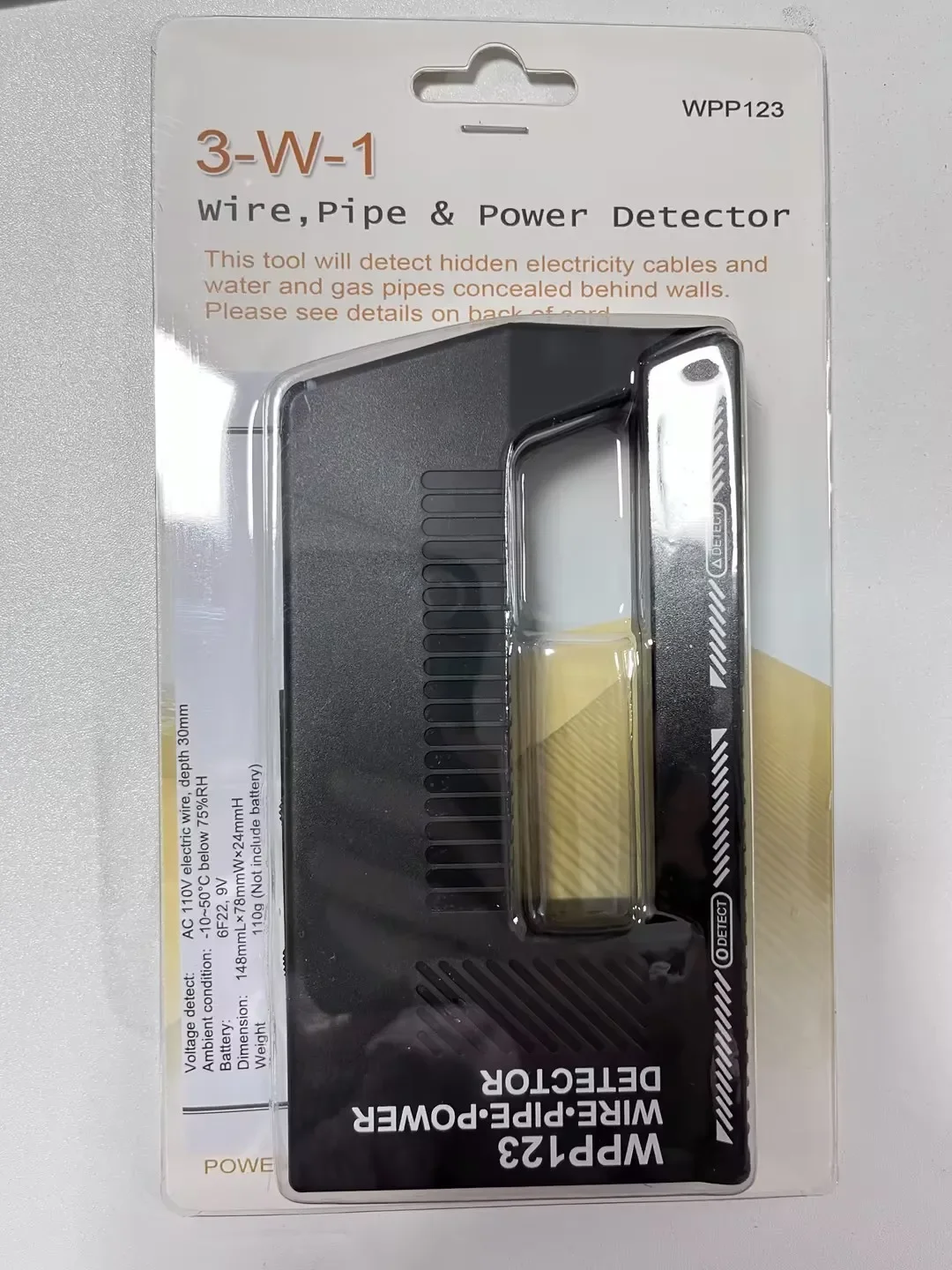

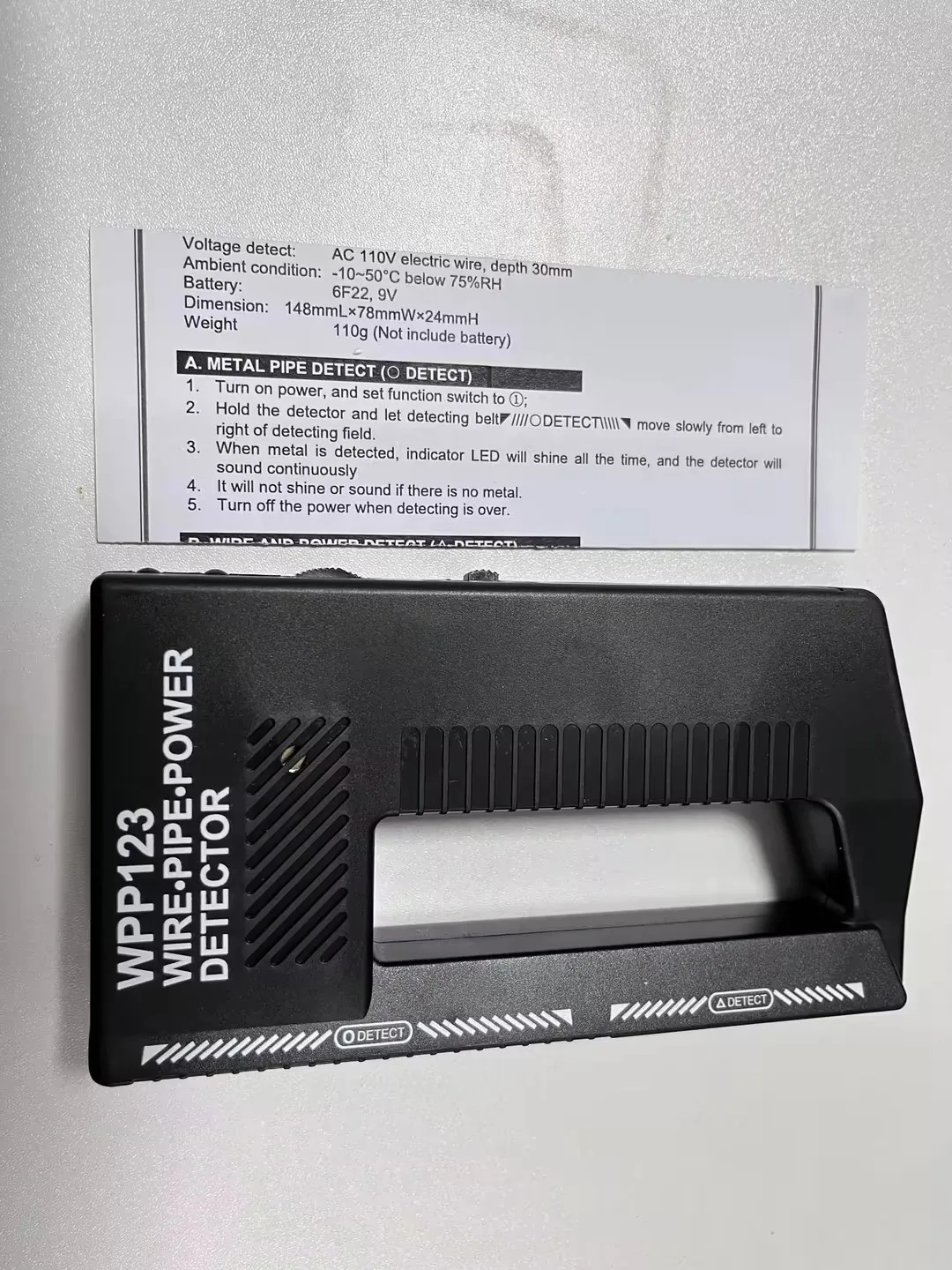

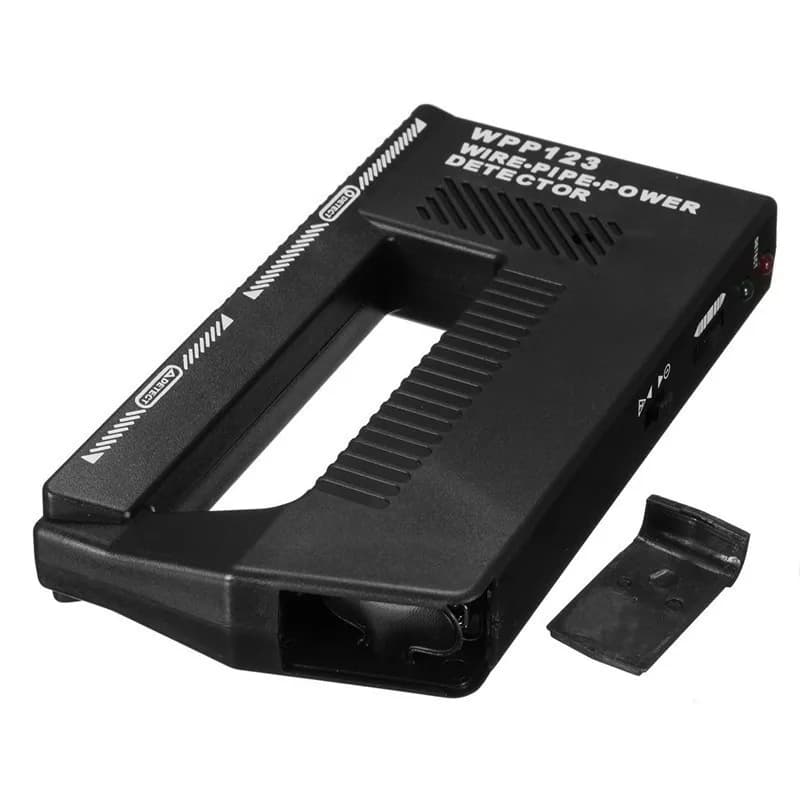

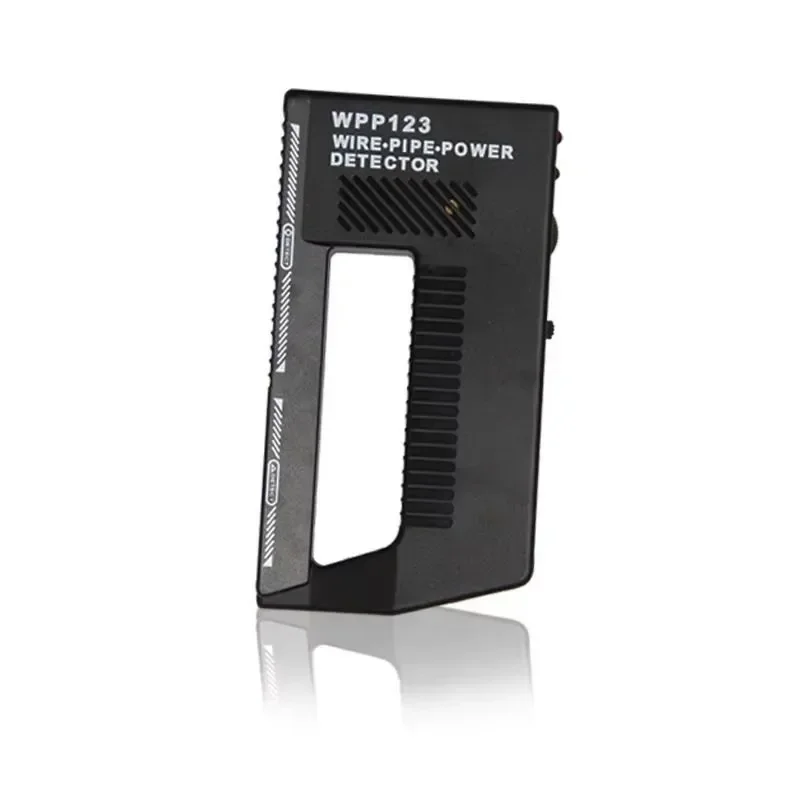

WPP123 Wall Scanner Metal Detector Pointer AC Wire Metal Detection Industrial Metal Detector Alert Pipe Power High Sensitivity

Advantages of the product: It is suitable for use in interior decoration structures. It can detect the position of metal and wires in the wall. When metal and voltage are sensed, the instrument will flash and sound prompts
Product technical characteristics:
Metal test: 15mm diameter steel pipe, test depth 24mm (reference value)
Voltage test: AC wire above 100V, depth 30mm
General characteristics of the product:
Keep away from the object to be measured, turn on the power supply, turn the function switch to ①, turn on the rotary switch and slowly adjust it so that it is just in the silent and
In the non luminous state, when detecting metal, place the detector strip////○ DETECT parallel to the surface of the object to be measured in the detection area
When moving, the detector will flash and make sound when it is close to metal objects or voltage circuits, and it will not flash when there are no metal objects nearby
And do not make a sound. When the test is over, please cut off the power supply
If the voltage is detected, turn the function switch to ②, and slowly turn the detector strip///△ DETECT in the detection area to the left and
Move to the right. If the voltage circuit is detected, it will flash and sound. When there is no voltage nearby, it will not flash and sound
After the test, please cut off the power supply. The detector cannot test the AC voltage in metal pipes, metal walls or deep parts
Power supply: 6F22 9V battery
Product size: 148x78x24mm
Product weight: about 117g (without battery)
Standard configuration: bare watch (no battery inside), battery, manual, certificate of conformity (warranty card)
Package description:
Packaging method: single blister card
Packing quantity: 60 sets
Outer box size: 47.5x28x34cm
Gross/net weight: 11/10kg
