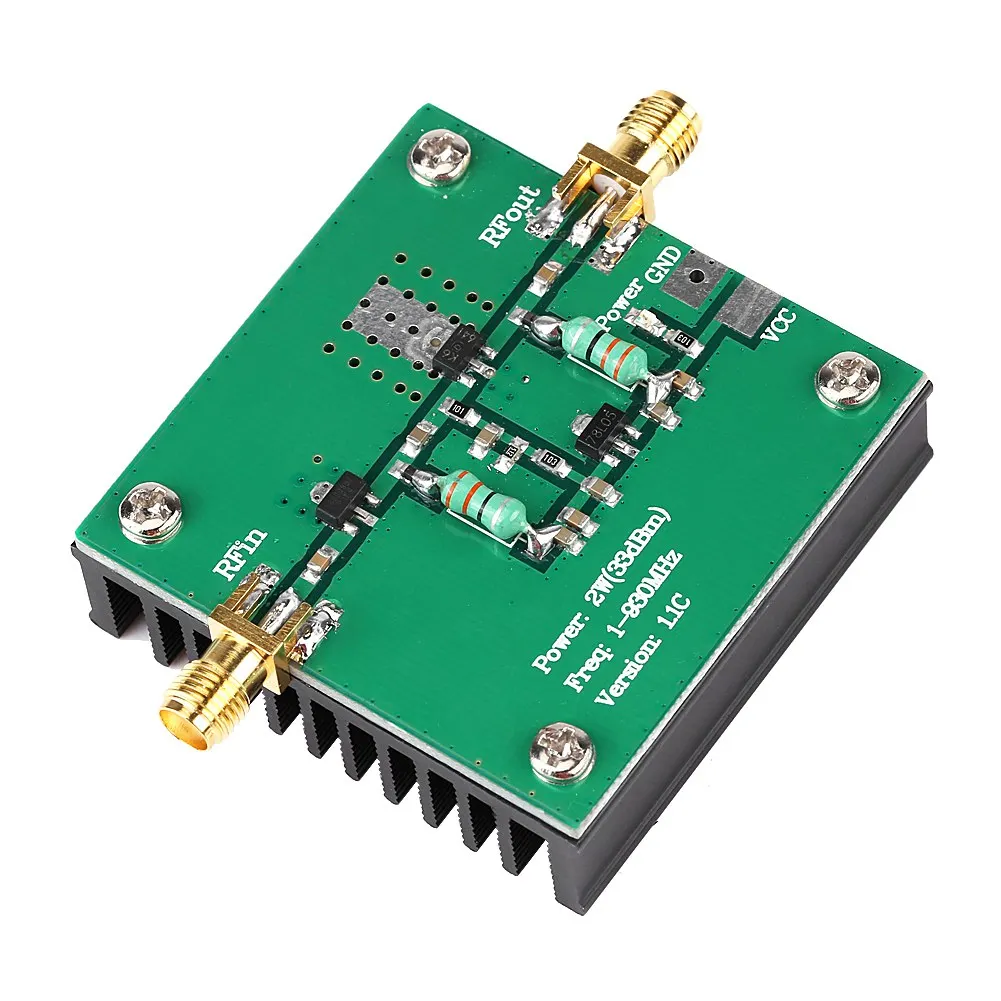

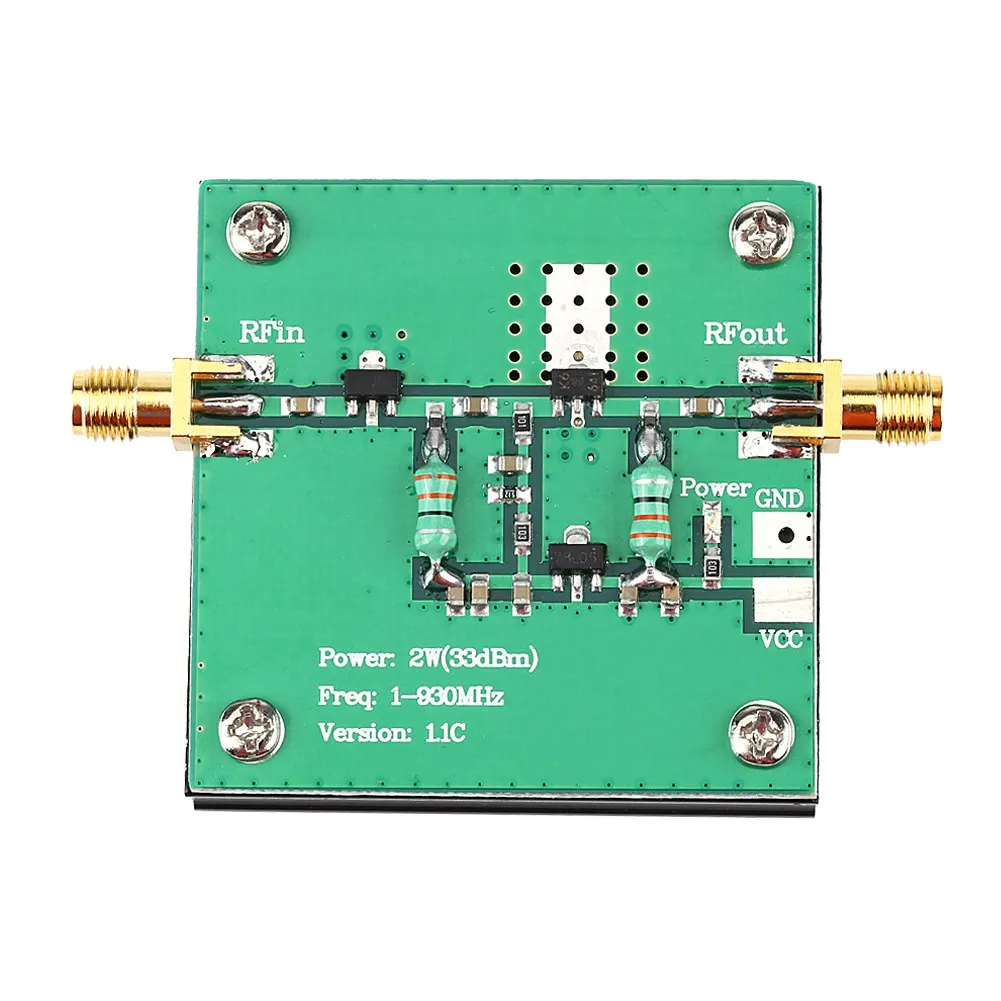

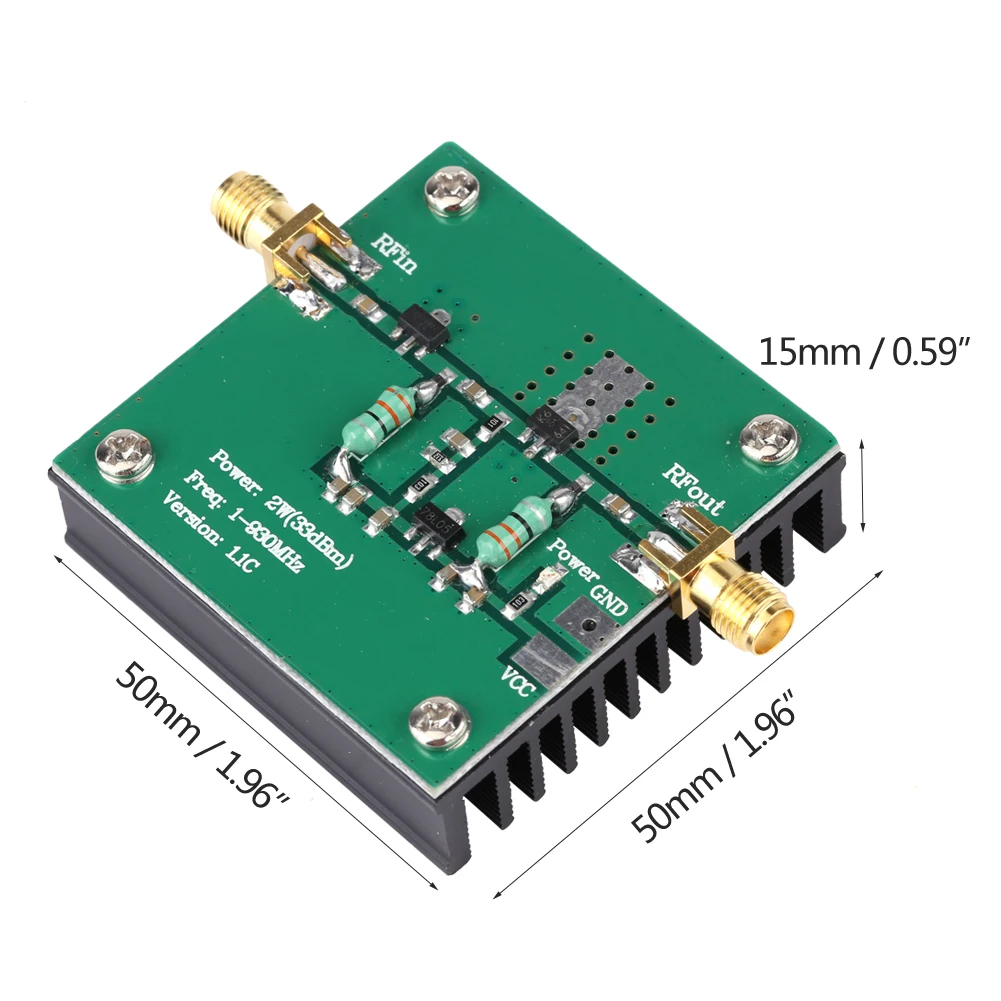

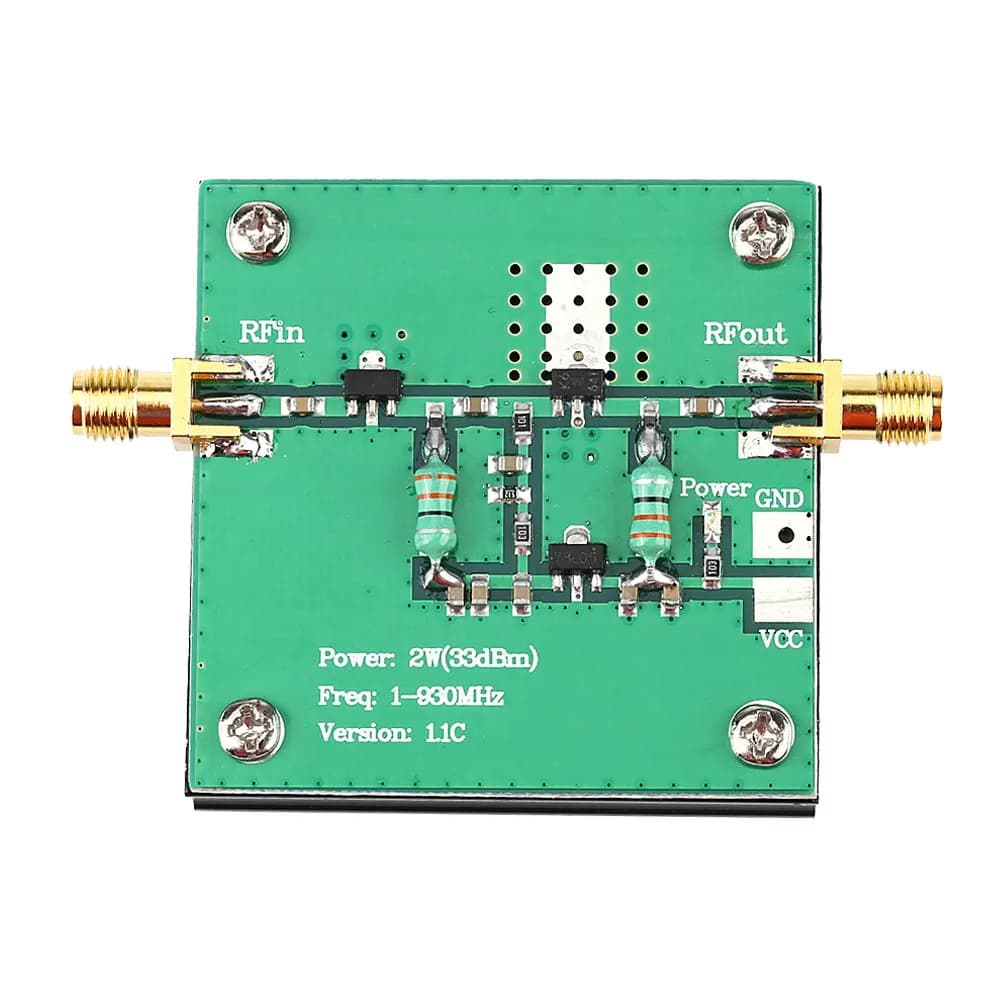

1-930MHz 2W RF Broadband Power Amplifier Module, Suitable for Radio, FM, HF, VHF Broadband Power Amplifiers RF Power Amplifier

1-930MHz 2W RF Broadband Power Amplifier Module for Radio Transmission FM HF VHF

Specification:
Features:
The broadband RF low-power amplifier has wide operating frequency from 1 to 930MHz.
Suitable for all types of radio use, such as short-wave FM radio remote control, FM radio FM radio, amateur radio 135-175MHz, 380-470MHz radio and other radio use.
1mW maximum input power can be 2.0W, 512MHz maximum output 1.6W, 930MHz maximum output 1.0W, 1000MHz maximum output 0.8W.
Standard SMA female RF connector for convenient connection.

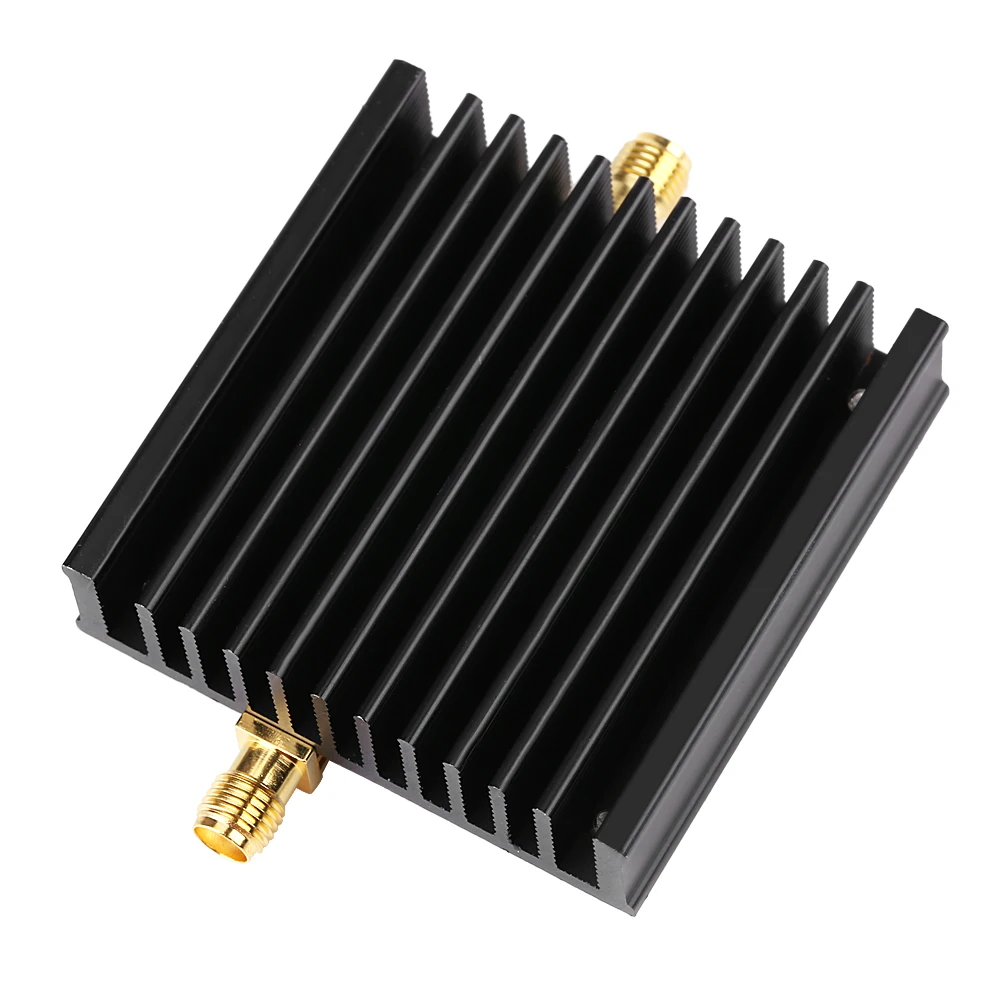

The amplifier is designed with a heat sink which ensures long time stability of work.
Specifications:
Operating Frequency: 1--930MHz
Input Power: 1mW (0dBm)
Maximum Output: 2.0W (33dBm) low frequency (10 MHz)
1.6W (32dBm) intermediate frequency (512 MHz)
1.0W (30dBm) high frequency (930 MHz)
0.8W (29dBm) high frequency (1000MHz)
Operating Voltage: 12V (DC)
Operating Current: 300--400mA (determined by the output power)
RF Connector: SMA female standard
Note:
1. Never use it when no load or load and impedance mismatch badly.
2. Do not increase working voltage, which can increase power but will increase power consumption and lead to less reliability.
3. Note anti-static precautions,there is common ground between equipment. Connect RF connector first, then electricity.
Package Includes:
1 x Power Amplifier Module
