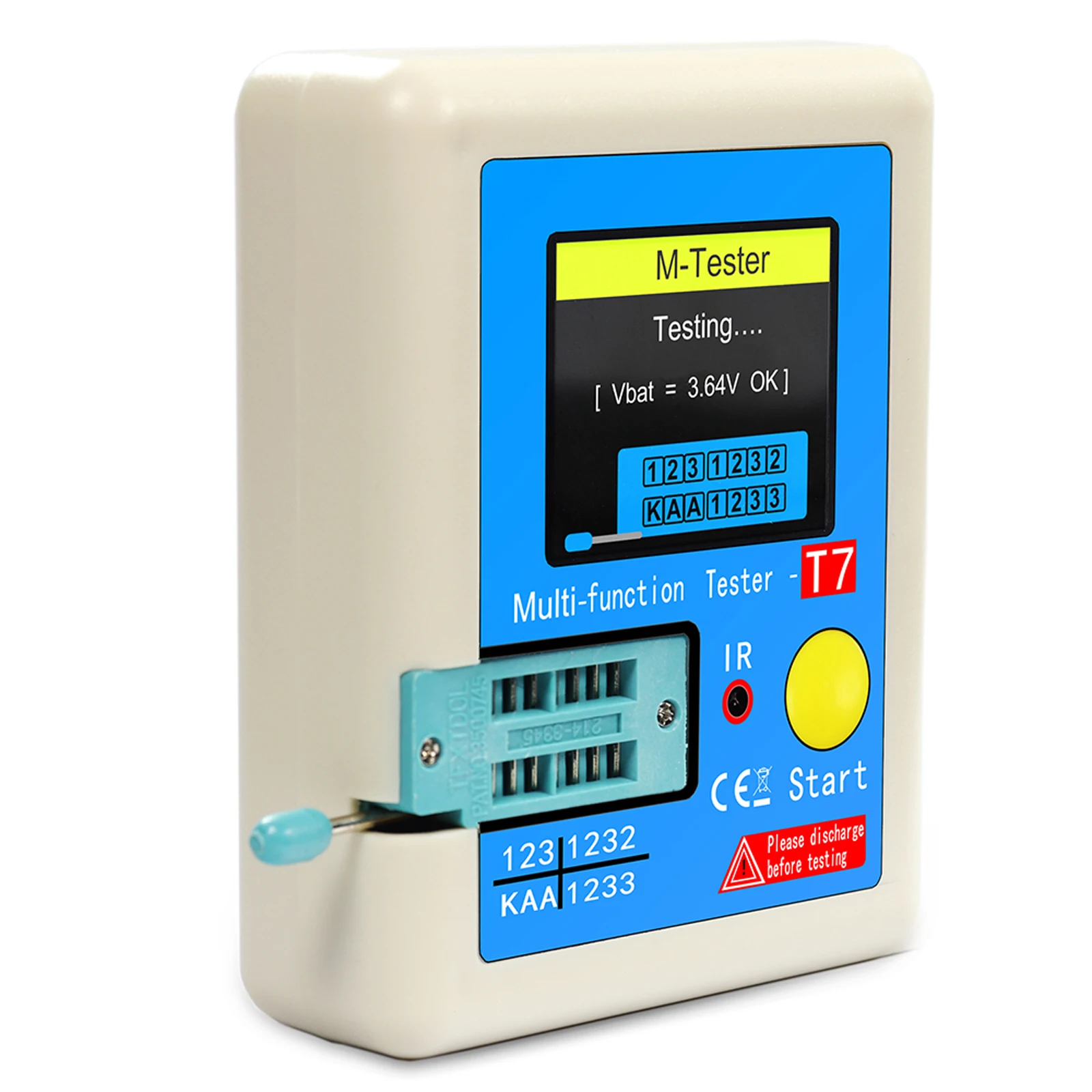

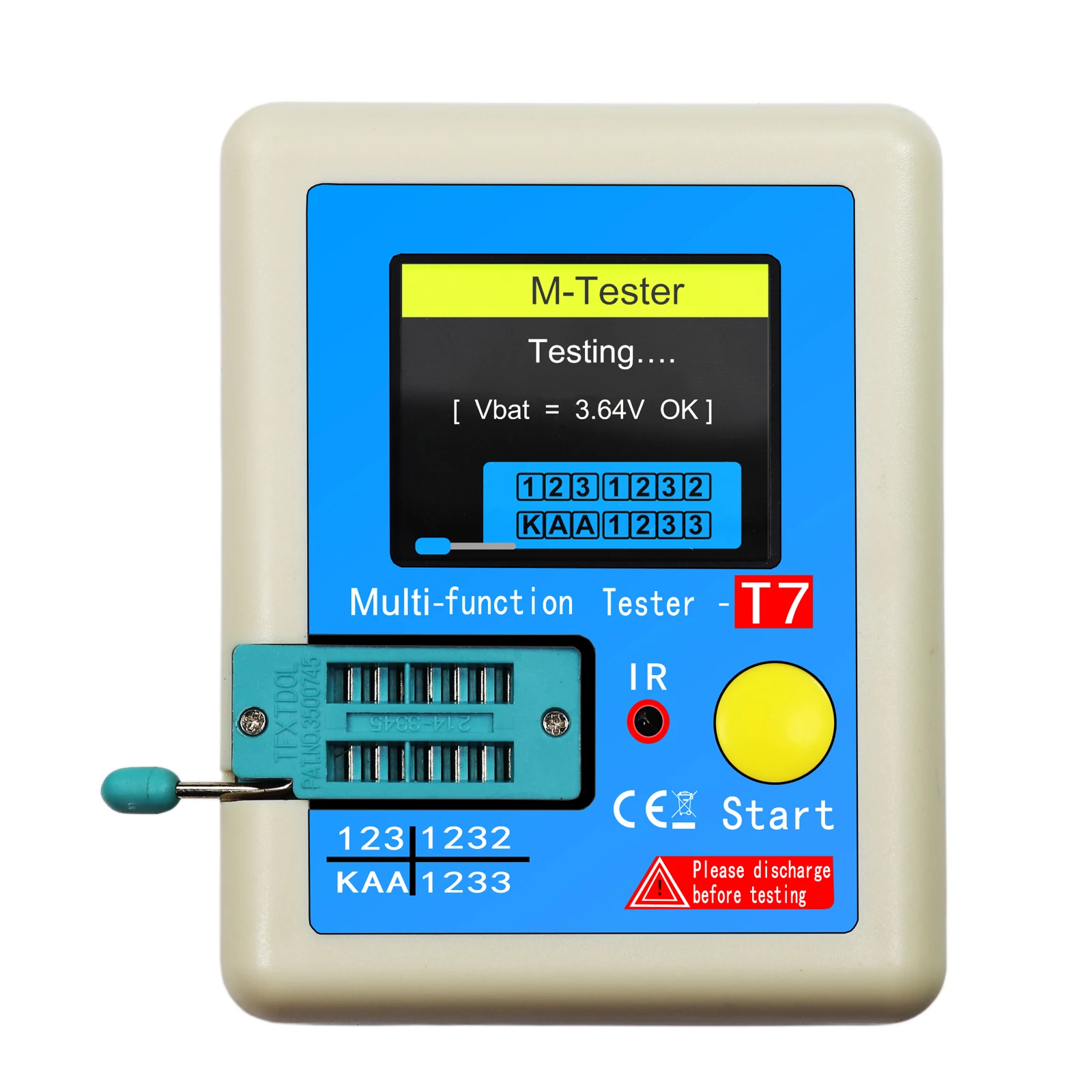

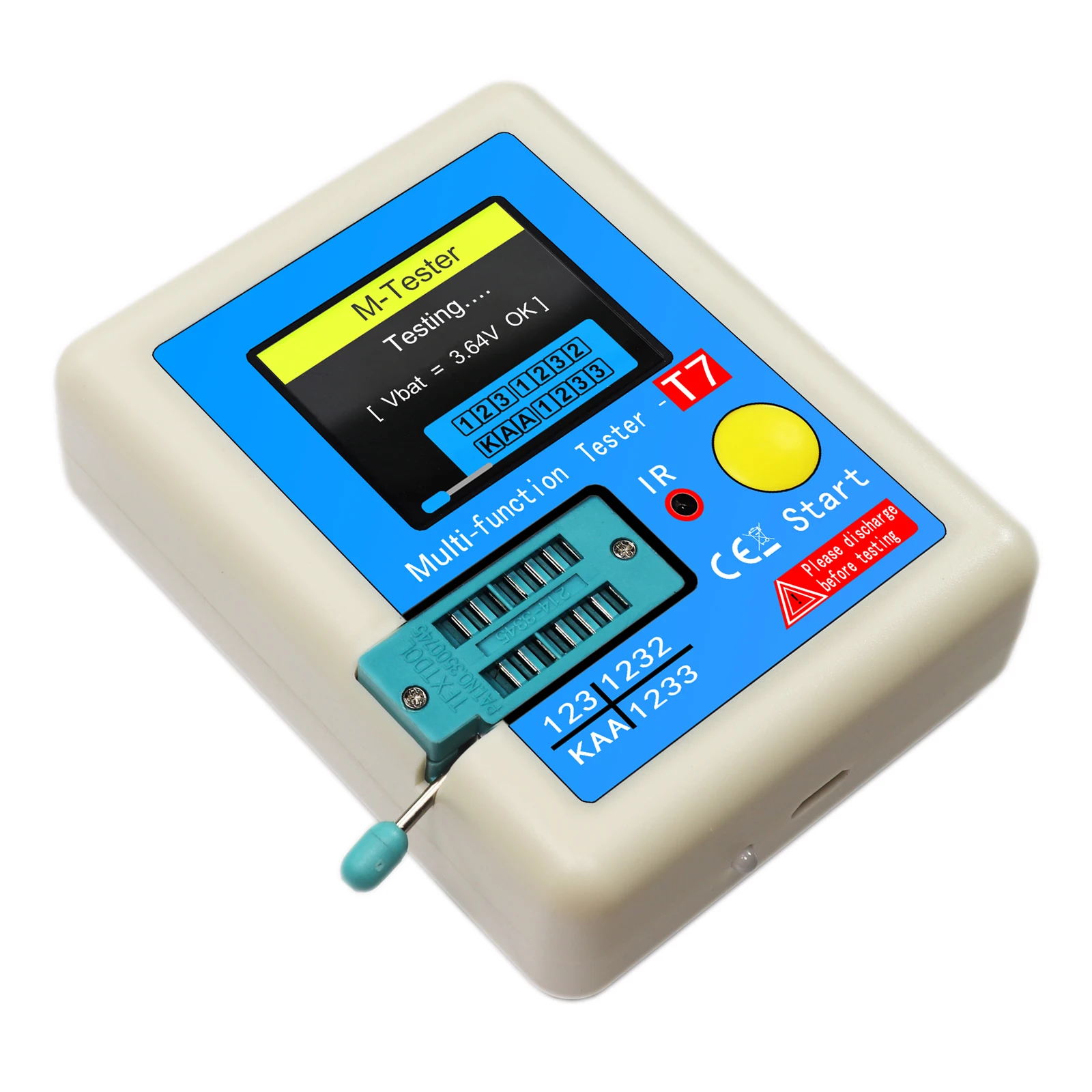

LCR-T7 Transistor Tester Multimeter Colorful Display TFT For Diode Triode MOS/NPN/PNP Capacitor Resistor Transistor

This is a cost-effective and widely used transistor detector. You can use it to detect NPN and PNP transistor, capacitor, resistor, diode, triode, N-channel and P-channel MOSFET, triac and battery etc.

Features:

It can be widely used to detect NPN and PNP transistor, capacitor, resistor, diode, triode, N-channel and P-channel MOSFET, IGBT, JFET, triac and battery etc.

It also can detect zener diode and has the function of self-cali-bration.

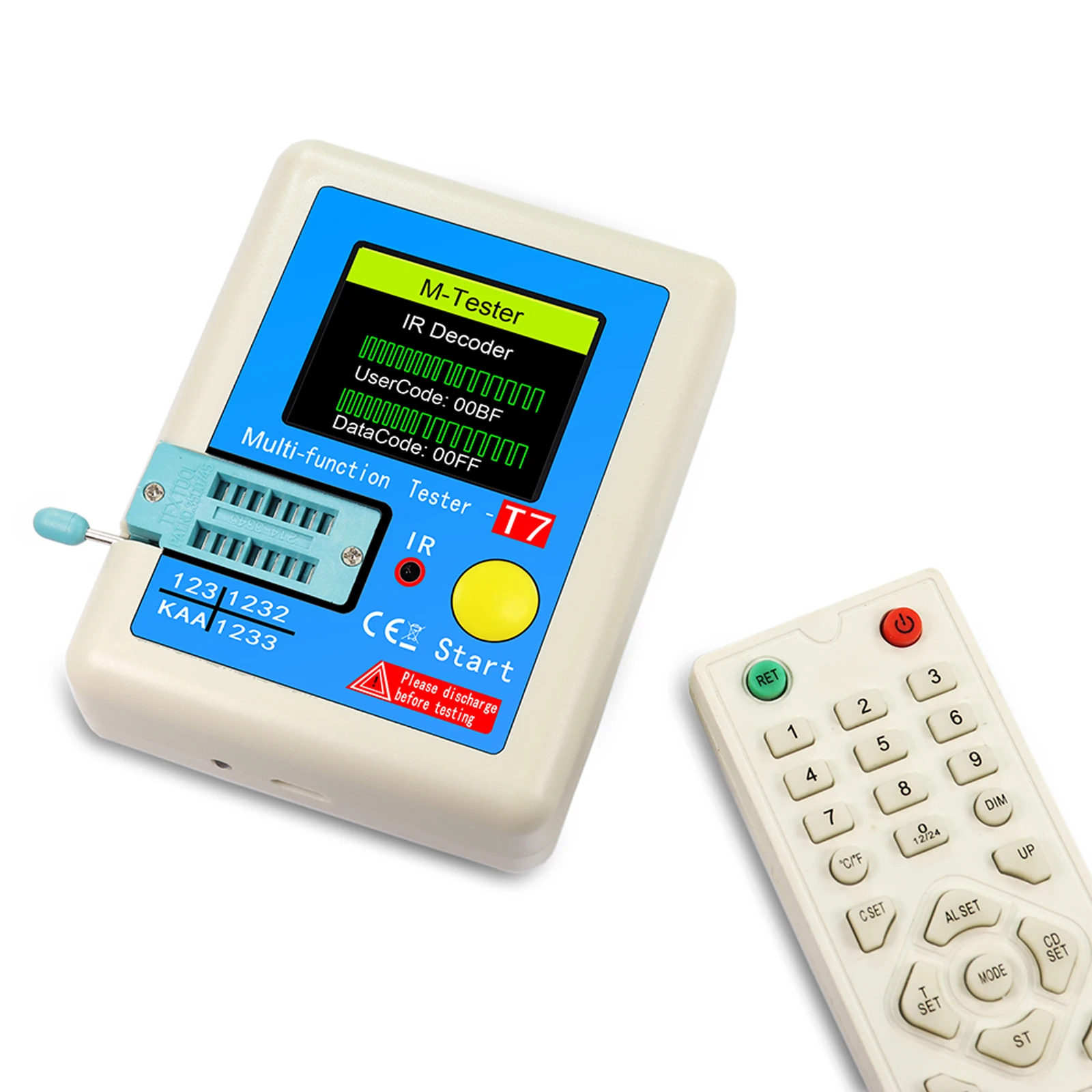

After detection, a-lign the infrared remote control with the "IR" light, then press the button in the remote control, if the detector successfully decode it, it will display the data code and infrared wave form.

One button operation, automatically detect and shutdown, and you can press the multi-functional button to close the detector too.

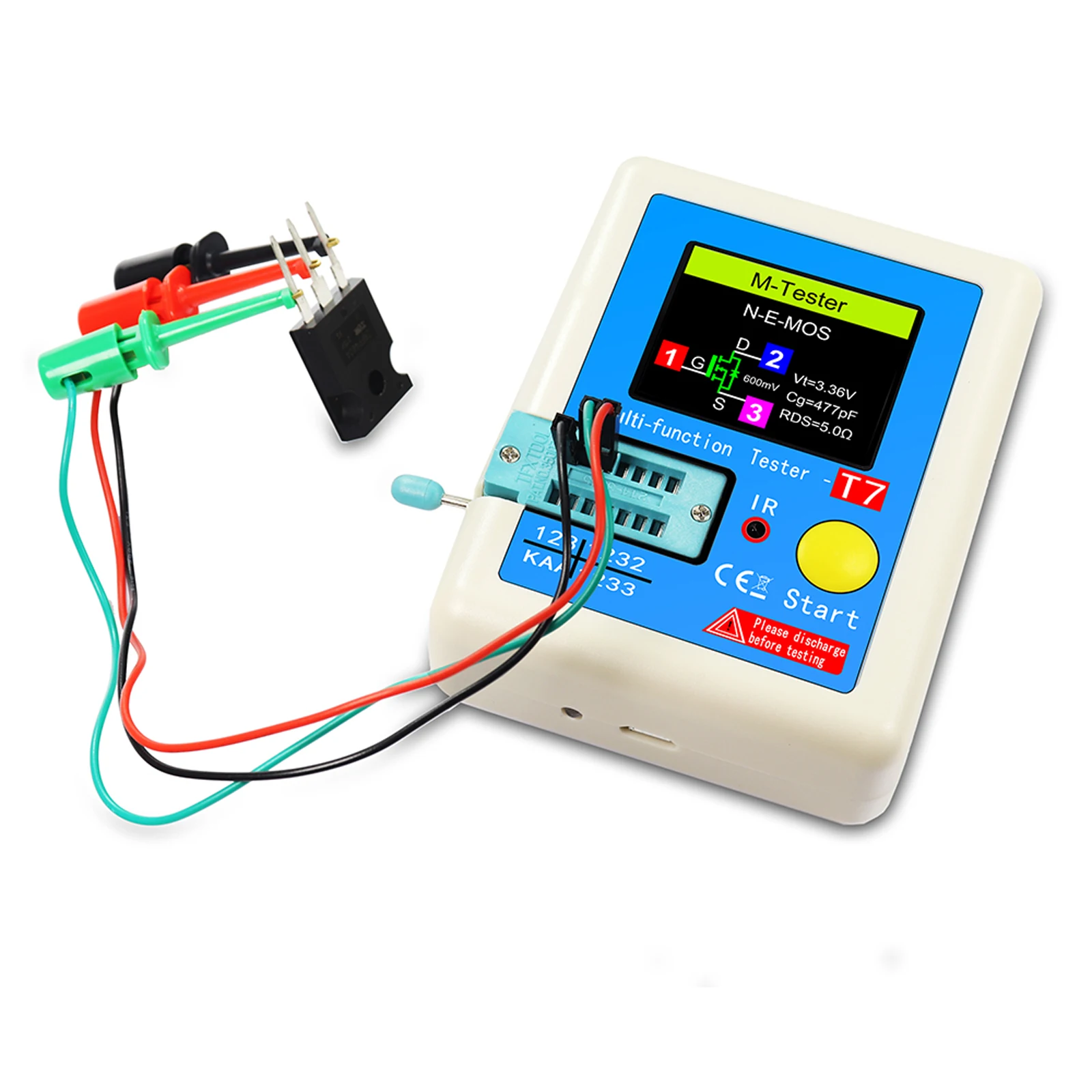

Put the pins of component in corresponding area, then dial the little handle and the detector will test it automatically, finally the results will display on the back light TFT screen clearly.

Not like the usual black and white display, this detector will show results in color.

Specifications:

Material: ABS

Power Mode: Rechargeable Lith-ium Battery

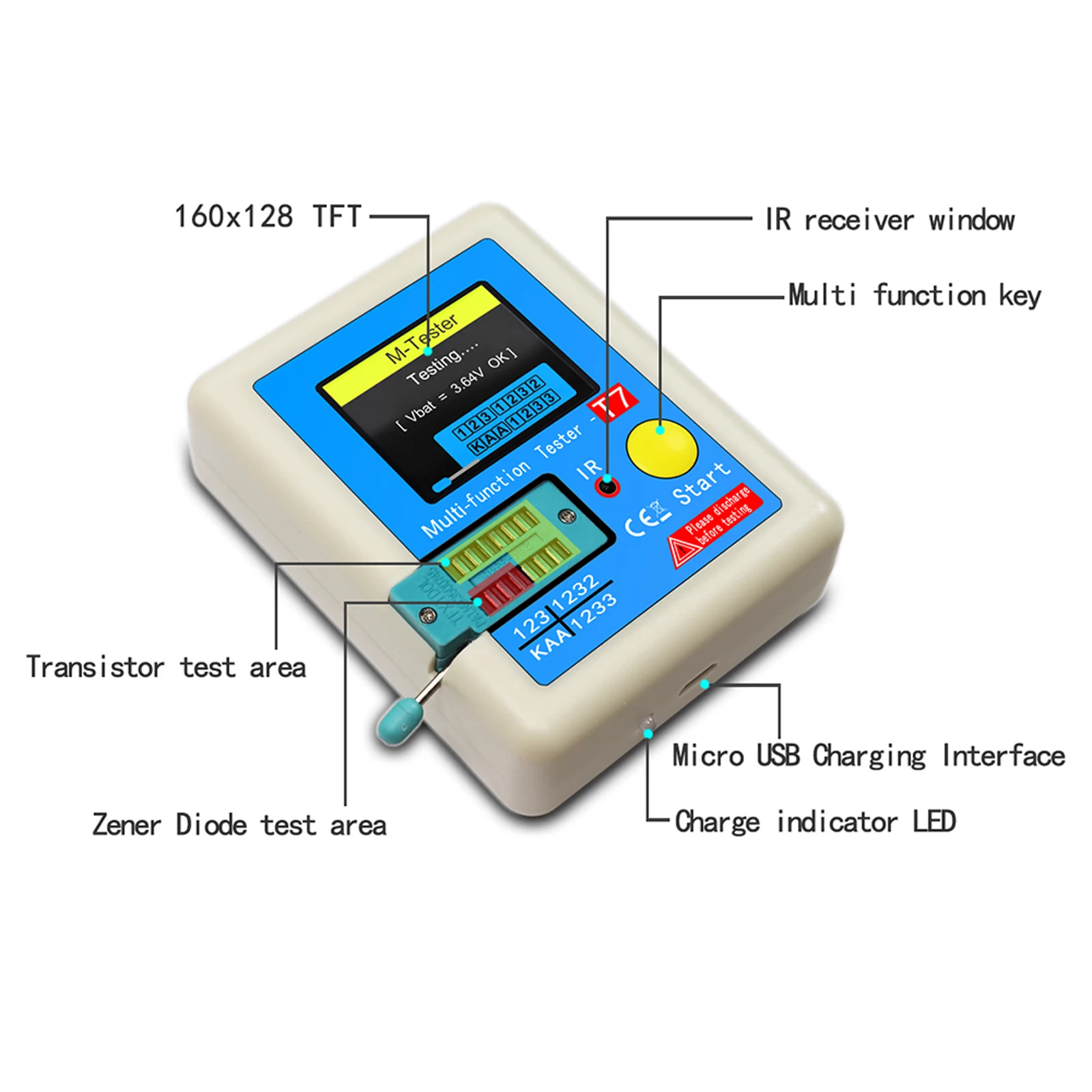

Display: 160 x 128 TFT Screen

Diode Range: Forward voltage <4.50V

Zener Diode: Transistor Test Area: 0.01-4.5V  Zener Diode Test Area: 0.01-20V

Triac Range: Gate trigger current<6mA

Capacitance: 25pF-100mF

Resistor: 0.01-50MΩ

Inductor: 0.01mH-20H

Battery: 0.1-4.5V

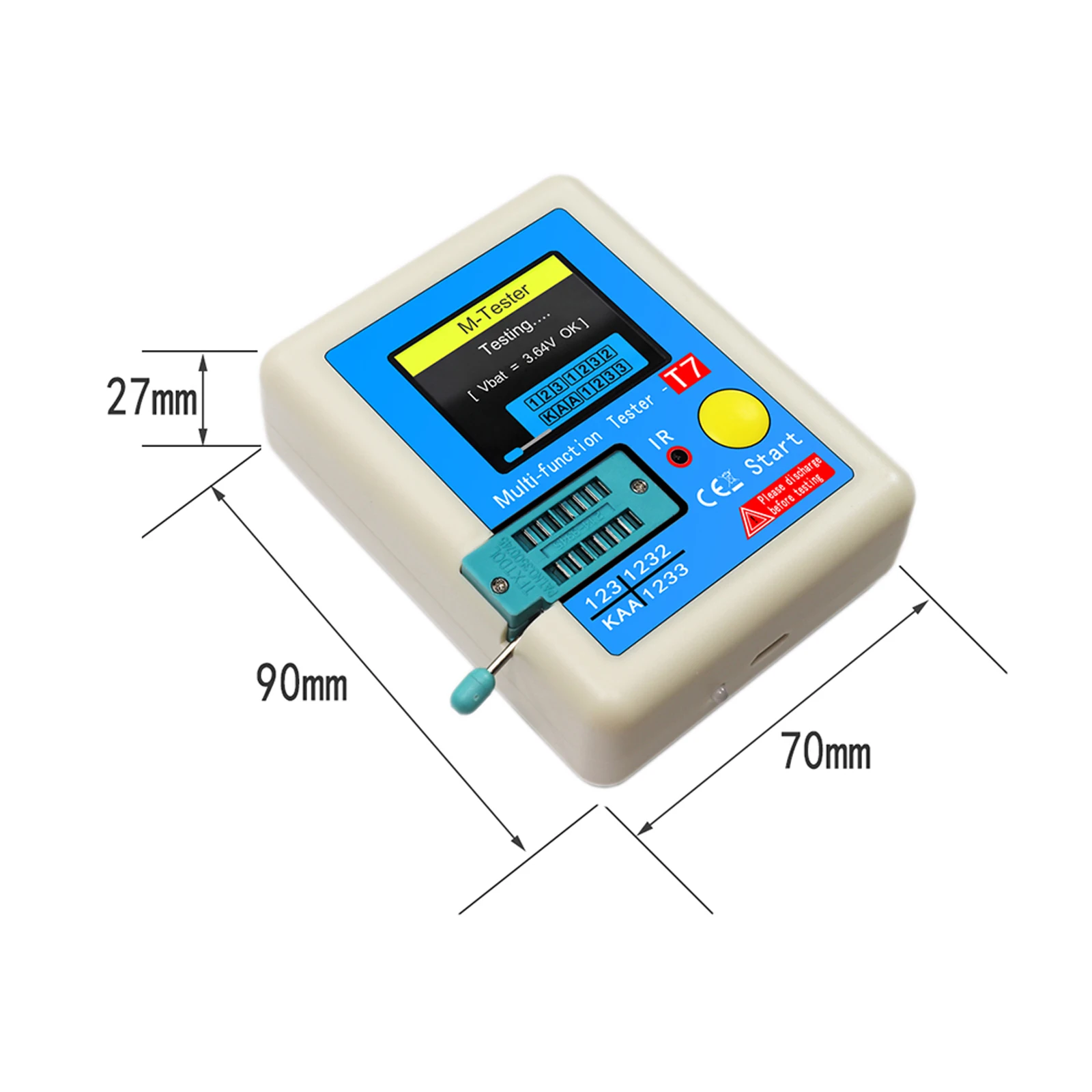

Item Size: 9 * 7 * 2.7mm / 3.5 * 2.8 * 1.1in

Item Weight: 84g / 2.9oz

Package Size: 19 * 10 * 3cm / 7.5 * 3.9 * 1.2in

Package Weight: 132g / 4.7oz

Note:

Before testing, please discharge the electronic components to protect the detector.

When the voltage and the inside battery is under 3V, please charge it before usage.

Please use 5V battery or USB interface to charge.

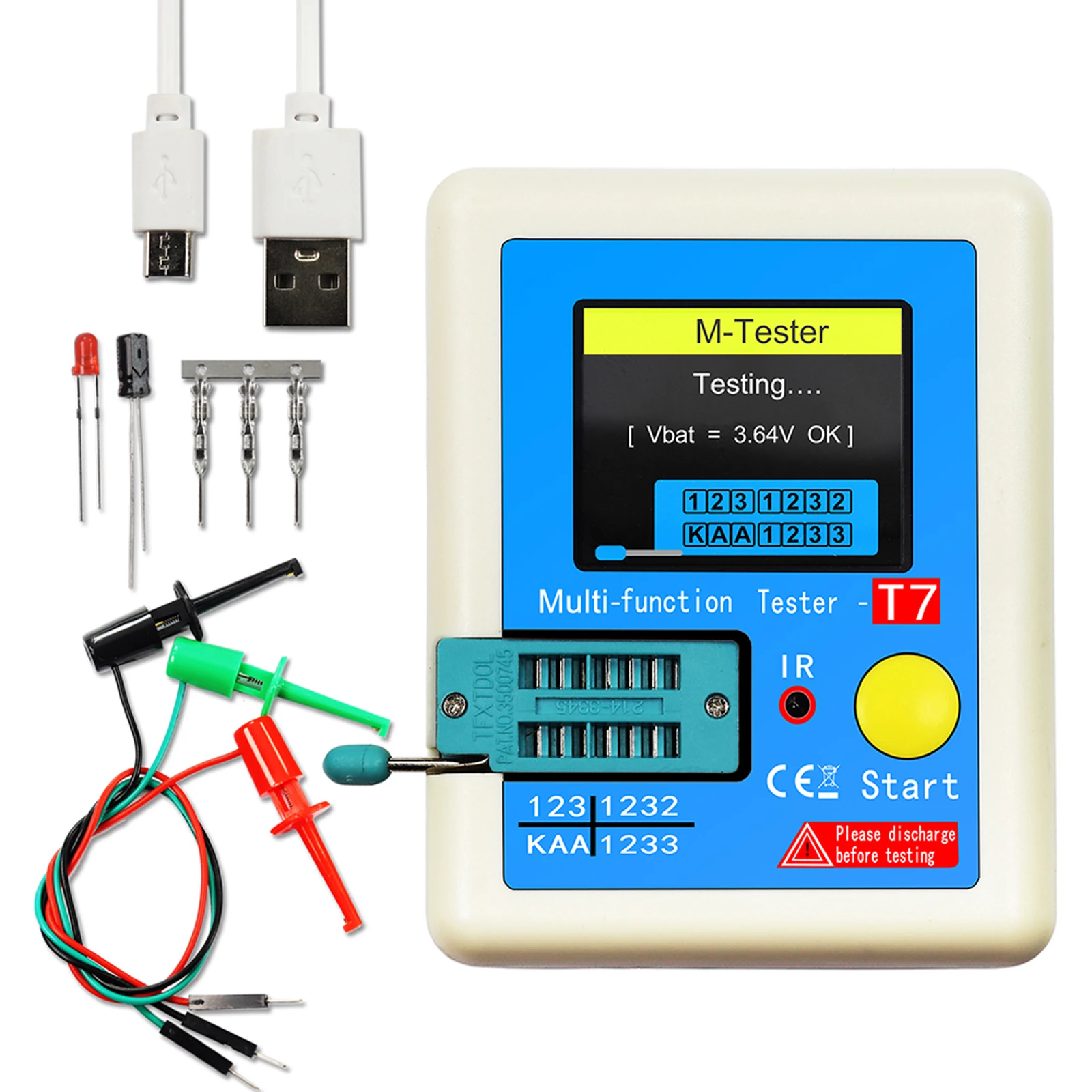

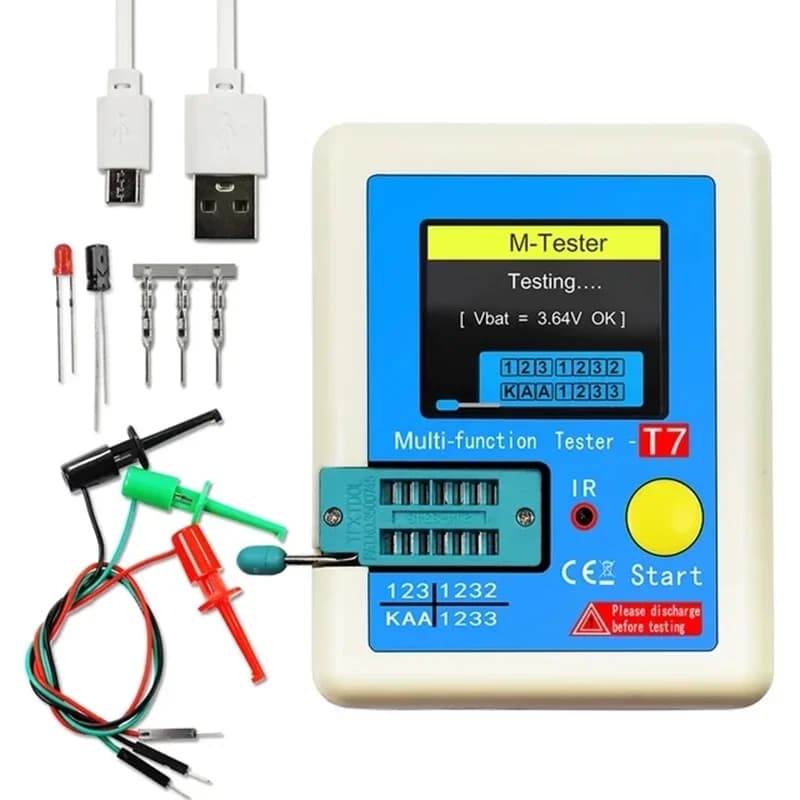

Package List:

1 * Transistor Tester

1 * Electronic Component Set

1 * Cable

3 * Test Hook

Noted:

If the quality problem of the product is found after receiving the express, please do not open the dispute at will. Please contact our after-sales customer service to solve it in a timely manner. Thank you for your support and understanding!

Cautions for use:

The capacitor shall not be tested without discharge

The inductance of the transformer cannot be tested

don't test online with electricity

Do not hook three hooks onto the circuit board for testing

Do not test live circuit boards

Otherwise, the tester will be burnt down. Burning the tester is the buyer's reason.

When the voltage and internal battery are below 3V, please charge before use.

Please use 5V battery or USB port to charge.
