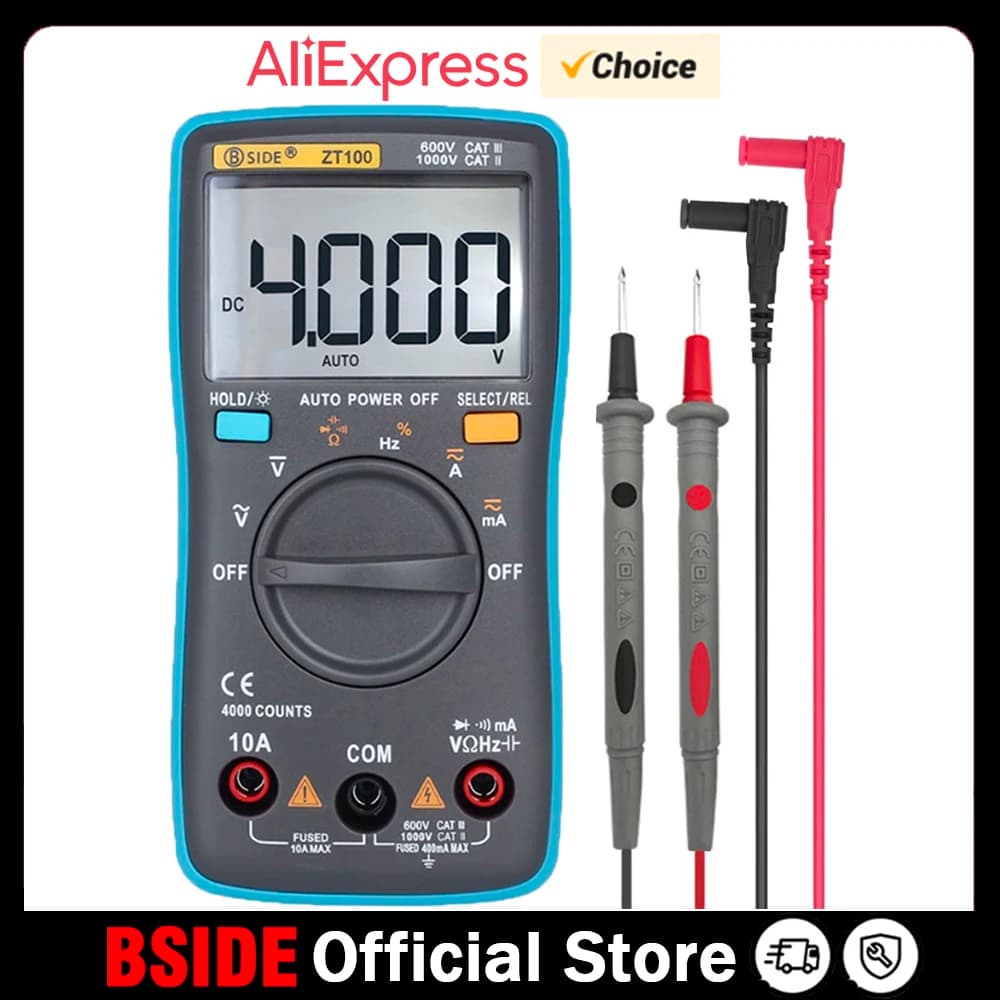

Digital Multimeter ZT100 4000 counts DC/AC Voltage Current Capacitance Hz Diode Ohm tester Ammeter Voltmeter Backlight

Product introduction:

It can be used to measure AC/DC voltage, AC/DC current, resistance, capacitance, diode, continuity testing, frequency, duty cycle, etc.

Characterized by stable function and high reliability, with the features of overload protection and backlight lighted LCD display for clear reading.

This product is a perfect tool for lab, factory, radio fans, and family use.

Features:

LCD display : 4000 Counts

with backlight.

Automatic polarity identification.

Over range indication: OL.

Low battery indication.

Auto power off after 15-minute no-operation.

Small size and light weight, suitable for carrying anywhere.

With a bracket behind, can stand on your desk in a great position for easy reading.

Test range:

DC voltage: 400.0mV/4.000V/40.00V/400.0V/600V

DC voltage resolution: 0.1mV/1mV/10mV/100mV/1V

AC voltage (RMS): 400.0mV/4.000V/40.00V/400.0V/600V

AC voltage resolution: 0.1mV/1mV/10mV/100mV/1V

DC current: 40.00mA/400.0mA/10.00A

DC current resolution: 10μA/100μA/10mA

AC current (RMS): 40.00mA/400.0mA/10.00A

AC current resolution: 10μA/100μA/10mA

Resistance: 400.0Ω/4.000kΩ/40.00kΩ/400.0kΩ/4.000MΩ/40.00MΩ

Resistance resolution: 0.1Ω/1Ω/10Ω/100Ω/1kΩ/10kΩ

Capacitance: 4.000nF/40.00nF/400.0nF/4.000μF/40.00μF/4000μF/4000μF

Capacitance resolution: 1pF/10pF/1nF/10nF/100nF/1000nF99.5Hz/999.5Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz

Frequence resolution: 0.5Hz/0.5Hz/1Hz/10Hz/100Hz/1kHz

Duty cycle: 0.1% to 99.9%

Operational temperature: 0-40°, <75% RH

Storage temperature: -20-60°, <80% RH

Power supply: 3V (2 * 1.5V)AAA battery (Not included)

Power consumption: 4.5mW (Typical)

Item size: 130 * 65 * 32mm / 5.1 * 2.56 * 1.26in

Item weight: 114.5g / 4.0oz

Package weight: 180g / 6.35oz

Package size: 16 * 8 * 5cm / 6.3 * 3.15 * 1.97in

Package includes:

1 * Multimeter. 1 * test clip.

1 * color box. 1 * English manual
