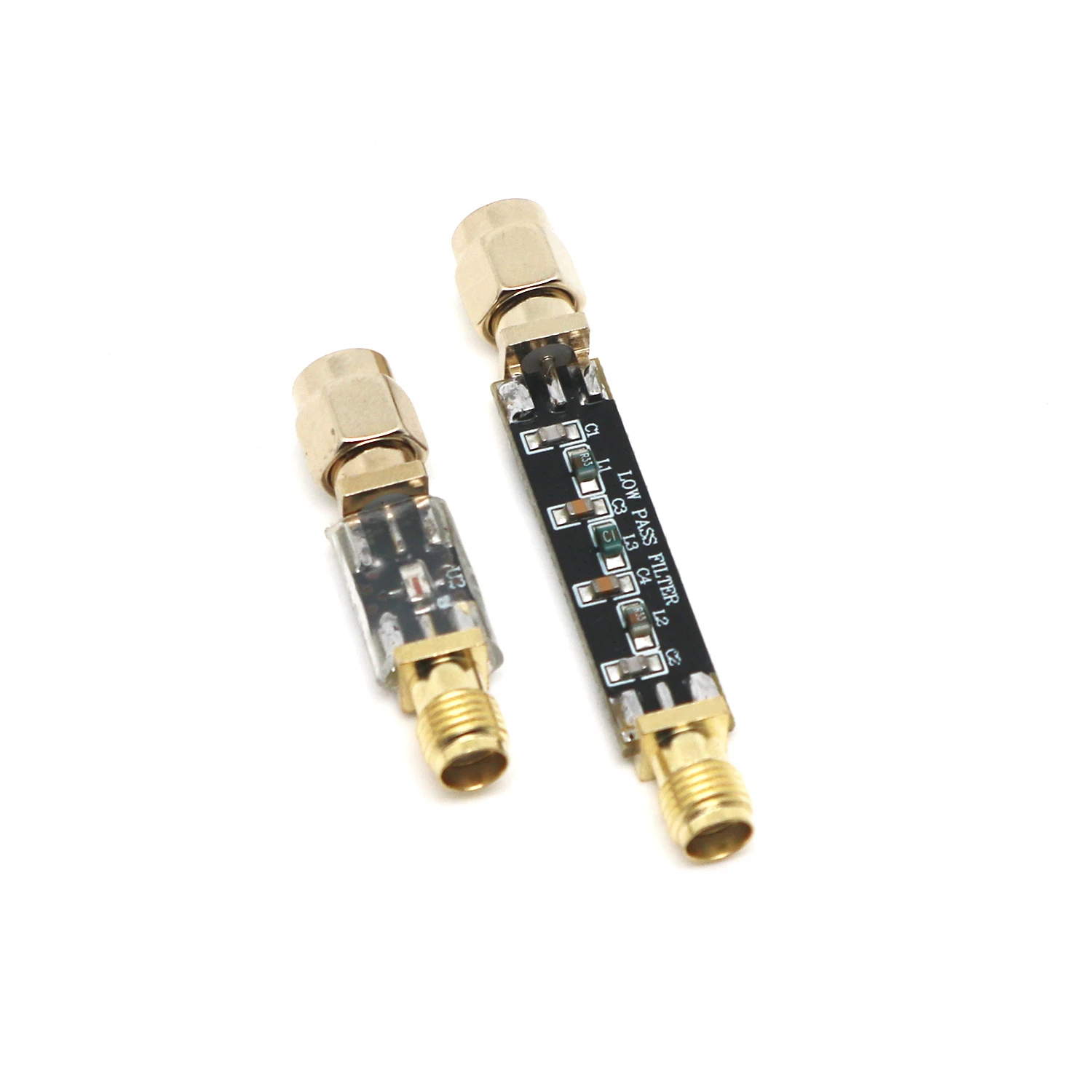

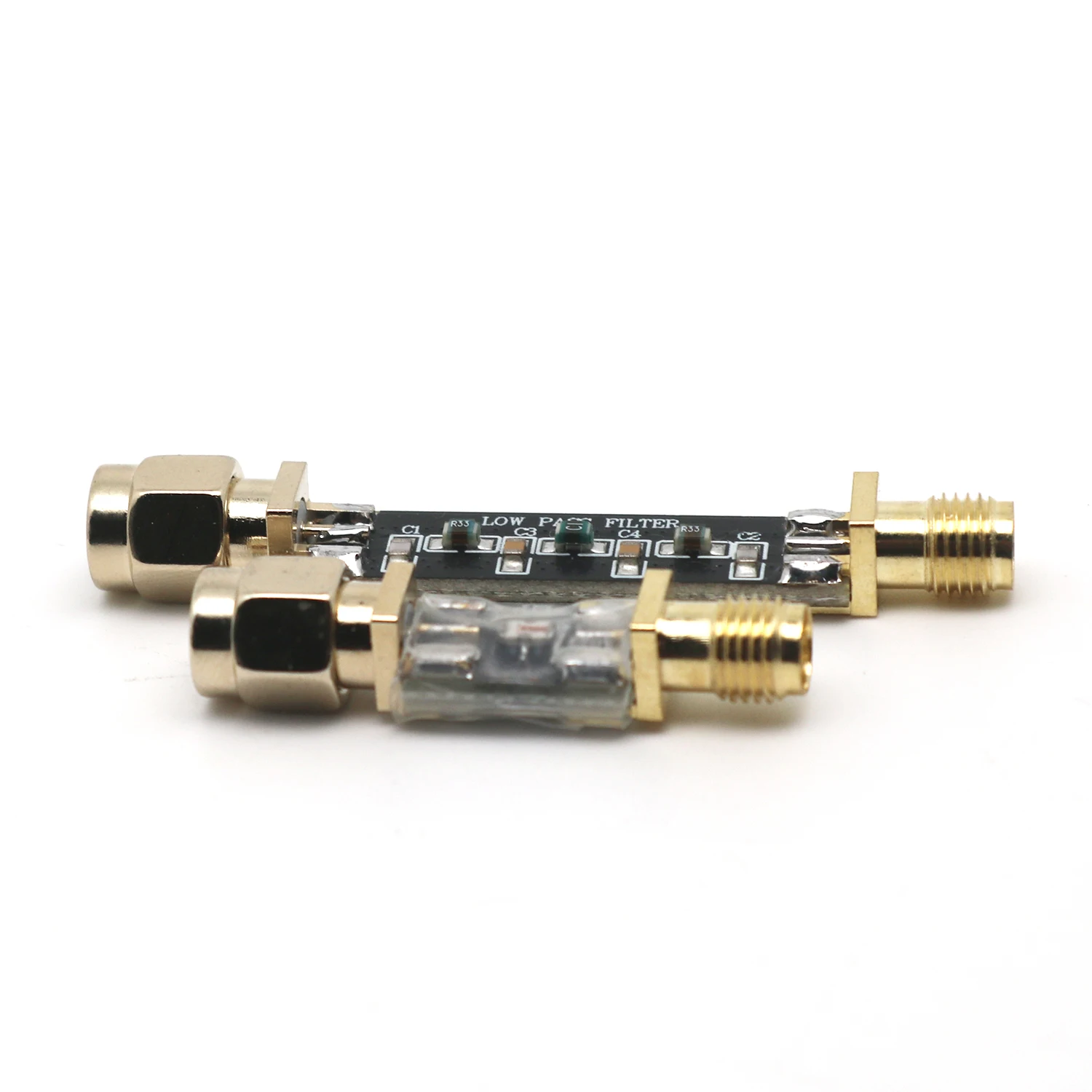

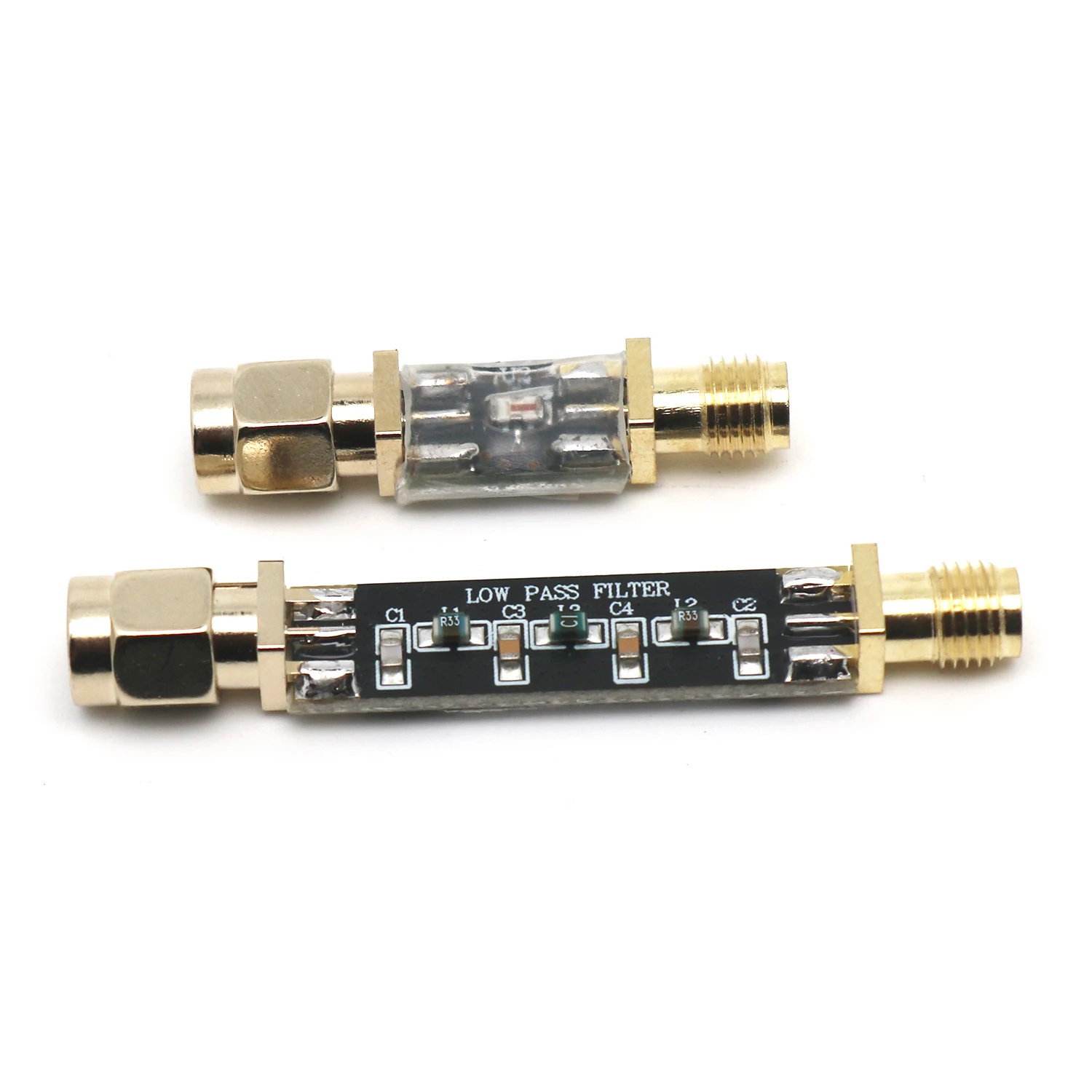

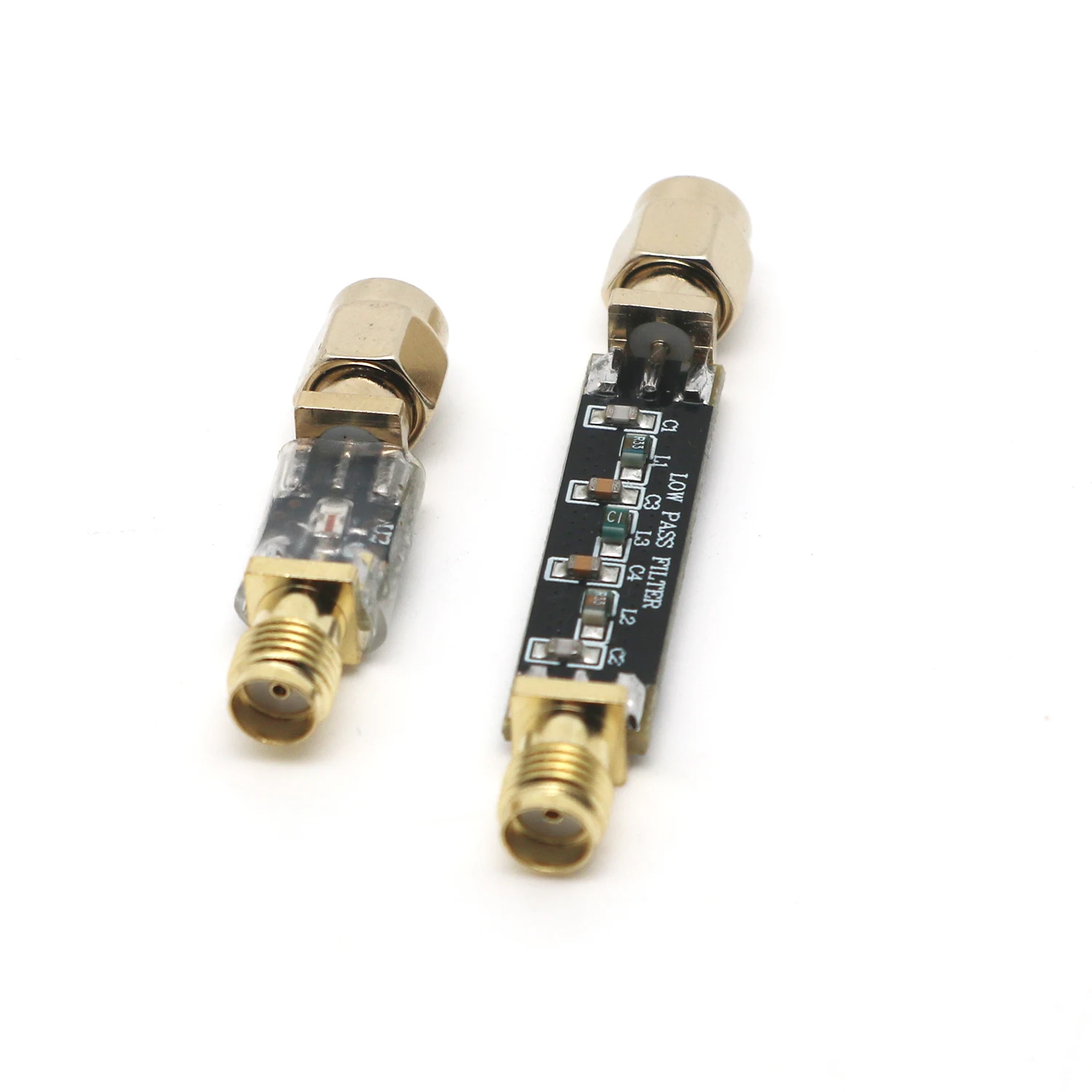

RF Low Pass Filter LPF 30Mhz/100Mhz/200Mhz/500Mhz/800Mhz/1000Mhz/1200Mhz/1400Mhz/2000Mhz/2400Mhz Signal Radio Frequency LC

Sma RF LPF Low Pass Filter 30Mhz/100Mhz/200Mhz/500Mhz/800Mhz/1000Mhz/1200Mhz/1400Mhz/2000Mhz/2400Mhz Signal frequency LC FILTER FOR Radio Amplifier transmitters

Attention: We will ship according to your selection

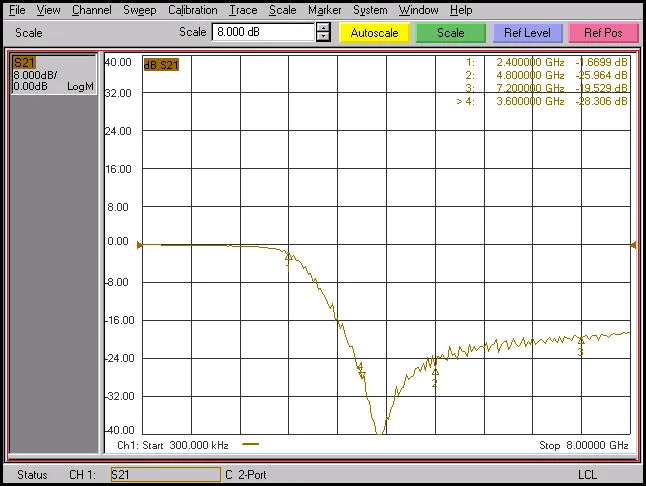

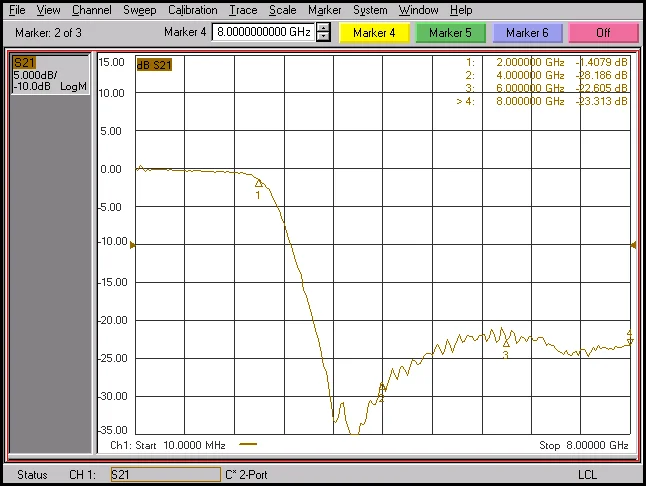

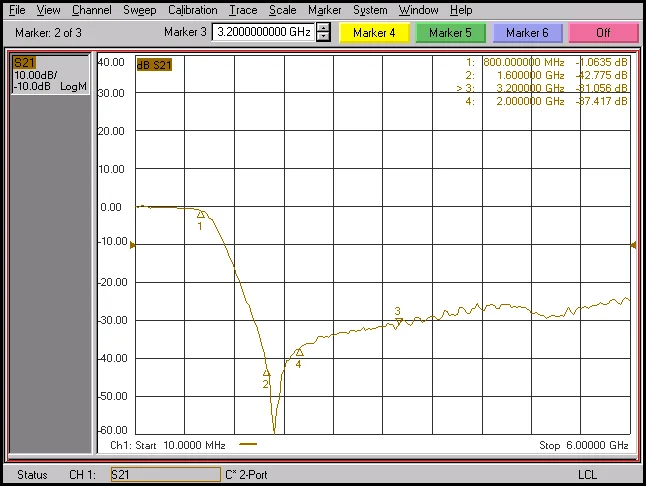

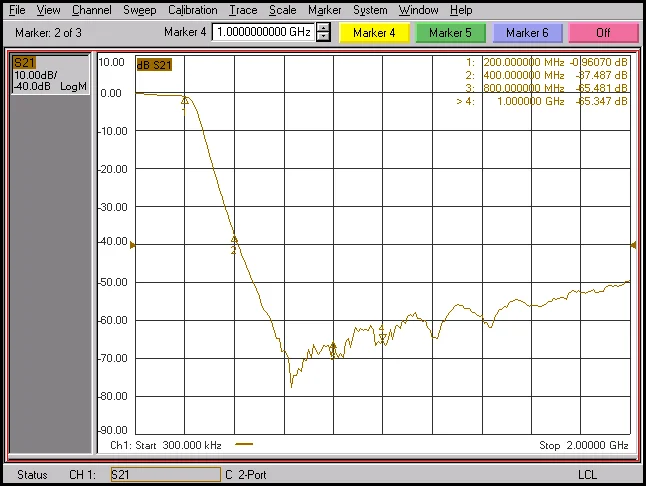

Our advertising test curve chart and video reference

Please refer to the advertising parameters before purchasing

Application:

Harmonic rejection

transmitters/receivers

Anti-aliasing for A/D converter

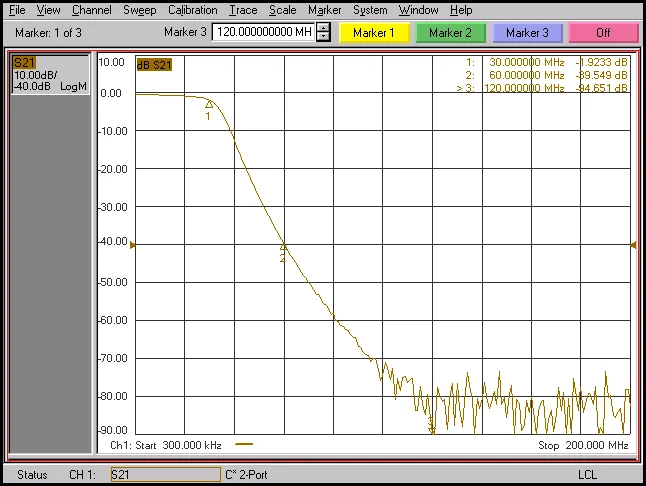

30M Low pass filter:

Module parameters:

Operating frequency: DC-30MHz;

Insertion loss: ≤2.0dB@30MHz;

Input-output standing wave: ≤1.5;

Input and output impedance: 50 ohms;

Power capacity: 2W;

Out-of-band suppression: See test curve;

Input/output interface: SMA-M,SMA-F;

Module size: 54.5*13.5*8mm;

Note: Modules have no input or output;

100M low pass filter:

Module parameters:

Operating frequency: DC-100MHz;

Insertion loss: ≤1.3dB@30MHz;

Input-output standing wave: ≤1.5;

Input and output impedance: 50 ohms;

Power capacity: 2W;

Out-of-band suppression: See test curve;

Input/output interface: SMA-M,SMA-F;

Module size: 54.5*13.5*8mm;

Note: Modules have no input or output;

200M low-pass filter:

Module parameters:

Operating frequency: DC-200MHz;

Insertion loss: ≤1.0dB@30MHz;

Input-output standing wave: ≤1.5;

Input and output impedance: 50 ohms;

Power capacity: 2W;

Out-of-band suppression: See test curve;

Input/output interface: SMA-M,SMA-F;

Module size: 54.5*13.5*8mm;

Note: Modules have no input or output;

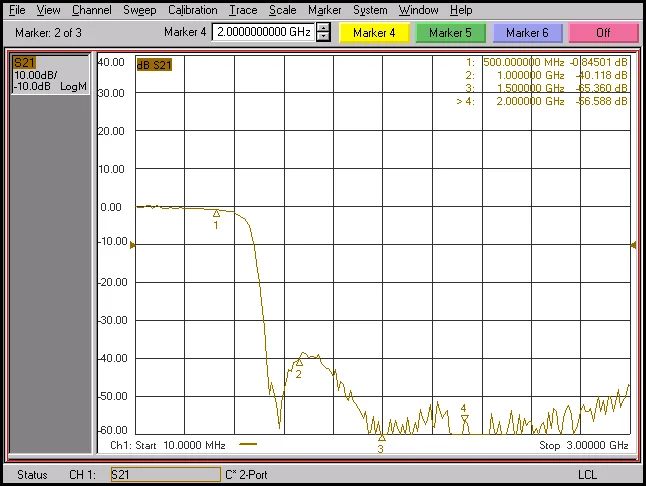

500M low pass filter:

Module parameters:

Operating frequency: DC-500MHz;

Insertion loss: ≤1.0dB@500MHz;

Input-output standing wave: ≤1.2;

Input and output impedance: 50 ohms;

Power capacity: 8W;

Out-of-band suppression: See test curve;

Input/output interface: SMA-M,SMA-F;

Module size: 35*8.5*8mm;

Note: The module has no input and output, and can be used in two cascades to improve out-of-band signal suppression;

800M low-pass filter:

Module parameters:

Operating frequency: DC-800MHz;

Insertion loss: ≤1.0dB@800MHz;

Input-output standing wave: ≤1.2;

Input and output impedance: 50 ohms;

Power capacity: 8W;

Out-of-band suppression: See test curve;

Input/output interface: SMA-M,SMA-F;

Module size: 35*8.5*8mm;

Note: The module has no input and output, and can be used in two cascades to improve out-of-band signal suppression;

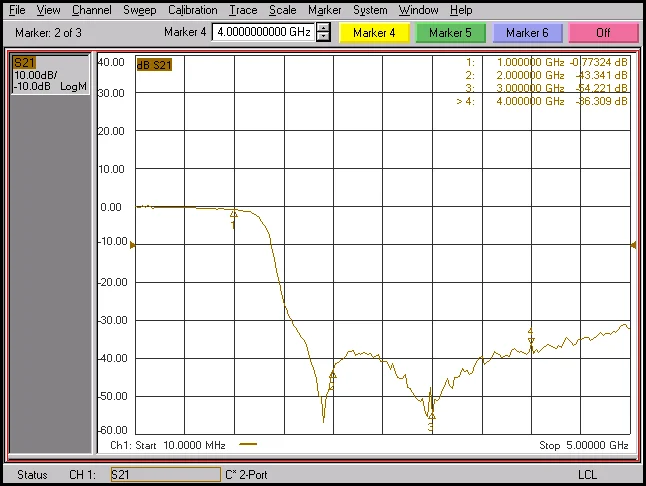

1000M low-pass filter:

Module parameters:

Operating frequency: DC-1000MHz;

Insertion loss: ≤1.0dB@1000MHz;

Input-output standing wave: ≤1.3;

Input and output impedance: 50 ohms;

Power capacity: 10W;

Out-of-band suppression: See test curve;

Input/output interface: SMA-M,SMA-F;

Module size: 35*8.5*8mm;

Note: The module has no input and output, and can be used in two cascades to improve out-of-band signal suppression;

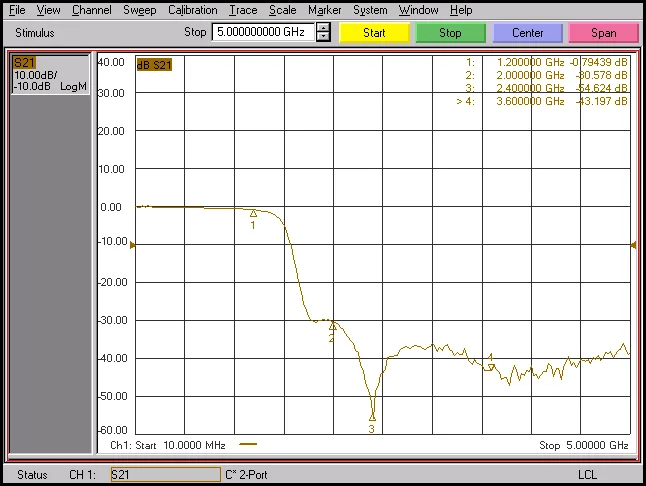

1200M low-pass filter:

Module parameters:

Operating frequency: DC-1200MHz;

Insertion loss: ≤1.0dB@1200MHz;

Input-output standing wave: ≤1.2;

Input and output impedance: 50 ohms;

Power capacity: 10W;

Out-of-band suppression: See test curve;

Input/output interface: SMA-M,SMA-F;

Module size: 35*8.5*8mm;

Note: The module has no input and output, and can be used in two cascades to improve out-of-band signal suppression;

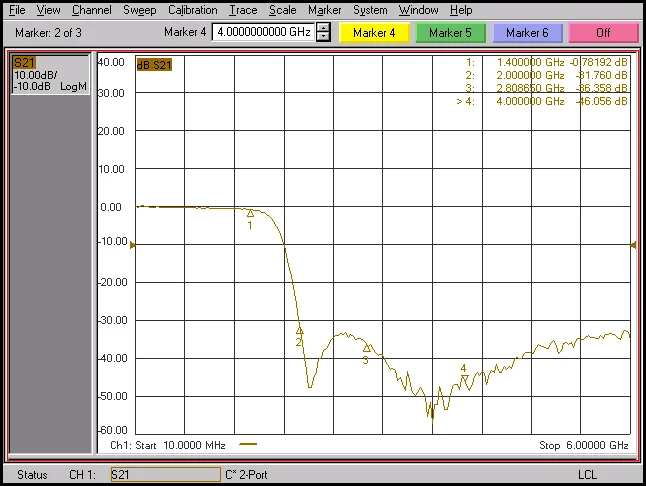

1500M Low pass filter:

Module parameters:

Operating frequency: DC-1500MHz;

Insertion loss: ≤1.0dB@1500MHz;

Input-output standing wave: ≤1.2;

Input and output impedance: 50 ohms;

Power capacity: 10W;

Out-of-band suppression: See test curve;

Input/output interface: SMA-M,SMA-F;

Module size: 35*8.5*8mm;

Note: The module has no input and output, and can be used in two cascades to improve out-of-band signal suppression;

2000M low-pass filter:

Module parameters:

Operating frequency: DC-2000MHz;

Insertion loss: ≤1.5dB@2000MHz;

Input-output standing wave: ≤1.3;

Input and output impedance: 50 ohms;

Power capacity: 10W;

Out-of-band suppression: See test curve;

Input/output interface: SMA-M,SMA-F;

Module size: 35*8.5*8mm;

Note: The module has no input and output, and can be used in two cascades to improve out-of-band signal suppression;

2.4G low-pass filter:

Module parameters:

Operating frequency: DC-2400MHz;

Insertion loss: ≤1.7dB@2400MHz;

Input-output standing wave: ≤1.3;

Input and output impedance: 50 ohms;

Power capacity: 10W;

Out-of-band suppression: See test curve;

Input/output interface: SMA-M,SMA-F;

Module size: 35*8.5*8mm;

Note: The module has no input and output, and can be used in two cascades to improve out-of-band signal suppression;
