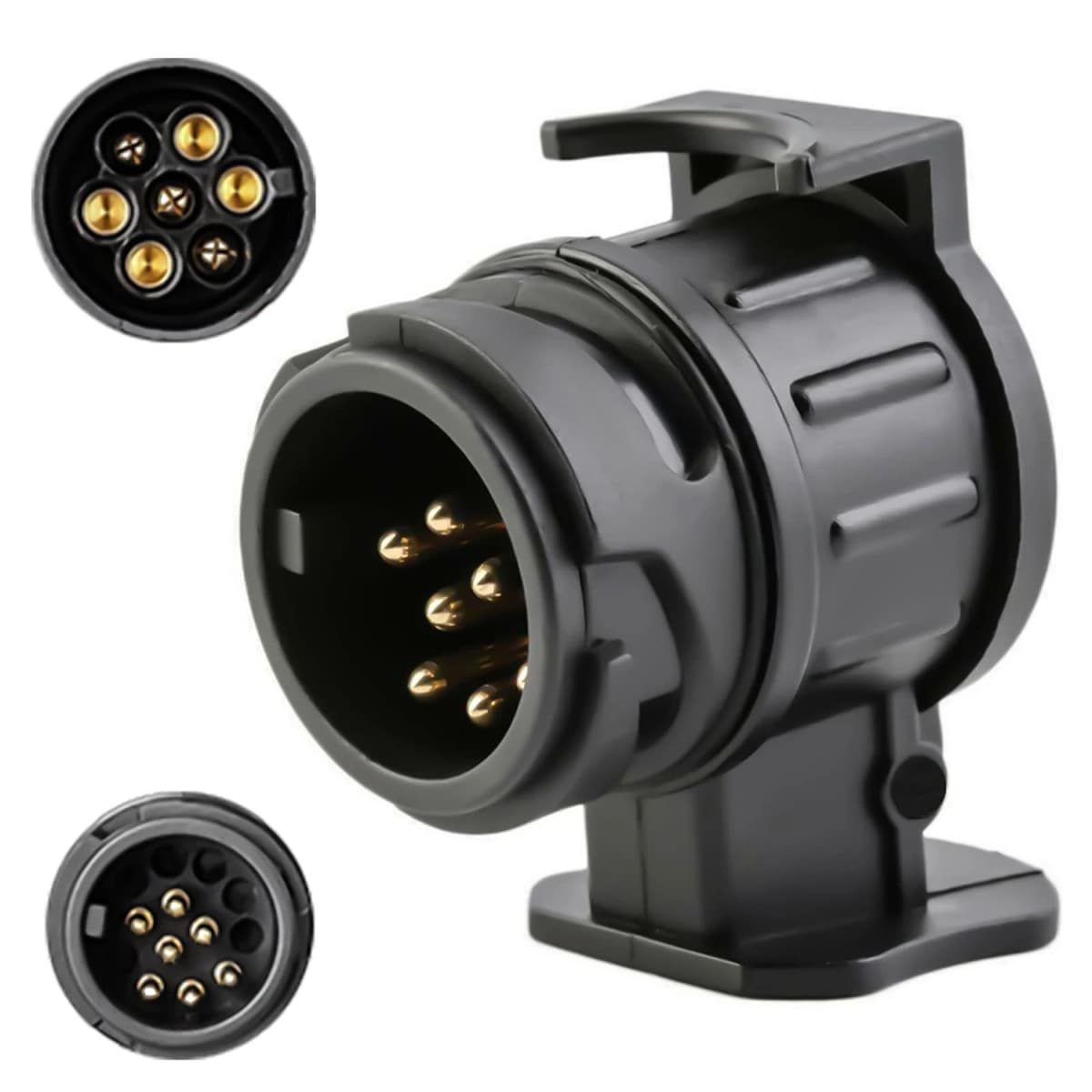

13 Pin to 7 Pin Trailer Adaptor Caravan Truck Towbar Car Towing Plug Adapter 12V Waterproof Electric Socket Converter Connector

Feature

Suitable for European standard trailer.

Supplies power to your caravan, towing and truck.

Converts the 13-pin socket on your car to the 7-pin female socket.

Establishes a secure connection between your major vehicle and the additional trailer; Transfers the electronic signal lights from the vehicle to trailer.

Weather proof sprung locking flap protects the connections when not in use and locks in the 7 pin plug when in use.

7 Pin Lighting Connections - 12 N Black Cable Function

PIN 1 - Yellow Wire (Left/H Direction Indicator)

PIN 2 - Blue Wire ( Rear Fog Lamps )

PIN 3 - White Wire ( Earth Return )

PIN 4 - Green Wire (Right/H Direction Indicator)

PIN 5 - Brown Wire (Right/H Tail & No. Plate Lamp )

PIN 6 - Red Wire (Brake lights)

PIN 7 - Black Wire (Left/H Tail & No. Plate Lamp )

13 Pin Lighting Connections - Cable Function

Pin1 - Yellow Wire ( Left Indicator )

Pin2 - Blue Wire ( Fog Light )

Pin3 - White Wire ( Earth Return )

Pin4 - Green Wire ( Right Indicator )

Pin5 - Brown Wire ( Right tail / Side Light )

Pin6 - Red Wire ( Brake / Stop Lights )

Pin7 - Black Wire ( Left tail / Side Light )

Pin8 - Pink Wire ( Reversing Light )

Pin9 - Orange Wire ( 12V Pemanent power from battery )

Pin10 - Grey Wire ( 12V Ignition on ( Battery charging or Fridge )

Pin11 - White / Black Wire ( Earth for Teminal 10 )

Pin 12 - White / Blue Wire ( NOT usually used )

Pin 13 - White / Red Wire ( Earth for Teminal 9 )
