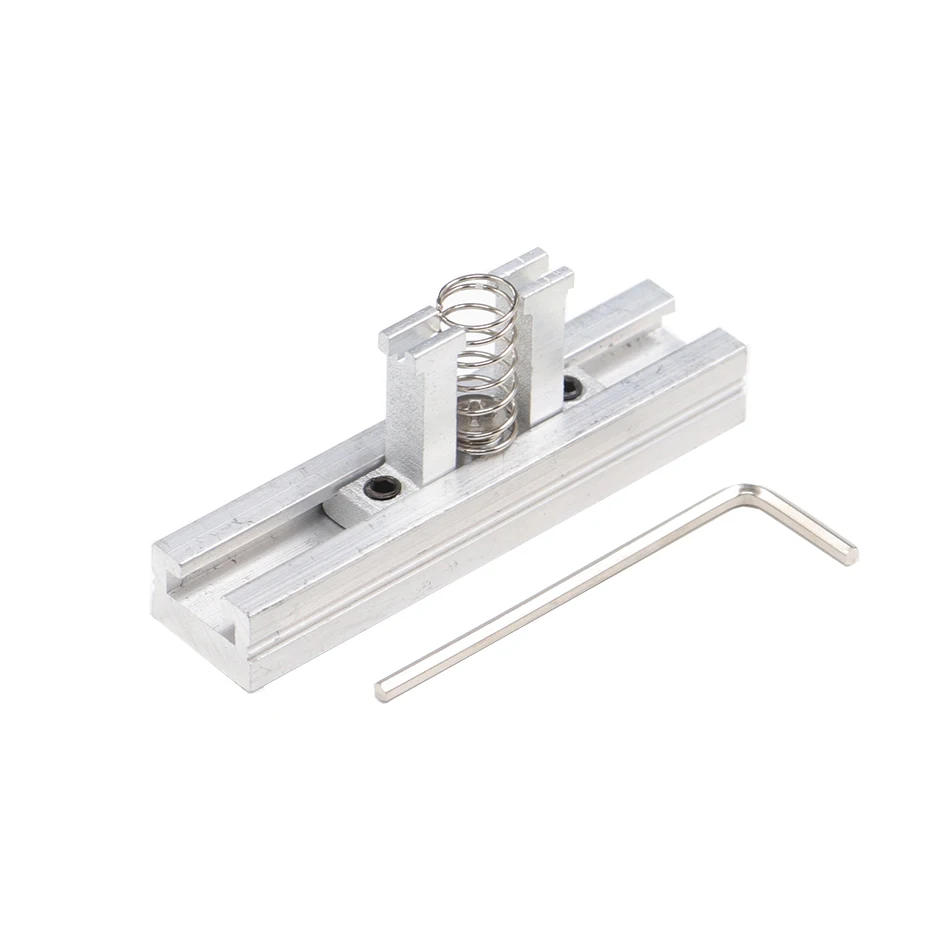

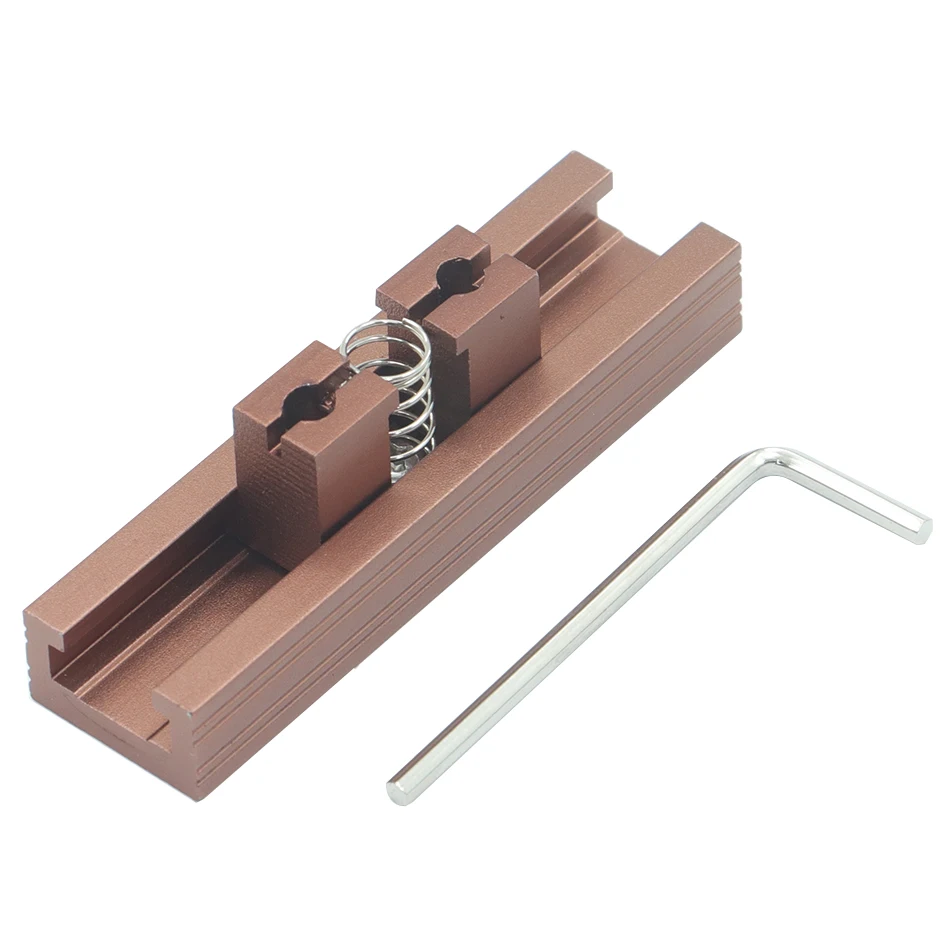

BGA general template 10Pcs /16pcs/27pcs Universal Direct Heated Stencils For SMT SMD Chip Rpair and easy support

Features:

Made of imported stainless steel plate. Good stencil thickness.

Can be directly heated by air gun, steel mesh is not easy to deformation by heat.

Each set of 27 pieces. Basically covers the current common BGA chip.

Steel mesh area and BGA chip area matching, can reduce the waste of solder ball.

But for chip that solder balls uneven arranged or has different distance, please consider buying.

Universal direct heat BGA stencils for notebooks, desktops, XBOX, North and communications motherboards and other graphics cards and other types of BGA chip

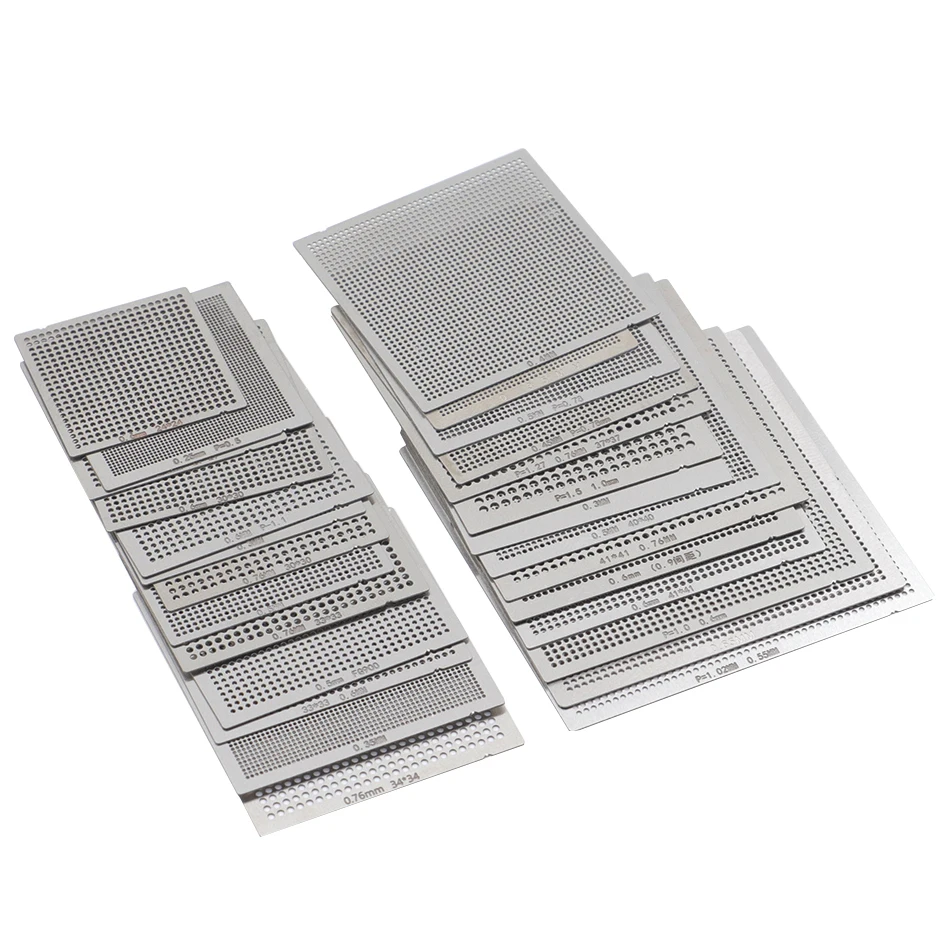

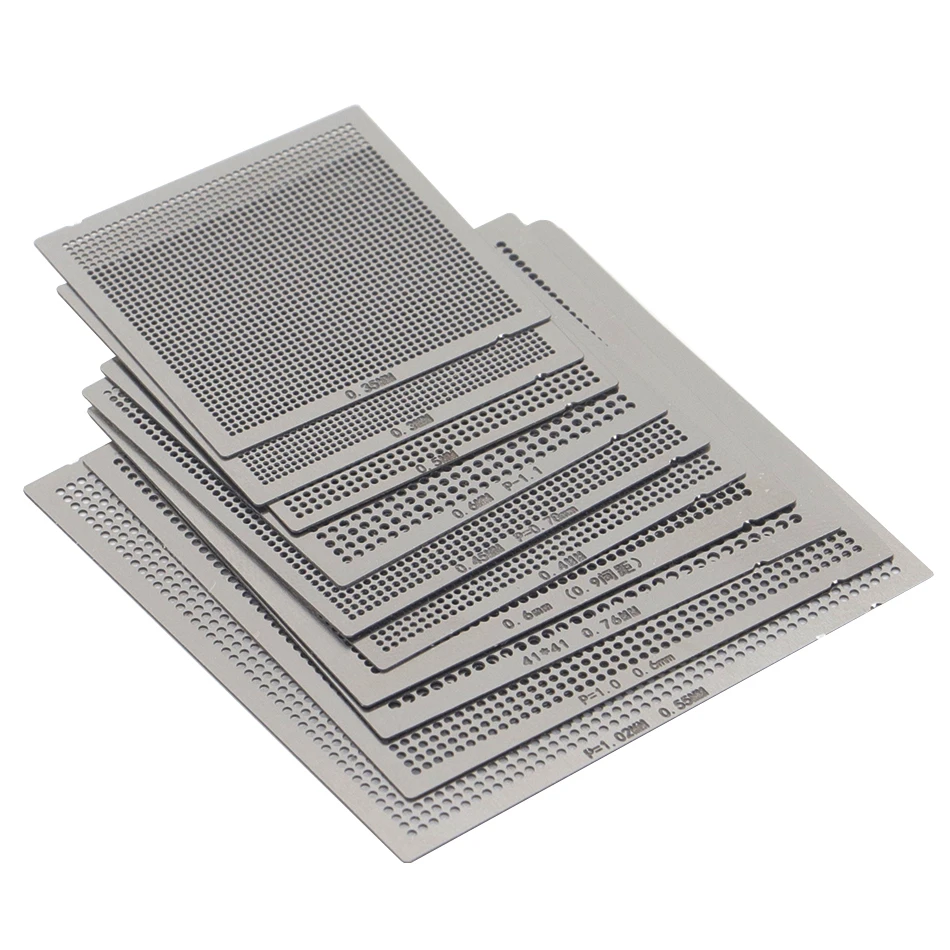

10pcs stencils are as follows:

【1pc】0.3 universal stencil(P=0.58mm)

【1pc】0.35 universal stencil(P=0.65mm)

【1pc】0.4 universal stencil(P=0.7mm)

【1pc】0.45 universal stencil(P=0.78mm)

【1pc】0.5 universal stencil(P=0.8mm)

【1pc】0.55 universal stencil(P=1.02mm)

【3pc】0.6 universal stencil(P=0.9mm,P=1.0mm,P=1.1mm)

【1pc】0.76 universal stencil(P=1.27mm)

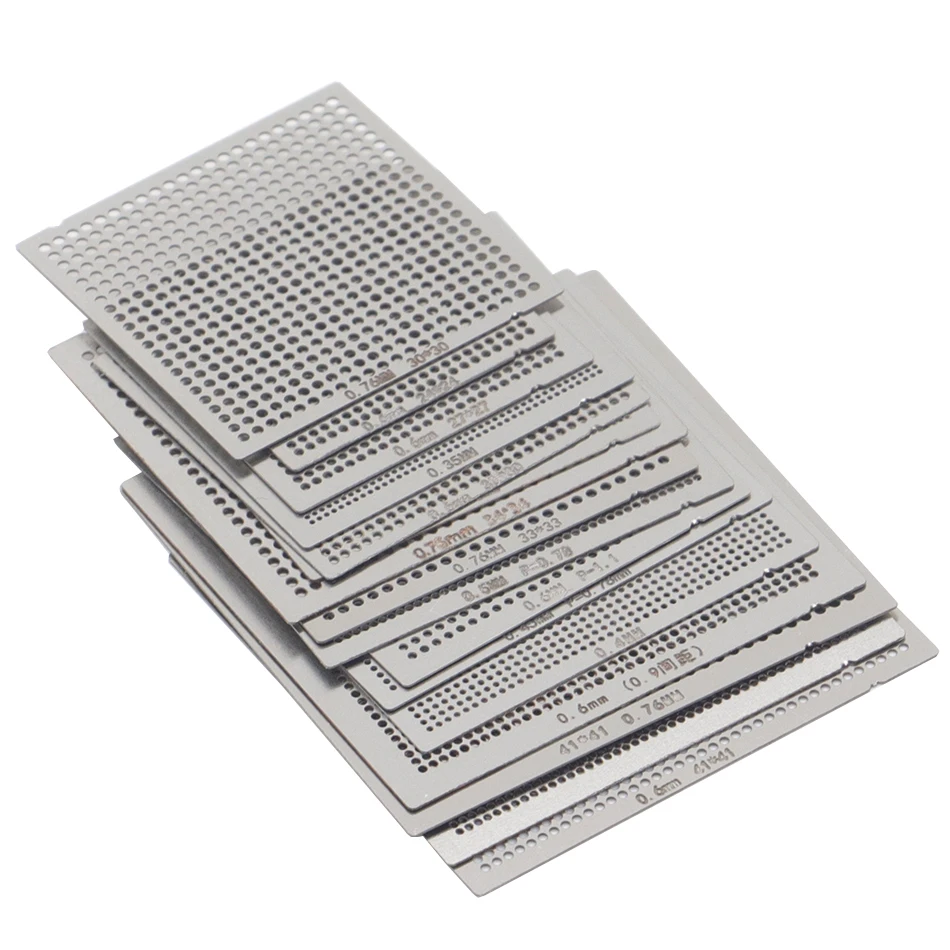

16pcs stencils are as follows:

【1pc】0.3 universal stencil(P=0.58mm)

【1pc】0.35 universal stencil(P=0.6mm)

【1pc】0.4 universal stencil(P=0.7mm)

【1pc】0.45 universal stencil(P=0.78mm)

【1pc】0.5 universal stencil(P=0.78mm)

【2pc】0.6 universal stencil(P=0.9mm,P=1.1mm)

【1pc】0.5 universal stencil(P=0.8mm)

40mm*40mm

【4pcs】0.6 universal stencil(P=0.99mm)

24mm*24mm，27mm*27mm，30mm*30mm，41mm*41mm

【4pcs】0.76 universal stencil(P=1.27mm)

30mm*30mm，33mm*33mm，34mm*34mm，41mm*41mm

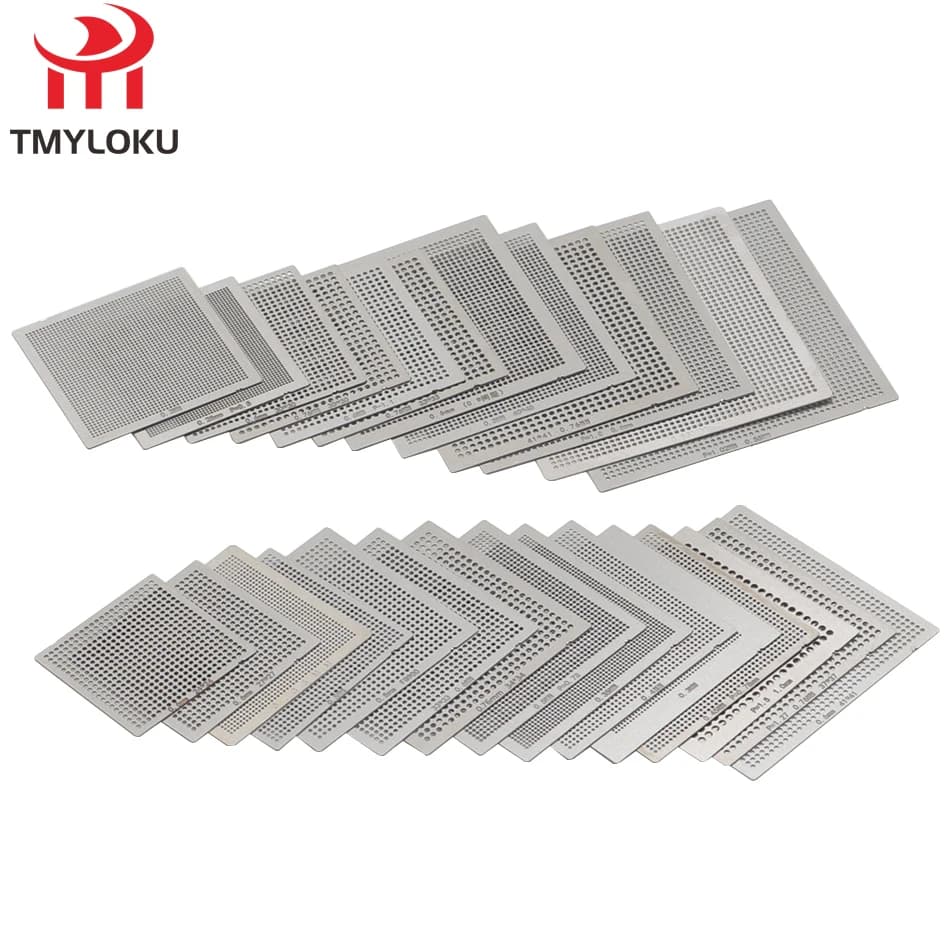

27pcs stencils are as follows:

【1pc】0.25 universal stencil(P=0.5mm)

【1pc】0.3 universal stencil(P=0.5mm)

【1pc】0.3 universal stencil(P=0.58mm)

【1pc】0.35 universal stencil(P=0.6mm)

【1pc】0.35 universal stencil(P=0.65mm)

【1pc】0.4 universal stencil(P=0.7mm)

【1pc】0.45 universal stencil(P=0.78mm)

【1pc】0.5 universal stencil(P=0.78mm)

【1pc】0.5 universal stencil(P=0.8mm)

【1pc】0.5 universal stencil(P=0.81mm)

【1pc】0.55 universal stencil(P=1.02mm)

【3pc】0.6 universal stencil(P=0.9mm,P=1.0mm,P=1.1mm)

【1pc】0.65 universal stencil(P=1.0mm)

【1pc】0.76 universal stencil(P=1.27mm)

【1pc】1.0 universal stencil(P=1.5mm)

【5pcs】0.6 universal stencil(P=0.99mm)

24mm*24mm 27mm*27mm 30mm*30mm 33mm*33mm 41mm*41mm

【5pcs】0.76 universal stencil(P=1.27mm)

30mm*30mm 33mm*33mm 34mm*34mm 37mm*37mm 41mm*41mm
