BMS 7S 24V 15A 20A 25A Li-ion Lmo Ternary Lithium 18650 Battery Charge Protection Board Balance And NTC Temperature Protect

Balanced BMS 7S 24V 15A 20A 25A Ternary Lithium 18650 Battery Protection Board with Equalization and Temperature Protection

Product features:

-Exquisite process and stable heat dissipation

-Overvoltage protection Overdischarge protection

-Charging protection Short circuit protection

-Over current protection Over temperature protection

-Charging equalization disconnection protection

Product parameters:

-Type: ternary/7S/24V

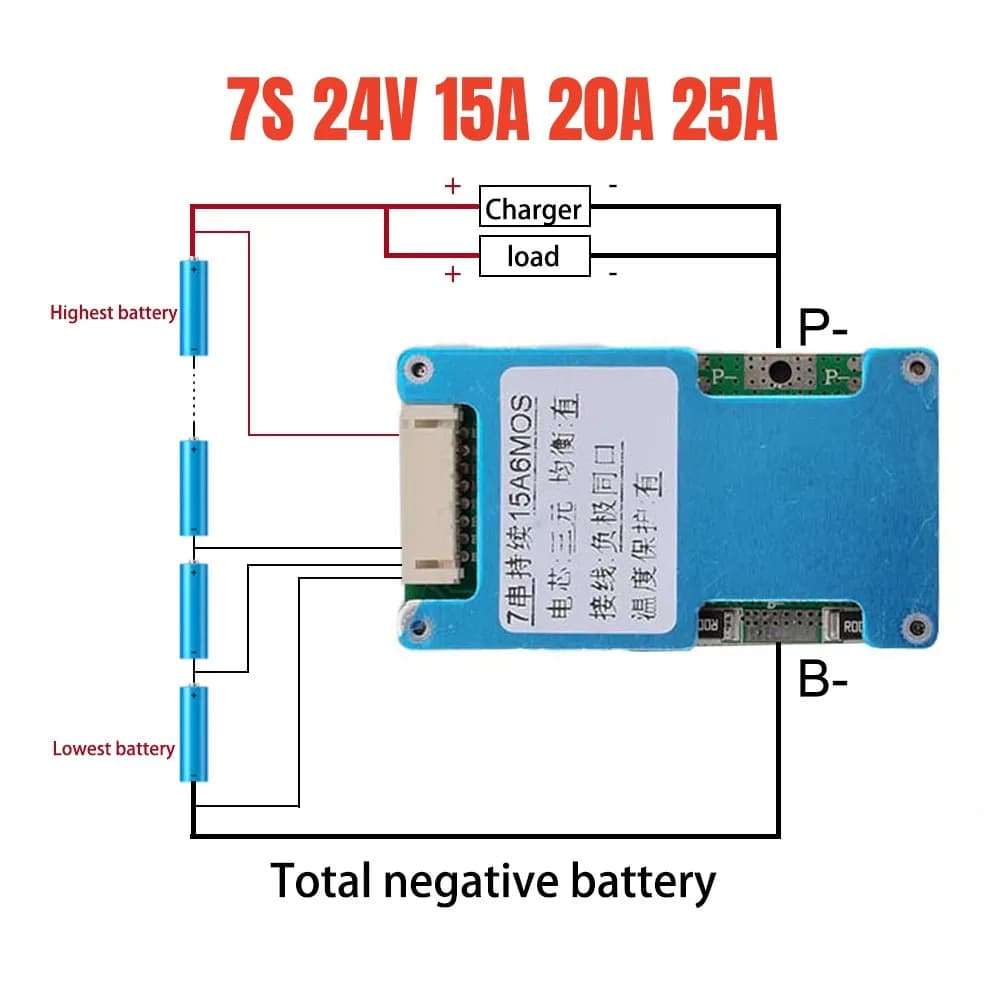

-Wiring mode: same port

-Overdischarge voltage of single battery: 2.7V ± 0.08V

-Continuous working current: 25/20/15A (optional)

-Instantaneous protection current: 60A

-Overcurrent recovery condition: charge recovery or load disconnection

-Short circuit recovery condition: charge recovery or load disconnection

-Overcharge voltage of single battery: 4.25V ± 0.025V

-Continuous charging current: 20/15/10A (optional)

-Charging equalization voltage: 4.15V ± 0.025V

-Charging equalizing current: 40mA

-Charger voltage: 30V (recommended)

-Charging over temperature: 50 ℃

-Discharge overtemperature: 70 ℃

-Working power consumption: 30 μ A

-Internal resistance of main circuit conduction: 20m Ω

-Temperature range: - 40 to+80 ℃

-Wire break protection: Yes

-Size of flat cable: 2.0MM space/40CM length

Delivery list:

Lithium battery protection board X1

Flat cable X1
