XT60 XT30 20A Bidirectional DC Voltage Current Meter RC Battery Charger Discharger Tester Volt Ammeter Lead-acid Lifepo4 BMS

20A/4A 3.5V-48V Bidirectional DC Voltage Current RC Charger Charging Discharging Tester Voltmeter Ammeter display LED digital 5V 12V 15V 24V 36V 48V lithium battery

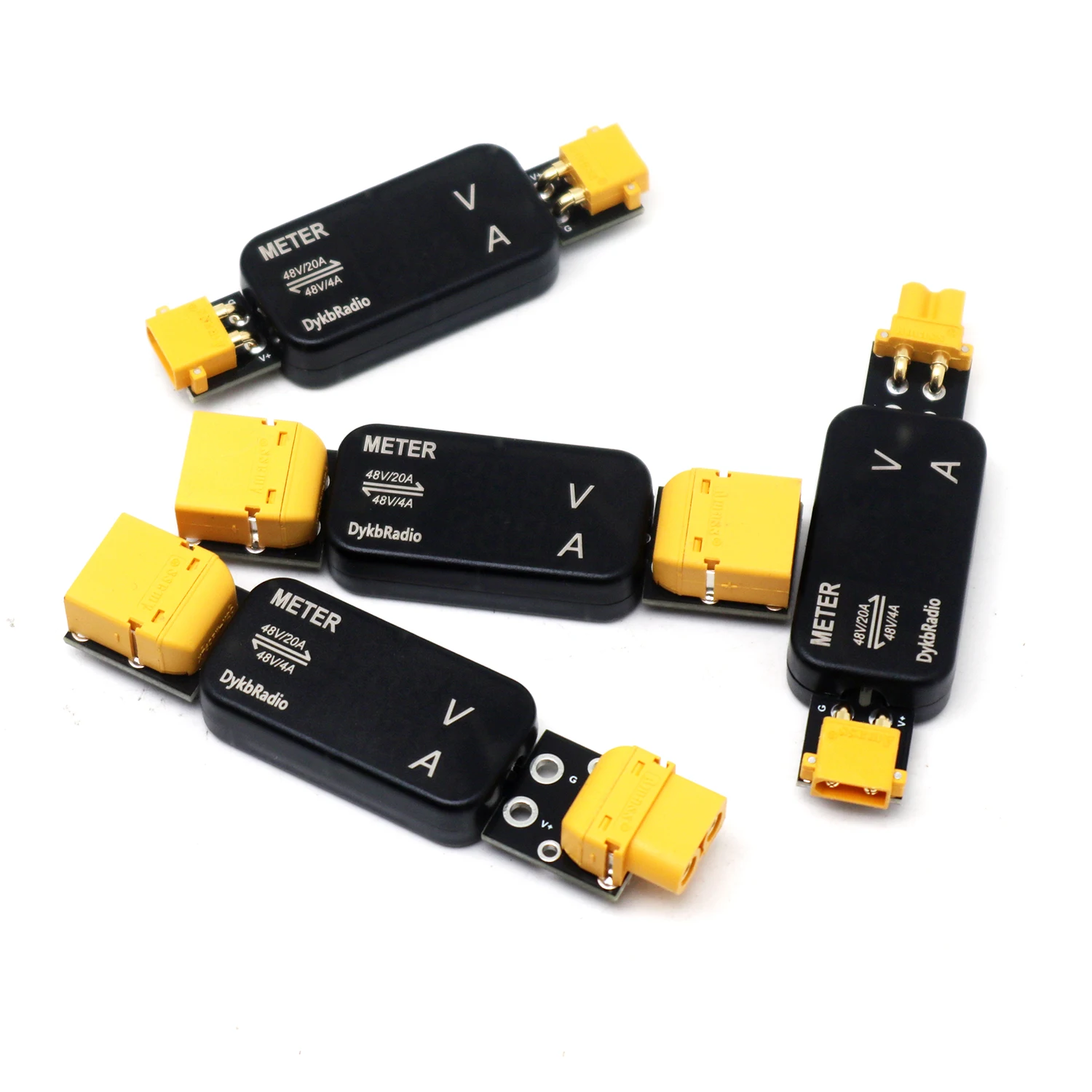

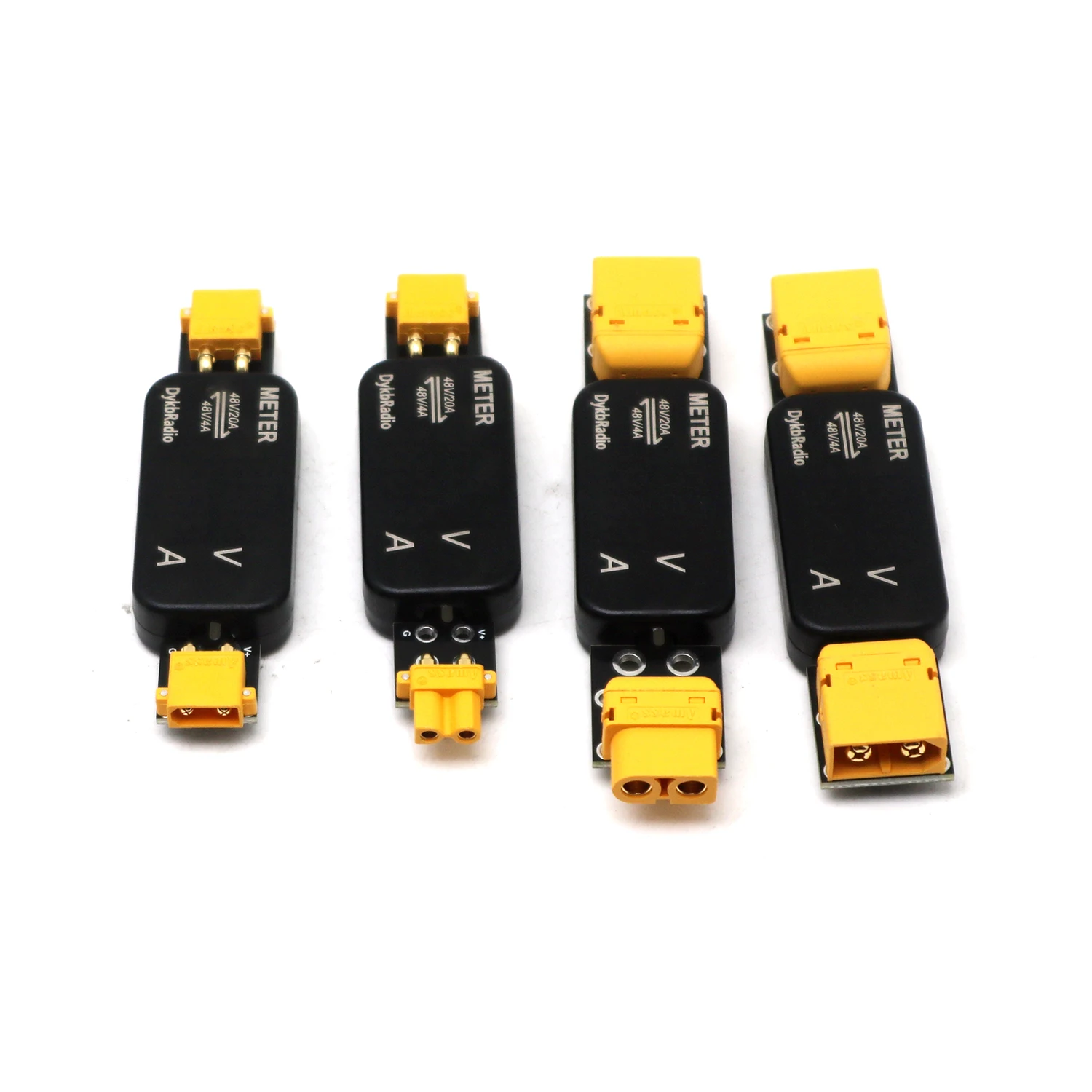

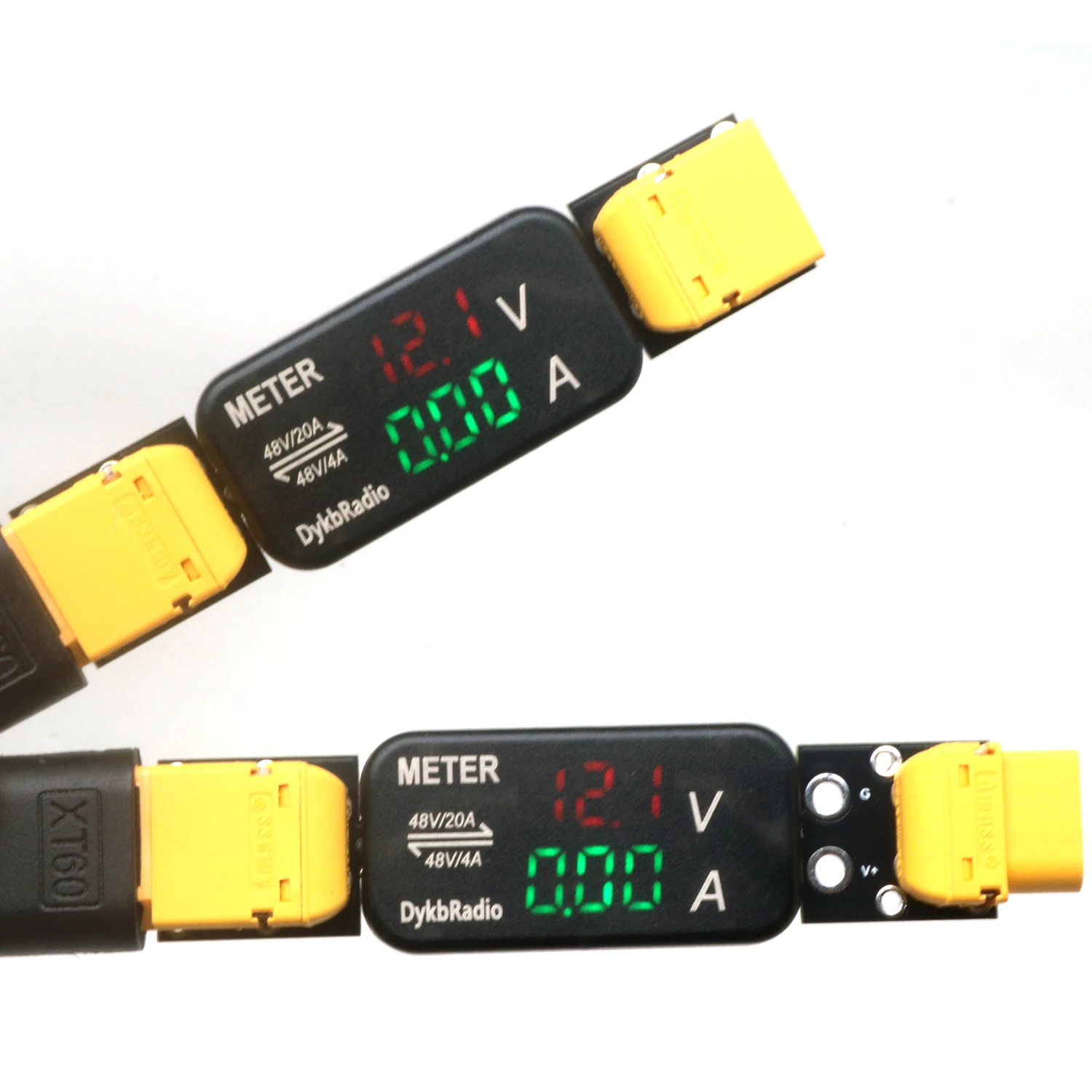

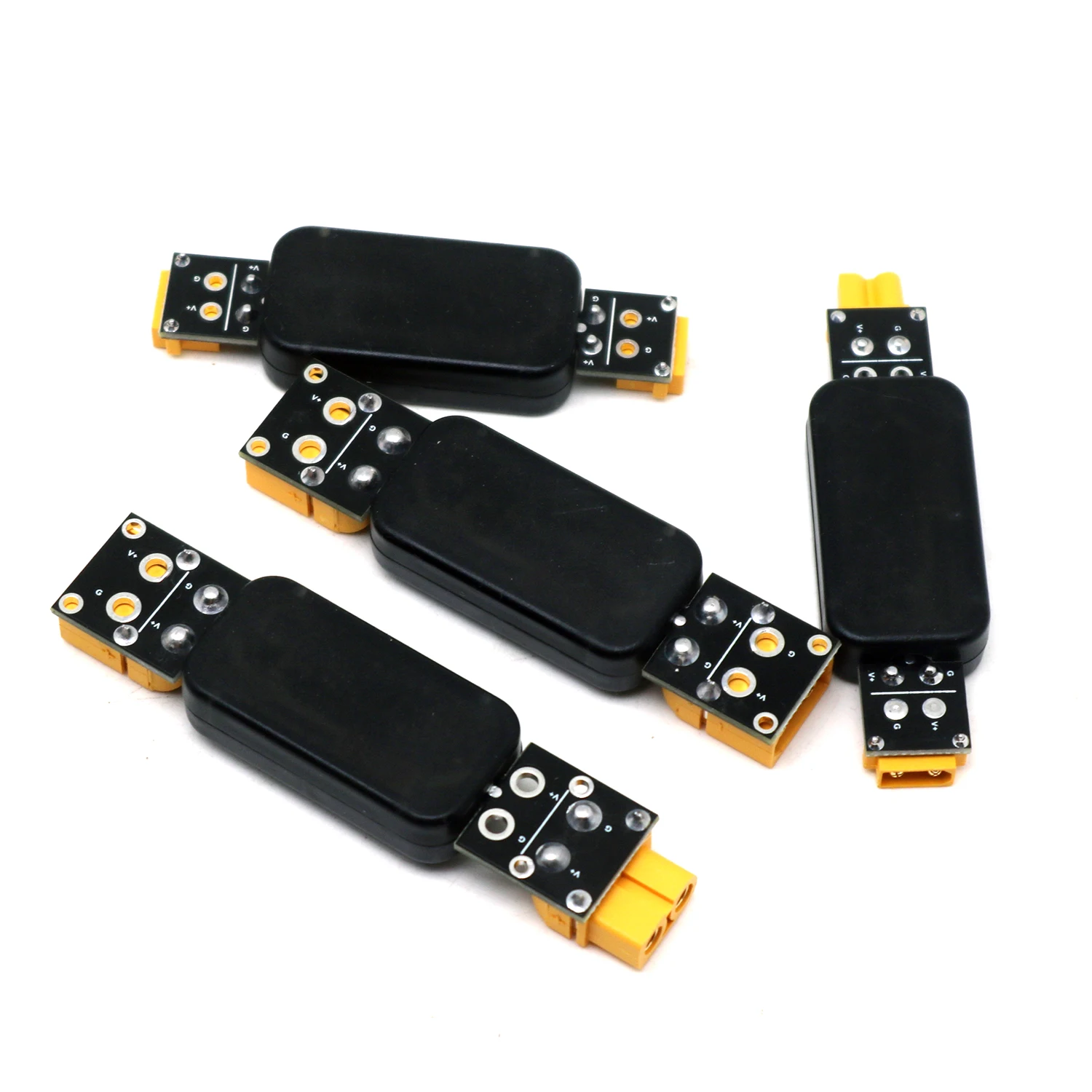

DC Meter XT30/XT60 Bidirectional voltage ammeter module. The module supports voltage and current detection of lithium batteries/lead-acid batteries, etc. It is often used for charging and discharging monitoring of model aircraft batteries such as vehicles/ships/aircraft. It is also often used in industrial workshops, scientific research laboratories, home electricity monitoring and other scenarios.

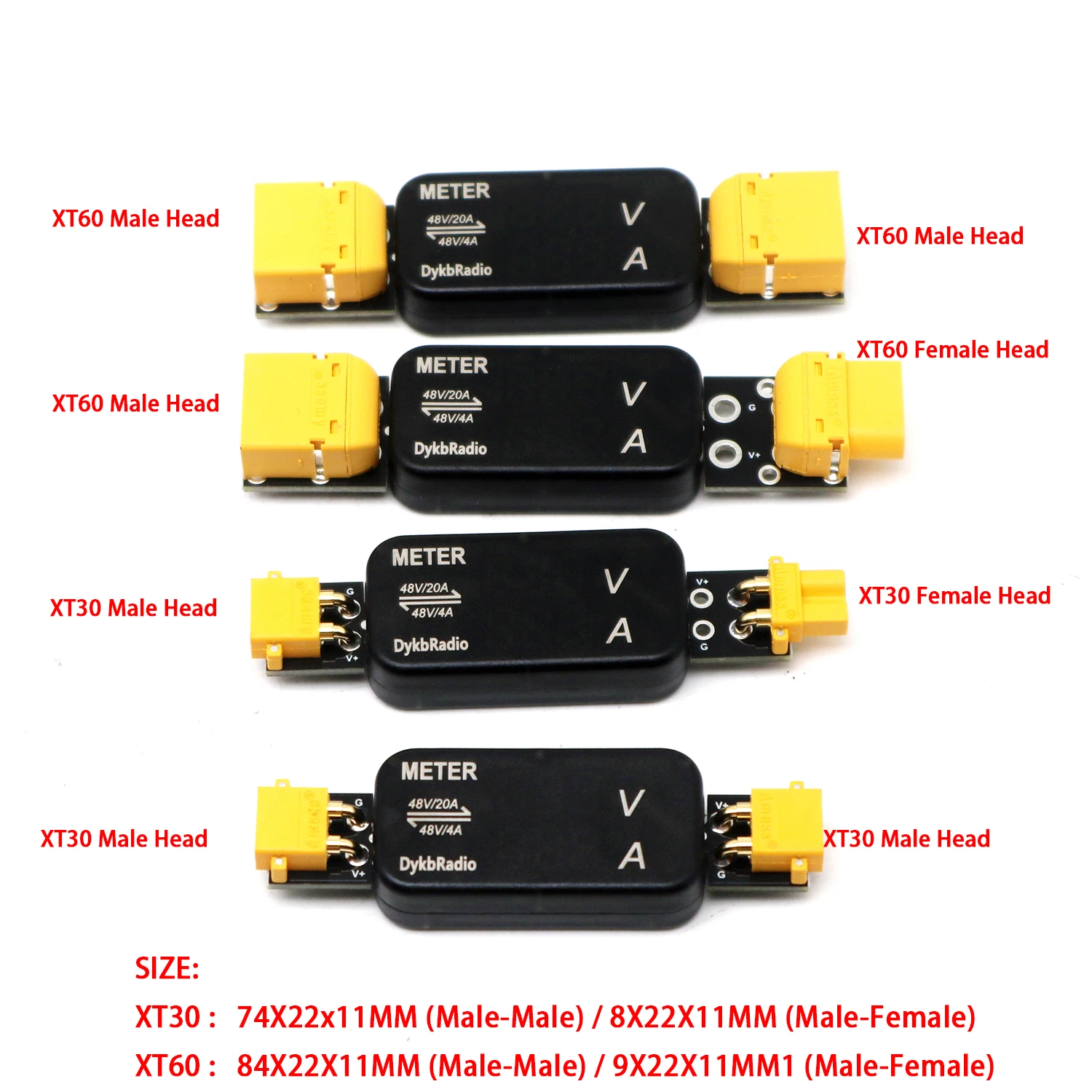

SIZE:

XT30 : 74X22x11MM (Male-Male) / 8X22X11 (Male-Female)

XT60 : 84X22X11MM (Male-Male) / 9X22X11 (Male-Female)

LED Color : RED + Green (customizable)

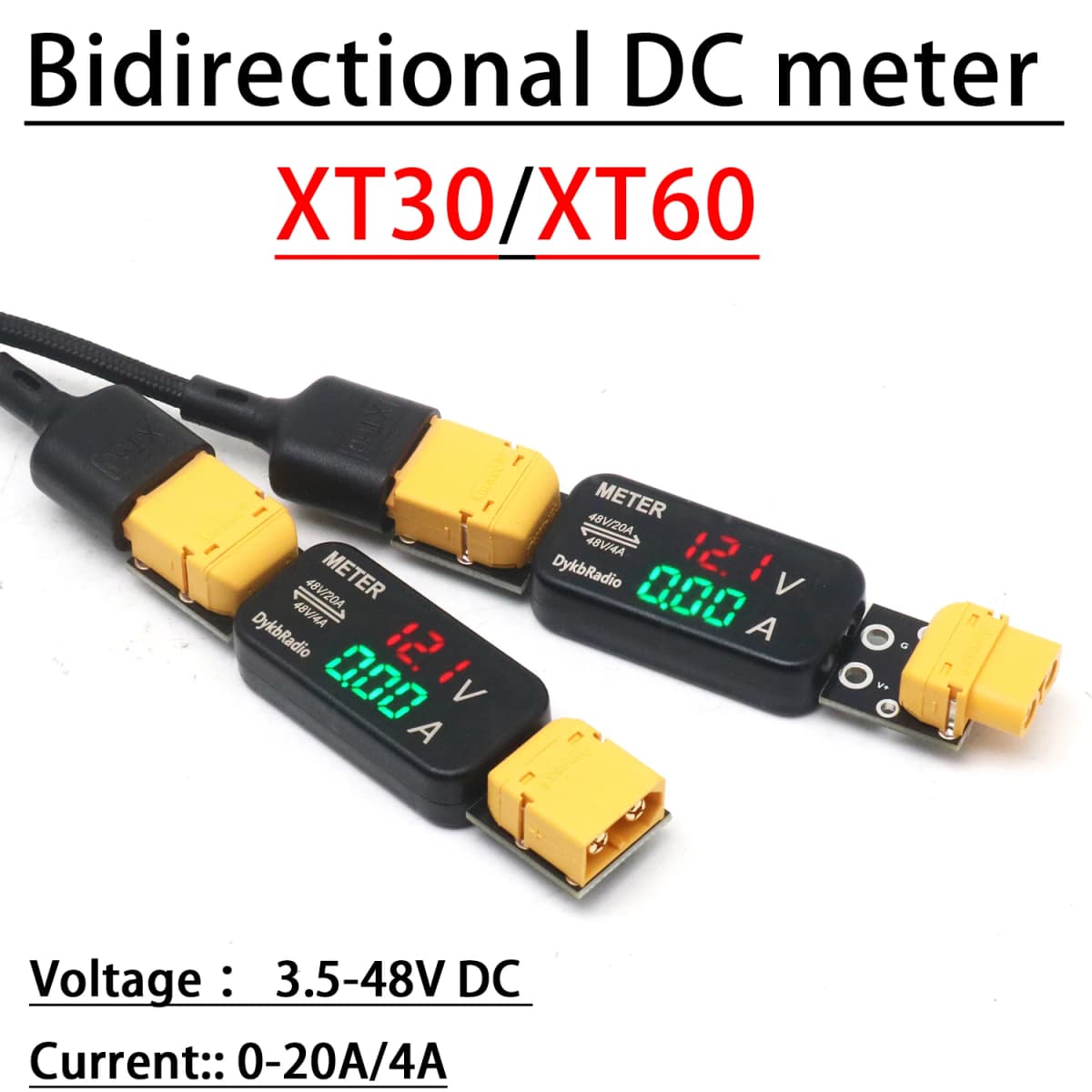

Range 3.5V-48V, 0.01A-20.00A /4.00A

Output Current: Forward discharge 20A/ Reverse charge 4A(MAX)

Interface:XT30/XT60 （Male Female head）

Automatic range switching: 3.50V-9.99V / 10.0V-50.0V

Automatic current range switching: 0.00A-9.99A / 10.0A-20.0A
