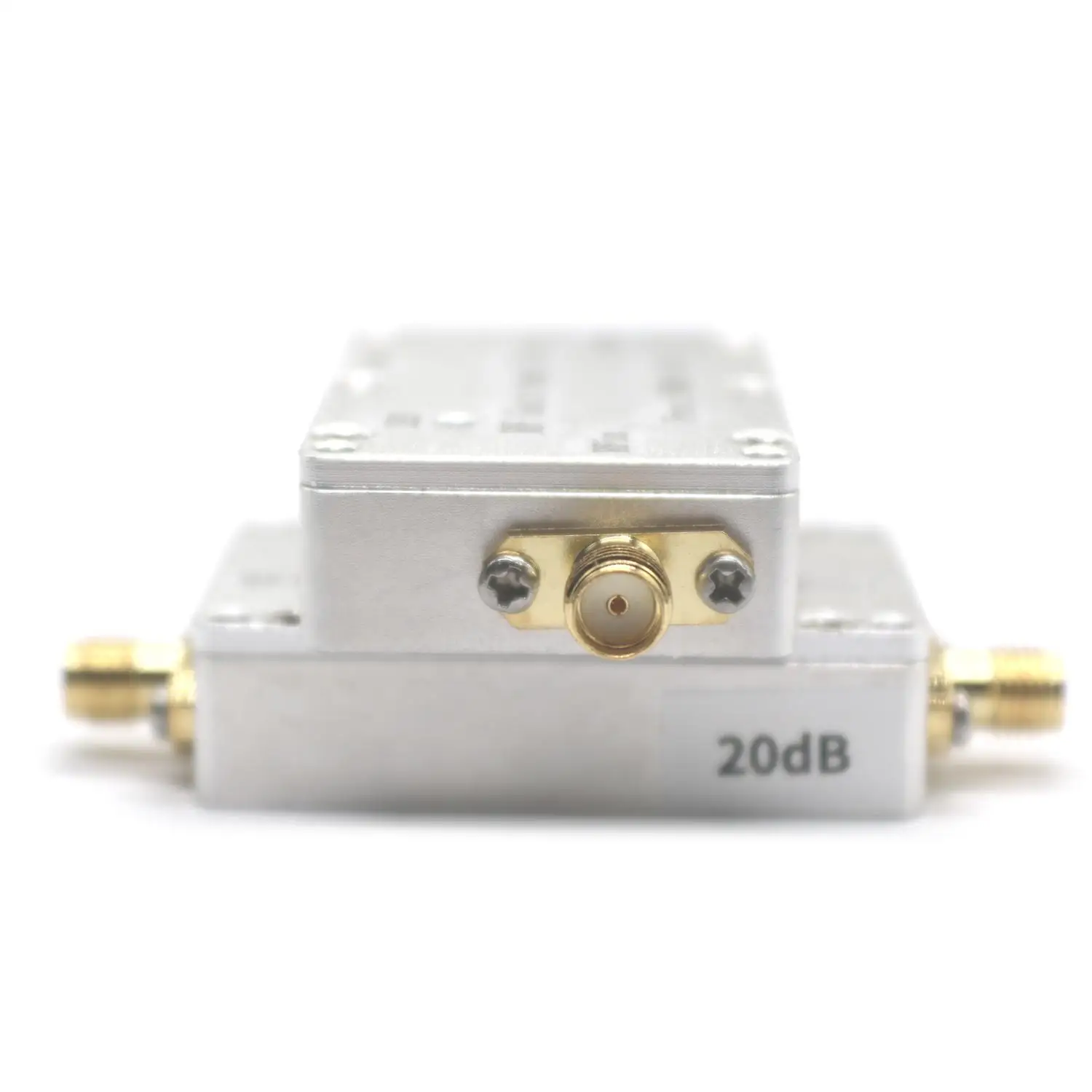

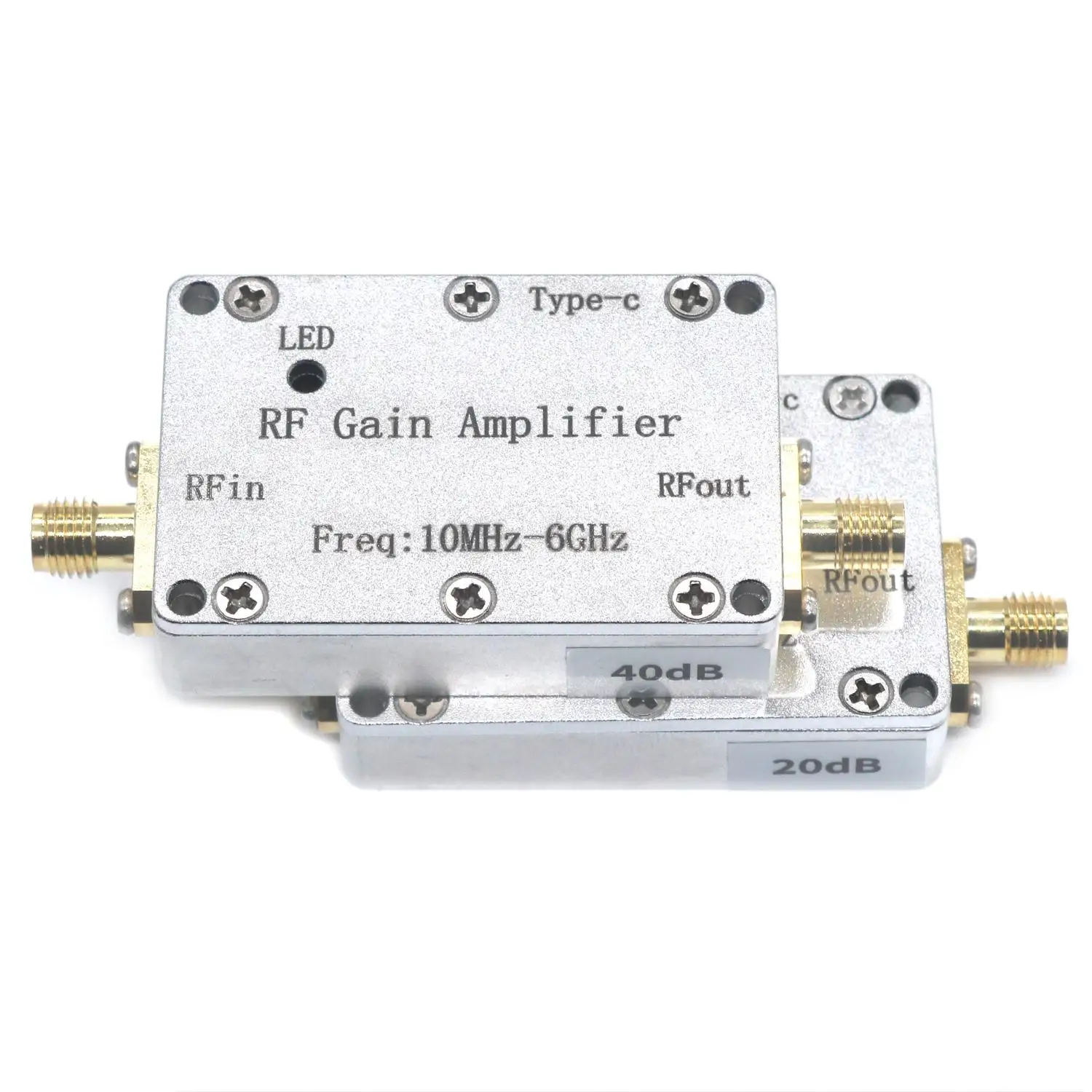

TYPE-C USB POWER 10Mhz-6GHz Ultra Low-Noise Amplifier High Linearity LNA 10DB 20DB 30DB 40DB 50DB GaIN W LED RF Receiver System

10M-6GHz 10db 20dB 30db 40db high flatness RF amplifierTYPE-C USB 10Mhz-6GHz Ultra Low-Noise High Linearity LNA gain amplifier 10DB 20DB 30DB 40DB 50DB FOR

Module parameters:

Working voltage: +5V single power supply;

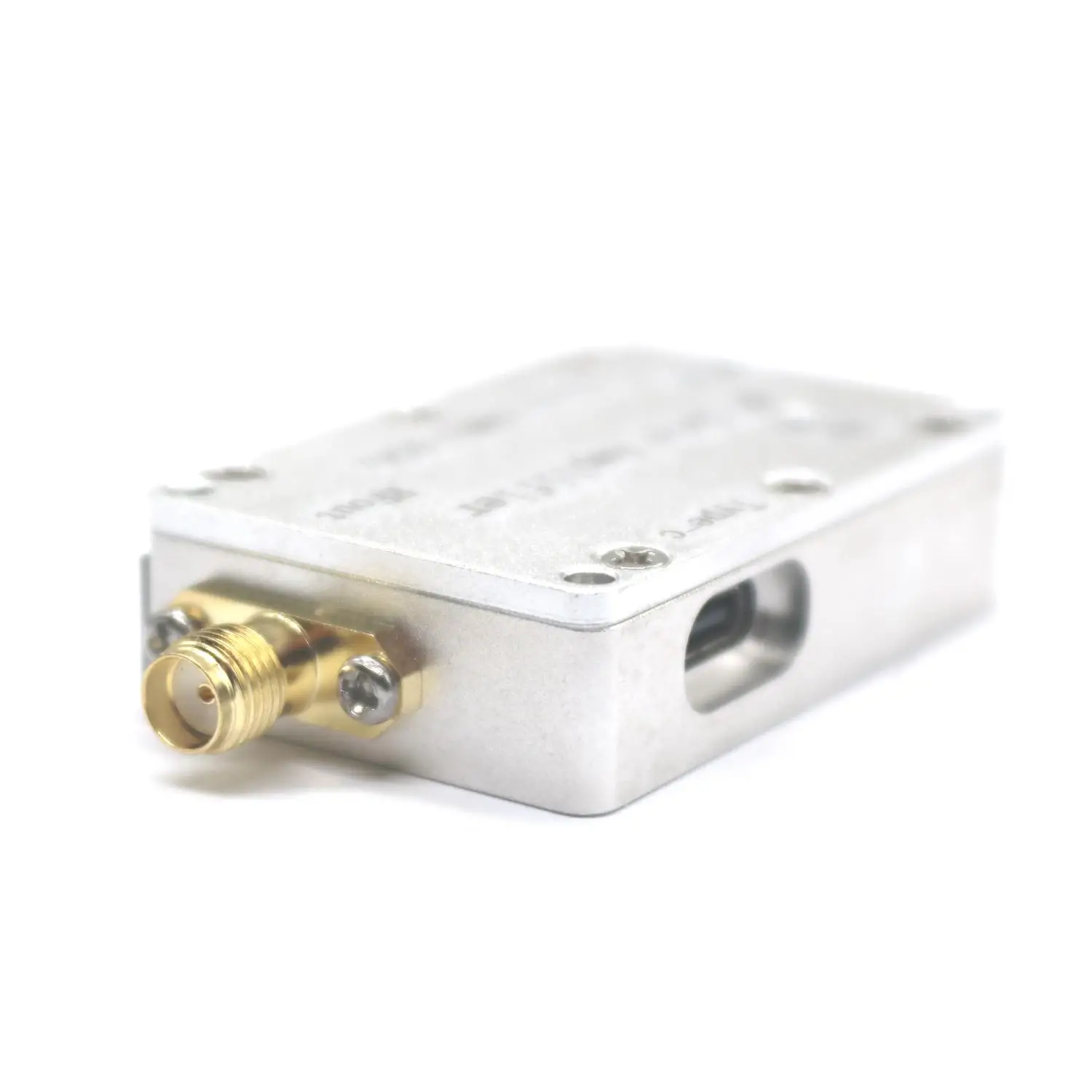

Power interface: Type-c interface;

10db Working current: 50mA

20db Working current: 75mA

30db Working current: 80mA

40db Working current: 80mA

Operating frequency: 10M-6GHz;

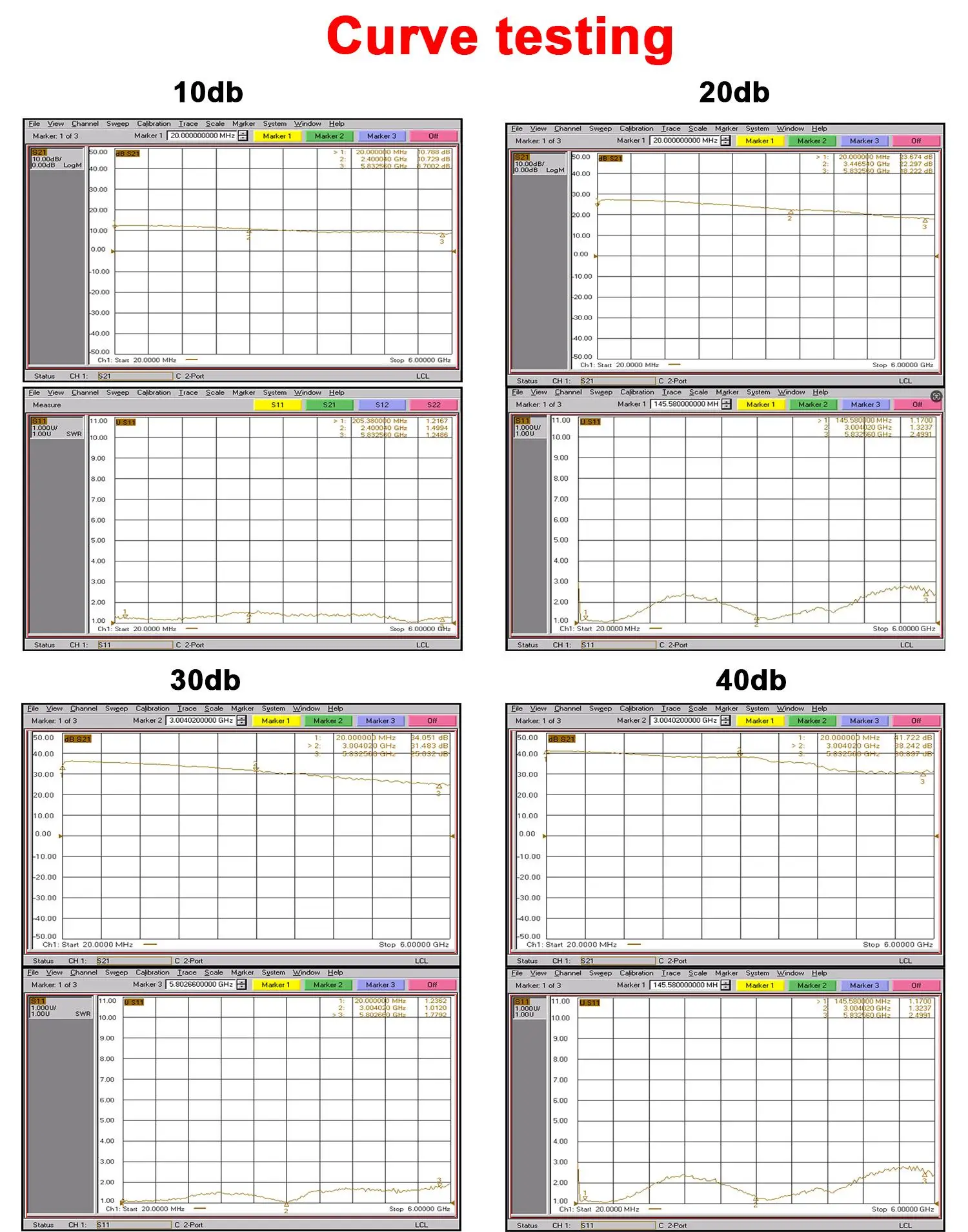

Gain: 10db 20dB 30db 40db typical value (see measured curve);

P1dB output power: 10db +10dBm@2GHz; 20db +12dBm@2GHz; 30db +18dBm@2GHz ； 40db +18dBm@2GHz;

Noise factor: 10db 20db 40db 4.5dB; 30db 4.0db

Input/output interface: SMA(outer screw hole);

Module size: 46*30*12mm (without joint);
